Friedrich
Room Air Conditioner

Model # KQ08J10C-A Official Friedrich air conditioner

Here are the diagrams and repair parts for Official Friedrich KQ08J10C-A air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Air Conditioner Blower Wheel 60610606
#18

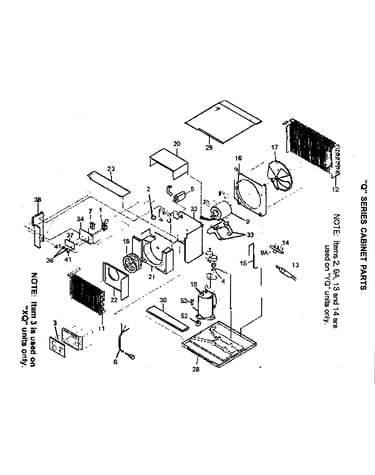

Cabinet/mounting parts diagram

Air conditioner blower wheel

Part #60610606

The manufacturer no longer makes this part, and there's no substitute part

Complete Grommet 61028900
#52

Cabinet/mounting parts diagram

Complete grommet

Part #61028900

The manufacturer no longer makes this part, and there's no substitute part

Channel Si 61627201
#52

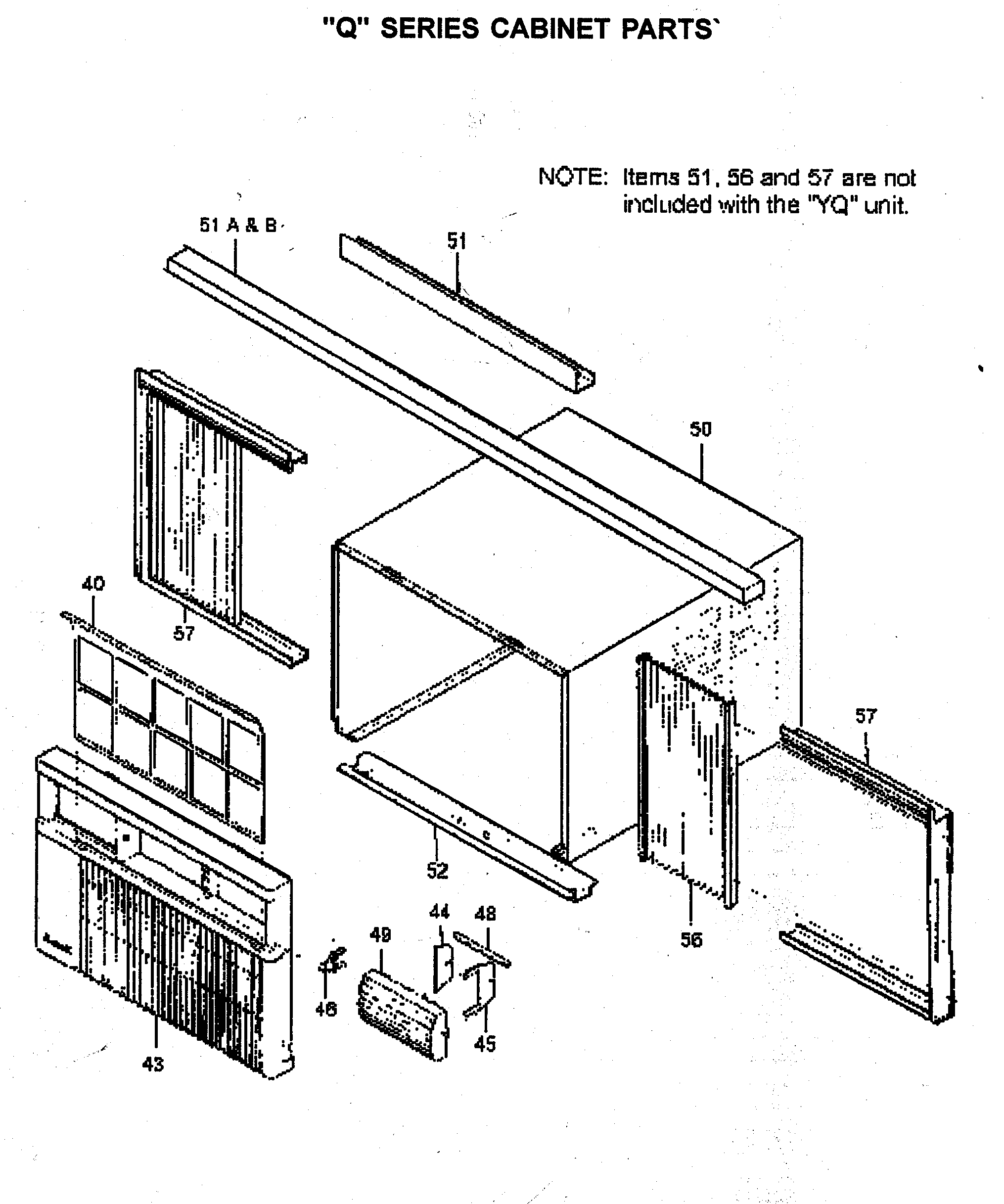

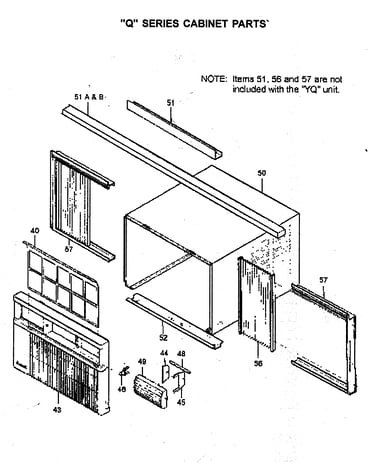

Chassis parts diagram

Channel si

Part #61627201

The manufacturer no longer makes this part, and there's no substitute part

Mount 61776903
#33

Cabinet/mounting parts diagram

Mount

Part #61776903

The manufacturer no longer makes this part, and there's no substitute part

Gasket,cha 61717300
#51A

Chassis parts diagram

Gasket,cha

Part #61717300

The manufacturer no longer makes this part, and there's no substitute part

Replmnt Co 61985100
#10

Cabinet/mounting parts diagram

Replmnt co

Part #61985100

The manufacturer no longer makes this part, and there's no substitute part

Wrapper Bl 61633300
#21

Cabinet/mounting parts diagram

Wrapper bl

Part #61633300

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Blower Cover 61633101
#20

Cabinet/mounting parts diagram

Air conditioner blower cover

Part #61633101

The manufacturer no longer makes this part, and there's no substitute part

Holder/ T- 61900500
#NI

Cabinet/mounting parts diagram

Holder/ t-

Part #61900500

The manufacturer no longer makes this part, and there's no substitute part

Louver 61626704
#44

Chassis parts diagram

Louver

Part #61626704

The manufacturer no longer makes this part, and there's no substitute part
