An Icp gas furnace model NUGE125KH02 usually won’t ignite because the ignition sequence is being interrupted: no call for heat, no power, a safety switch is open, or a component like the igniter, flame sensor, pressure switch, or inducer system is not proving safe ignition.

Quick checks we recommend first

• Confirm the thermostat is set to HEAT and the setpoint is above room temperature.
• Replace a dirty air filter; restricted airflow can trip safety limits.
• Make sure the furnace switch is ON and the circuit breaker is not tripped.
• Verify the gas shutoff valve is open (handle parallel to the gas pipe).
• If the furnace has a viewing window, note whether you see an igniter glow or hear a click.

What the symptoms usually point to

What you notice	Most common cause	What to do next
Inducer runs, then shuts down before ignition	Draft proving issue	Check venting and consider testing the furnace vent air pressure switch 10002051
Igniter glows, burners light briefly, then go out	Flame not being sensed	Clean flame sensor (lightly) and check grounding and wiring
No inducer, no ignition attempt	Power or control issue	Check breaker, door switch, and low-voltage thermostat wiring
Inducer runs but no ignition sound/glow	Ignition component or control problem	Inspect igniter wiring and connections; check for error light codes

Parts that commonly relate to “no ignition” complaints

These are model-related parts we often see involved when the ignition sequence cannot complete:

• Furnace vent air pressure switch 10002051 (proves inducer draft before ignition)
• Tube sensor 1003687 (temperature or sensing input that can affect safe operation)
• Capacitor 12907 (can contribute to motor starting issues on some systems)

Why it matters

A furnace that won’t ignite is often doing its job by stopping the cycle when it cannot confirm safe airflow, venting, flame, or electrical conditions. Correctly identifying where the ignition sequence stops helps prevent repeated lockouts and protects key components like the gas valve and control board.

Last updated: January 2026

Yes. An Icp gas furnace like model NUGE125KH02 can run without a standing pilot light; many furnaces use electronic ignition that lights the burners only when the thermostat calls for heat. That design saves gas and improves safety compared to an always-on pilot.

How furnaces ignite without a pilot light

Most modern gas furnaces use one of these ignition methods:

• Hot surface igniter (HSI): a glow element heats up and lights the gas
• Intermittent spark ignition: a spark lights the burners when heat is requested
• Direct spark to burner: spark lights gas at the burner assembly

If your furnace has no visible pilot flame, it is typically working as designed.

What you can check safely (no disassembly)

Before assuming a failure, we recommend these quick checks:

• Set the thermostat to Heat and raise the setpoint 3 to 5 degrees
• Confirm the furnace switch is ON and the circuit breaker is not tripped
• Replace the air filter if airflow is restricted (overheating can stop ignition)
• Listen for the normal sequence: inducer motor, click, ignition, burner flame, blower
• If the blower runs but there is no heat, note any LED blink code on the control board door

For electrical testing (like verifying 24 VAC control power), use a meter and follow safe practices in our how to use a multimeter to test electrical parts video.

When a “no pilot light” complaint is really a part problem

Electronic ignition systems still rely on several components to prove draft and flame. Common suspects include:

Symptom	Common cause	Example part on this model page
Inducer runs, burners never light	Draft not proven	Furnace vent air pressure switch 10002051
Furnace starts then shuts down quickly	Flame not proven or unstable combustion	(inspection and cleaning often needed)
Blower runs, weak airflow, overheating	Blower wheel dirty or damaged	Furnace blower fan wheel 600586

Why it matters

A standing pilot wastes gas because it burns continuously. Electronic ignition lights only when needed, which improves efficiency and reduces the chance of pilot-related outages.

Last updated: January 2026

For a 2,000 sq ft home, most gas furnaces land in the 60,000 to 100,000 BTU range, but the right size depends on climate, insulation, windows, and ductwork. For an Icp gas furnace like NUGE125KH02, we recommend sizing by a Manual J load calculation to avoid comfort and efficiency problems.

Quick sizing ranges (typical)

Use these as a starting point, then confirm with a load calculation.

• Mild climates: 60,000 to 80,000 BTU
• Mixed/average climates: 70,000 to 90,000 BTU
• Cold climates: 90,000 to 110,000+ BTU
• Tighter, well-insulated homes: lower end of the range
• Older, drafty homes: higher end of the range

Why Manual J matters (and what can go wrong)

A furnace that is too large can short-cycle (turn on and off frequently), which reduces comfort and can increase wear on parts like the blower system and ignition components. A furnace that is too small can run constantly and still struggle to maintain temperature.

Common symptoms of incorrect sizing

• Rooms that heat unevenly
• Frequent cycling and noisy starts
• High gas bills without better comfort
• Excessively hot supply air, then cool swings

What to check before choosing BTUs

These details change the load more than square footage alone:

• Your ZIP code/climate zone and typical winter lows
• Insulation levels (attic, walls, basement)
• Window type and amount of glass
• Air leakage (drafts, recessed lights, attic bypasses)
• Duct sizing, leakage, and return-air capacity

Simple reference table (rule-of-thumb only)

Home condition	Typical BTU per sq ft	2,000 sq ft estimate
Tight, newer construction	30 to 35	60,000 to 70,000
Average insulation	35 to 45	70,000 to 90,000
Older/drafty	45 to 55	90,000 to 110,000

Why it matters for repairs and parts

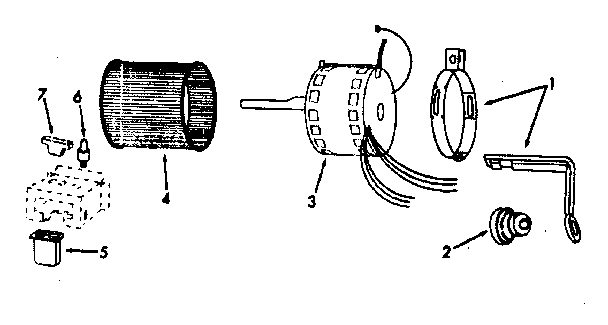

When a furnace is oversized or airflow is restricted, the blower and venting system can be stressed. If you are troubleshooting airflow or cycling issues on NUGE125KH02, inspecting the blower assembly and related components is a practical first step, including the blower motor 45460 and furnace vent air pressure switch 10002051.
