Bosch HBL8750UC/03 built-in oven with microwave Parts

Here are the diagrams and repair parts for Bosch HBL8750UC/03 built-in oven with microwave, as well as links to manuals and error code tables, if available.

Bosch HBL8750UC/03 built-in oven with microwave
By Schematic

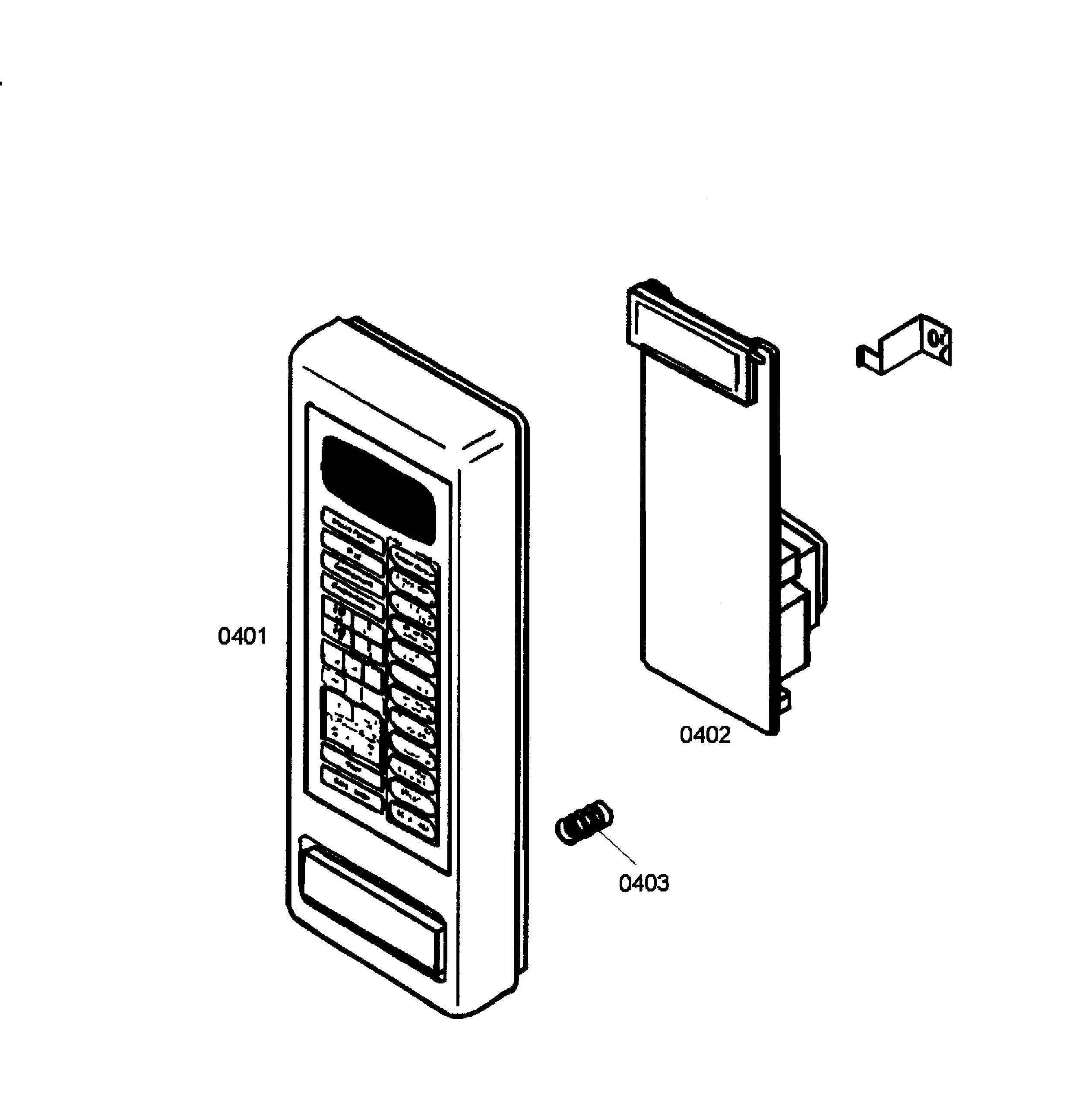

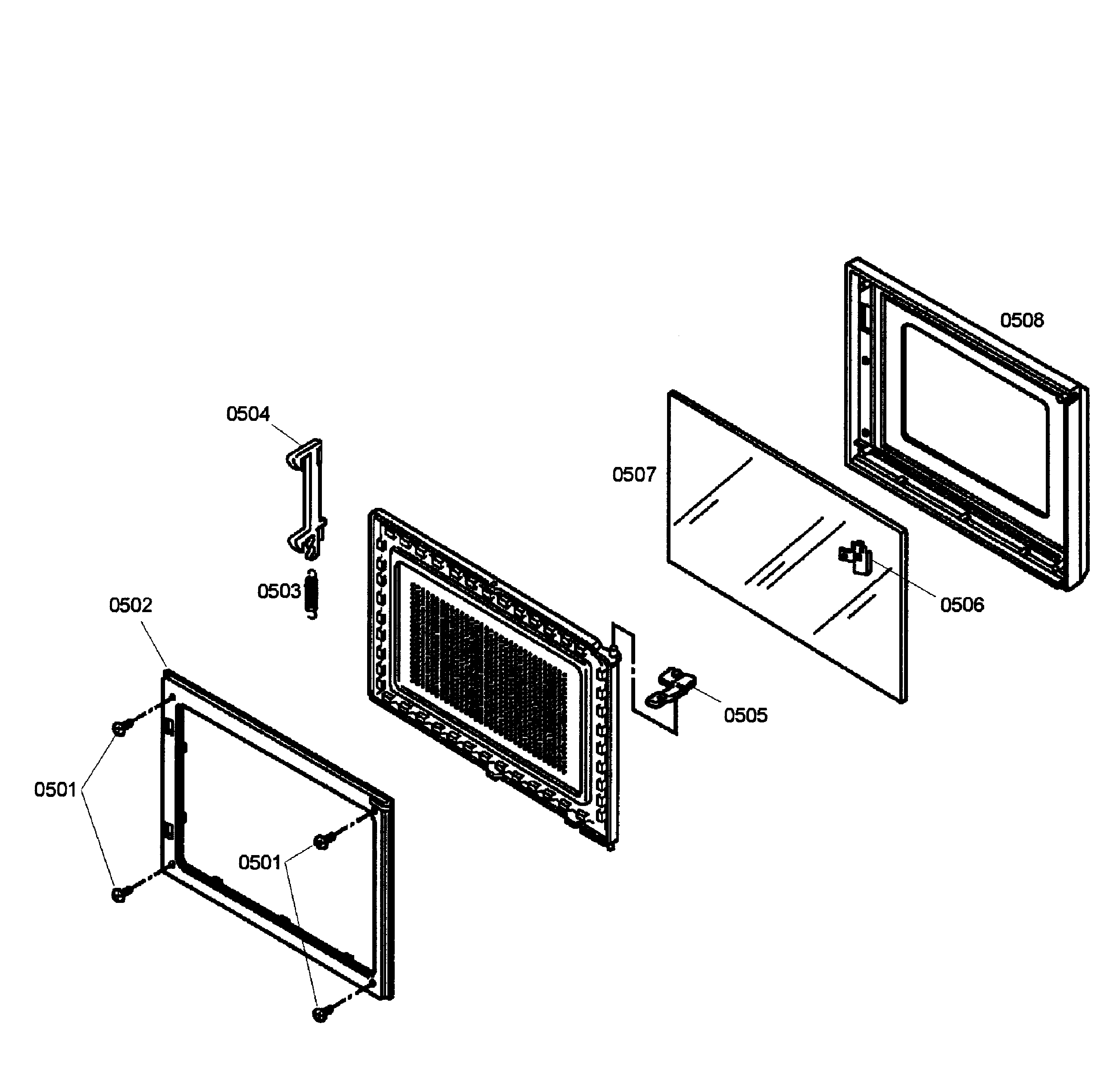

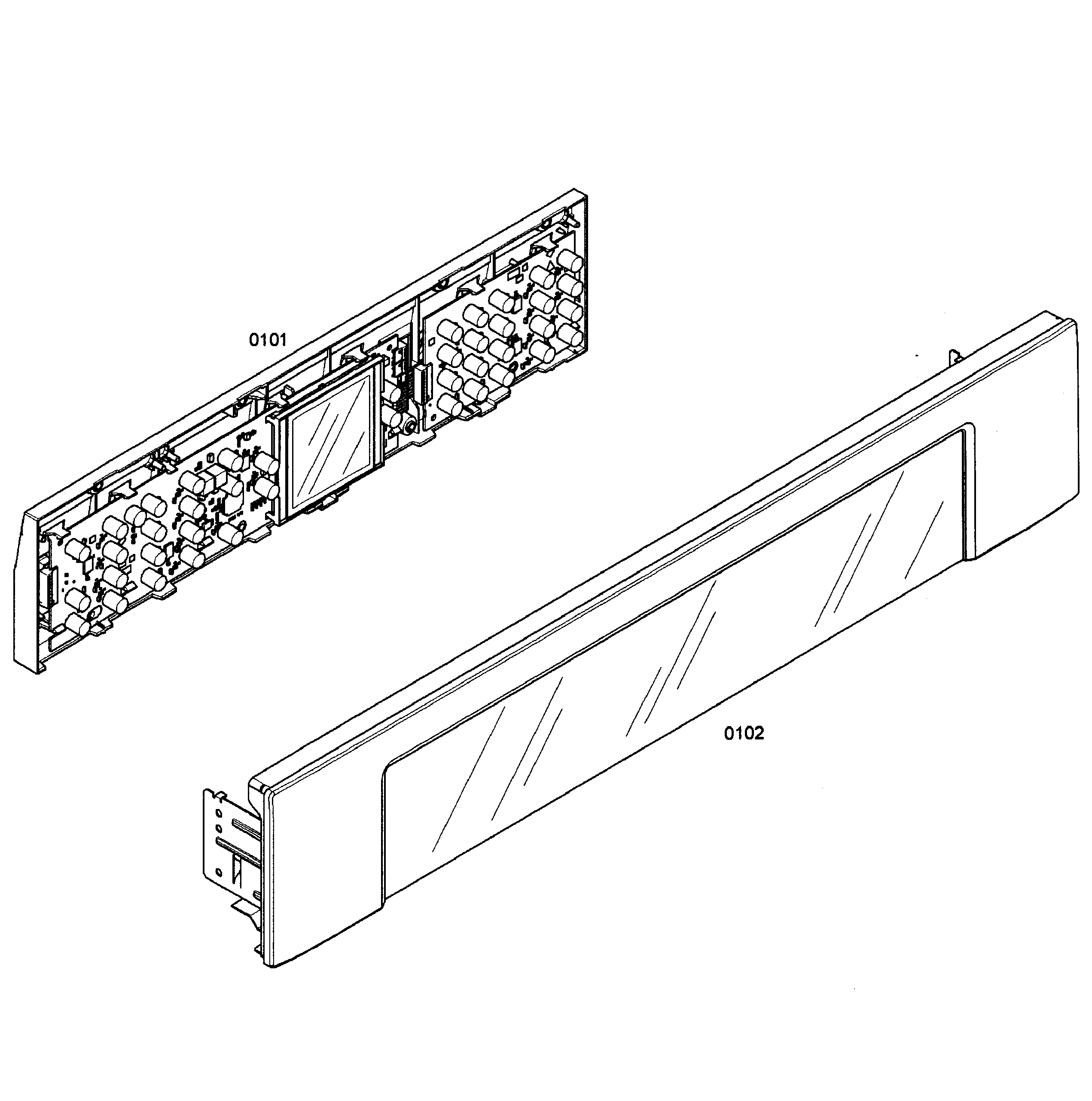

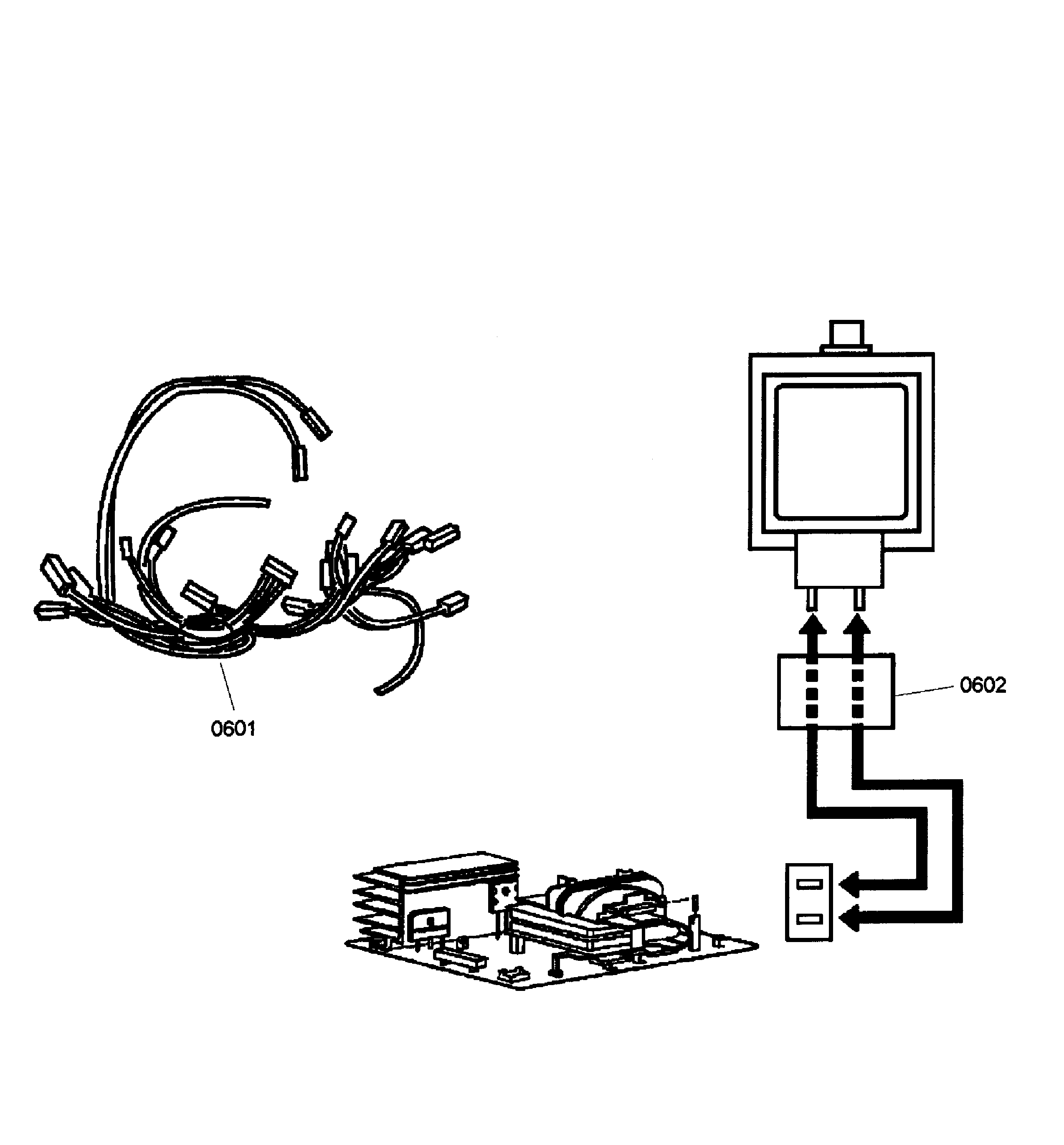

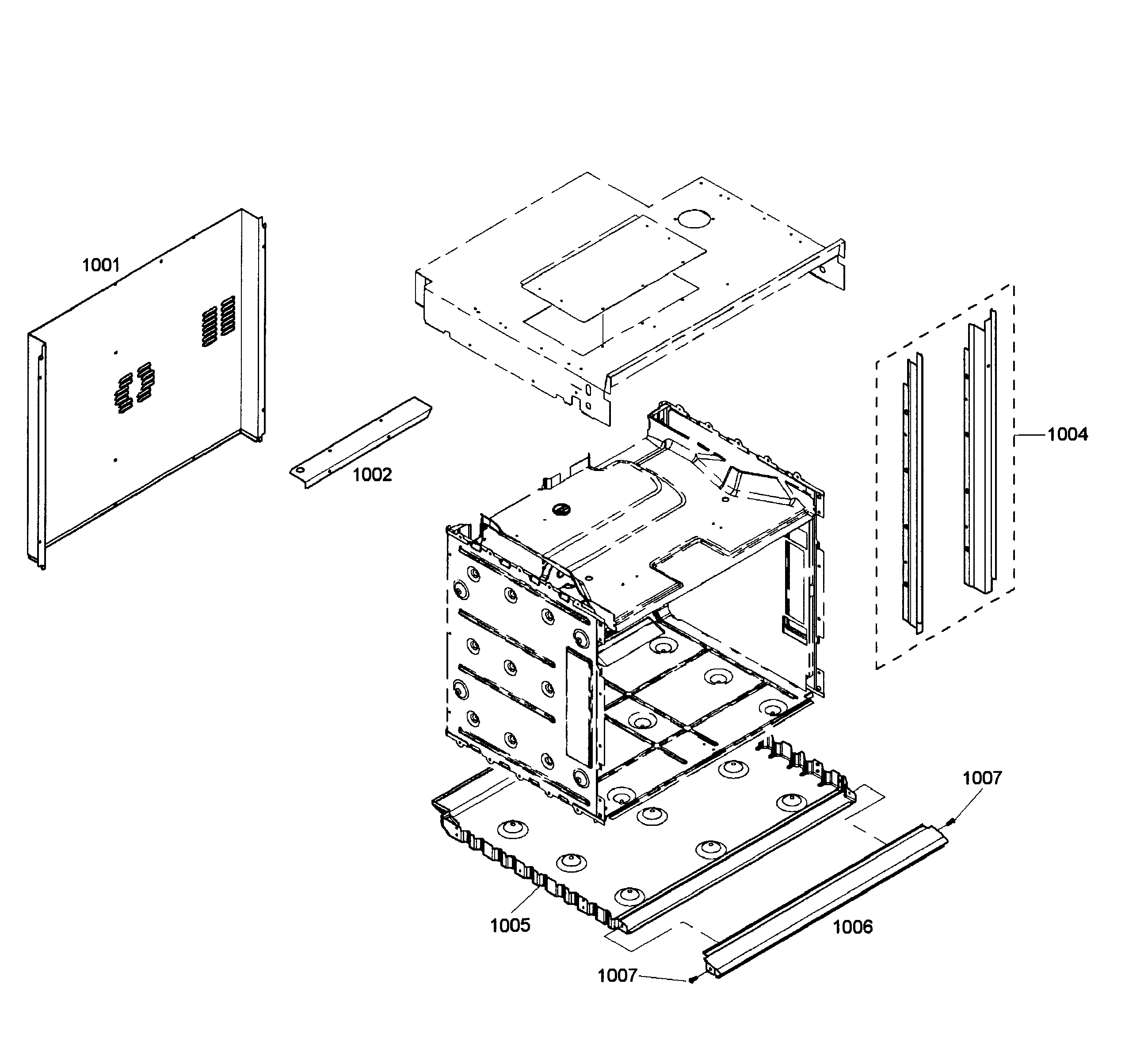

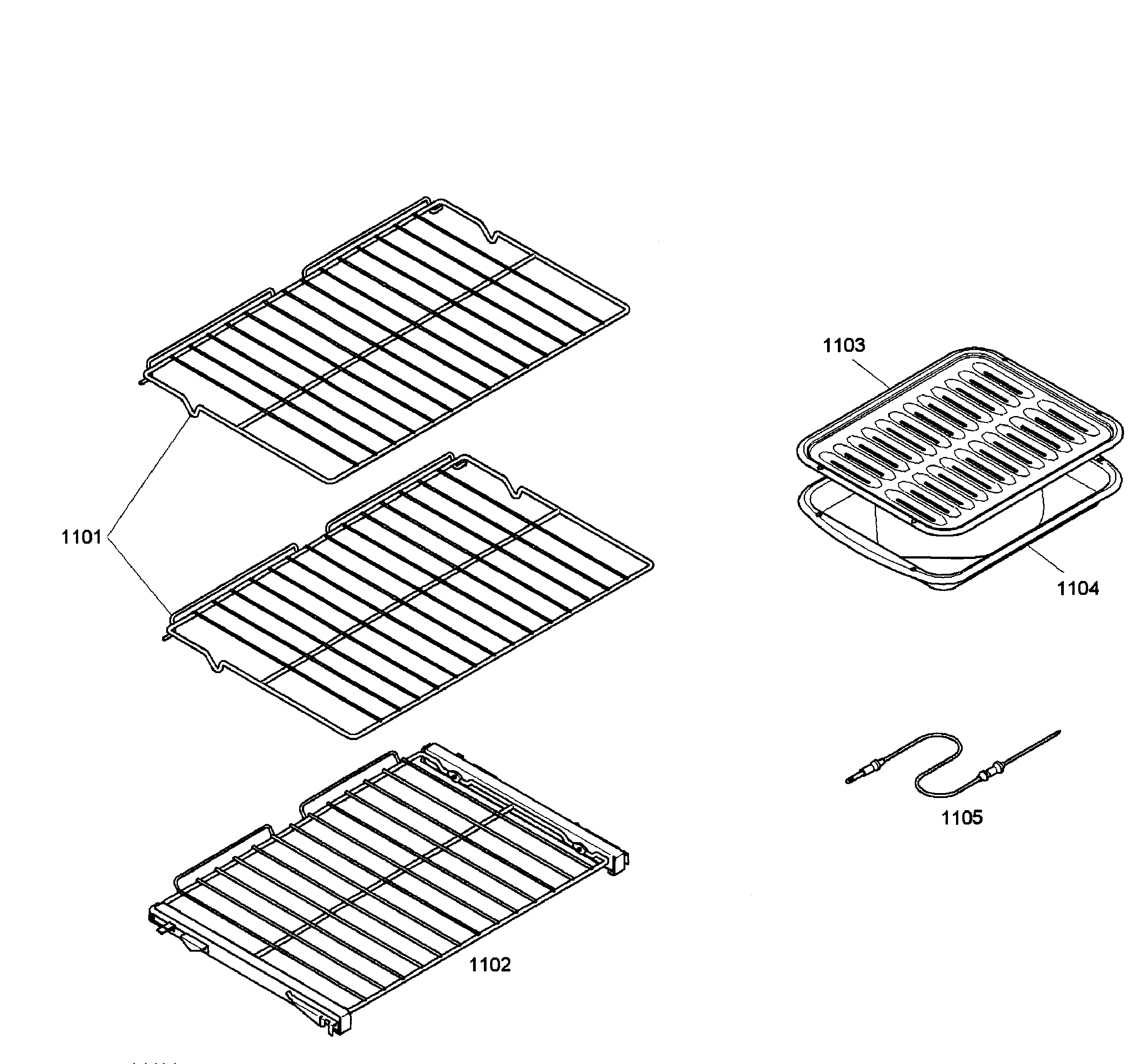

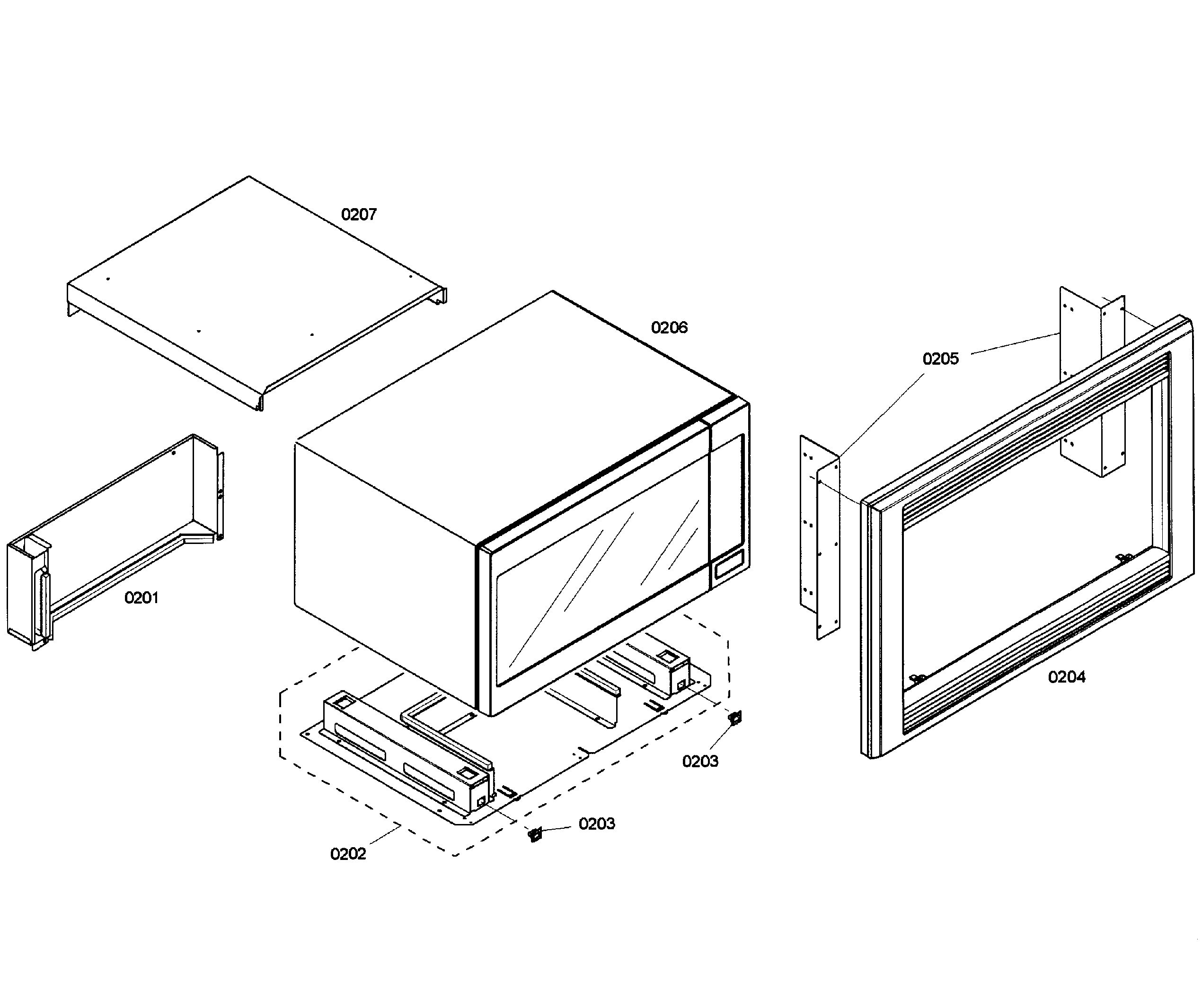

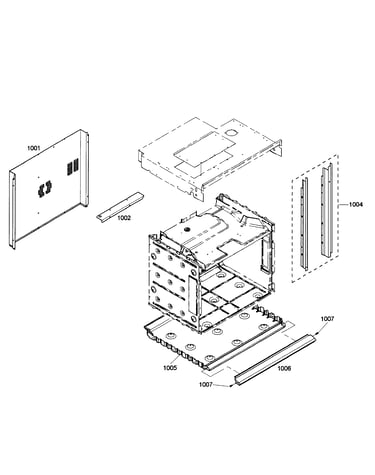

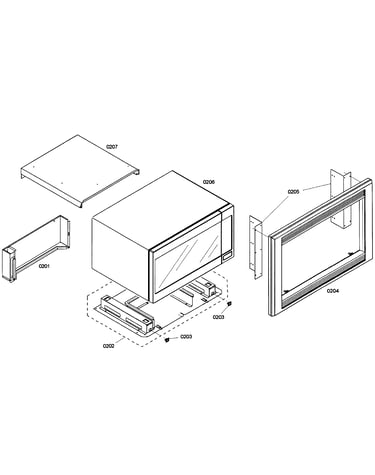

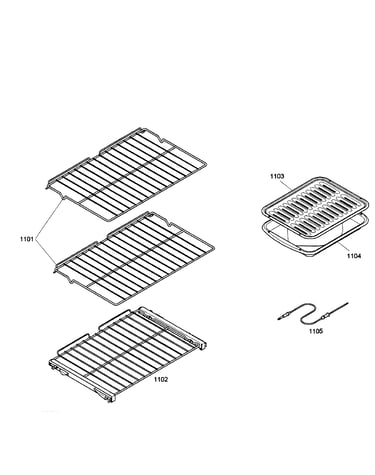

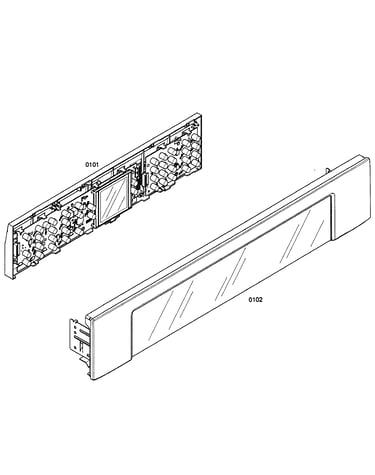

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for HBL8750UC/03 Built-In Oven with Microwave

  • Thermador Microwave Fuse for Bosch HBL8750UC/03 - Part 00413608

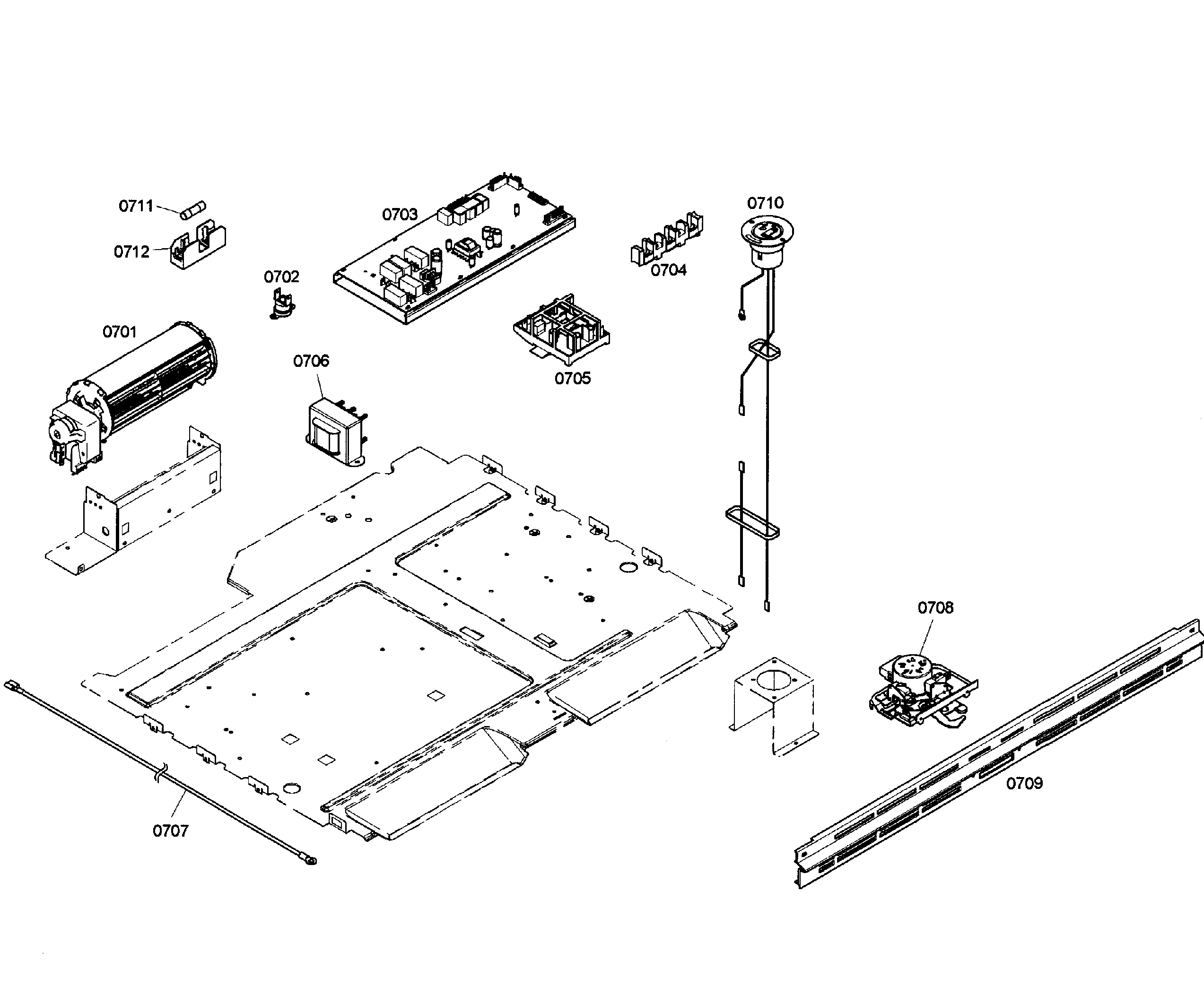

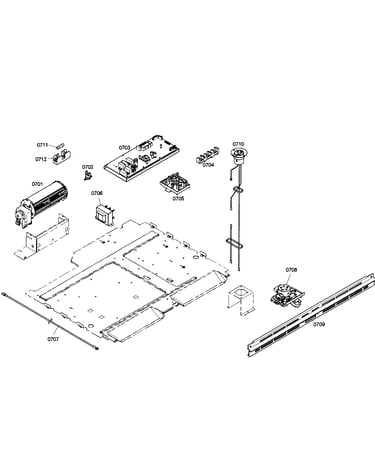

    Pcb's assy diagram

    Fuse

    Part #413608

    Replaced by #00413608

    Info Icon
    Manufacturer substitution
    This part replaces 413608. Substitute parts can look different from the original.
    In Stock
    $101.13
    Minus Item
    Qty
    Plus Item
  • Bosch Microwave Fuse for Bosch HBL8750UC/03 - Part 00608377

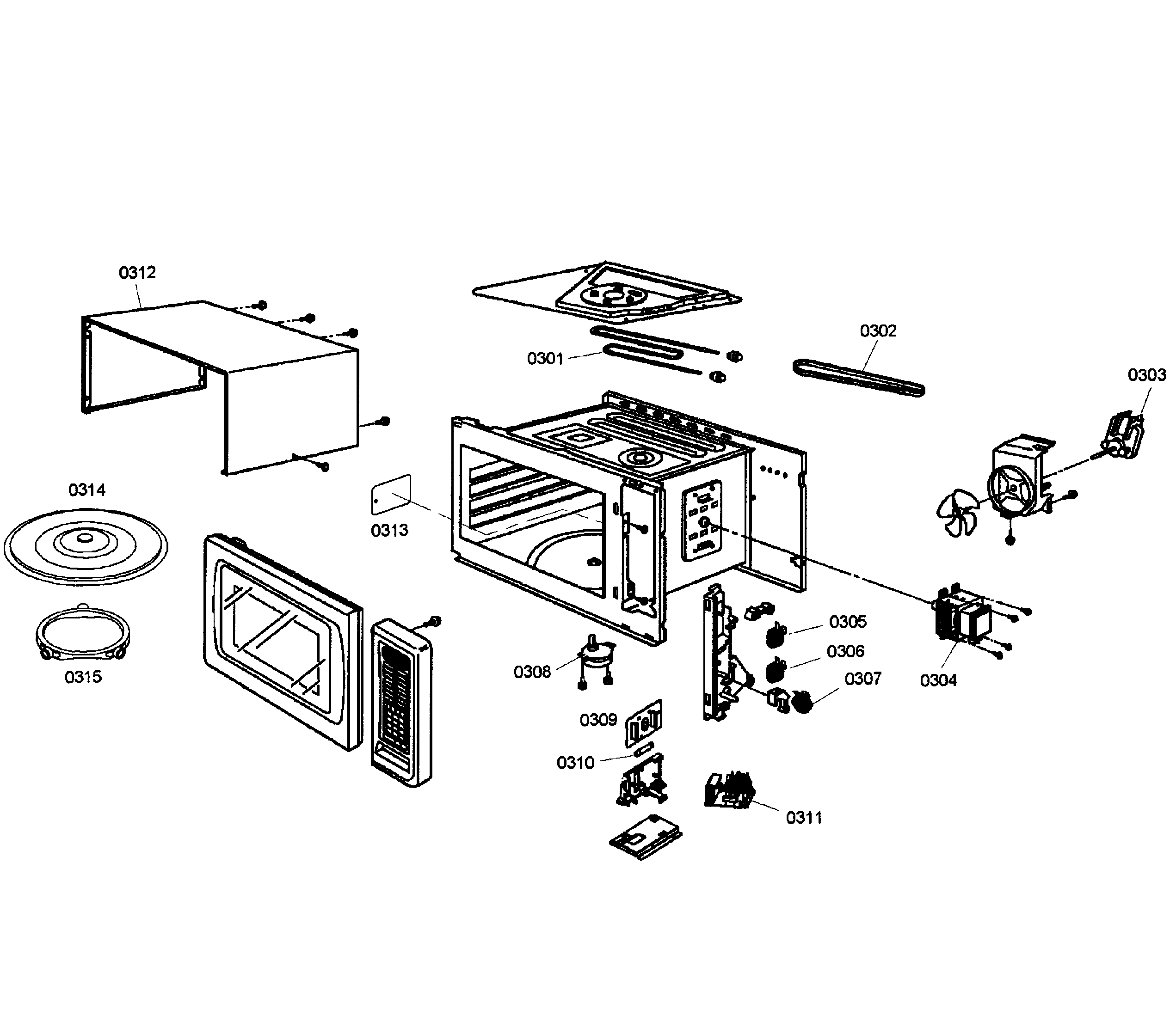

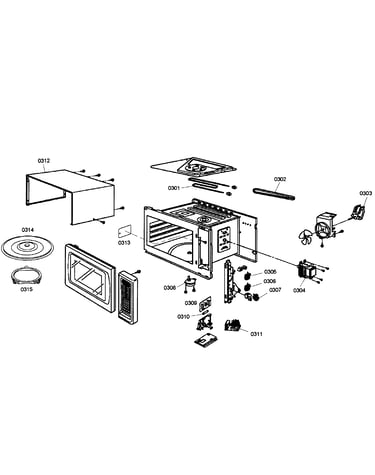

    Microwave diagram

    Fuse

    Part #608377

    Replaced by #00608377

    Info Icon
    Manufacturer substitution
    This part replaces 608377. Substitute parts can look different from the original.
    In Stock
    $107.59
    Minus Item
    Qty
    Plus Item
  • Thermador Wall Oven Broil Element for Bosch HBL8750UC/03 - Part 00144648

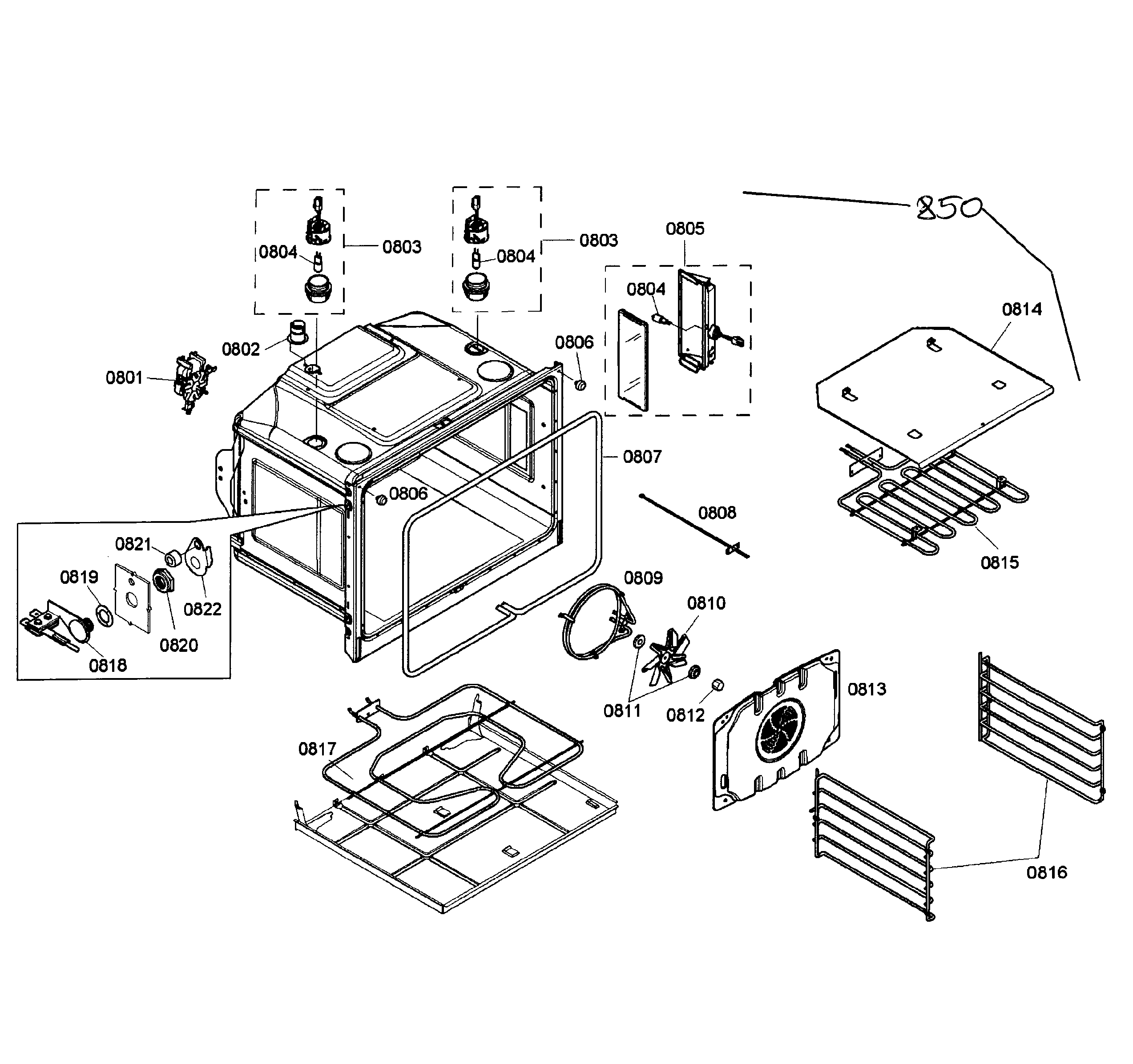

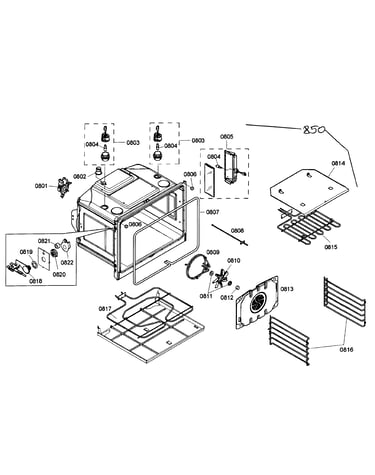

    Oven assy diagram

    Element

    Part #144648

    Replaced by #00144648

    Info Icon
    Manufacturer substitution
    This part replaces 144648. Substitute parts can look different from the original.
    In Stock
    $114.05
    Minus Item
    Qty
    Plus Item
  • Wall Oven Door Lock Assembly for Bosch HBL8750UC/03 - Part 00751505

    Pcb's assy diagram

    Latch

    Part #644216

    Replaced by #00751505

    Info Icon
    Manufacturer substitution
    This part replaces 644216. Substitute parts can look different from the original.
    In Stock
    $171.34
    7% OFF Phone Price : $183.34Info Icon
    Minus Item
    Qty
    Plus Item
  • Thermador Wall Oven Temperature Sensor for Bosch HBL8750UC/03 - Part 00642855

    Oven assy diagram

    Sensor

    Part #642855

    Replaced by #00642855

    Info Icon
    Manufacturer substitution
    This part replaces 642855. Substitute parts can look different from the original.
    In Stock
    $80.00
    7% OFF Phone Price : $86.00Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Broil Element for Bosch HBL8750UC/03 - Part 00144667

    Oven assy diagram

    Element

    Part #144667

    Replaced by #00144667

    Info Icon
    Manufacturer substitution
    This part replaces 144667. Substitute parts can look different from the original.
    In Stock
    $143.99
    8% OFF Phone Price : $155.99Info Icon
    Minus Item
    Qty
    Plus Item
  • Thermador Wall Oven Cooling Fan Assembly for Bosch HBL8750UC/03 - Part 00643600

    Pcb's assy diagram

    Fan

    Part #643600

    Replaced by #00643600

    Info Icon
    Manufacturer substitution
    This part replaces 643600. Substitute parts can look different from the original.
    In Stock
    $287.65
    $12.00 OFF Phone Price : $299.65Info Icon
    Minus Item
    Qty
    Plus Item
  • Screw for Bosch HBL8750UC/03 - Part 00189345

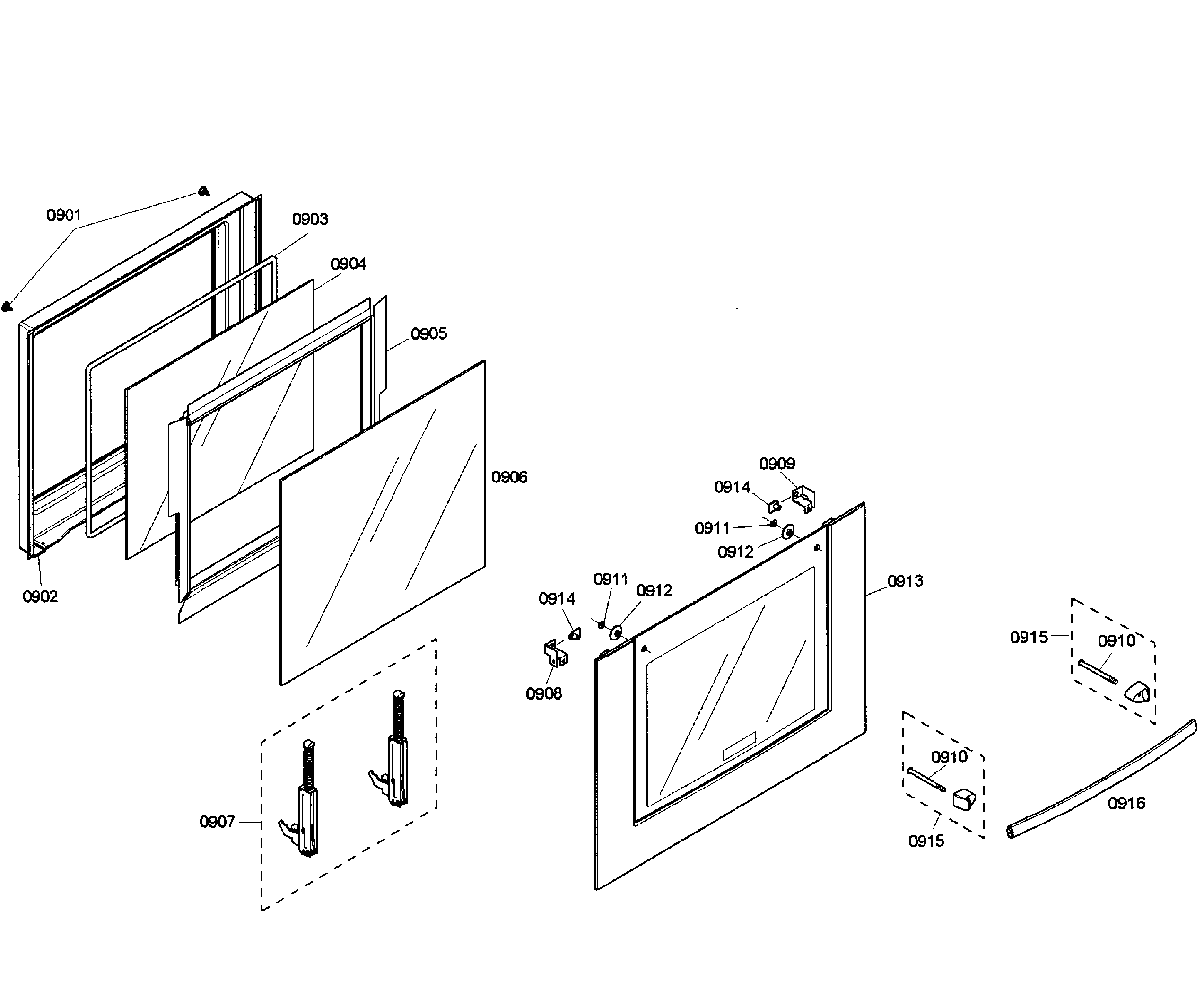

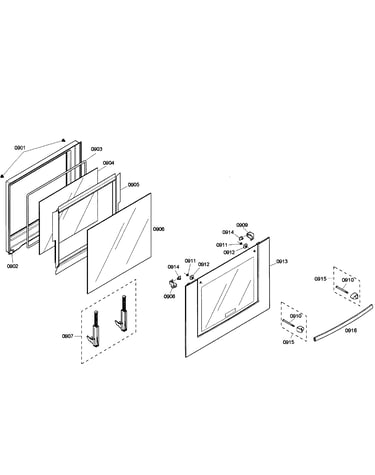

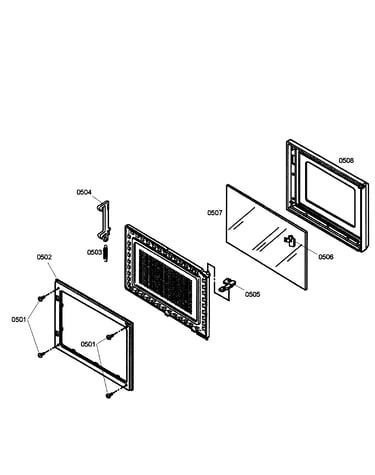

    Oven door diagram

    Screw

    Part #189345

    Replaced by #00189345

    Info Icon
    Manufacturer substitution
    This part replaces 189345. Substitute parts can look different from the original.
    In Stock
    $32.94
    15% OFF Phone Price : $38.94Info Icon
    Minus Item
    Qty
    Plus Item
  • Magnetron for Bosch HBL8750UC/03 - Part 643064

    Microwave diagram

    Magnetron

    Part #643064

    The manufacturer no longer makes this part, and there's no substitute part

  • Motor for Bosch HBL8750UC/03 - Part 643056

    Microwave diagram

    Motor

    Part #643056
    In Stock
    $195.10
    Minus Item
    Qty
    Plus Item
