Whirlpool
Room Air Conditioner

Model #RE183A Official Whirlpool air conditioner

Here are the diagrams and repair parts for Whirlpool RE183A air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

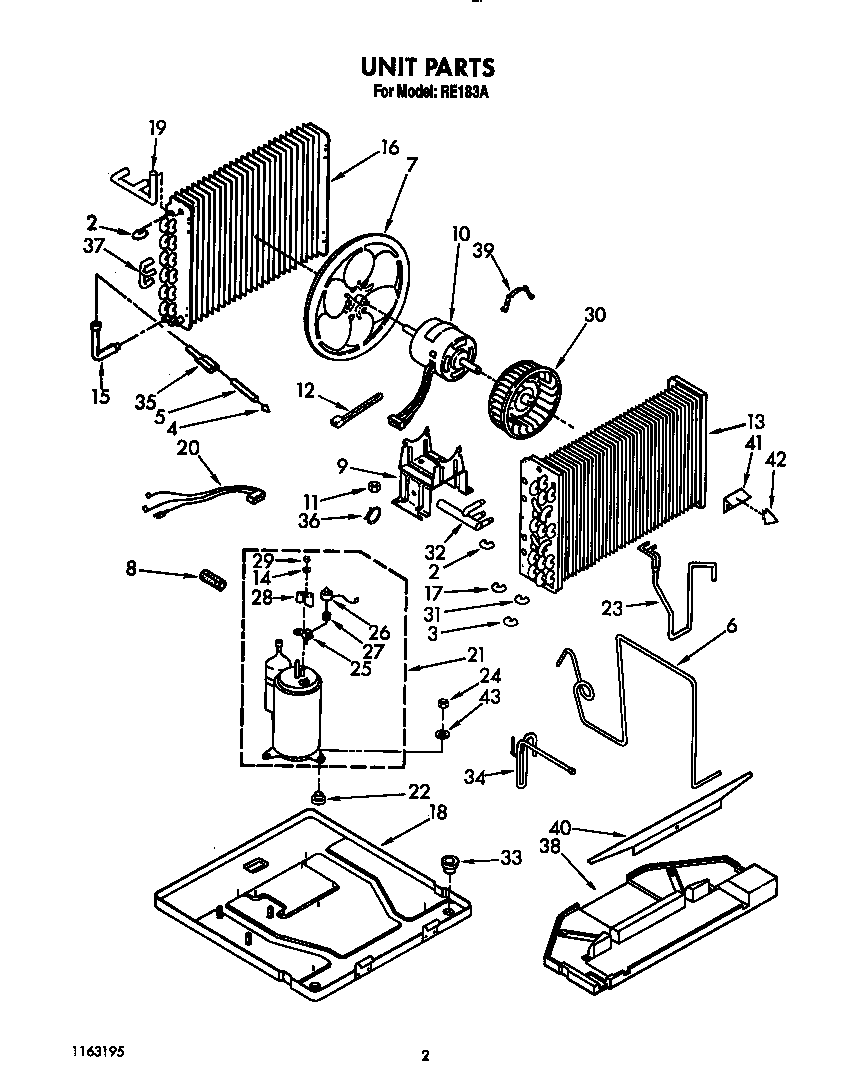

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 173 parts

    Appliance Screw

    See All Related Diagrams

    Refrigerator screw

    Part #1157158
    Replaced by #WP489069
    ?
    Manufacturer substitution
    This part replaces 1157158. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.39 |
    19% OFF
    Phone Price: $5.39
    Refrigerator Service Valve, 3/4-in#6G

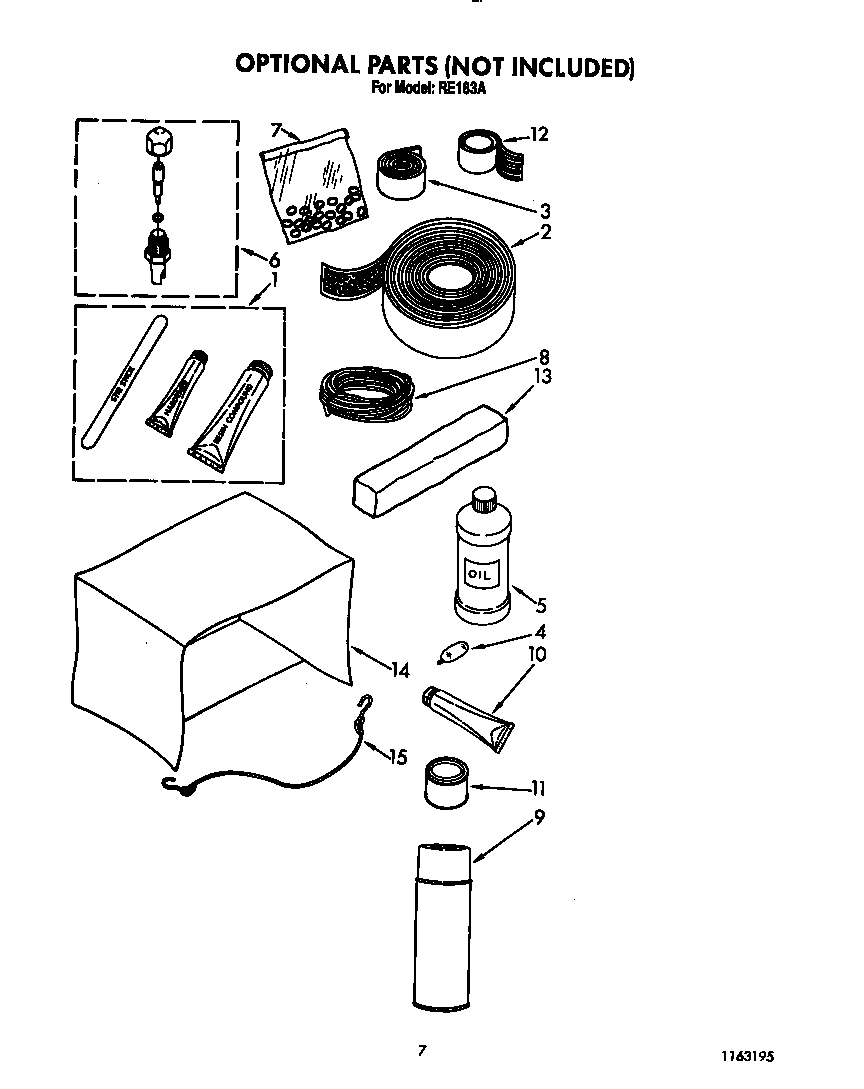

    Optional (not included) Diagram

    Valve kit

    Part #978030
    Replaced by #978030
    ?
    Manufacturer substitution
    This part replaces 978030. Substitute parts can look different from the original.
    In Stock
    $40.49 |
    11% OFF
    Phone Price: $45.49
    Refrigerator Service Valve#6A

    Optional (not included) Diagram

    Valve

    Part #876764
    Replaced by #876764
    ?
    Manufacturer substitution
    This part replaces 876764. Substitute parts can look different from the original.
    In Stock
    $17.40 |
    47% OFF
    MSRP: $33.00
    Control Knob#45

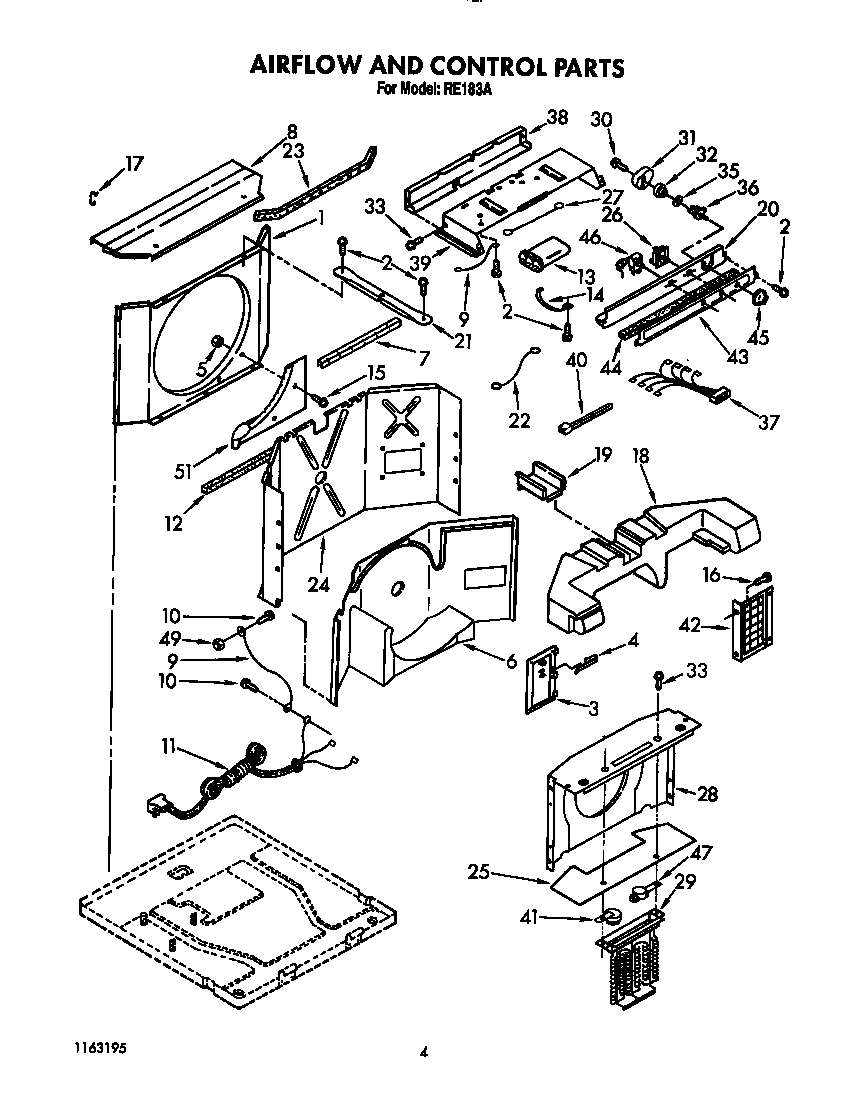

    Air flow and control Diagram

    Control knob

    Part #1158054
    Replaced by #WP1158054
    ?
    Manufacturer substitution
    This part replaces 1158054. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.49 |
    13% OFF
    Phone Price: $7.49
    Flat Washer, 8-pack#7

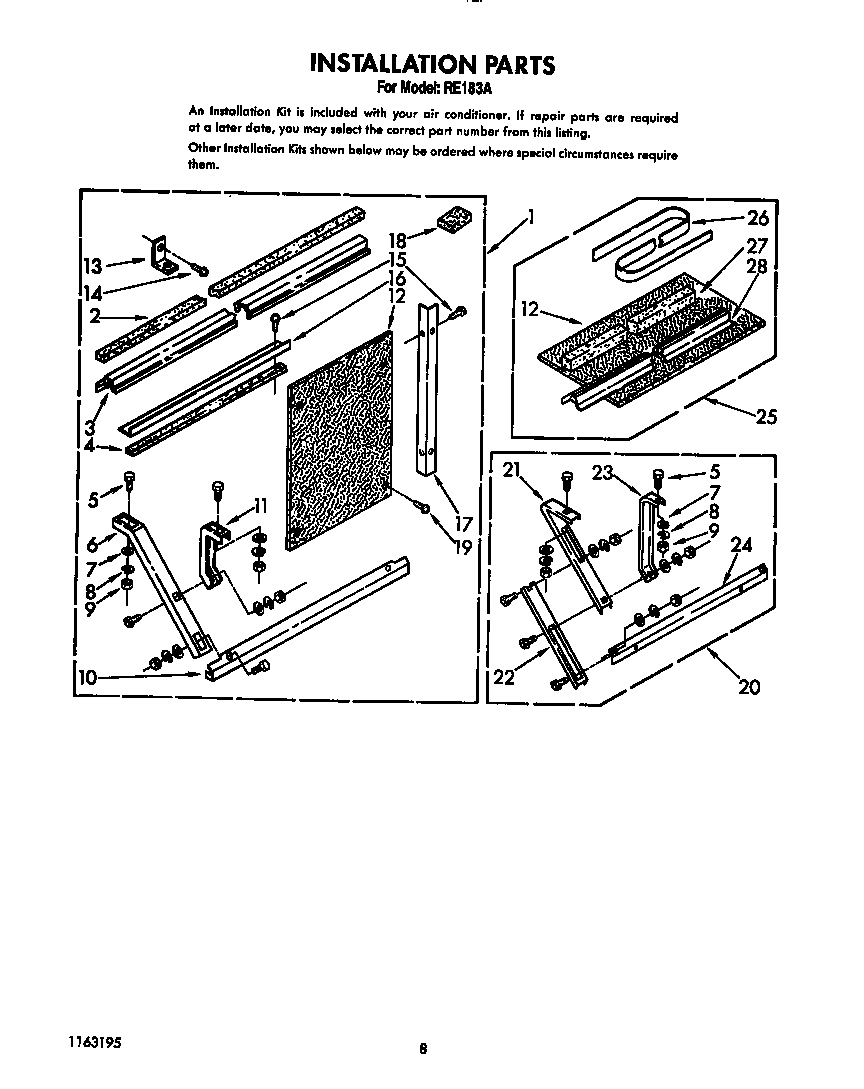

    Installation parts Diagram

    Washer

    Part #488808
    Replaced by #STD551031
    ?
    Manufacturer substitution
    This part replaces 488808. Substitute parts can look different from the original.
    This item is not returnable
    Back Order
    $1.49 |
    40% OFF
    Phone Price: $2.49
    Room Air Conditioner Air Filter#29

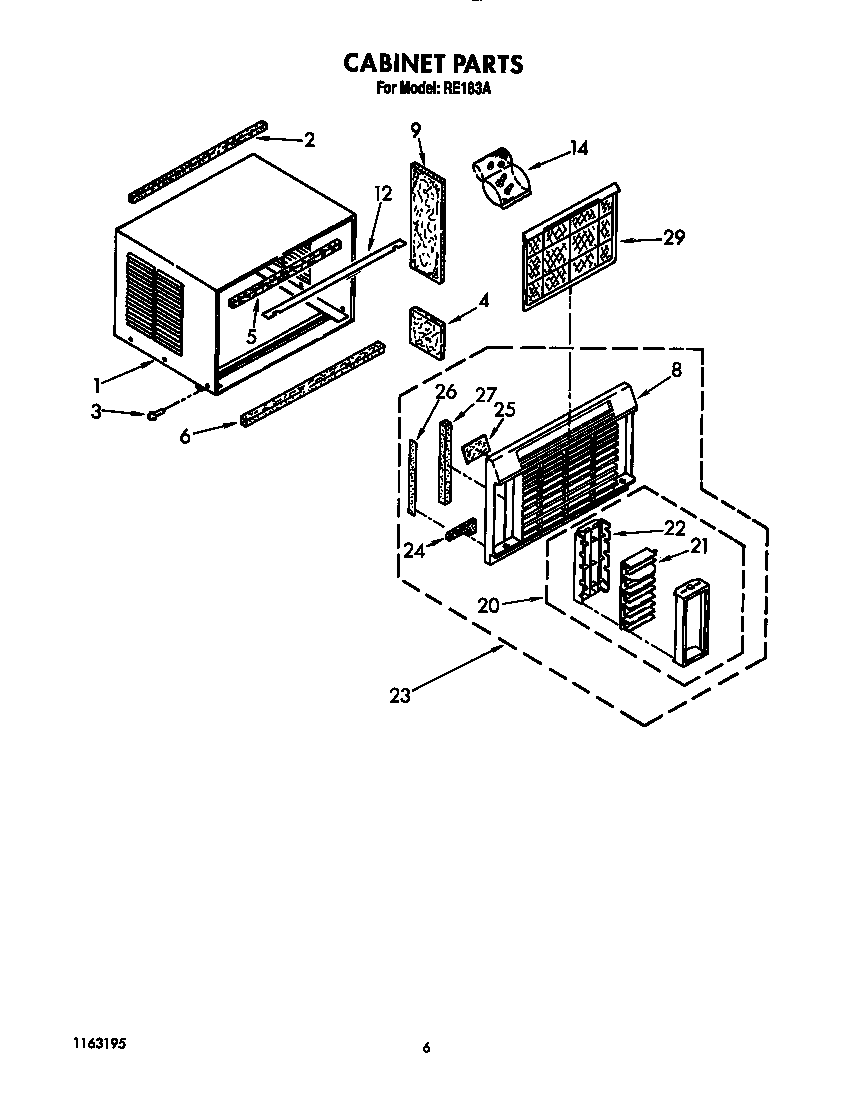

    Cabinet Diagram

    Air filter

    Part #1157468
    Replaced by #WP1166750
    ?
    Manufacturer substitution
    This part replaces 1157468. Substitute parts can look different from the original.
    In Stock
    $59.47
    Cover#14A

    Optional (not included) Diagram

    Cover

    Part #484066
    In Stock
    $80.00
    Room Air Conditioner Outdoor Cover#14D

    Optional (not included) Diagram

    In Stock
    $54.49 |
    8% OFF
    Phone Price: $59.49
    Bracket Support#24

    Installation parts Diagram

    Bracket support

    Part #644281
    In Stock
    $35.98
    Cover#14B

    Optional (not included) Diagram

    Cover

    Part #484067

    The manufacturer no longer makes this part, and there's no substitute part
