Amana
Countertop Microwave

Model # AMC6138AAQ Official Amana microwave

Here are the diagrams and repair parts for Official Amana AMC6138AAQ microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Microwave Diode DE91-70063A
#20

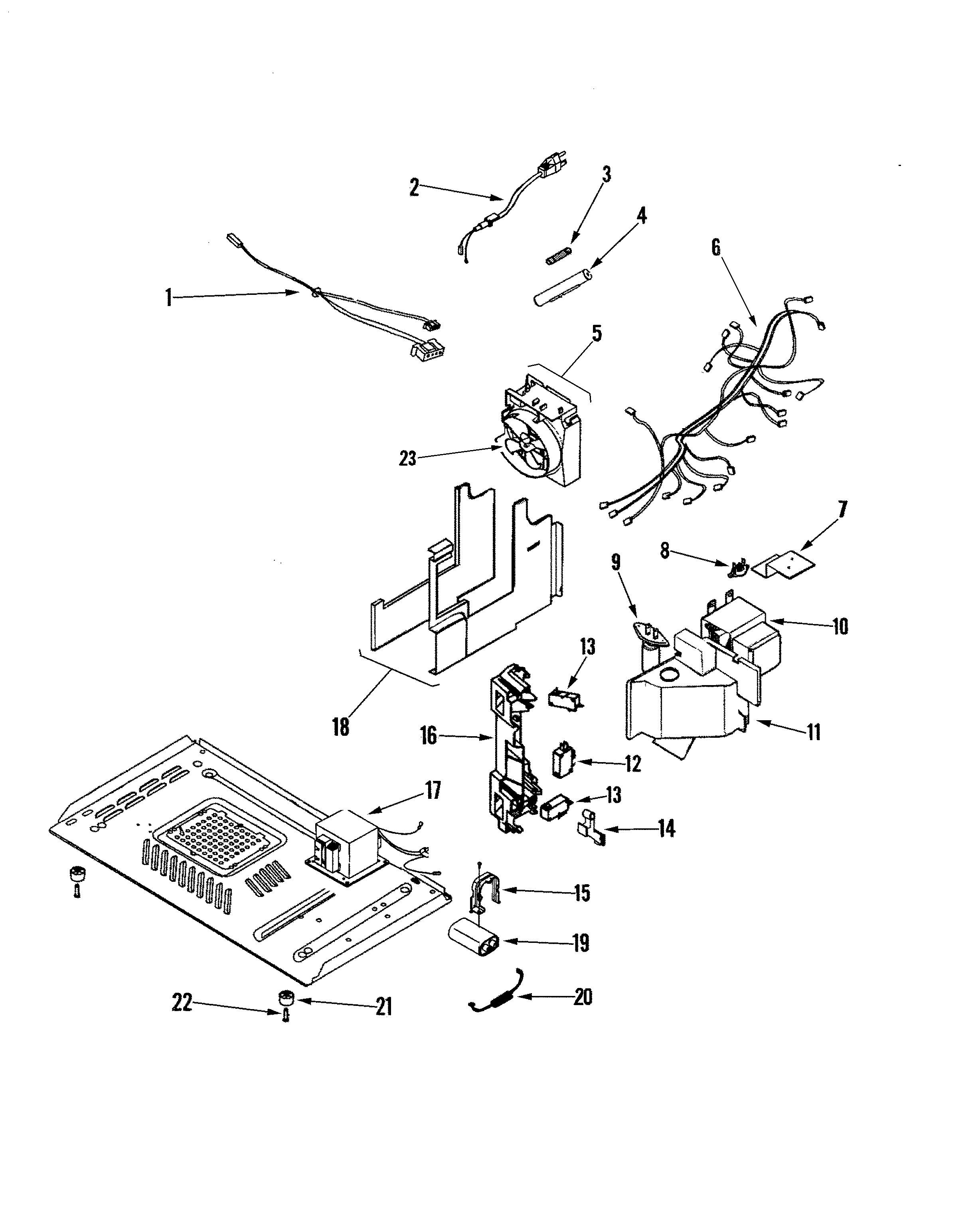

Base/internal controls diagram

Microwave diode

Part #DE91-70063A

Replaced by #DE91-70063D

?
Manufacturer substitution
This part replaces DE91-70063A. Substitute parts can look different from the original.
BEST SELLER
$17.40 |
10% OFF Phone Price : $19.40
In Stock
Microwave Door Interlock Switch (replaces 3405-000178) 3405-001034
#13

Base/internal controls diagram

Microwave door interlock switch (replaces 3405-000178)

Part #3405-001034

BEST SELLER
$16.93 |
11% OFF Phone Price : $18.93
In Stock
Microwave Door Micro-switch 3405-001033
#12

Base/internal controls diagram

Microwave door micro-switch

Part #3405-001033

BEST SELLER
$16.00 |
11% OFF Phone Price : $18.00
In Stock
Microwave Fuse 3601-001198
#3

Base/internal controls diagram

Microwave fuse

Part #3601-001198

Replaced by #WPM0805101

?
Manufacturer substitution
This part replaces 3601-001198. Substitute parts can look different from the original.
$6.68 |
13% OFF Phone Price : $7.68
In Stock
Microwave Glass Turntable Tray DE74-20002A
#1

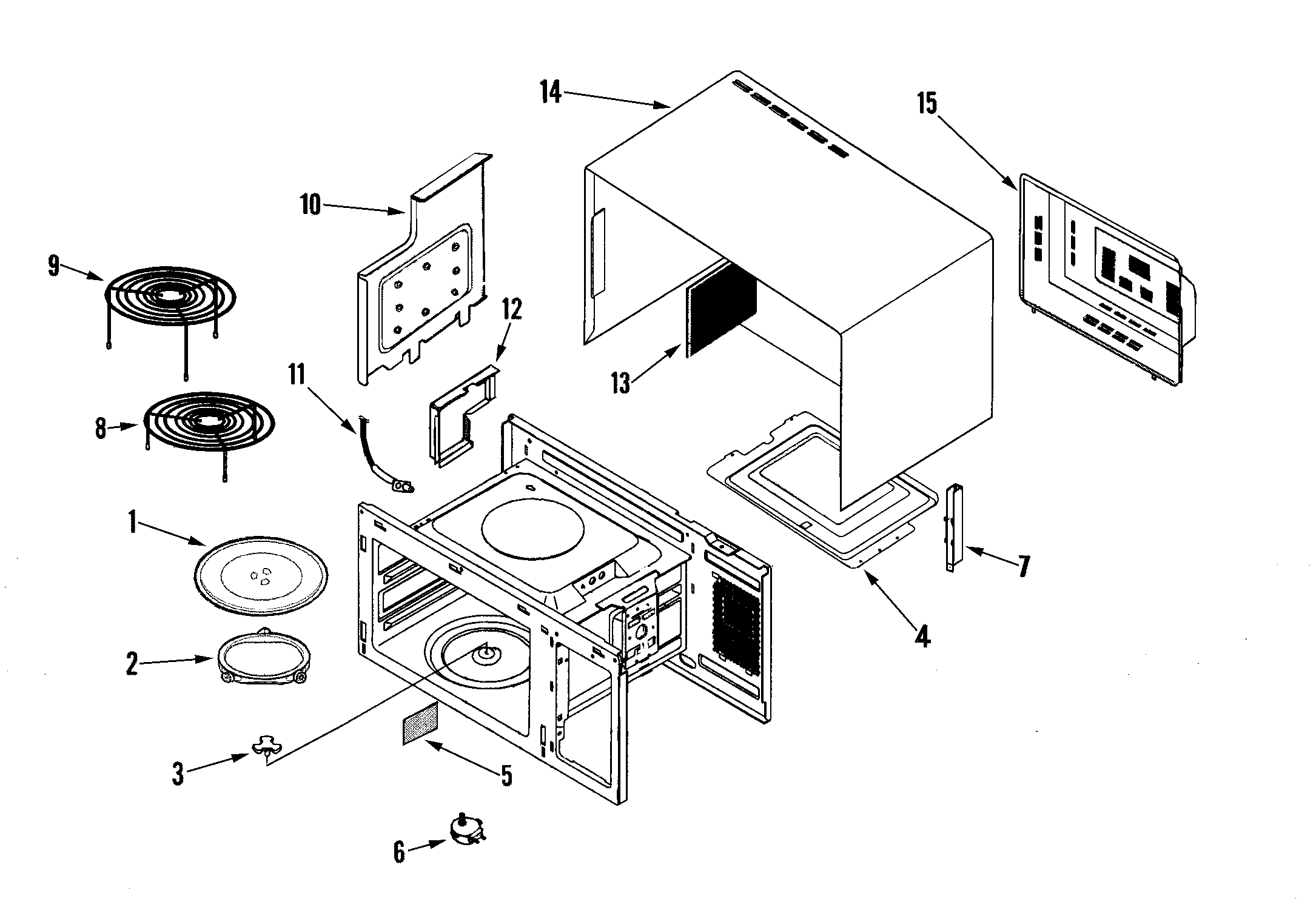

Body/cavity diagram

Microwave glass turntable tray

Part #DE74-20002A

Replaced by #DE74-20002A

?
Manufacturer substitution
This part replaces DE74-20002A. Substitute parts can look different from the original.
$57.58 |
8% OFF Phone Price : $62.58
In Stock
Microwave High-voltage Capacitor 2501-001011
#19

Base/internal controls diagram

Microwave high-voltage capacitor

Part #2501-001011

$11.99
In Stock
Foot DE61-40065A
#21

Base/internal controls diagram

Foot

Part #DE61-40065A

$14.51
In Stock
Sensor DE32-10013A
#11

Body/cavity diagram

Sensor

Part #DE32-10013A

Replaced by #DE32-10013A

?
Manufacturer substitution
This part replaces DE32-10013A. Substitute parts can look different from the original.
$33.83 |
13% OFF Phone Price : $38.83
In Stock
Wire Assembly DE97-00136B
#8

Body/cavity diagram

Wire assembly

Part #DE97-00136B

$66.67
In Stock
Fan Blade DE31-90051A
#23

Base/internal controls diagram

Fan blade

Part #DE31-90051A

This item is not returnable
$5.46
In Stock
