Model # 31-460TY3 SN 9341/UP Official Delta disc sander

Here are the diagrams and repair parts for Official Delta 31-460TY3-SN-9341-UP disc sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |
Grommet 1341544
#53

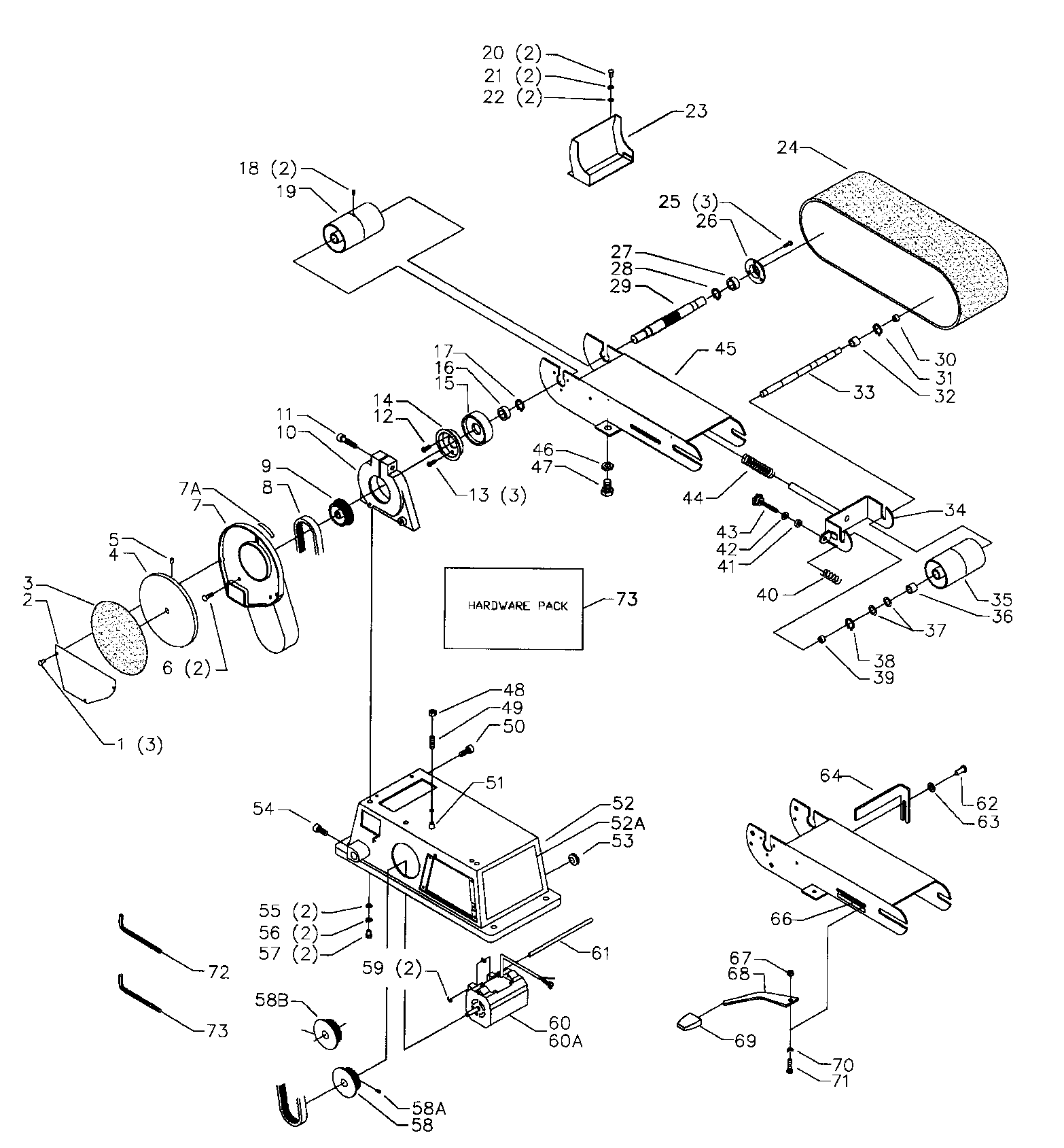

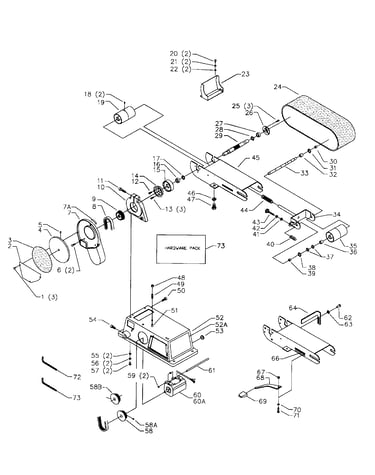

Sander diagram

Grommet

Part #1341544

The manufacturer no longer makes this part, and there's no substitute part

Cord 1341566
#120

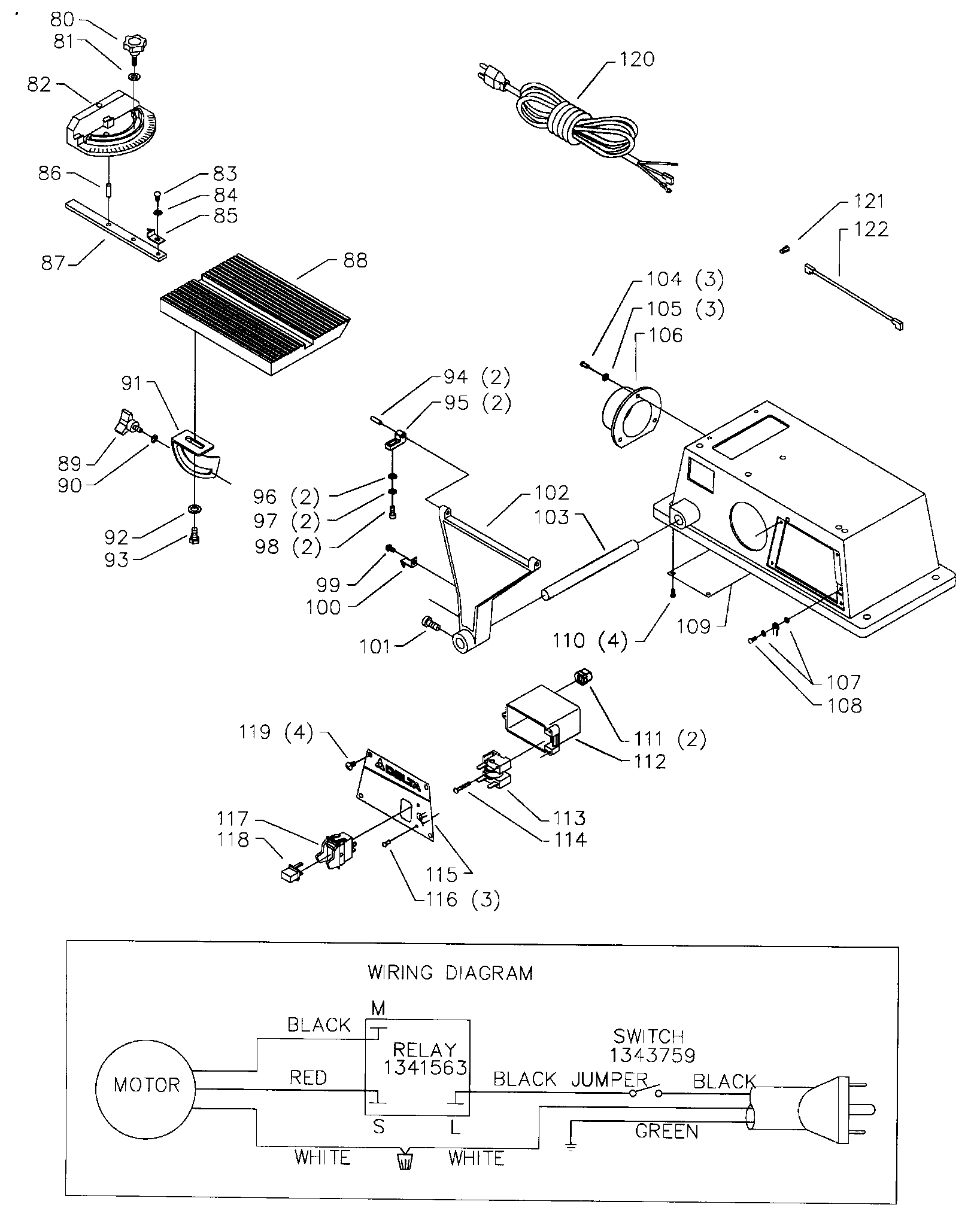

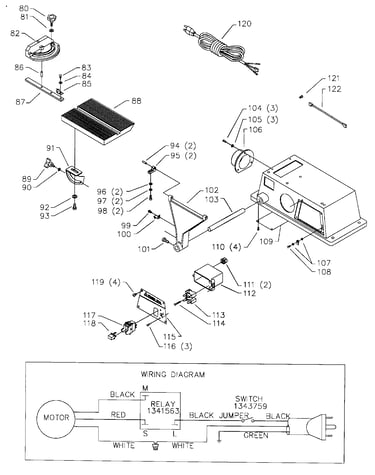

Base assy/wiring diagram diagram

Cord

Part #1341566

The manufacturer no longer makes this part, and there's no substitute part

Twist-on Wire Connector 1341198
#121

Base assy/wiring diagram diagram

Twist-on wire connector

Part #1341198

The manufacturer no longer makes this part, and there's no substitute part

Screw 1243554
#11

Sander diagram

Screw

Part #1243554

The manufacturer no longer makes this part, and there's no substitute part

Screw 1246090
#6

Sander diagram

Screw

Part #1246090

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Screw, M4 X 12 1341235
#108

Base assy/wiring diagram diagram

Power tool screw, m4 x 12

Part #1341235

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 1246054
Cap screw

Part #1246054

The manufacturer no longer makes this part, and there's no substitute part

Table Saw On/off Switch 1343759
#117

Base assy/wiring diagram diagram

Table saw on/off switch

Part #1343759

The manufacturer no longer makes this part, and there's no substitute part

Screw 1310547
Screw

Part #1310547

The manufacturer no longer makes this part, and there's no substitute part

Bumper 1347209
#51

Sander diagram

Bumper

Part #1347209

The manufacturer no longer makes this part, and there's no substitute part
