Model # SNPA-0 Official KitchenAid pasta maker

Here are the diagrams and repair parts for Official KitchenAid SNPA-0 pasta maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 12 parts  |

Stand Mixer Pasta Attachment Pusher 242553
#9

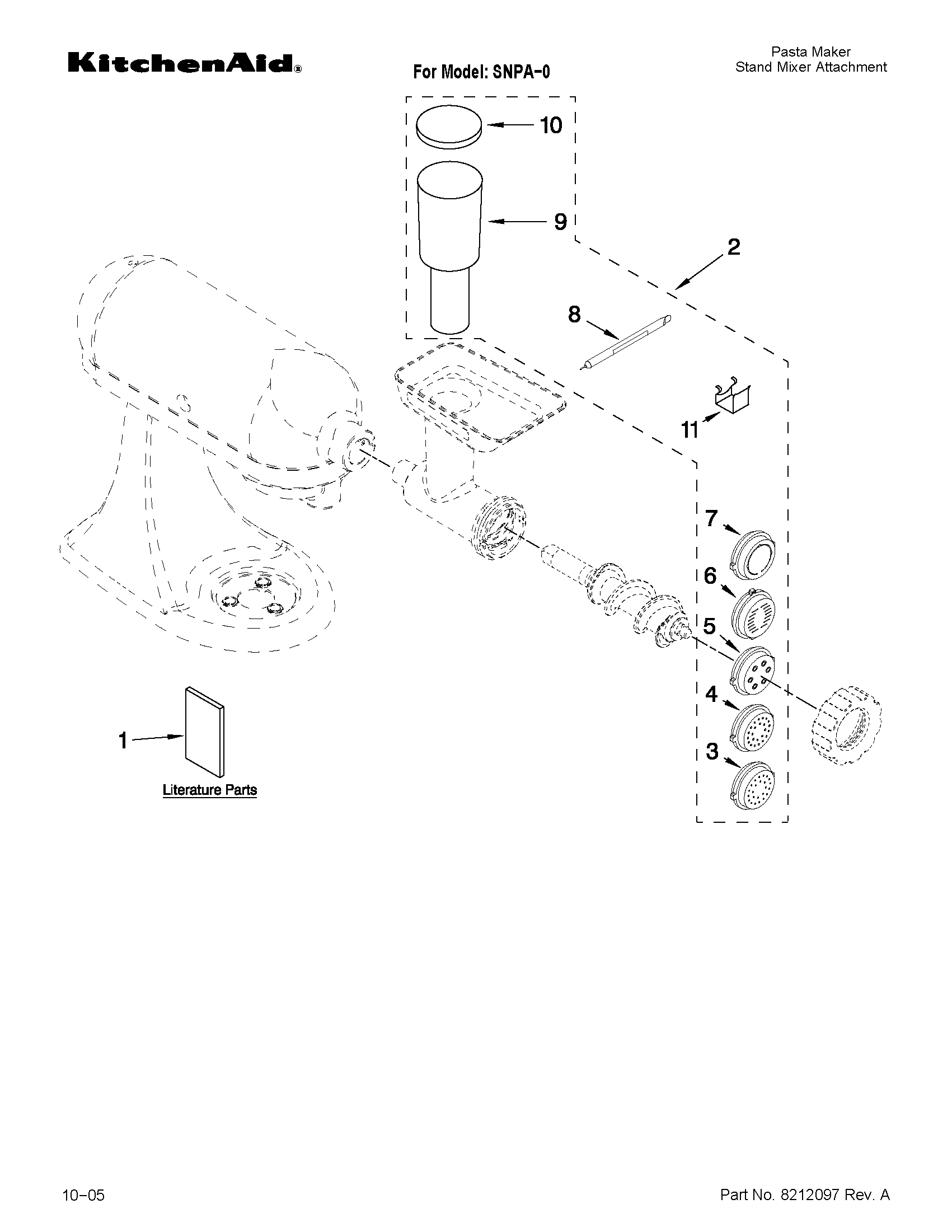

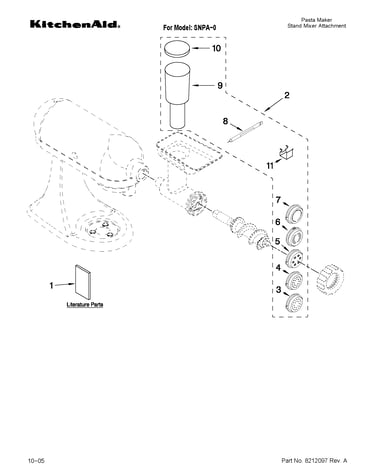

Attachment parts diagram

Stand mixer pasta attachment pusher

Part #242553

In Stock
Cap 242552
#10

Attachment parts diagram

Cap

Part #242552

In Stock
Plate 241455
#3

Attachment parts diagram

Plate

Part #241455

In Stock
Parts List 8212097
#1A

Attachment parts diagram

Parts list

Part #8212097

This item is not returnable
In Stock
Owner's Manual 9704319
#1

Attachment parts diagram

Owner's manual

Part #9704319

The manufacturer no longer makes this part, and there's no substitute part

Tool-clean 241460
#8

Attachment parts diagram

Tool-clean

Part #241460

The manufacturer no longer makes this part, and there's no substitute part

Plate 241473
#4

Attachment parts diagram

Plate

Part #241473

The manufacturer no longer makes this part, and there's no substitute part

Plate 241456
#5

Attachment parts diagram

Plate

Part #241456

The manufacturer no longer makes this part, and there's no substitute part

Stand Mixer Pasta Attachment Bowl Clip 241561
#11

Attachment parts diagram

Stand mixer pasta attachment bowl clip

Part #241561

The manufacturer no longer makes this part, and there's no substitute part

Plate 241454
#6

Attachment parts diagram

Plate

Part #241454

The manufacturer no longer makes this part, and there's no substitute part
