Model # 1608 Official Bosch laminate trimmer

Here are the diagrams and repair parts for Official Bosch 1608 laminate trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

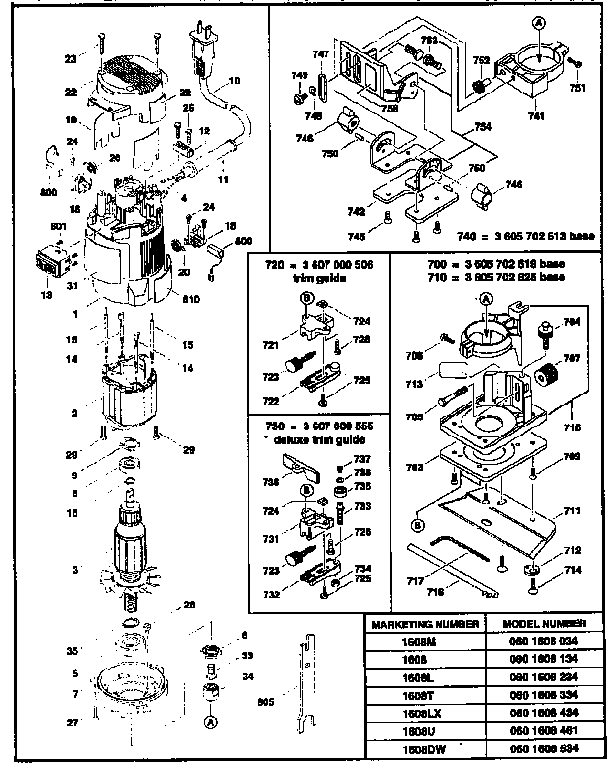

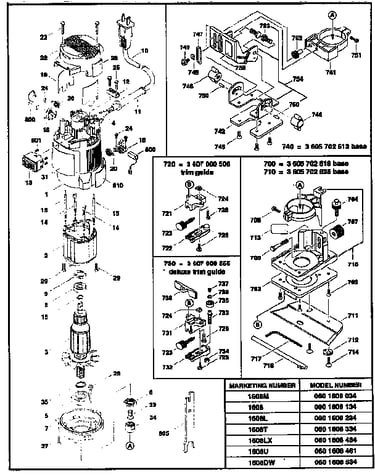

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |
Cord Clamp 2601035001
#12

Laminate trimmer diagram

Cord clamp

Part #2601035001

The manufacturer no longer makes this part, and there's no substitute part

Base 3605702625
#710

Laminate trimmer diagram

Base

Part #3605702625

The manufacturer no longer makes this part, and there's no substitute part

Label 2610906892
#31F

Laminate trimmer diagram

Label

Part #2610906892

The manufacturer no longer makes this part, and there's no substitute part

Label 2610906893
#31D

Laminate trimmer diagram

Label

Part #2610906893

The manufacturer no longer makes this part, and there's no substitute part

Label 2610907030
#32

Laminate trimmer diagram

Label

Part #2610907030

The manufacturer no longer makes this part, and there's no substitute part

Collet Nut 2603312001
#34

Laminate trimmer diagram

Collet nut

Part #2603312001

The manufacturer no longer makes this part, and there's no substitute part

Sub-base 3601039503
#703

Laminate trimmer diagram

Sub-base

Part #3601039503

The manufacturer no longer makes this part, and there's no substitute part

Label 3601119689
#31B

Laminate trimmer diagram

Label

Part #3601119689

The manufacturer no longer makes this part, and there's no substitute part

Bearing 2610906500
#735

Laminate trimmer diagram

Bearing

Part #2610906500

The manufacturer no longer makes this part, and there's no substitute part

Cam 3600132505
#712

Laminate trimmer diagram

Cam

Part #3600132505

The manufacturer no longer makes this part, and there's no substitute part
