Model # DCR-SR46 Official Sony digital camcorder

Here are the diagrams and repair parts for Official Sony DCR-SR46 digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

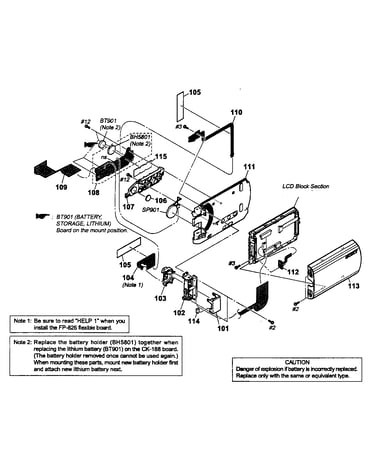

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Knob 328372701
#262

Main frame diagram

Knob

Part #328372701

Replaced by #328372702

?
Manufacturer substitution
This part replaces 328372701. Substitute parts can look different from the original.
This item is not returnable
$6.36
In Stock
Ac Cord 179010761
#NI

Cabinet parts 1 diagram

Ac cord

Part #179010761

The manufacturer no longer makes this part, and there's no substitute part

Grip Belt 266492841
#9

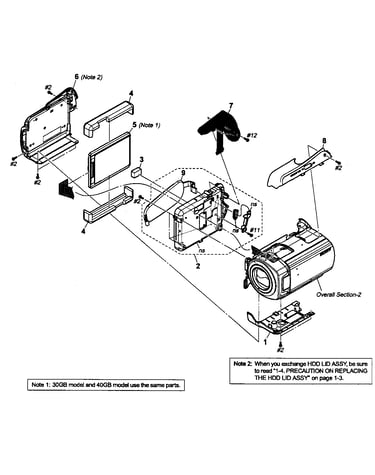

Cabinet parts 1 diagram

Grip belt

Part #266492841

The manufacturer no longer makes this part, and there's no substitute part

Flex Board A1443038A
#258

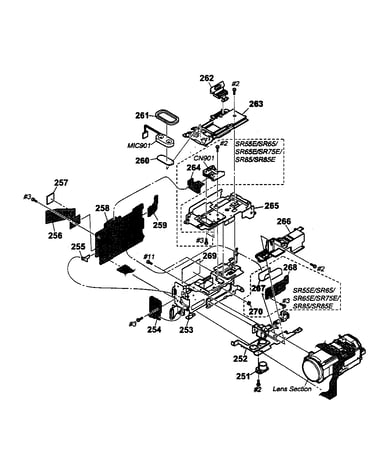

Main frame diagram

Flex board

Part #A1443038A

The manufacturer no longer makes this part, and there's no substitute part

Dc Jack 182157511
#J901

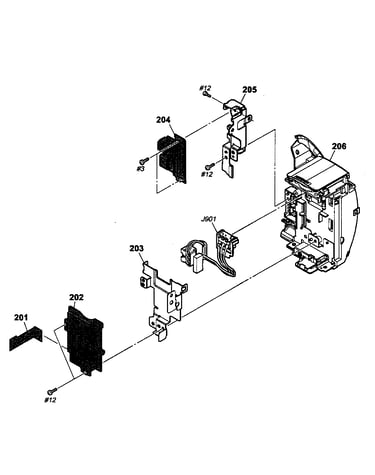

Bt block diagram

Dc jack

Part #182157511

The manufacturer no longer makes this part, and there's no substitute part

Seal 327138201
#303

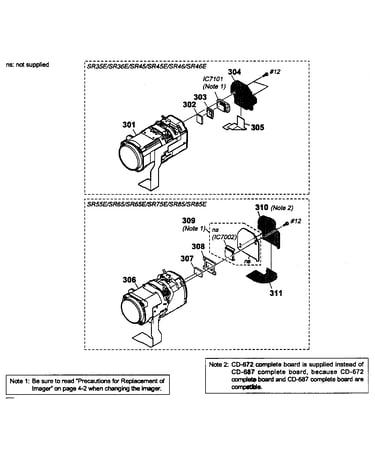

Lens assy diagram

Seal

Part #327138201

Replaced by #327138201

?
Manufacturer substitution
This part replaces 327138201. Substitute parts can look different from the original.
This item is not returnable
$3.63
In Stock
Flex Board 187492111
#259

Main frame diagram

Flex board

Part #187492111

Replaced by #187492111

?
Manufacturer substitution
This part replaces 187492111. Substitute parts can look different from the original.
$10.01
In Stock
Ac Adapter 147928521
#NI

Cabinet parts 1 diagram

Ac adapter

Part #147928521

The manufacturer no longer makes this part, and there's no substitute part

Belt,f 328372801
#52

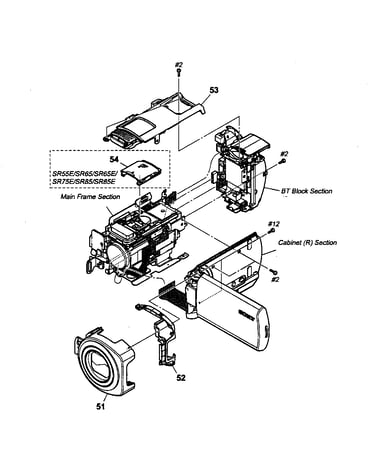

Cabinet parts 2 diagram

Belt,f

Part #328372801

Replaced by #328372801

?
Manufacturer substitution
This part replaces 328372801. Substitute parts can look different from the original.
$30.03
In Stock
Control Switch 147992611
#161

Lcd block diagram

Control switch

Part #147992611

The manufacturer no longer makes this part, and there's no substitute part
