Model # HPS018A2C1 Official ICP air conditioner heat pump

Here are the diagrams and repair parts for Official ICP HPS018A2C1 air conditioner heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Blade 1080775
#4

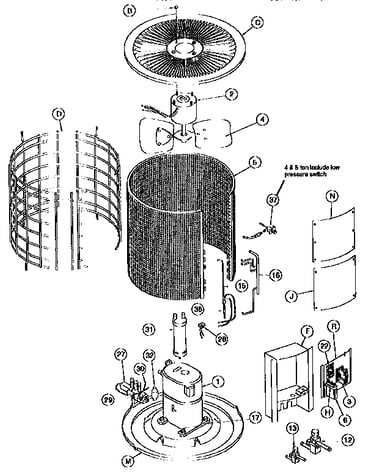

Unit parts diagram

Blade

Part #1080775

Replaced by #1085958

?
Manufacturer substitution
This part replaces 1080775. Substitute parts can look different from the original.
$127.74 |
7% OFF Phone Price : $137.74
In Stock
Harness Rev 1066711
#30

Unit parts diagram

Harness rev

Part #1066711

$101.58
In Stock
Con Brd Def 1069364
#22

Unit parts diagram

Con brd def

Part #1069364

Replaced by #1087562

?
Manufacturer substitution
This part replaces 1069364. Substitute parts can look different from the original.
$82.17 |
6% OFF Phone Price : $87.17
In Stock
Sensor Def - 1081510
#28

Unit parts diagram

Sensor def -

Part #1081510

Replaced by #1082065

?
Manufacturer substitution
This part replaces 1081510. Substitute parts can look different from the original.
$55.80
In Stock
Fan Motor 1082641
#2

Unit parts diagram

Fan motor

Part #1082641

Replaced by #1085927

?
Manufacturer substitution
This part replaces 1082641. Substitute parts can look different from the original.
$305.47
In Stock
Contactor 1050699
#3

Unit parts diagram

Contactor

Part #1050699

Replaced by #94-388

?
Manufacturer substitution
This part replaces 1050699. Substitute parts can look different from the original.
$33.20 |
13% OFF Phone Price : $38.20
In Stock
Accumulator 24373100
#31

Unit parts diagram

Accumulator

Part #24373100

The manufacturer no longer makes this part, and there's no substitute part

Grille Inl 1064801
#D

Unit parts diagram

Grille inl

Part #1064801

The manufacturer no longer makes this part, and there's no substitute part

Control Box 1064883
#F

Unit parts diagram

Control box

Part #1064883

The manufacturer no longer makes this part, and there's no substitute part

Panel Contrl 1064888
#R

Unit parts diagram

Panel contrl

Part #1064888

The manufacturer no longer makes this part, and there's no substitute part
