Craftsman
Drill/Driver

Model # 973271570 Official Craftsman 3/8" cordless drill/driver

Here are the diagrams and repair parts for Official Craftsman 973271570 3/8" cordless drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Ball Ret 974361-000
#3

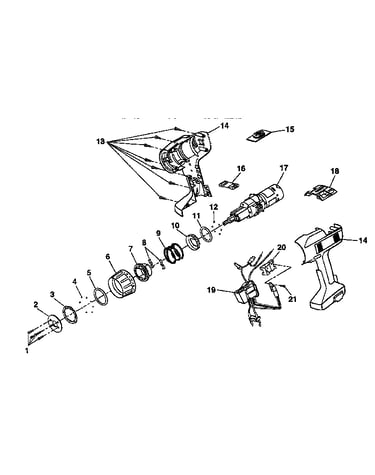

Motor and housing assembly diagram

Ball ret

Part #974361-000

The manufacturer no longer makes this part, and there's no substitute part

Chuck 973015-001
#2

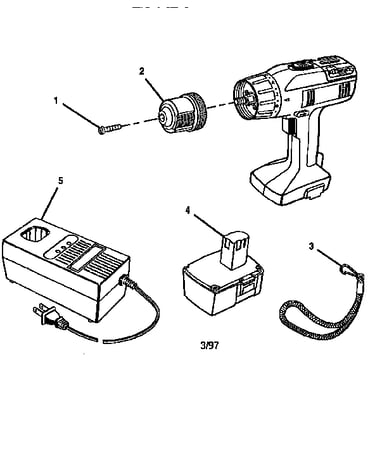

Unit parts diagram

Chuck

Part #973015-001

The manufacturer no longer makes this part, and there's no substitute part

Case 974371-000
#6

Unit parts diagram

Case

Part #974371-000

The manufacturer no longer makes this part, and there's no substitute part

Housing 975004-000
#14

Motor and housing assembly diagram

Housing

Part #975004-000

The manufacturer no longer makes this part, and there's no substitute part

Screw 971295-000
#21

Motor and housing assembly diagram

Screw

Part #971295-000

The manufacturer no longer makes this part, and there's no substitute part

Cap 974359-000
#6

Motor and housing assembly diagram

Cap

Part #974359-000

The manufacturer no longer makes this part, and there's no substitute part

Retainer 974401-000
#2

Motor and housing assembly diagram

Retainer

Part #974401-000

The manufacturer no longer makes this part, and there's no substitute part

Washer 974368-000
#5

Motor and housing assembly diagram

Washer

Part #974368-000

The manufacturer no longer makes this part, and there's no substitute part

Bit Storage 974352-000
#18

Motor and housing assembly diagram

Bit storage

Part #974352-000

The manufacturer no longer makes this part, and there's no substitute part

Screw 974367-000
#1

Motor and housing assembly diagram

Screw

Part #974367-000

The manufacturer no longer makes this part, and there's no substitute part

Parts & More
