Model # 143104041 Official Craftsman 4-cycle gas engine

Here are the diagrams and repair parts for Official Craftsman 143104041 4-cycle gas engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 213 parts  |

Fuel Line 430160
#105

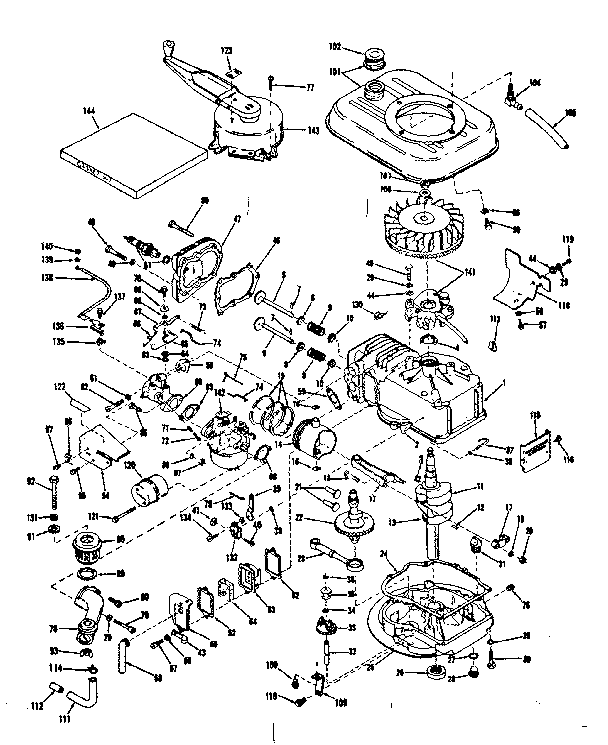

Basic engine diagram

Fuel line

Part #430160

The manufacturer no longer makes this part, and there's no substitute part

Gear Assembly 30117
#33

Basic engine diagram

Gear assembly

Part #30117

The manufacturer no longer makes this part, and there's no substitute part

Tube 27627
#58

Basic engine diagram

Tube

Part #27627

The manufacturer no longer makes this part, and there's no substitute part

Pump Assembly 29914
#23

Basic engine diagram

Pump assembly

Part #29914

The manufacturer no longer makes this part, and there's no substitute part

/carb Float 27105
#14

Carburetor no. 29237 (lmg-134) diagram

/carb float

Part #27105

The manufacturer no longer makes this part, and there's no substitute part

Shaft 29194
#32

Basic engine diagram

Shaft

Part #29194

The manufacturer no longer makes this part, and there's no substitute part

/gov Clamp 29916
#132

Basic engine diagram

/gov clamp

Part #29916

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Cap Screw, 1/4-28 X 7/8-in 6201
#85

Basic engine diagram

Hex head cap screw, 1/4-28 x 7/8-in

Part #6201

The manufacturer no longer makes this part, and there's no substitute part

Pin 26727
#2

Basic engine diagram

Pin

Part #26727

The manufacturer no longer makes this part, and there's no substitute part

/top Seal 29183
#4

Basic engine diagram

/top seal

Part #29183

The manufacturer no longer makes this part, and there's no substitute part
