Kenmore
Charcoal Grill

Model # 2581085180 Official Kenmore gas outdoor grill

Here are the diagrams and repair parts for Official Kenmore 2581085180 gas outdoor grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

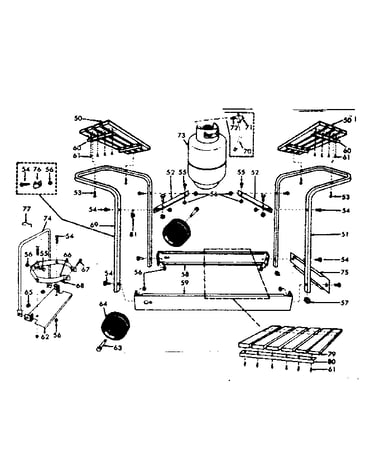

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 114 parts  |
Briq Grate 10222-20
#11

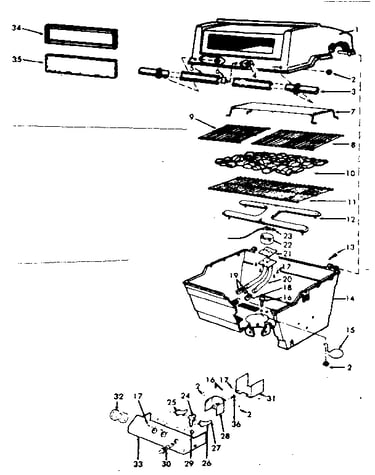

Grill, burner section, ground post & patio base diagram

Briq grate

Part #10222-20

Replaced by #04170107

?
Manufacturer substitution
This part replaces 10222-20. Substitute parts can look different from the original.
$44.39 |
10% OFF Phone Price : $49.39
In Stock
Screw Y-12648
#17

Grill, burner section, ground post & patio base diagram

Screw

Part #Y-12648

The manufacturer no longer makes this part, and there's no substitute part

Screw STD511005
#142

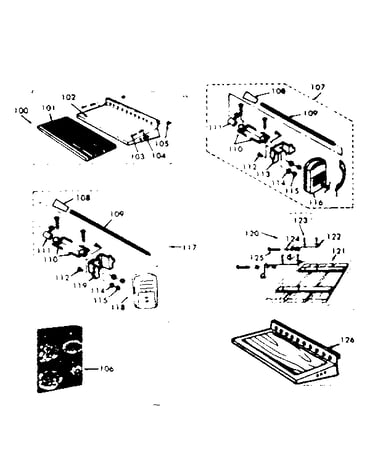

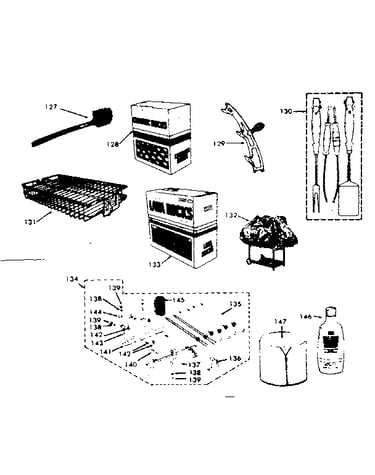

Optional accessories diagram

Screw

Part #STD511005

The manufacturer no longer makes this part, and there's no substitute part

Shelf 10724-37
#121

Optional accessories diagram

Shelf

Part #10724-37

The manufacturer no longer makes this part, and there's no substitute part

Shishkabob 10004-902
#134

Optional accessories diagram

Shishkabob

Part #10004-902

The manufacturer no longer makes this part, and there's no substitute part

Electrode 10342-38
#23

Grill, burner section, ground post & patio base diagram

Electrode

Part #10342-38

The manufacturer no longer makes this part, and there's no substitute part

Parts List 10084-530

#NI

All parts diagram

Parts list

Part #10084-530

The manufacturer no longer makes this part, and there's no substitute part

Pal Nut Y-12650
#29

Grill, burner section, ground post & patio base diagram

Pal nut

Part #Y-12650

The manufacturer no longer makes this part, and there's no substitute part

Spit 10630-22
#109

Optional accessories diagram

Spit

Part #10630-22

The manufacturer no longer makes this part, and there's no substitute part

Cover 10164-68
#28

Grill, burner section, ground post & patio base diagram

Cover

Part #10164-68

The manufacturer no longer makes this part, and there's no substitute part
