Enviroair
Central Air Conditioner

Model # KWC24000 Official Enviroair air conditioner

Here are the diagrams and repair parts for Official Enviroair KWC24000 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Button 391110015R
#25

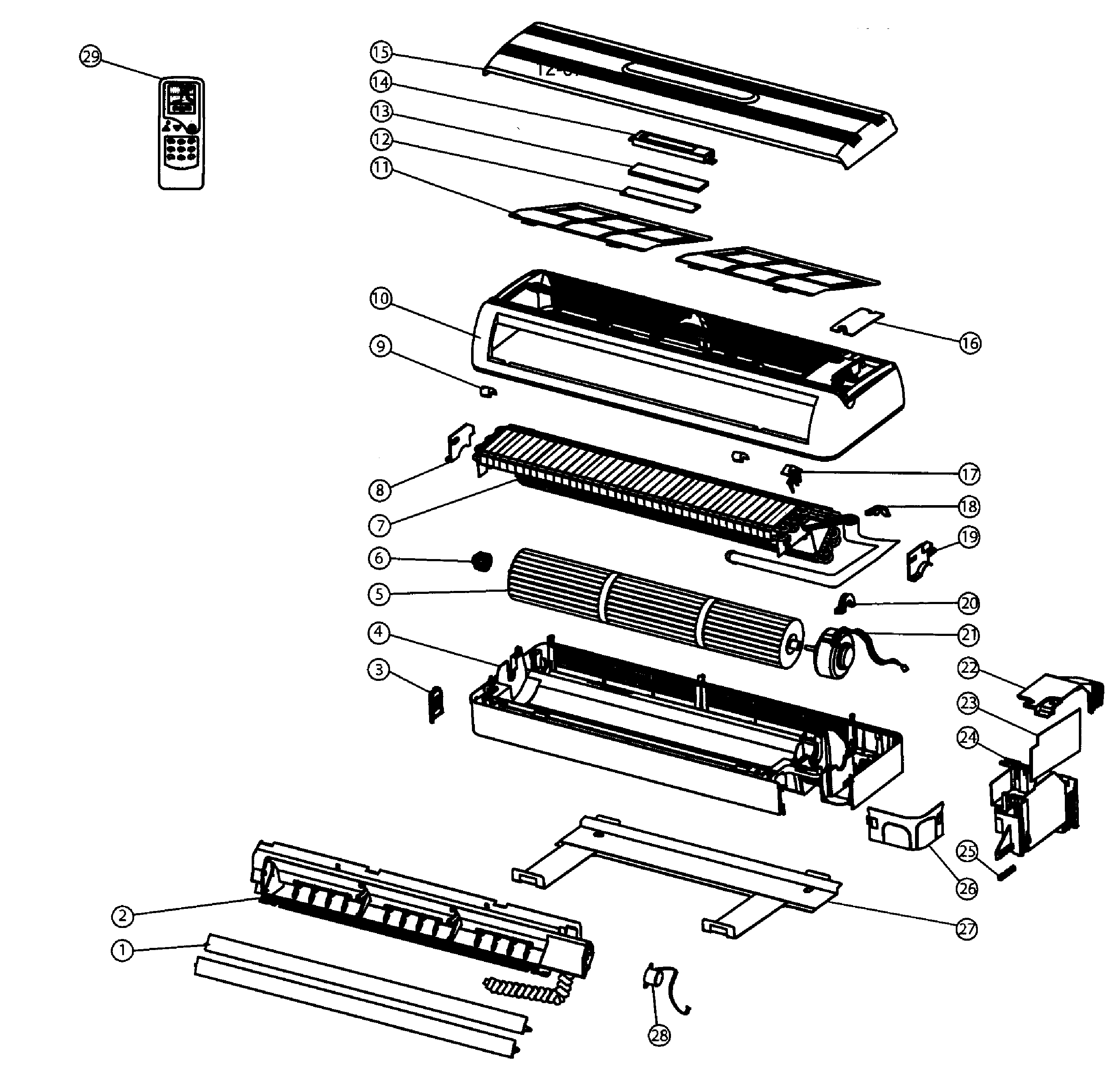

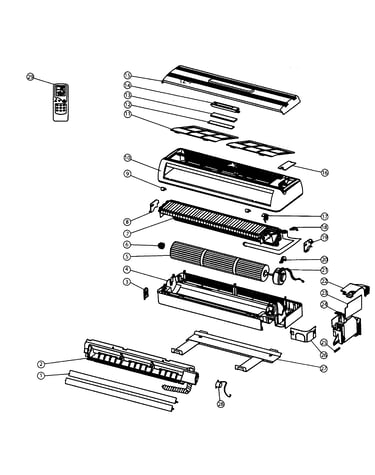

Cabinet parts diagram

Button

Part #391110015R

The manufacturer no longer makes this part, and there's no substitute part

Motr Plate 391990160R
#20

Cabinet parts diagram

Motr plate

Part #391990160R

The manufacturer no longer makes this part, and there's no substitute part

Filter 391120045R
#11

Cabinet parts diagram

Filter

Part #391120045R

The manufacturer no longer makes this part, and there's no substitute part

Louver,swi 320273013R
#1

Cabinet parts diagram

Louver,swi

Part #320273013R

The manufacturer no longer makes this part, and there's no substitute part

Motor Louv 320273014R
#28

Cabinet parts diagram

Motor louv

Part #320273014R

The manufacturer no longer makes this part, and there's no substitute part

Oulet Part 391800050R
#2

Cabinet parts diagram

Oulet part

Part #391800050R

The manufacturer no longer makes this part, and there's no substitute part

Remote Control 336830935
#29

Cabinet parts diagram

Remote control

Part #336830935

The manufacturer no longer makes this part, and there's no substitute part

Panel,disp 391040047R
#13

Cabinet parts diagram

Panel,disp

Part #391040047R

The manufacturer no longer makes this part, and there's no substitute part

Frame Wall 311010010R
#27

Cabinet parts diagram

Frame wall

Part #311010010R

The manufacturer no longer makes this part, and there's no substitute part

Press Tube 029991903R
#18

Cabinet parts diagram

Press tube

Part #029991903R

The manufacturer no longer makes this part, and there's no substitute part
