Model # 1001TY1 Official Porter Cable router

Here are the diagrams and repair parts for Official Porter Cable 1001TY1 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 59 parts |

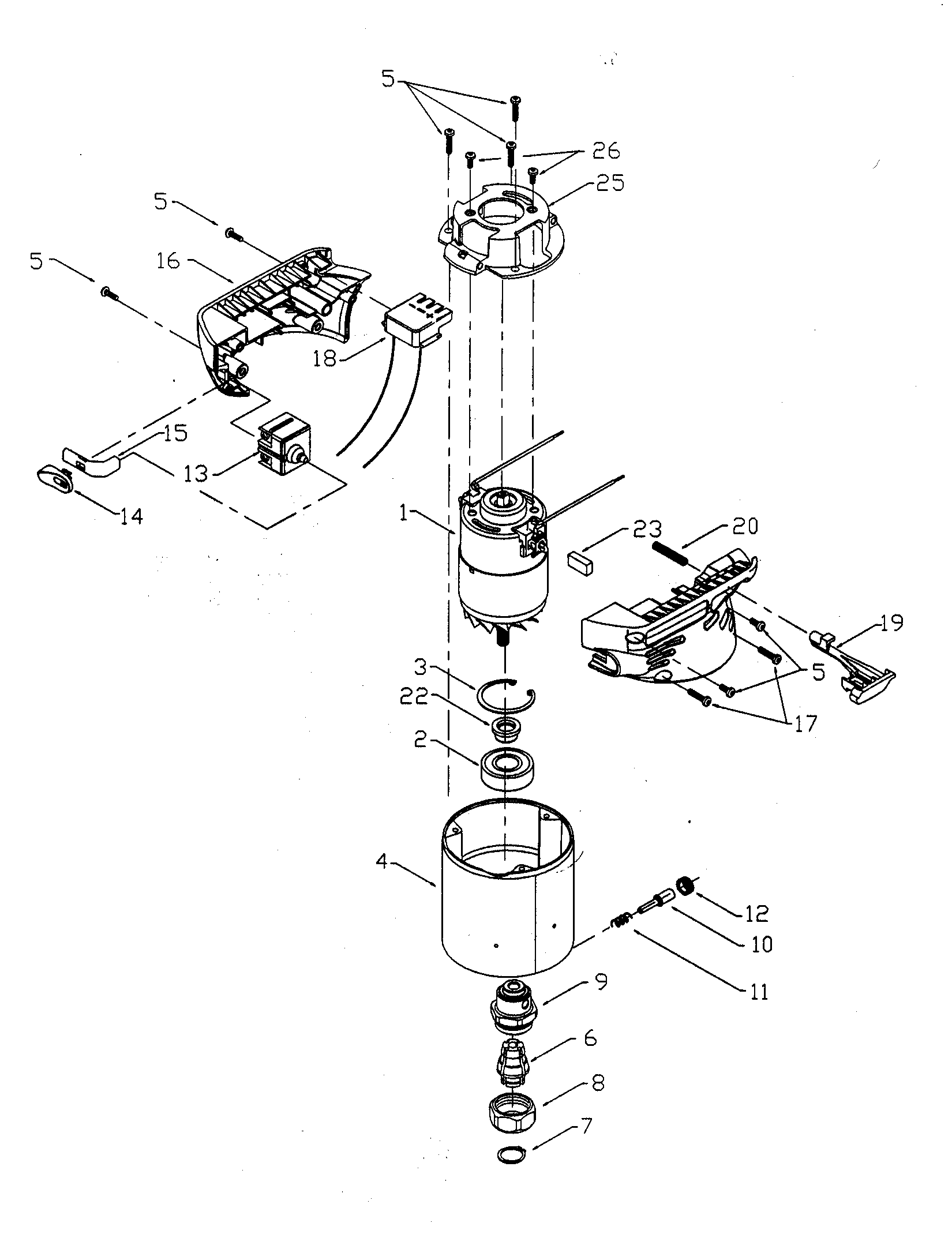

Cabinet 1 diagram

Collet nut

Part #875893

The manufacturer no longer makes this part, and there's no substitute part

#74

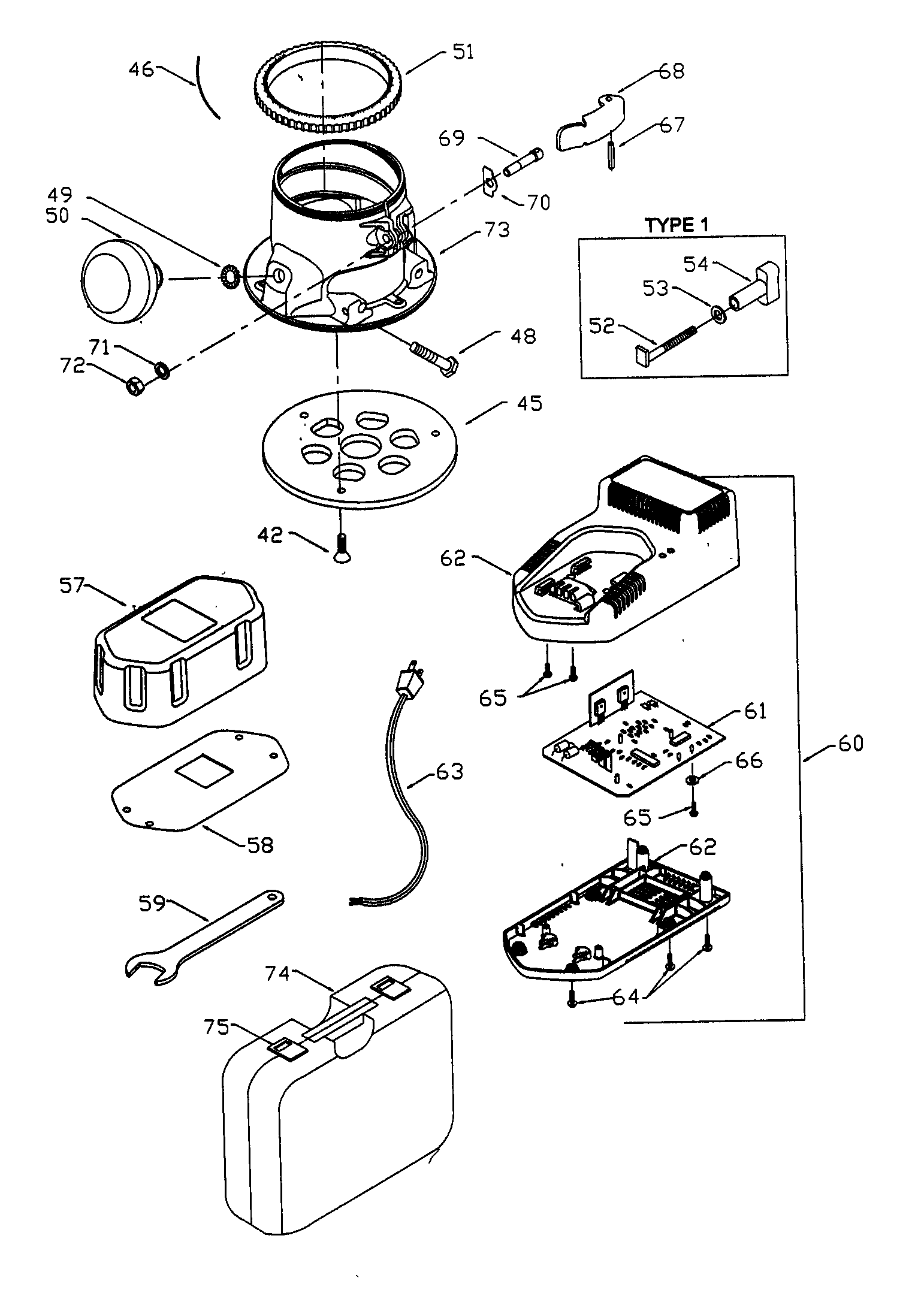

Cabinet 2 diagram

Carry case

Part #899798

The manufacturer no longer makes this part, and there's no substitute part

#26

Cabinet 1 diagram

Screw

Part #897120

The manufacturer no longer makes this part, and there's no substitute part

#67

Cabinet 2 diagram

Part #903118

The manufacturer no longer makes this part, and there's no substitute part

Cabinet 1 diagram

Chuck

Part #899786

The manufacturer no longer makes this part, and there's no substitute part

Cabinet 1 diagram

Snap ring

Part #823030

The manufacturer no longer makes this part, and there's no substitute part

#58A

Cabinet 2 diagram

Battery top

Part #901562

The manufacturer no longer makes this part, and there's no substitute part

#6E

Cabinet 1 diagram

Router collet, 1/2-in

Part #876671

The manufacturer no longer makes this part, and there's no substitute part

#69

Cabinet 2 diagram

Shaft

Part #903120

The manufacturer no longer makes this part, and there's no substitute part

#75

Cabinet 2 diagram

Latch

Part #887712

The manufacturer no longer makes this part, and there's no substitute part
