Model # 143585042 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143585042 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

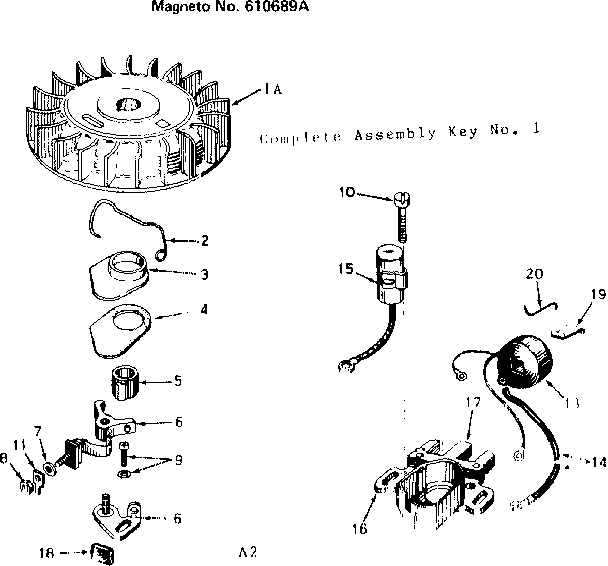

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 202 parts  |
Lawn Mower O-ring 631028
#25

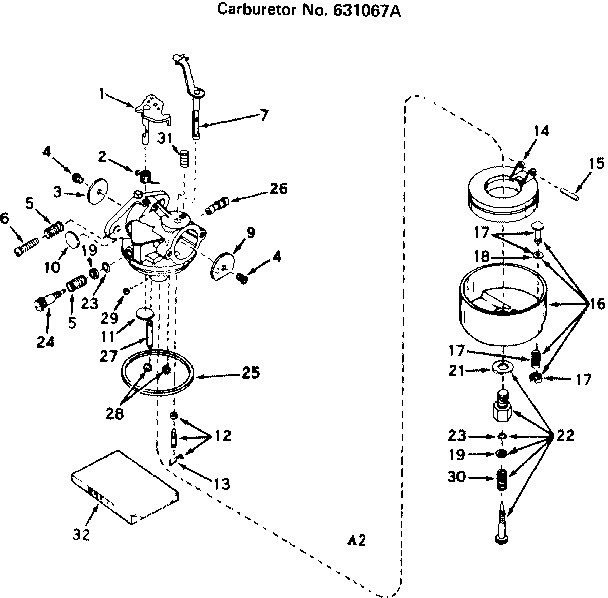

Carburetor diagram

Lawn mower o-ring

Part #631028

Replaced by #631028A

?
Manufacturer substitution
This part replaces 631028. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Gasket 27110
#21

Carburetor diagram

Gasket

Part #27110

Replaced by #27110A

?
Manufacturer substitution
This part replaces 27110. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Carburetor Float 631023
#14

Carburetor diagram

Carburetor float

Part #631023

Replaced by #632019A

?
Manufacturer substitution
This part replaces 631023. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
In Stock
Breather Element Air Filter 28424
#40

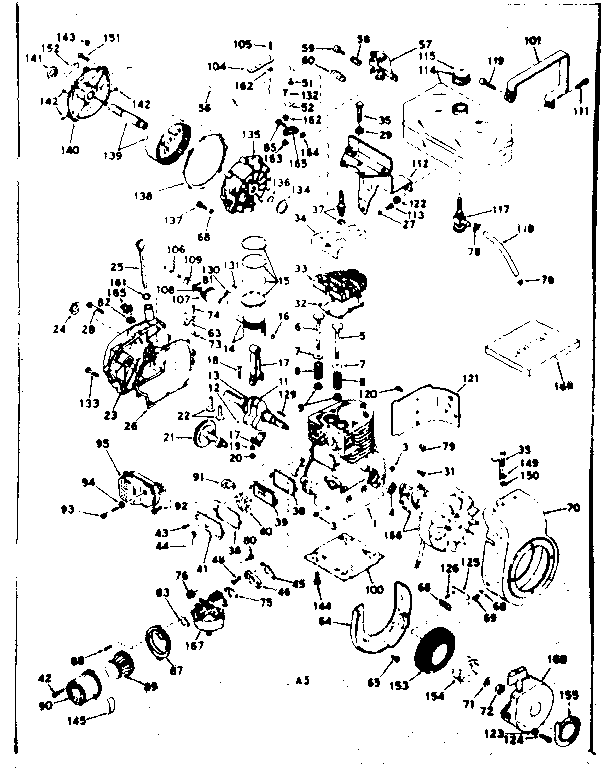

Unit parts diagram

Breather element air filter

Part #28424

The manufacturer no longer makes this part, and there's no substitute part

Fuel Bowl 631025
#16

Carburetor diagram

Fuel bowl

Part #631025

Replaced by #631867

?
Manufacturer substitution
This part replaces 631025. Substitute parts can look different from the original.
This item is not returnable
$3.49 |
22% OFF Phone Price : $4.49
In Stock
Spring Retainer 630731
#2

Carburetor diagram

Spring retainer

Part #630731

Replaced by #631767

?
Manufacturer substitution
This part replaces 630731. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Engine Carburetor Float Pin 631022
#13

Carburetor diagram

Lawn & garden equipment engine carburetor float pin

Part #631022

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Gasket 27930
#91

Unit parts diagram

Gasket

Part #27930

The manufacturer no longer makes this part, and there's no substitute part

Chmp J8 Plug 21943
#37

Unit parts diagram

Chmp j8 plug

Part #21943

The manufacturer no longer makes this part, and there's no substitute part

Spool 30588A
#109

Unit parts diagram

Spool

Part #30588A

The manufacturer no longer makes this part, and there's no substitute part
