Amana
Central Air Conditioner

Model # D9836808 Official Amana package unit with accessories - spco series

Here are the diagrams and repair parts for Official Amana D9836808 package unit with accessories - spco series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

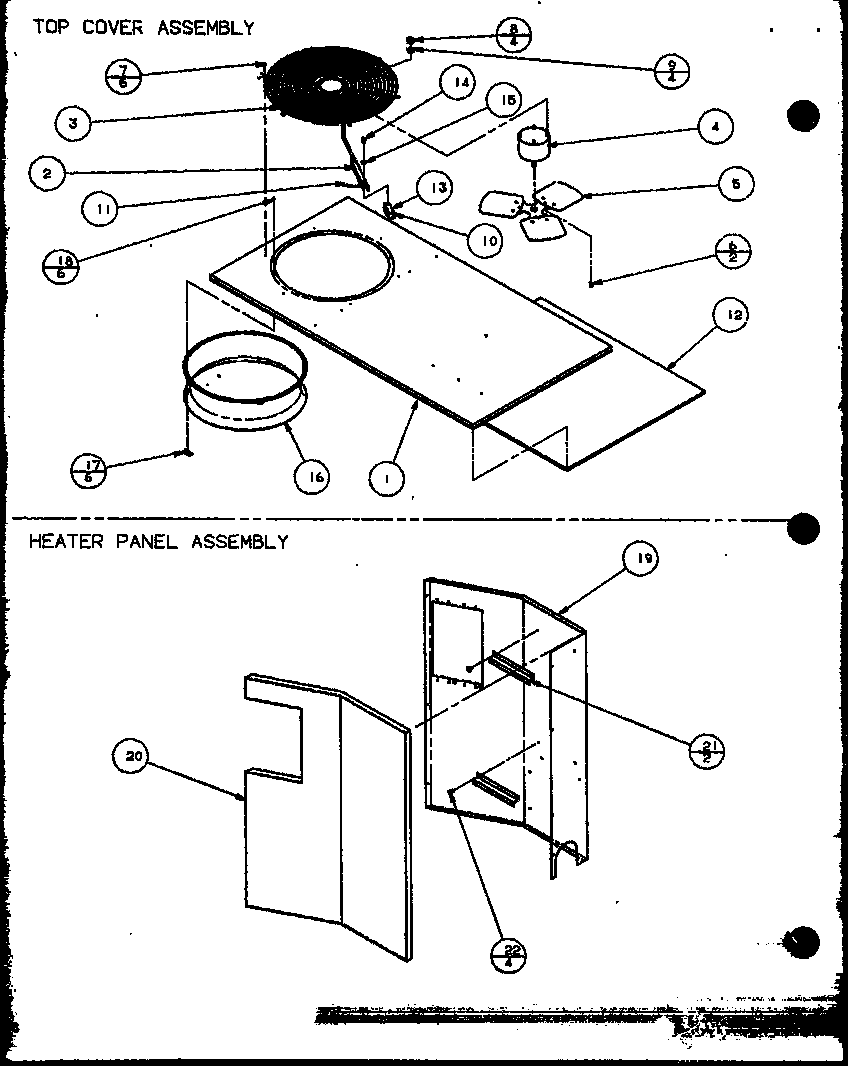

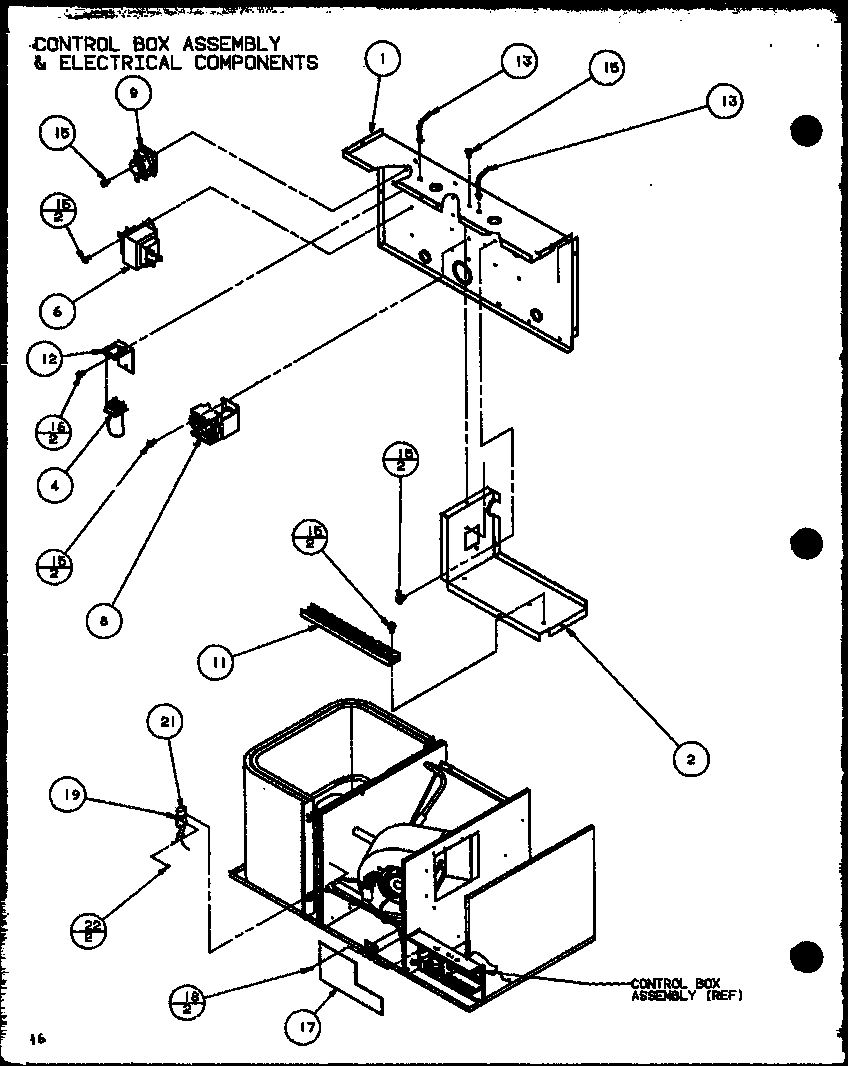

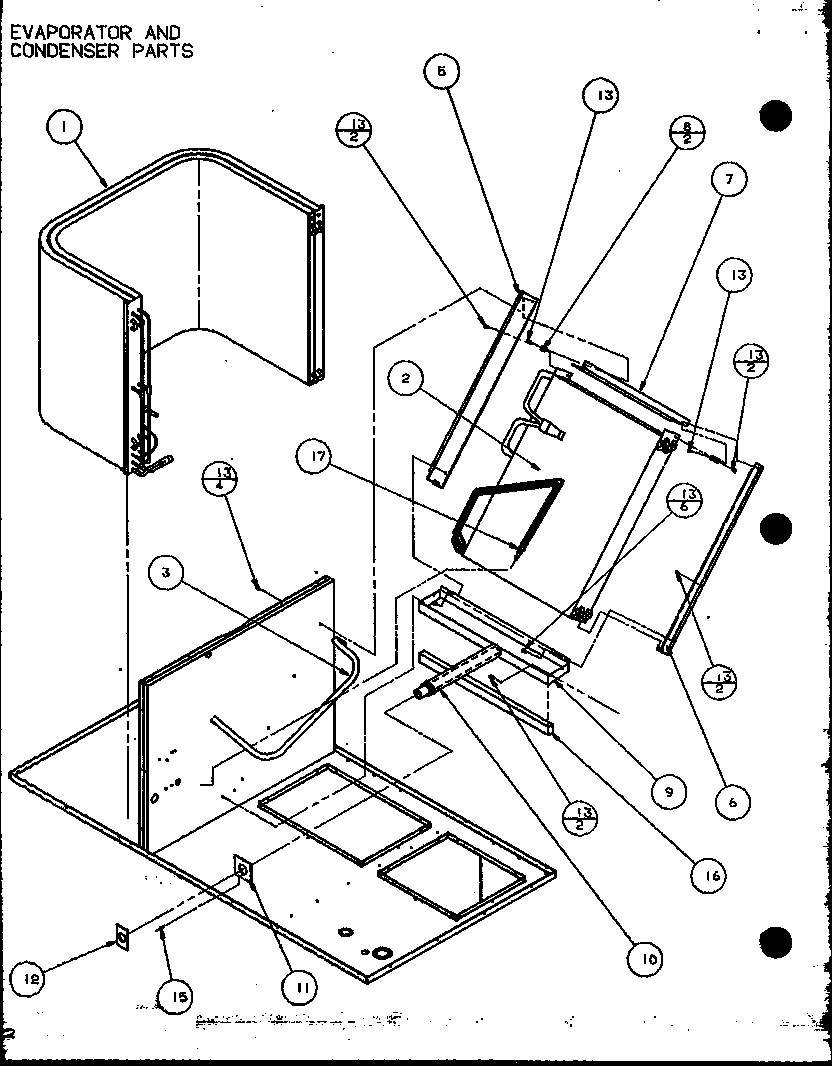

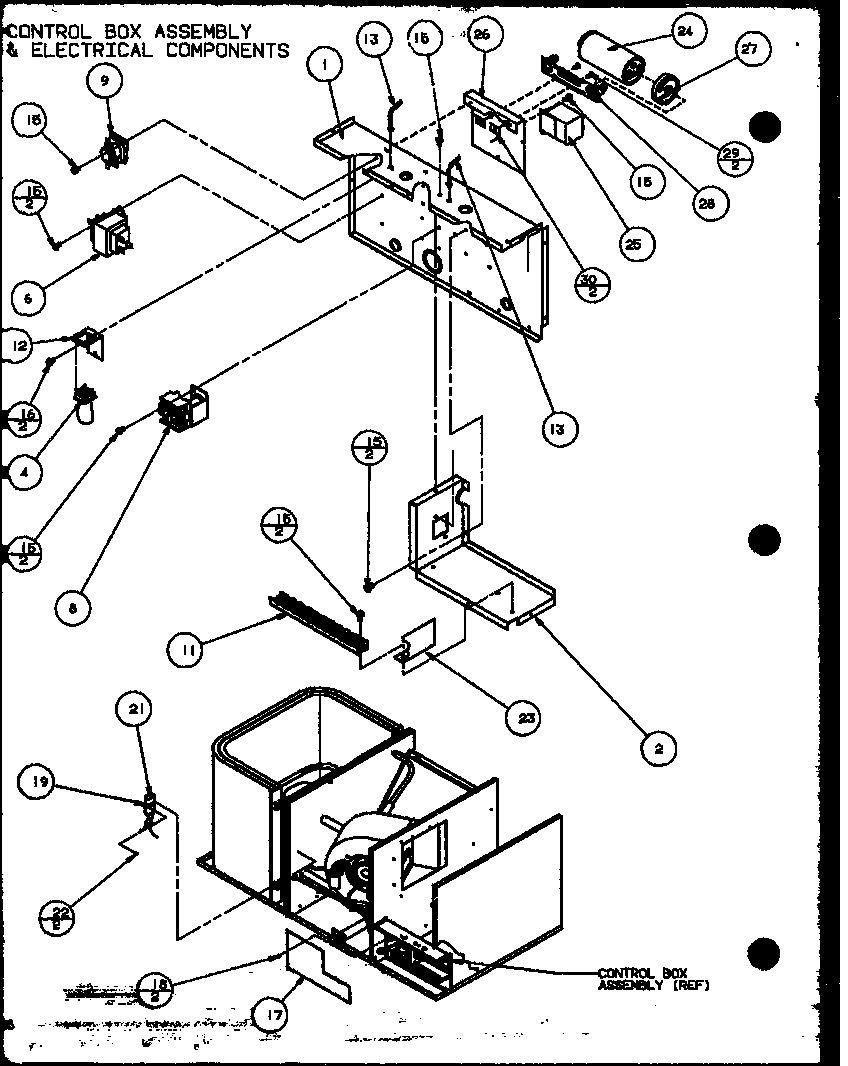

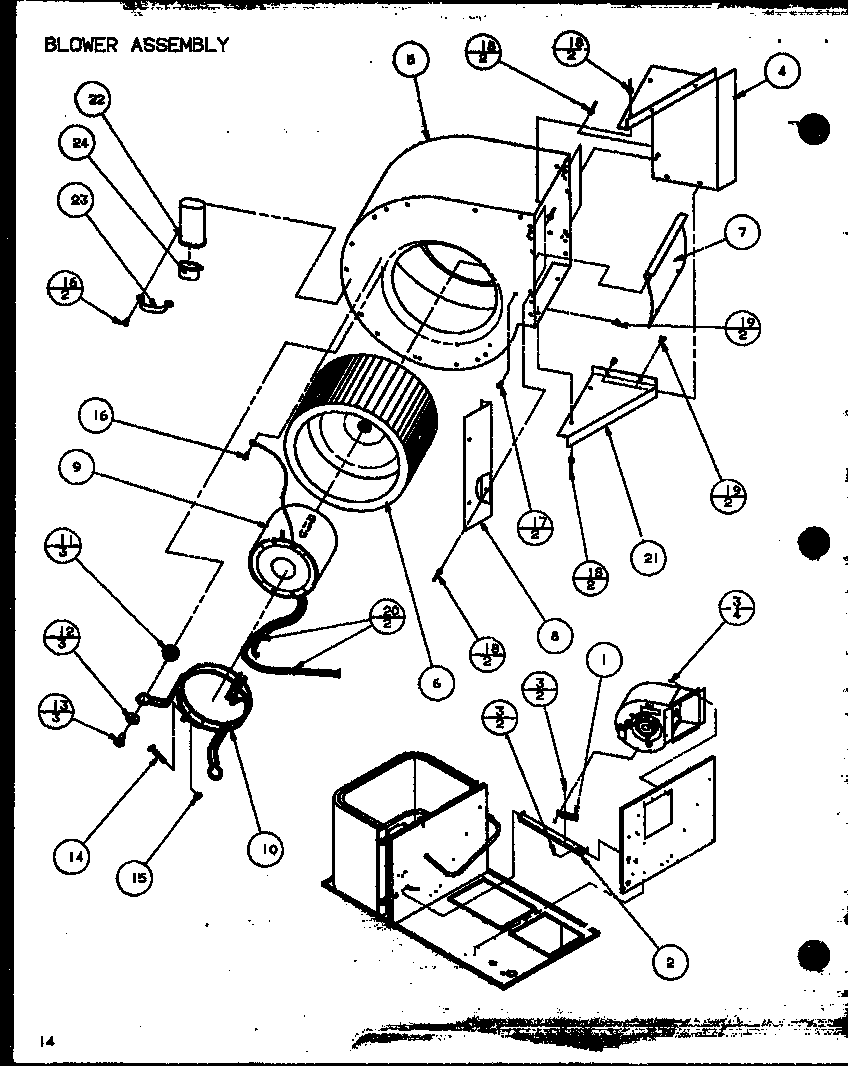

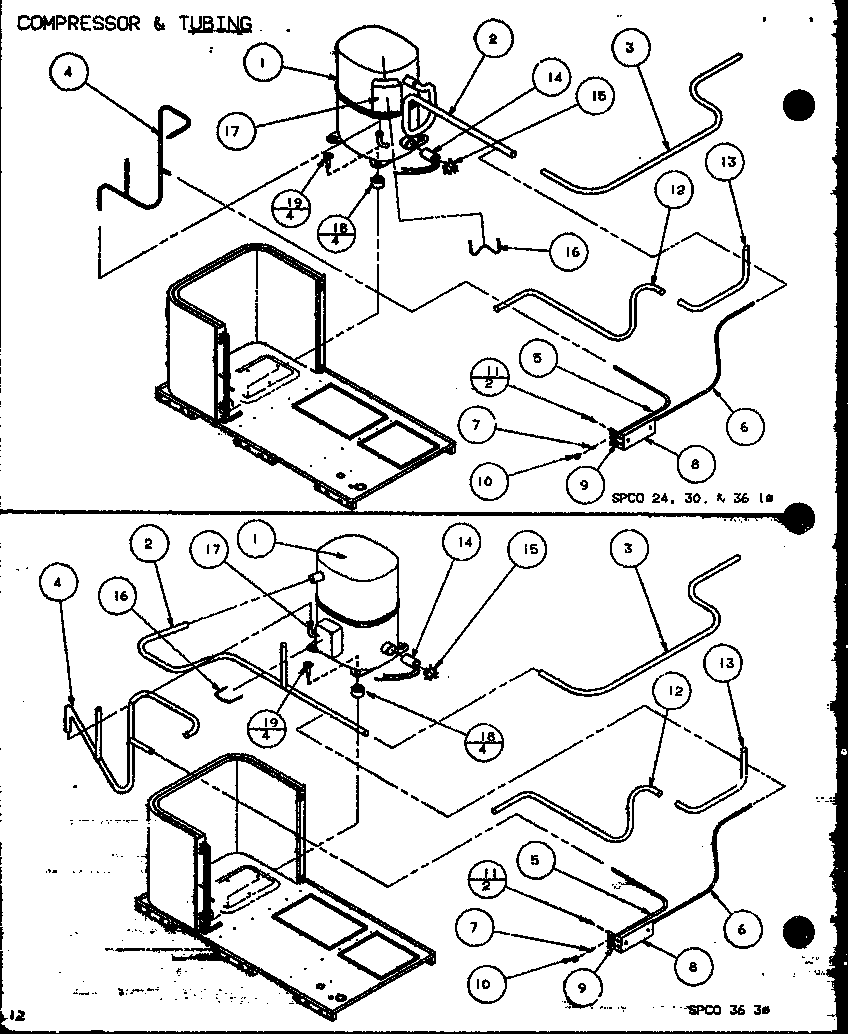

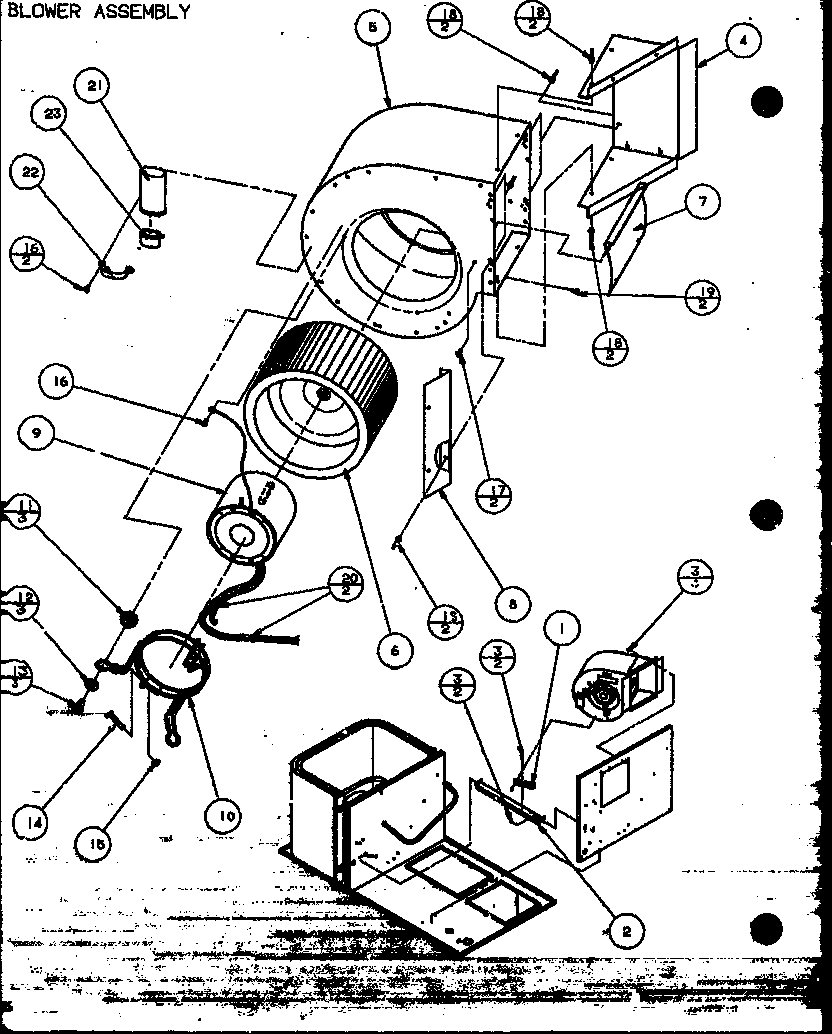

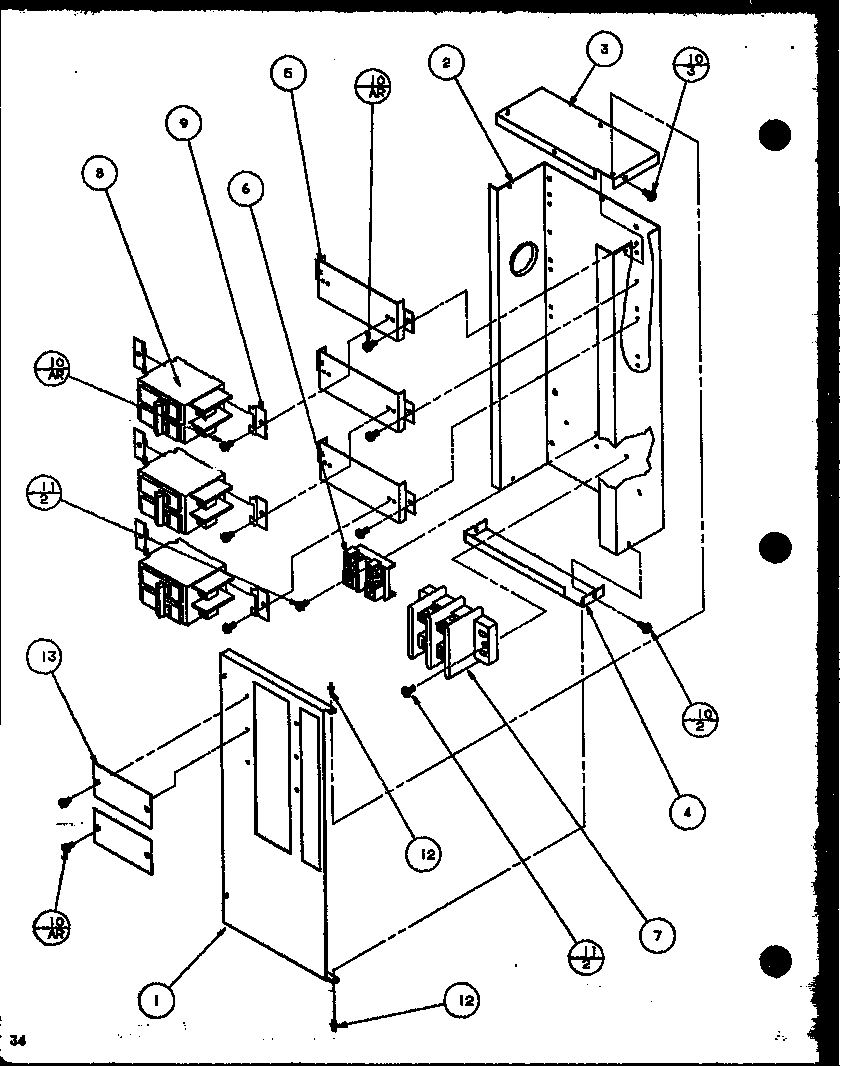

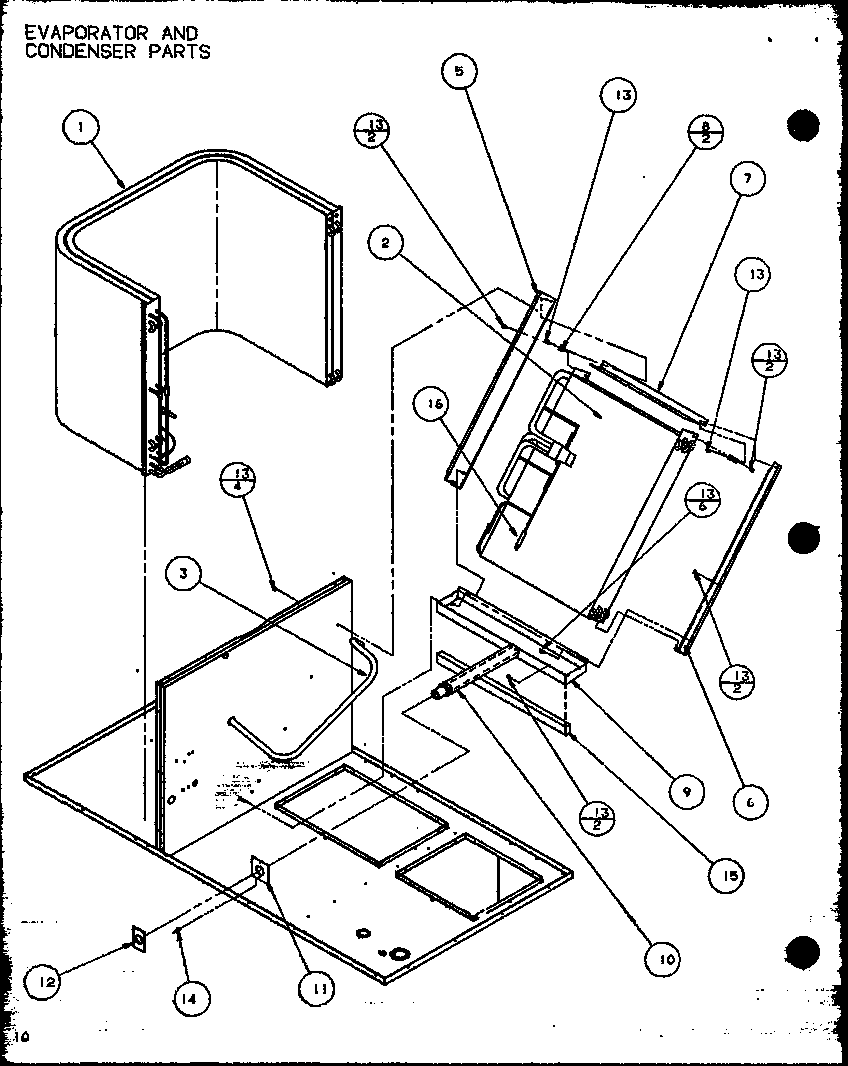

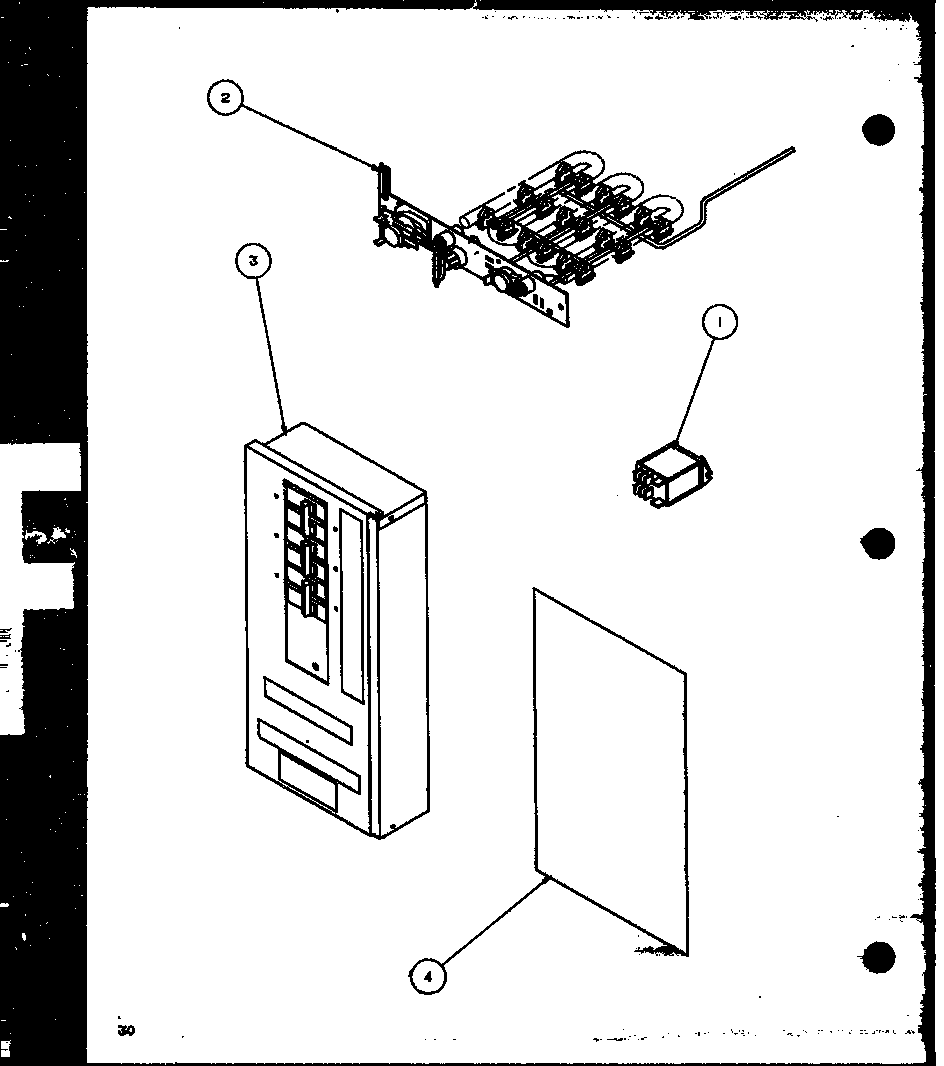

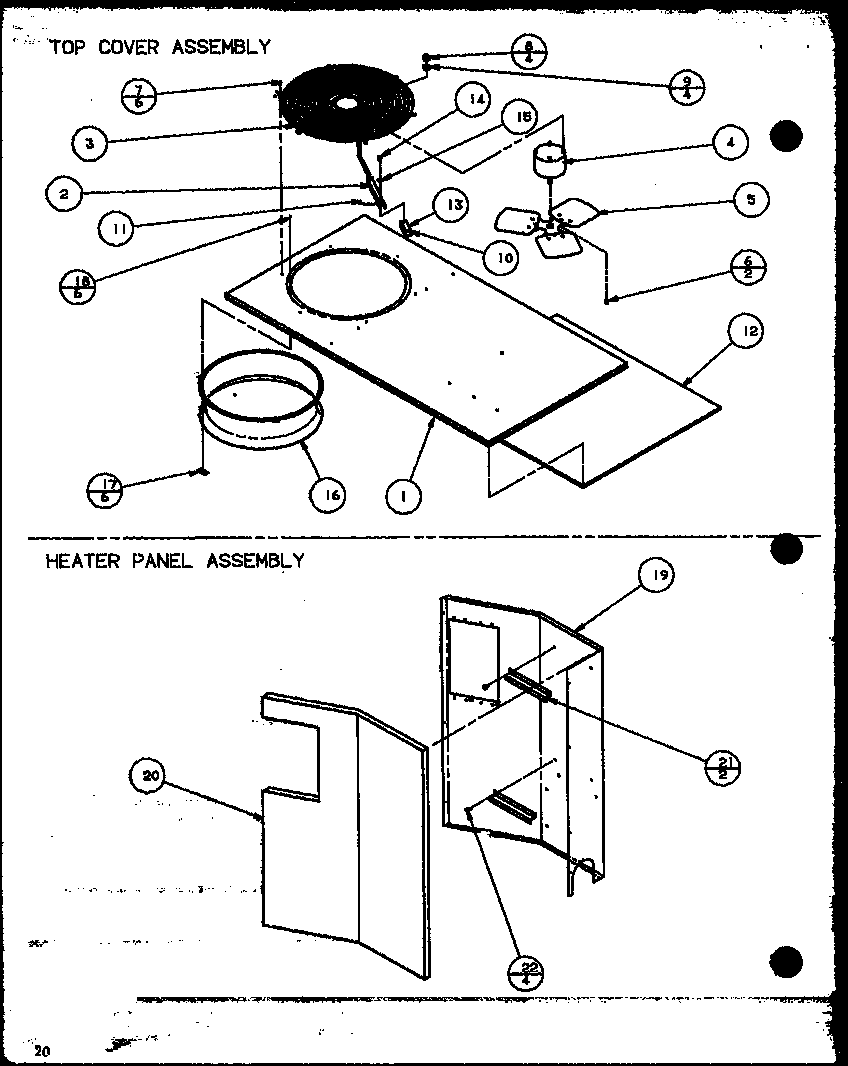

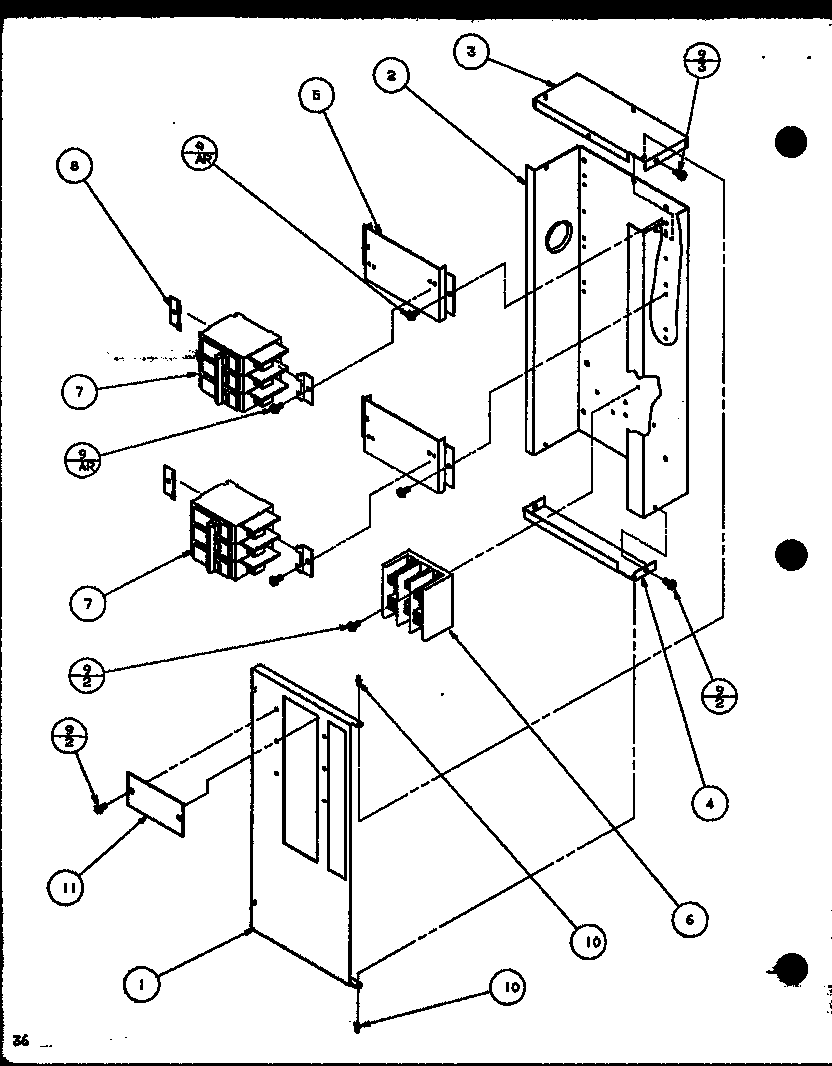

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 323 parts  |

Screw M0216515
Screw

Part #M0216515

Replaced by #WP489349

?
Manufacturer substitution
This part replaces M0216515. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Screw M0211317
Screw

Part #M0211317

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0211317. Substitute parts can look different from the original.
This item is not returnable
$6.49
13% OFF Phone Price : $7.49
In Stock
Use M2820-15 M0282013
Use m2820-15

Part #M0282013

Replaced by #WP487939

?
Manufacturer substitution
This part replaces M0282013. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Screw M0267144
Screw

Part #M0267144

Replaced by #3400241

?
Manufacturer substitution
This part replaces M0267144. Substitute parts can look different from the original.
In Stock
Tie M0321202
Tie

Part #M0321202

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces M0321202. Substitute parts can look different from the original.
This item is not returnable
$4.37
19% OFF Phone Price : $5.37
In Stock
Screw M0211016
Screw

Part #M0211016

Replaced by #M0211016

?
Manufacturer substitution
This part replaces M0211016. Substitute parts can look different from the original.
This item is not returnable
In Stock
Insulation D9822603
#14

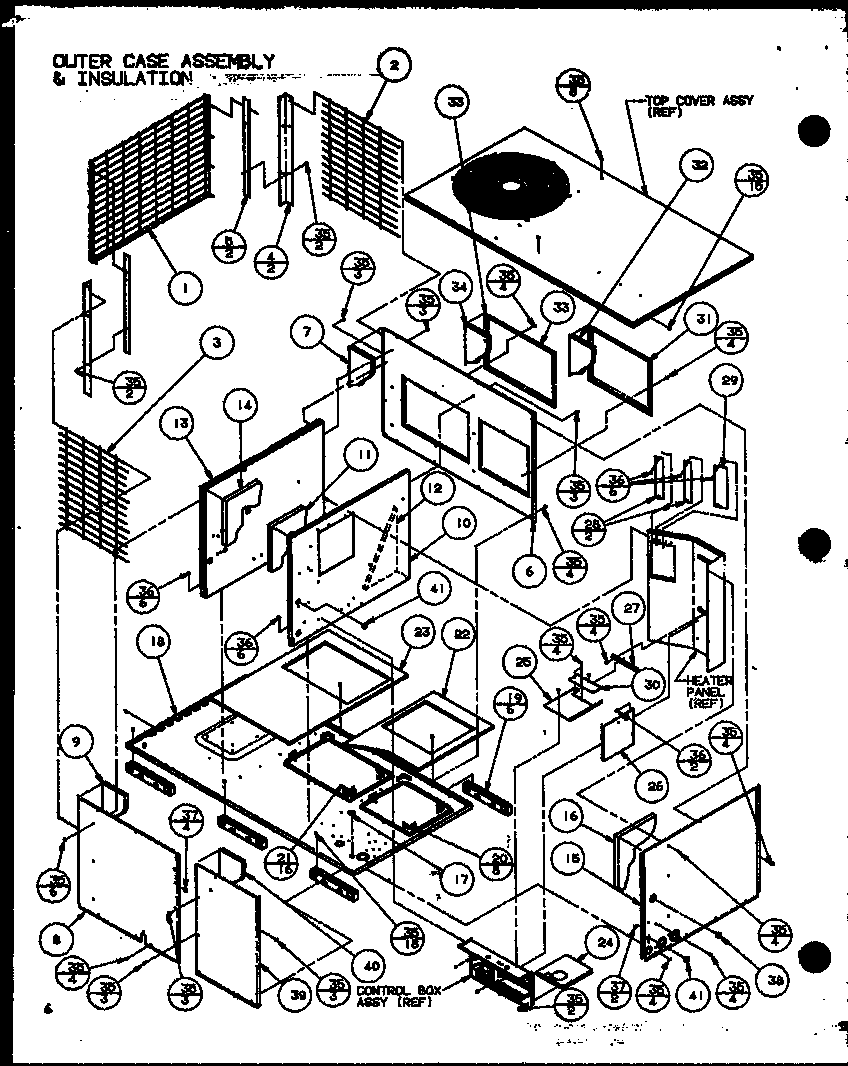

Outer case assembly & insulation (spco24001a/p9999101c) (spco30001a/p9999102c) (spco36001a/p9999103c) (spco36003a/p9999104c) diagram

Insulation

Part #D9822603

The manufacturer no longer makes this part, and there's no substitute part

Grommet B1315401
#12B

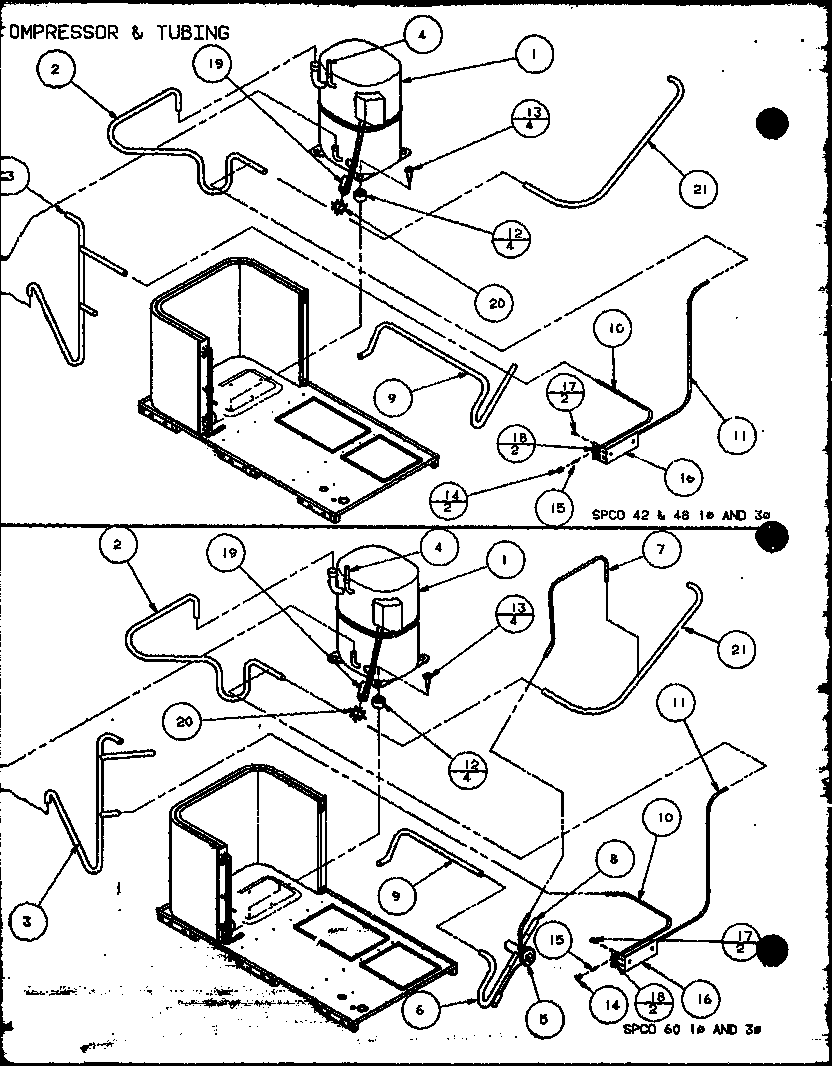

Compressor & tubing (spco42001a/p9999105c) (spco42003a/p9999106c) (spco48001a/p9999107c) (spco48003a/p9999108c) (spco60001a/p9999109c) (spco60003a/p9999110c) diagram

Grommet

Part #B1315401

The manufacturer no longer makes this part, and there's no substitute part

Corner Post C6461803
#4

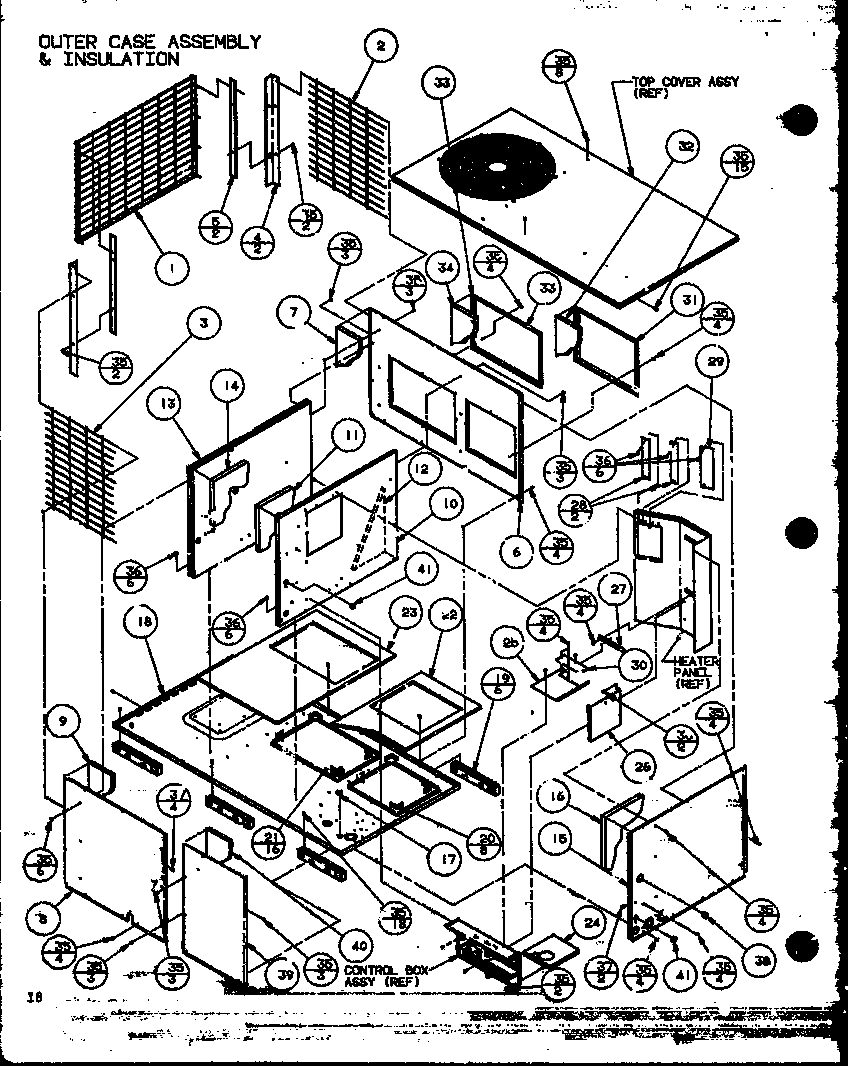

Outer case assembly & insulation (spco24001a/p9999101c) (spco30001a/p9999102c) (spco36001a/p9999103c) (spco36003a/p9999104c) diagram

Corner post

Part #C6461803

The manufacturer no longer makes this part, and there's no substitute part

Grille, Condenser Left D9828903
#2

Outer case assembly & insulation (spco24001a/p9999101c) (spco30001a/p9999102c) (spco36001a/p9999103c) (spco36003a/p9999104c) diagram

Grille, condenser left

Part #D9828903

The manufacturer no longer makes this part, and there's no substitute part
