Kenmore Elite 153331000 gas water heater Parts

Here are the diagrams and repair parts for Kenmore Elite 153331000 gas water heater, as well as links to manuals and error code tables, if available.

Kenmore Elite 153331000 gas water heater
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 153331000 Water Heaters

  • K,heat Excha for Kenmore Elite 153331000 - Part 100112131

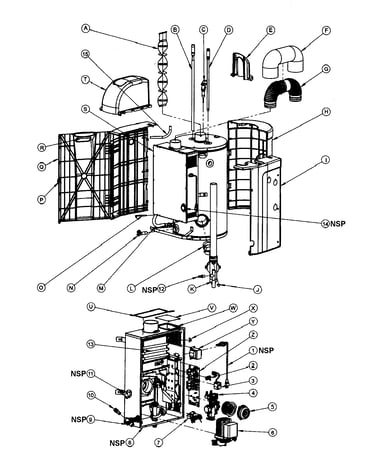

    Water heater diagram

    Exchanger

    Part #9007577005

    Replaced by #100112131

    Info Icon
    Manufacturer substitution
    This part replaces 9007577005. Substitute parts can look different from the original.
    In Stock
    $405.71
    Minus Item
    Qty
    Plus Item
  • Kenmore Elite Water Heater Temperature And Pressure Relief Valve for Kenmore Elite 153331000 - Part 100109448

    Water heater diagram

    Release Valve

    Part #9003741005

    Replaced by #100109448

    Info Icon
    Manufacturer substitution
    This part replaces 9003741005. Substitute parts can look different from the original.
    In Stock
    $103.69
    Minus Item
    Qty
    Plus Item
  • K,hi Limit S for Kenmore Elite 153331000 - Part 100111782

    Water heater diagram

    Switch

    Part #9007179015

    Replaced by #100111782

    Info Icon
    Manufacturer substitution
    This part replaces 9007179015. Substitute parts can look different from the original.
    In Stock
    $66.49
    Minus Item
    Qty
    Plus Item
  • K,diptube,di for Kenmore Elite 153331000 - Part 100111811

    Water heater diagram

    Diptube J

    Part #9007208005

    Replaced by #100111811

    Info Icon
    Manufacturer substitution
    This part replaces 9007208005. Substitute parts can look different from the original.
    In Stock
    $119.84
    Minus Item
    Qty
    Plus Item
  • K,pump,recir for Kenmore Elite 153331000 - Part 100111776

    Water heater diagram

    Pump

    Part #9007173005

    Replaced by #100111776

    Info Icon
    Manufacturer substitution
    This part replaces 9007173005. Substitute parts can look different from the original.
    In Stock
    $993.15
    Minus Item
    Qty
    Plus Item
  • K,water Valv for Kenmore Elite 153331000 - Part 100111998

    Water heater diagram

    Water Valve

    Part #9007424005

    Replaced by #100111998

    Info Icon
    Manufacturer substitution
    This part replaces 9007424005. Substitute parts can look different from the original.
    In Stock
    $377.71
    Minus Item
    Qty
    Plus Item
  • K,tank Therm for Kenmore Elite 153331000 - Part 100111780

    Water heater diagram

    Thermistor

    Part #9007177005

    Replaced by #100111780

    Info Icon
    Manufacturer substitution
    This part replaces 9007177005. Substitute parts can look different from the original.
    In Stock
    $183.00
    Minus Item
    Qty
    Plus Item
  • K,control,di for Kenmore Elite 153331000 - Part 100111999

    Water heater diagram

    Display

    Part #9007425005

    Replaced by #100111999

    Info Icon
    Manufacturer substitution
    This part replaces 9007425005. Substitute parts can look different from the original.
    In Stock
    $233.96
    Minus Item
    Qty
    Plus Item
  • K,thermistor for Kenmore Elite 153331000 - Part 100111777

    Water heater diagram

    Sensor

    Part #9007174005

    Replaced by #100111777

    Info Icon
    Manufacturer substitution
    This part replaces 9007174005. Substitute parts can look different from the original.
    In Stock
    $100.39
    Minus Item
    Qty
    Plus Item
  • K,control Bo for Kenmore Elite 153331000 - Part 100112015

    Water heater diagram

    Pcb Control

    Part #9007441005

    Replaced by #100112015

    Info Icon
    Manufacturer substitution
    This part replaces 9007441005. Substitute parts can look different from the original.
    In Stock
    $777.72
    Minus Item
    Qty
    Plus Item
