Model # 1344 Official Kenmore pro bowl hinged kettle

Here are the diagrams and repair parts for Official Kenmore 1344 pro bowl hinged kettle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |

Lock Nut 10746
#17

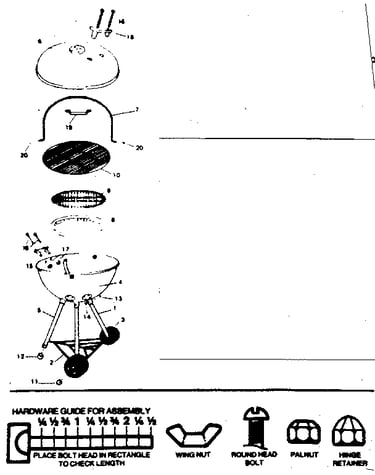

Pro-bowl diagram

Lock nut

Part #10746

The manufacturer no longer makes this part, and there's no substitute part

Wheel 11051
#3

Pro-bowl diagram

Wheel

Part #11051

The manufacturer no longer makes this part, and there's no substitute part

Hinge Retainer 11324
#20

Pro-bowl diagram

Hinge retainer

Part #11324

The manufacturer no longer makes this part, and there's no substitute part

Bent Leg 11049
#1

Pro-bowl diagram

Bent leg

Part #11049

The manufacturer no longer makes this part, and there's no substitute part

Handle 11625
#18

Pro-bowl diagram

Handle

Part #11625

The manufacturer no longer makes this part, and there's no substitute part

Bracket 11624
#19

Pro-bowl diagram

Bracket

Part #11624

The manufacturer no longer makes this part, and there's no substitute part

Screw 10292
#16

Pro-bowl diagram

Screw

Part #10292

The manufacturer no longer makes this part, and there's no substitute part

Wheel Retainer 10313
#11

Pro-bowl diagram

Wheel retainer

Part #10313

The manufacturer no longer makes this part, and there's no substitute part

Wing Nut 10407
#14

Pro-bowl diagram

Wing nut

Part #10407

The manufacturer no longer makes this part, and there's no substitute part

Straight Leg 11048
#5

Pro-bowl diagram

Straight leg

Part #11048

The manufacturer no longer makes this part, and there's no substitute part
