Model # MC301WDABW Official Maytag connect 360

Here are the diagrams and repair parts for Official Maytag MC301WDABW connect 360, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 9 of 9 parts  |
Main Harness W10584671
#7

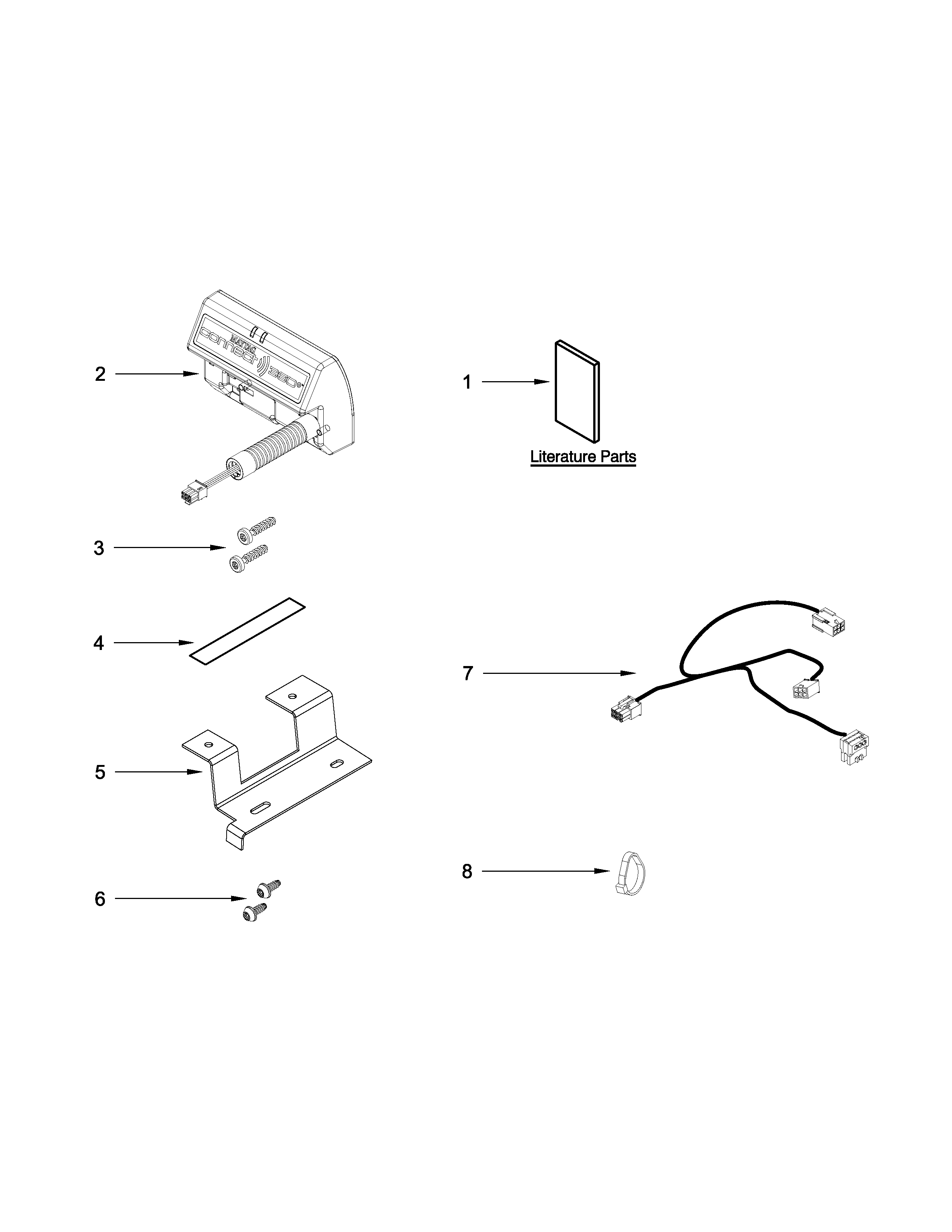

Connect 360 parts diagram

Main harness

Part #W10584671

Replaced by #WPW10584671

?
Manufacturer substitution
This part replaces W10584671. Substitute parts can look different from the original.
$23.73
In Stock
Me Bracket W10599109
#5

Connect 360 parts diagram

Me bracket

Part #W10599109

Replaced by #WPW10599109

?
Manufacturer substitution
This part replaces W10599109. Substitute parts can look different from the original.
$19.60
In Stock
Cable Tie W10182767
#8

Connect 360 parts diagram

Cable tie

Part #W10182767

The manufacturer no longer makes this part, and there's no substitute part

Tape, Module W10564373
#4

Connect 360 parts diagram

Tape, module

Part #W10564373

The manufacturer no longer makes this part, and there's no substitute part

Screw W10561529
#6

Connect 360 parts diagram

Screw

Part #W10561529

The manufacturer no longer makes this part, and there's no substitute part

Sam With Fro W10598805
#2

Connect 360 parts diagram

Sam with fro

Part #W10598805

The manufacturer no longer makes this part, and there's no substitute part

Installation Instructions W10376712
#1

Connect 360 parts diagram

Installation instructions

Part #W10376712

The manufacturer no longer makes this part, and there's no substitute part

Fcc Sheet W10579815
#1A

Connect 360 parts diagram

Fcc sheet

Part #W10579815

The manufacturer no longer makes this part, and there's no substitute part

Screw W10561540
#3

Connect 360 parts diagram

Screw

Part #W10561540

The manufacturer no longer makes this part, and there's no substitute part
