Whirlpool
Wall Oven/Microwave Combo

Model # GSC308PJB06 Official Whirlpool electric built-in oven with microwave

Here are the diagrams and repair parts for Official Whirlpool GSC308PJB06 electric built-in oven with microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

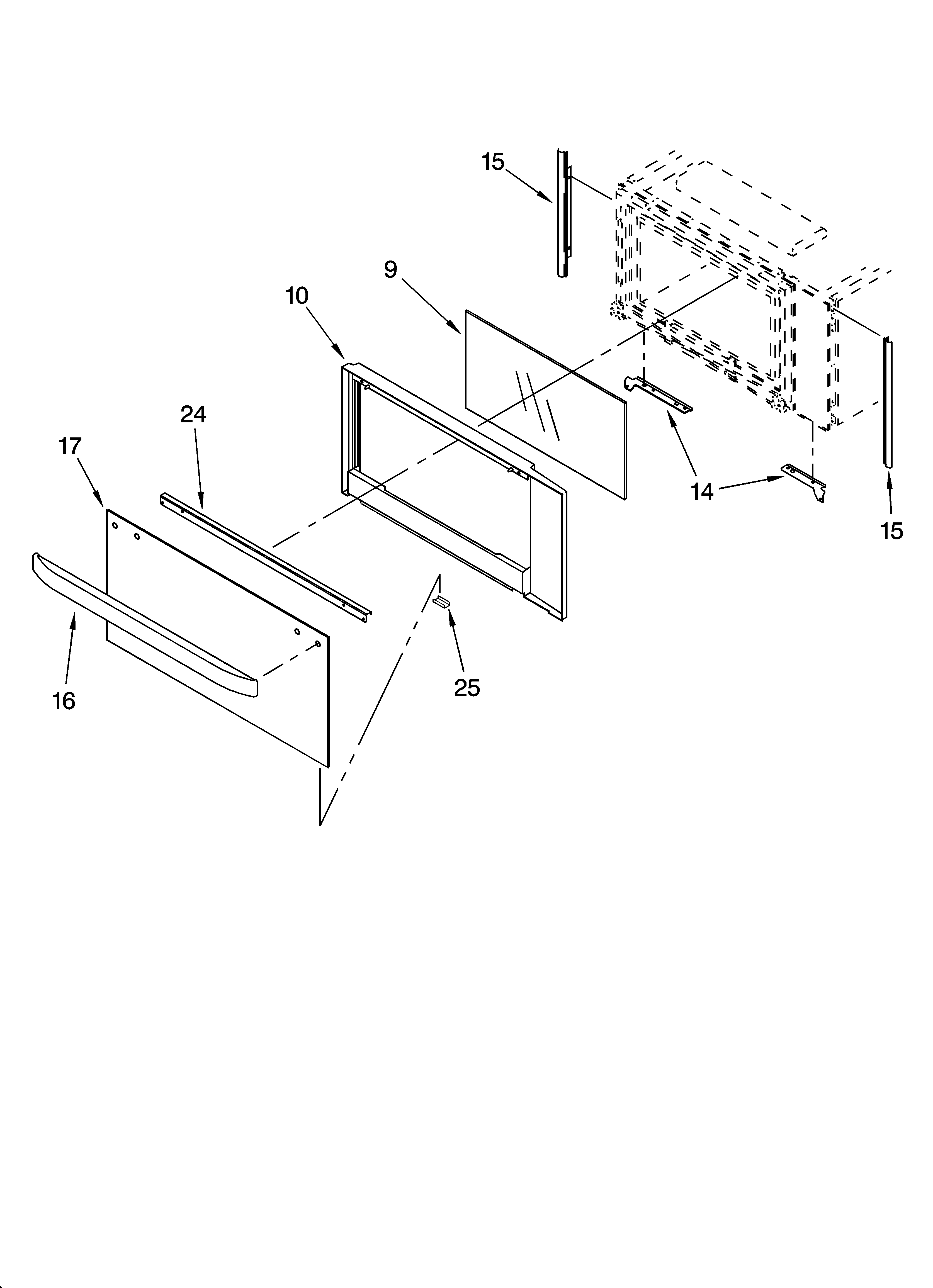

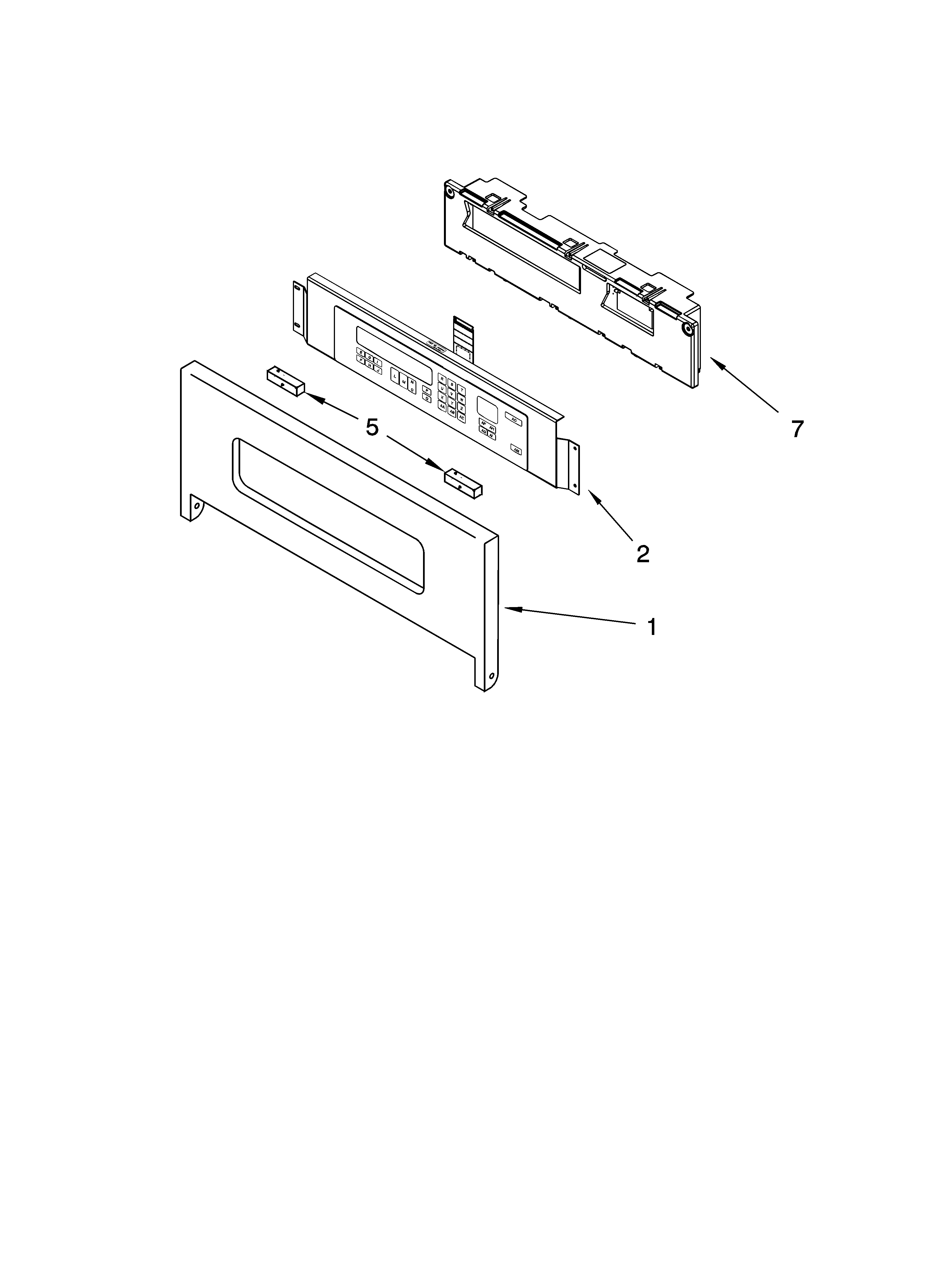

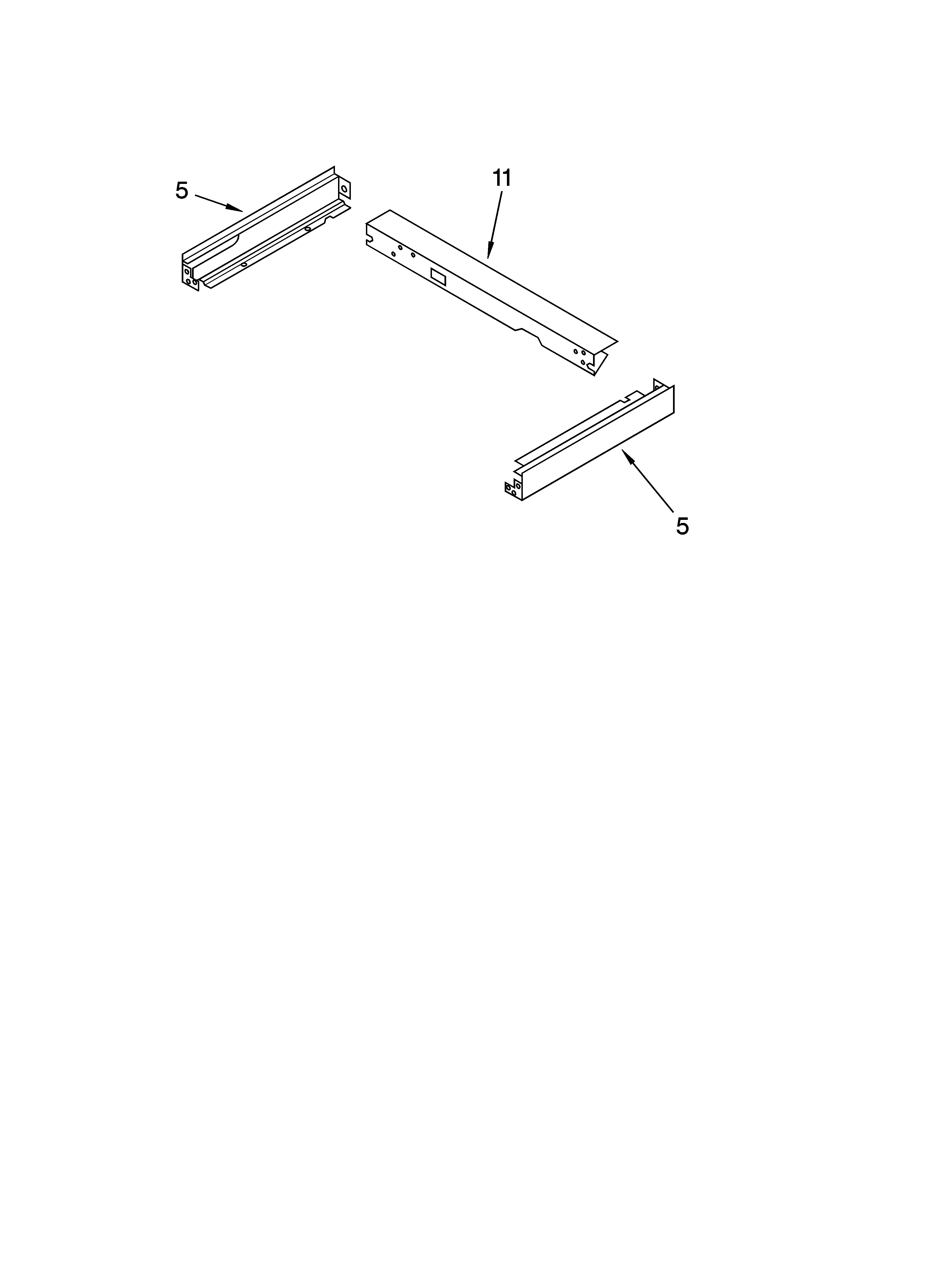

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 246 parts  |

Appliance Touch-up Paint 72017
#NI

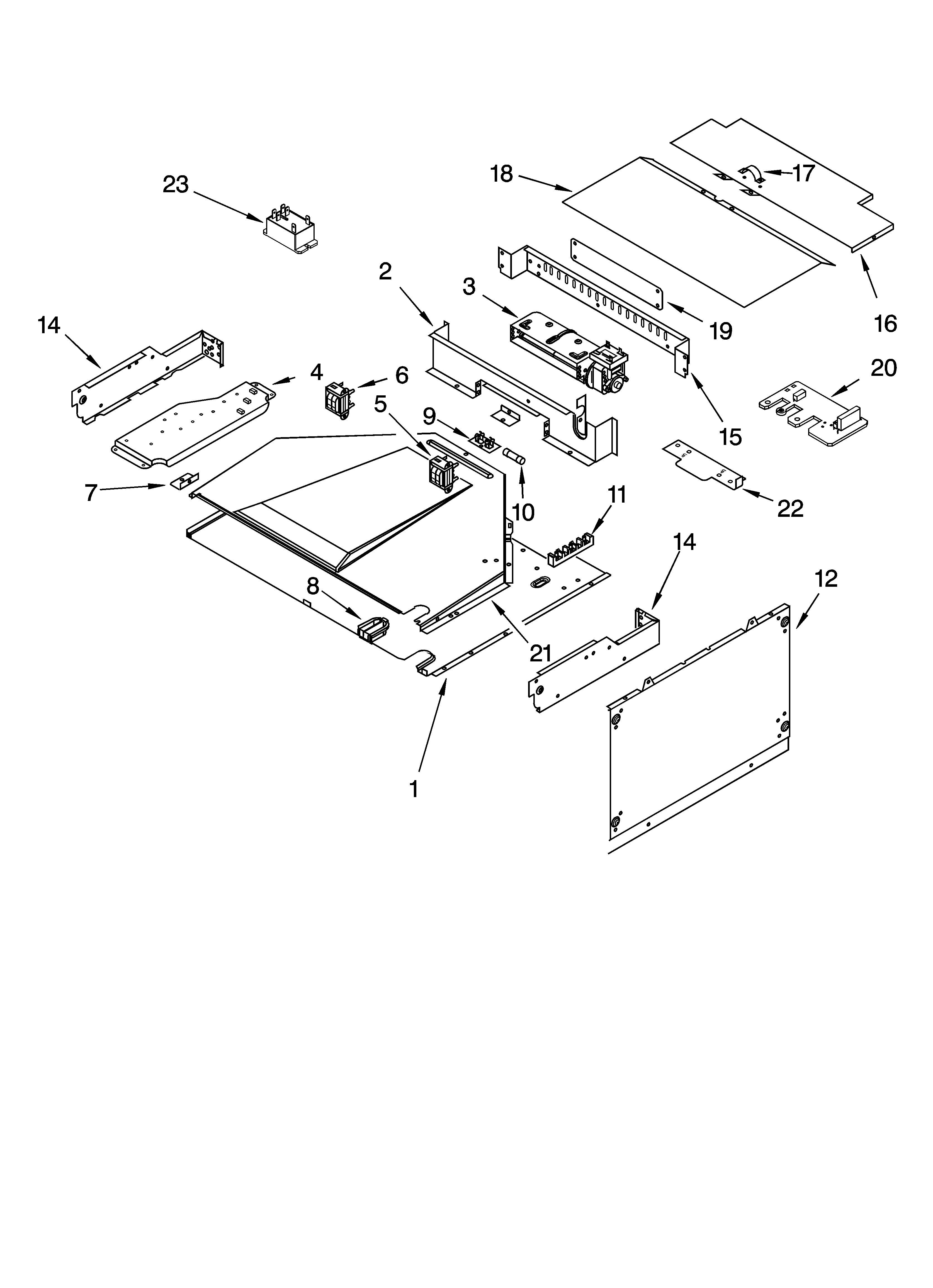

Top venting parts, optional parts diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29
11% OFF Phone Price : $9.29
In Stock
Bake Element 4452153
#7

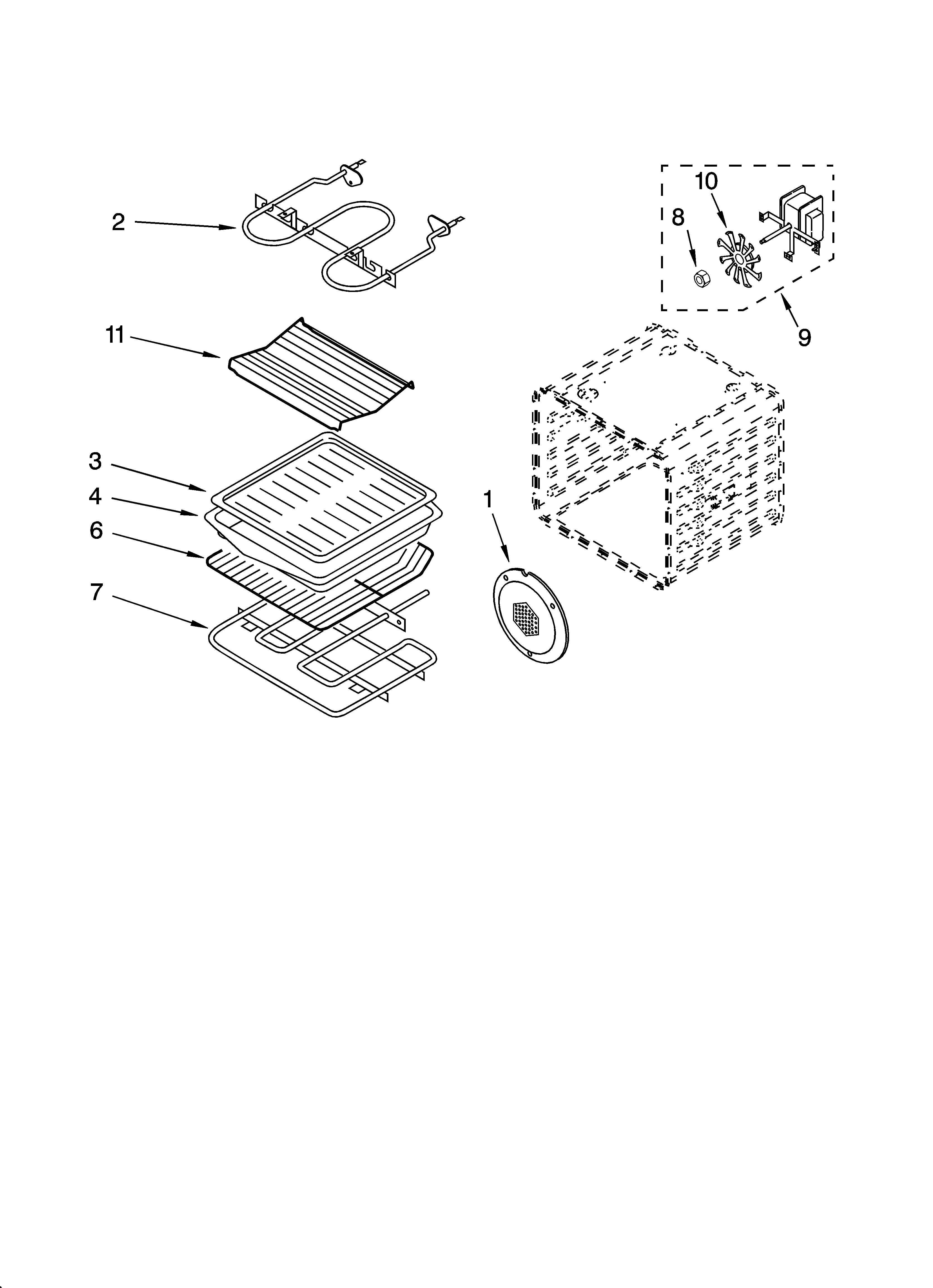

Internal oven parts diagram

Bake element

Part #4452153

Replaced by #WPW10207397

?
Manufacturer substitution
This part replaces 4452153. Substitute parts can look different from the original.
BEST SELLER
$60.97
16% OFF MSRP : $73.00
In Stock
Microwave Door Interlock Switch 4375346
#51

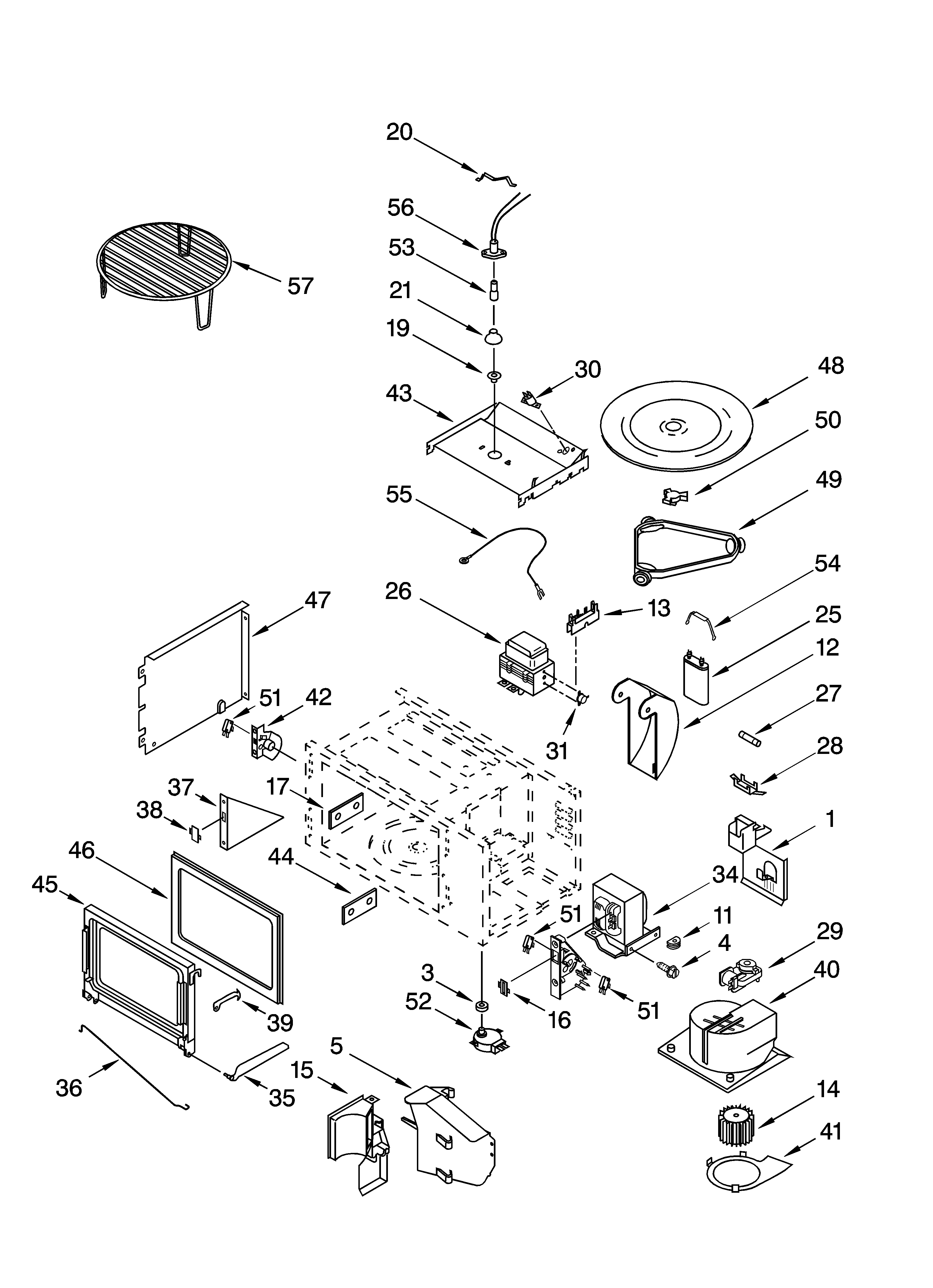

Cabinet and stirrer parts diagram

Microwave door interlock switch

Part #4375346

Replaced by #W10211972

?
Manufacturer substitution
This part replaces 4375346. Substitute parts can look different from the original.
BEST SELLER
$25.98
53% OFF MSRP : $55.00
In Stock
Broiler Element 4456103
#2

Internal oven parts diagram

Broiler element

Part #4456103

Replaced by #WP9760771

?
Manufacturer substitution
This part replaces 4456103. Substitute parts can look different from the original.
$76.62
9% OFF Was : $84.31
In Stock
Wall Oven Microwave Convection Cooking Rack 4452220
#57

Cabinet and stirrer parts diagram

Wall oven microwave convection cooking rack

Part #4452220

$51.83
36% OFF MSRP : $81.00
In Stock

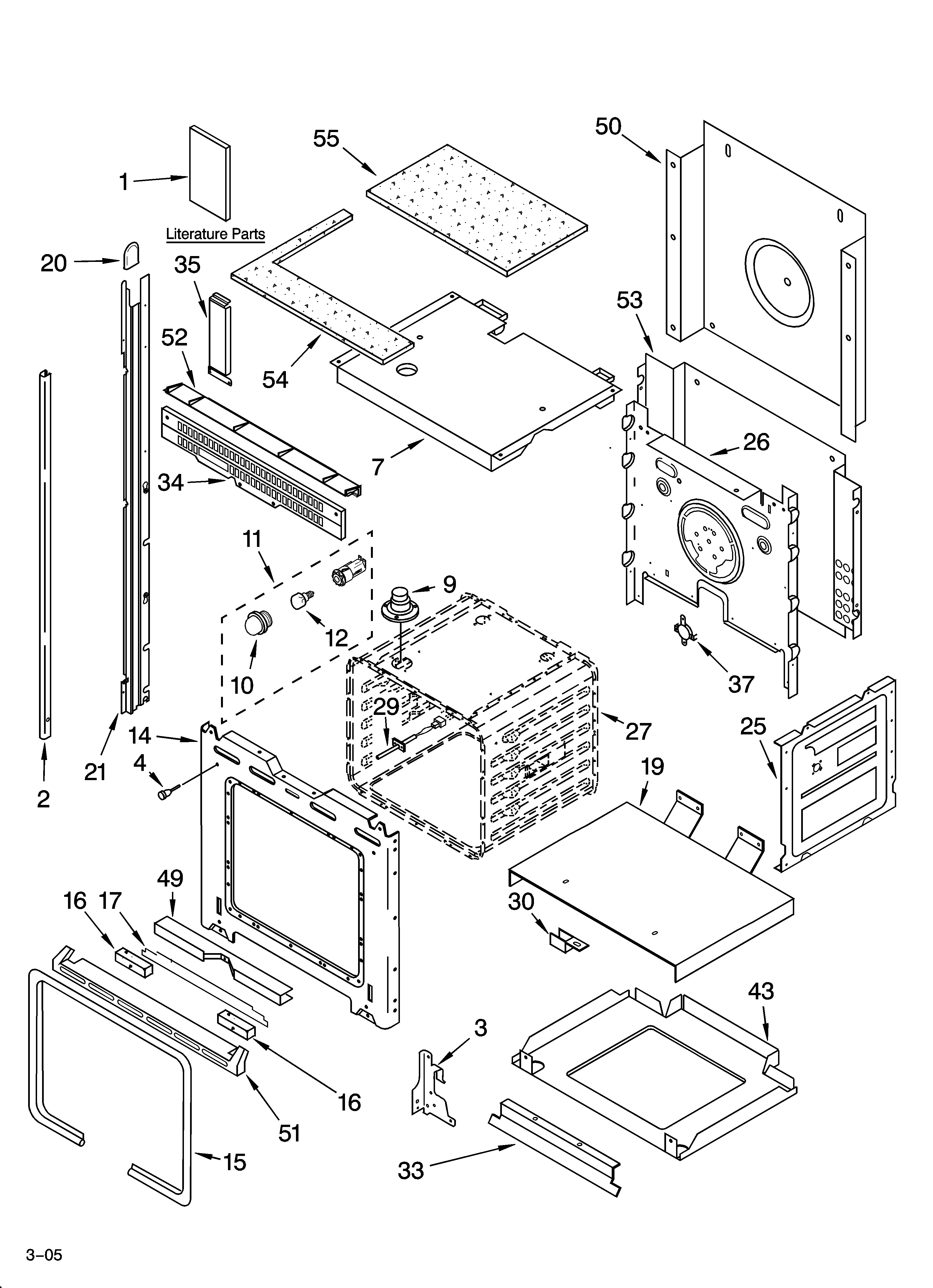

Range High-limit Thermostat 9759243
#37

Oven parts diagram

Range high-limit thermostat

Part #9759243

Replaced by #WP9759243

?
Manufacturer substitution
This part replaces 9759243. Substitute parts can look different from the original.
$45.89
27% OFF MSRP : $63.00
In Stock
Door Glass 8300903
#12

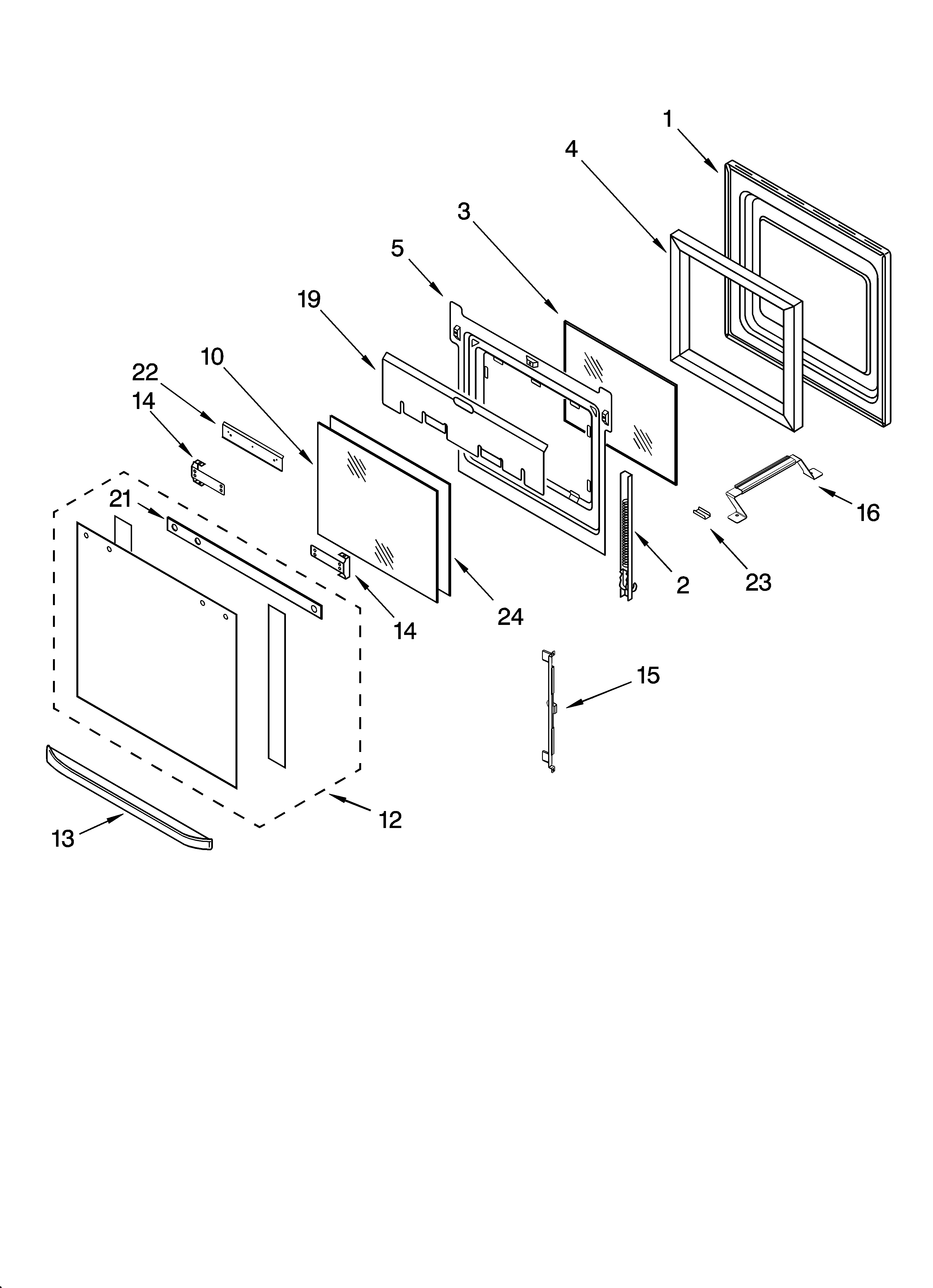

Oven door parts diagram

Door glass

Part #8300903

Replaced by #WP9759641

?
Manufacturer substitution
This part replaces 8300903. Substitute parts can look different from the original.
$143.66
15% OFF MSRP : $170.00
In Stock
Range Oven Door Removal Hinge Pin Set (replaces 3186899, 3196897, 4448439) 814381
#NI

Top venting parts, optional parts diagram

Range oven door removal hinge pin set (replaces 3186899, 3196897, 4448439)

Part #814381

This item is not returnable
$6.49
13% OFF Phone Price : $7.49
In Stock
Screw 3196176
#9A

Oven parts diagram

Screw

Part #3196176

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 3196176. Substitute parts can look different from the original.
$16.79
11% OFF Phone Price : $18.79
In Stock
Oven Door Latch 9759481
#10

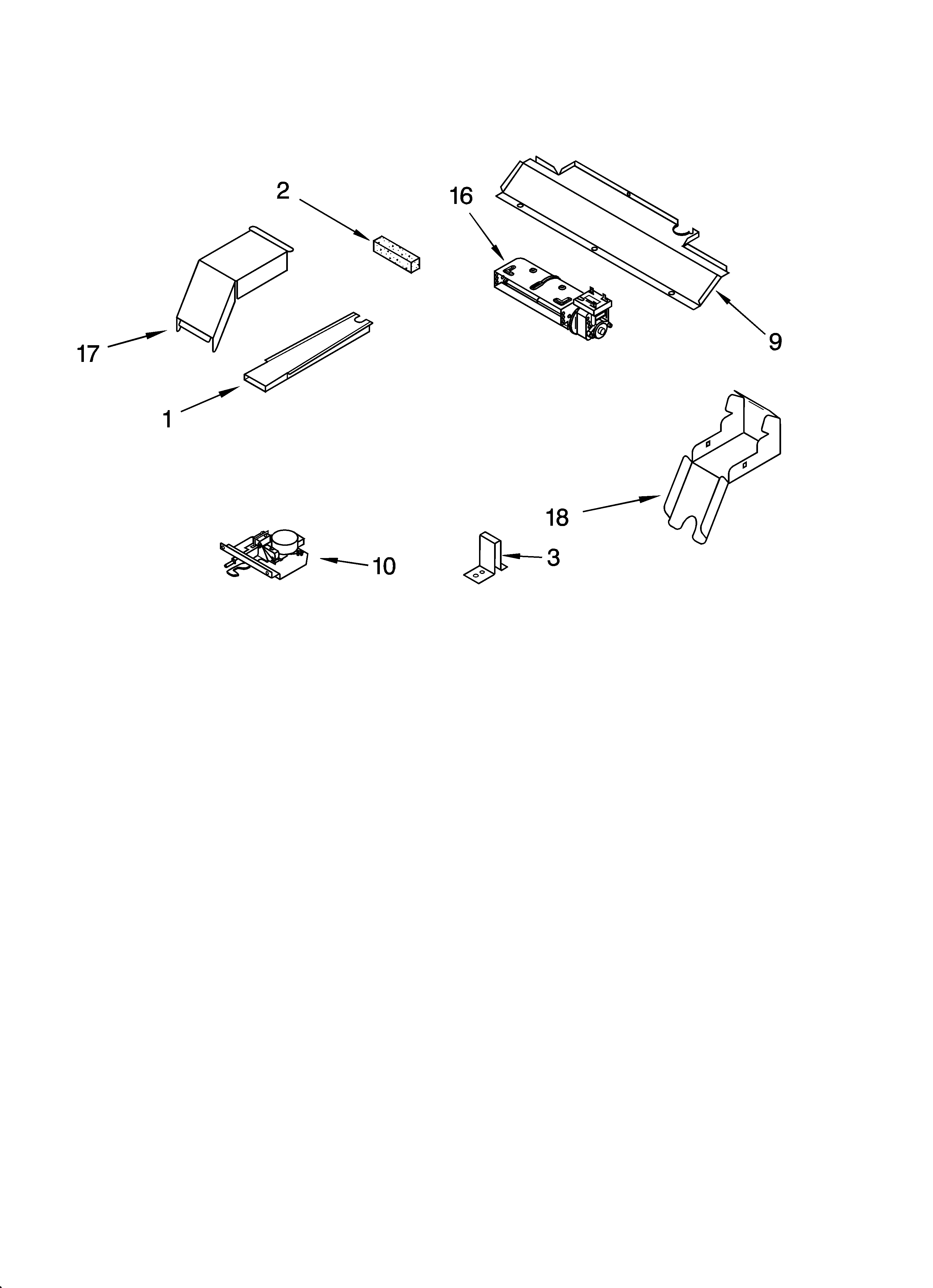

Latch parts diagram

Oven door latch

Part #9759481

Replaced by #WPW10195934

?
Manufacturer substitution
This part replaces 9759481. Substitute parts can look different from the original.
$173.04
9% OFF MSRP : $190.00
In Stock
