Craftsman
Lawn & Garden Engine

Model # 143426012 Official Craftsman engine

Here are the diagrams and repair parts for Official Craftsman 143426012 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 156 parts  |
Lawn Mower O-ring 631028
#29

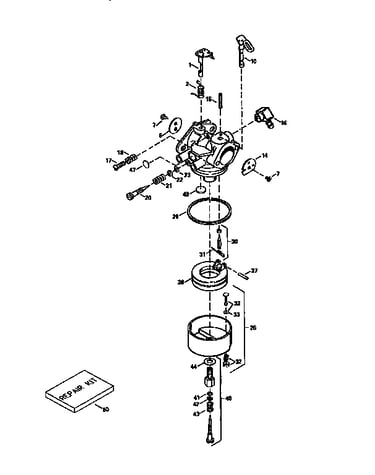

Carburetor 632536 (71/143) diagram

Lawn mower o-ring

Part #631028

Replaced by #631028A

?
Manufacturer substitution
This part replaces 631028. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Spark Plug 33636
#52

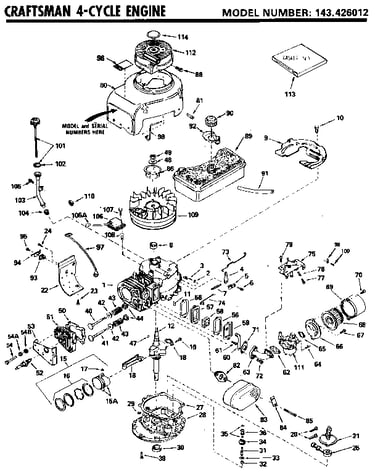

Craftsman 4-cycle engine diagram

Spark plug

Part #33636

Replaced by #J19LM

?
Manufacturer substitution
This part replaces 33636. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.80 |
17% OFF Phone Price : $5.80
In Stock
Lawn & Garden Equipment Engine Carburetor Gasket (replaces 27141) 26756
#62

Craftsman 4-cycle engine diagram

Lawn & garden equipment engine carburetor gasket (replaces 27141)

Part #26756

BEST SELLER
This item is not returnable
$3.03 |
36% OFF MSRP : $4.70
In Stock
Lamination 34443A
#106

Craftsman 4-cycle engine diagram

Lamination

Part #34443A

Replaced by #34443D

?
Manufacturer substitution
This part replaces 34443A. Substitute parts can look different from the original.
BEST SELLER
$46.33 |
10% OFF Phone Price : $51.33
In Stock
Gasket 27110
#44

Carburetor 632536 (71/143) diagram

Gasket

Part #27110

Replaced by #27110A

?
Manufacturer substitution
This part replaces 27110. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Float 632019
#28

Carburetor 632536 (71/143) diagram

Float

Part #632019

Replaced by #632019A

?
Manufacturer substitution
This part replaces 632019. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
In Stock
Lawn & Garden Equipment Engine Air Filter (replaces 28424l) 28424
#58

Craftsman 4-cycle engine diagram

Lawn & garden equipment engine air filter (replaces 28424l)

Part #28424

BEST SELLER
This item is not returnable
$4.14 |
19% OFF Phone Price : $5.14
In Stock
Lawn & Garden Equipment Engine Spark Plug Boot (replaces 27276, Tc-610118) 610118
#106A

Craftsman 4-cycle engine diagram

Lawn & garden equipment engine spark plug boot (replaces 27276, tc-610118)

Part #610118

This item is not returnable
$4.49 |
33% OFF MSRP : $6.70
In Stock
Starter 590666
Starter

Part #590666

Replaced by #590732A

?
Manufacturer substitution
This part replaces 590666. Substitute parts can look different from the original.
$54.69 |
8% OFF Phone Price : $59.69
In Stock
Fuel Fitting 631775
#16

Carburetor 632536 (71/143) diagram

Fuel fitting

Part #631775

Replaced by #632527

?
Manufacturer substitution
This part replaces 631775. Substitute parts can look different from the original.
This item is not returnable
$9.59 |
9% OFF Phone Price : $10.59
In Stock
