Model # 315111280 Official Craftsman 3/8" cordless drill/driver

Here are the diagrams and repair parts for Official Craftsman 315111280 3/8" cordless drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 19 parts  |
Gear Pad 999725-001
#2

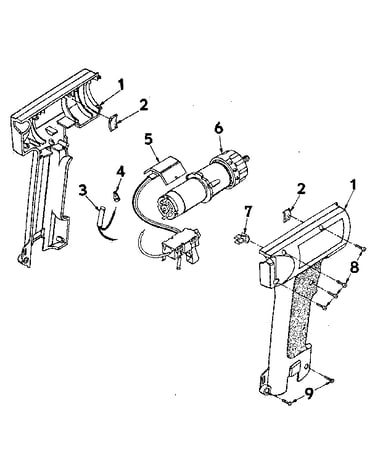

Motor housing diagram

Gear pad

Part #999725-001

The manufacturer no longer makes this part, and there's no substitute part

Drill Chuck Screw 616478-003
#3

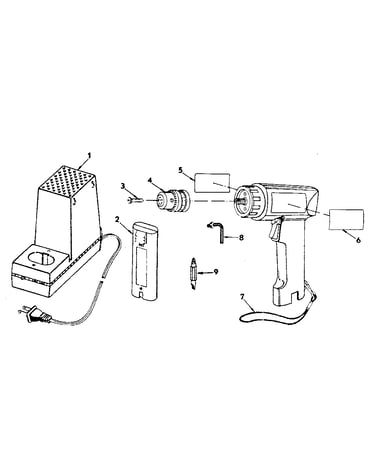

Unit parts diagram

Drill chuck screw

Part #616478-003

The manufacturer no longer makes this part, and there's no substitute part

Connector 623173-006
#4

Motor housing diagram

Connector

Part #623173-006

The manufacturer no longer makes this part, and there's no substitute part

Switch 999716-001
#5

Motor housing diagram

Switch

Part #999716-001

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 998075-000
#1

Motor housing diagram

Housing assembly

Part #998075-000

The manufacturer no longer makes this part, and there's no substitute part

Holder 967229-001
#7

Motor housing diagram

Holder

Part #967229-001

The manufacturer no longer makes this part, and there's no substitute part

Battery Pack 998101-002
#2

Unit parts diagram

Battery pack

Part #998101-002

The manufacturer no longer makes this part, and there's no substitute part

Therm W/lead 967228-001
#3

Motor housing diagram

Therm w/lead

Part #967228-001

The manufacturer no longer makes this part, and there's no substitute part

Charger 999061-001
#1

Unit parts diagram

Charger

Part #999061-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 999053-003
#9

Motor housing diagram

Screw

Part #999053-003

The manufacturer no longer makes this part, and there's no substitute part
