Kenmore
Humidifier

Model # 30314601 Official Kenmore humidifier

Here are the diagrams and repair parts for Official Kenmore 30314601 humidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Humidifier Pad 215993-01
Humidifier pad

Part #215993-01

This item is not returnable
$2.36 |
30% OFF Phone Price : $3.36
In Stock
Media Pad 21605501
#6

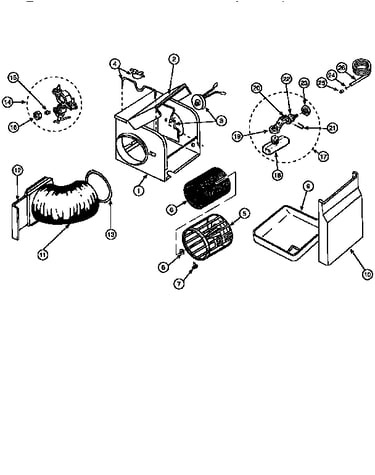

Humidifier diagram

Media pad

Part #21605501

The manufacturer no longer makes this part, and there's no substitute part

Saddle Valve 35561801
#14

Humidifier diagram

Saddle valve

Part #35561801

The manufacturer no longer makes this part, and there's no substitute part

Brass Compression Sleeve STD575026
#15

Humidifier diagram

Brass compression sleeve

Part #STD575026

The manufacturer no longer makes this part, and there's no substitute part

Wheel 44006501
#5

Humidifier diagram

Wheel

Part #44006501

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 03029401
#23

Humidifier diagram

Lock nut

Part #03029401

The manufacturer no longer makes this part, and there's no substitute part

Tubing Support 21582703
#26

Humidifier diagram

Tubing support

Part #21582703

The manufacturer no longer makes this part, and there's no substitute part

Bearing 40437001
#4

Humidifier diagram

Bearing

Part #40437001

The manufacturer no longer makes this part, and there's no substitute part

Float Arm 22513801
#19

Humidifier diagram

Float arm

Part #22513801

The manufacturer no longer makes this part, and there's no substitute part

Nut 25514001
#25

Humidifier diagram

Nut

Part #25514001

The manufacturer no longer makes this part, and there's no substitute part

Parts & More
