GE
Room Air Conditioner

Model #AZ55H07DABM1 GE zoneline air conditioner

Here are the diagrams and repair parts for GE AZ55H07DABM1 zoneline air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 113 parts

    Room Air Conditioner Transformer#2024

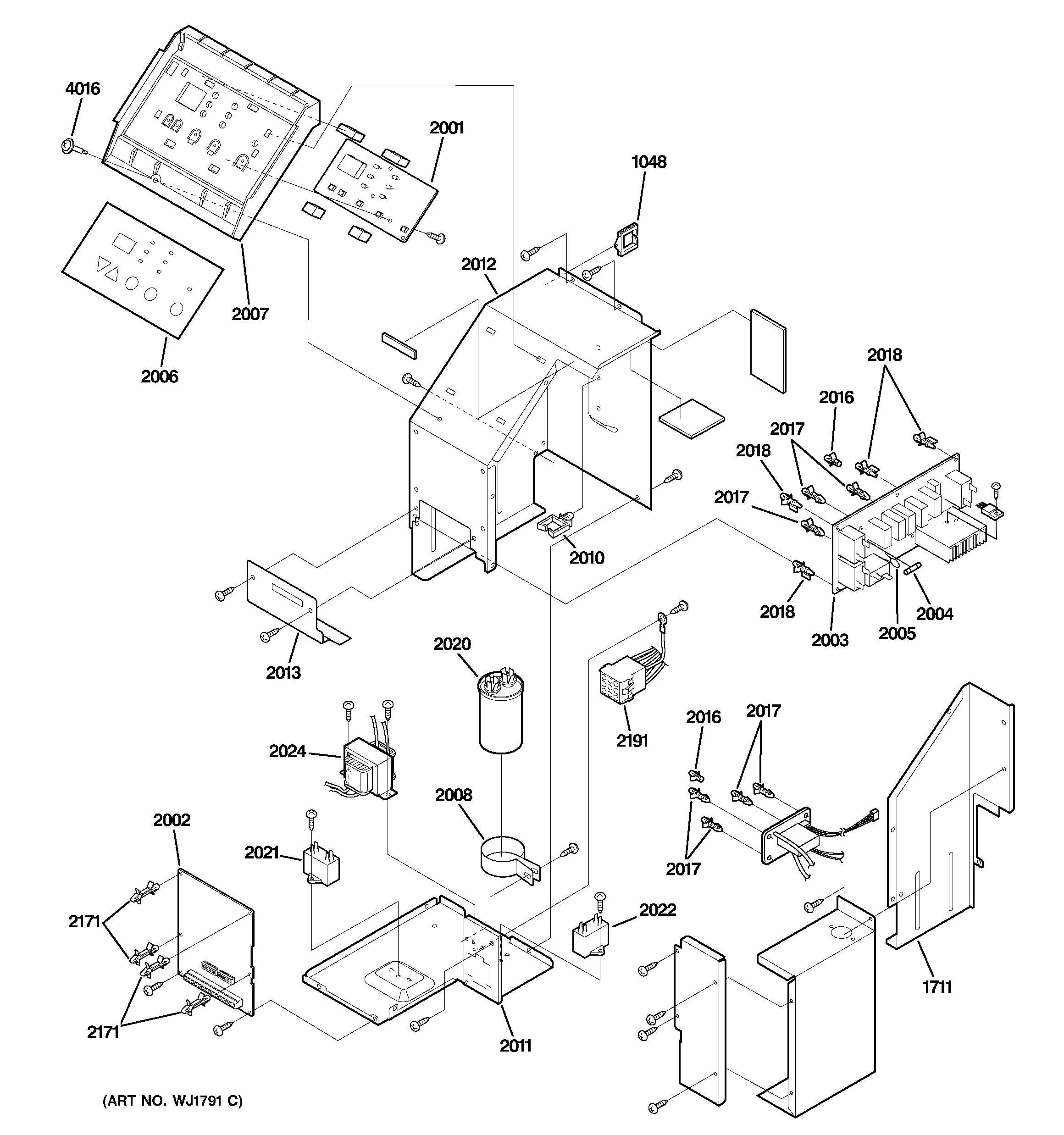

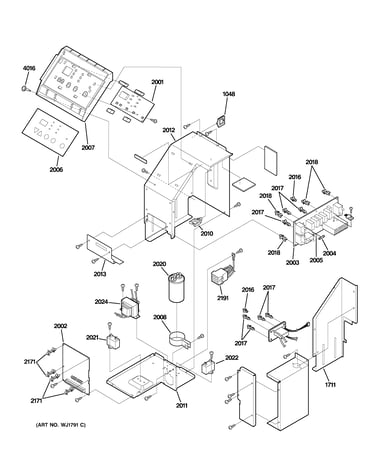

    Control parts Diagram

    In Stock
    $59.62
    Room Air Conditioner Fan Blade Nut#4003

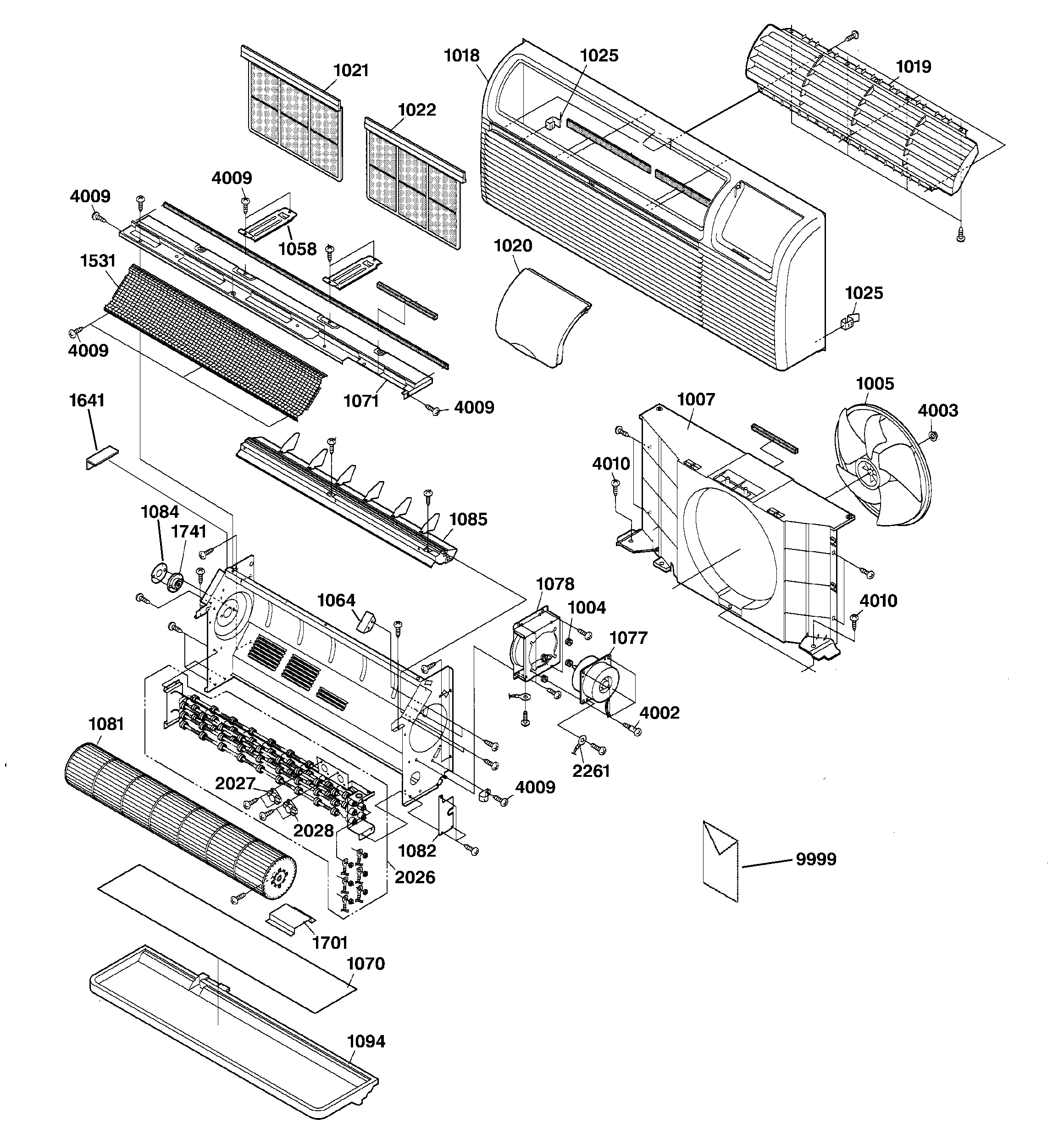

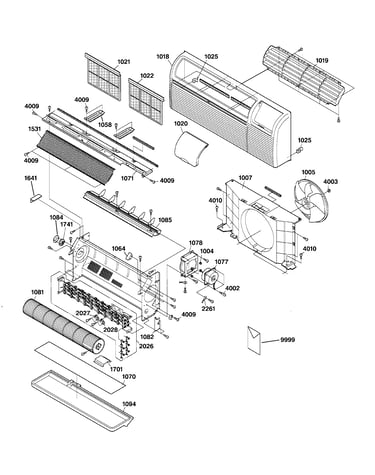

    Grille & chassis parts Diagram

    Special nut

    Part #WJ01X0981
    Replaced by #WJ01X10041
    ?
    Manufacturer substitution
    This part replaces WJ01X0981. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.37
    Compressor Overload Protector#2032

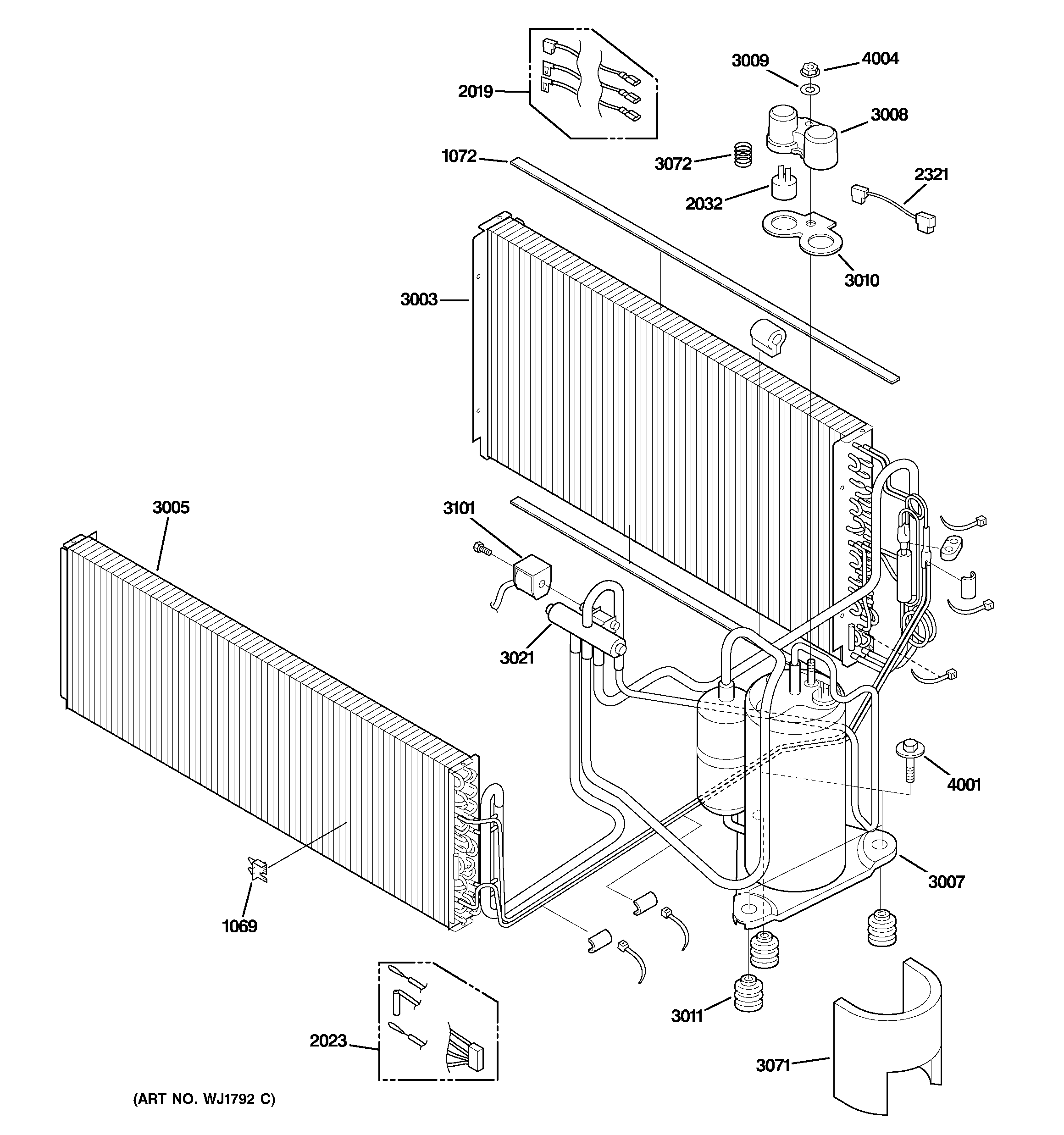

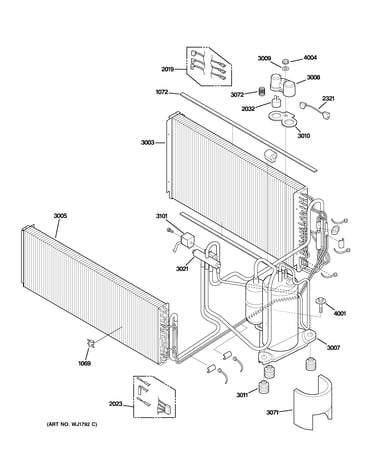

    Unit parts Diagram

    In Stock
    $53.51
    Room Air Conditioner Blower Wheel Bearing#1741

    Grille & chassis parts Diagram

    Room air conditioner blower wheel bearing

    Part #WP76X10006
    This item is not returnable
    In Stock
    $6.11
    Transformer#2024

    Control parts Diagram

    Transformer

    Part #WP27X10029
    In Stock
    $59.44
    Spacer#2016

    Control parts Diagram

    Spacer

    Part #WJ01X10043
    This item is not returnable
    In Stock
    $4.35
    Spring Protector#3072

    Unit parts Diagram

    Spring protector

    Part #WJ02X10001
    This item is not returnable
    In Stock
    $5.37
    Washer#1056

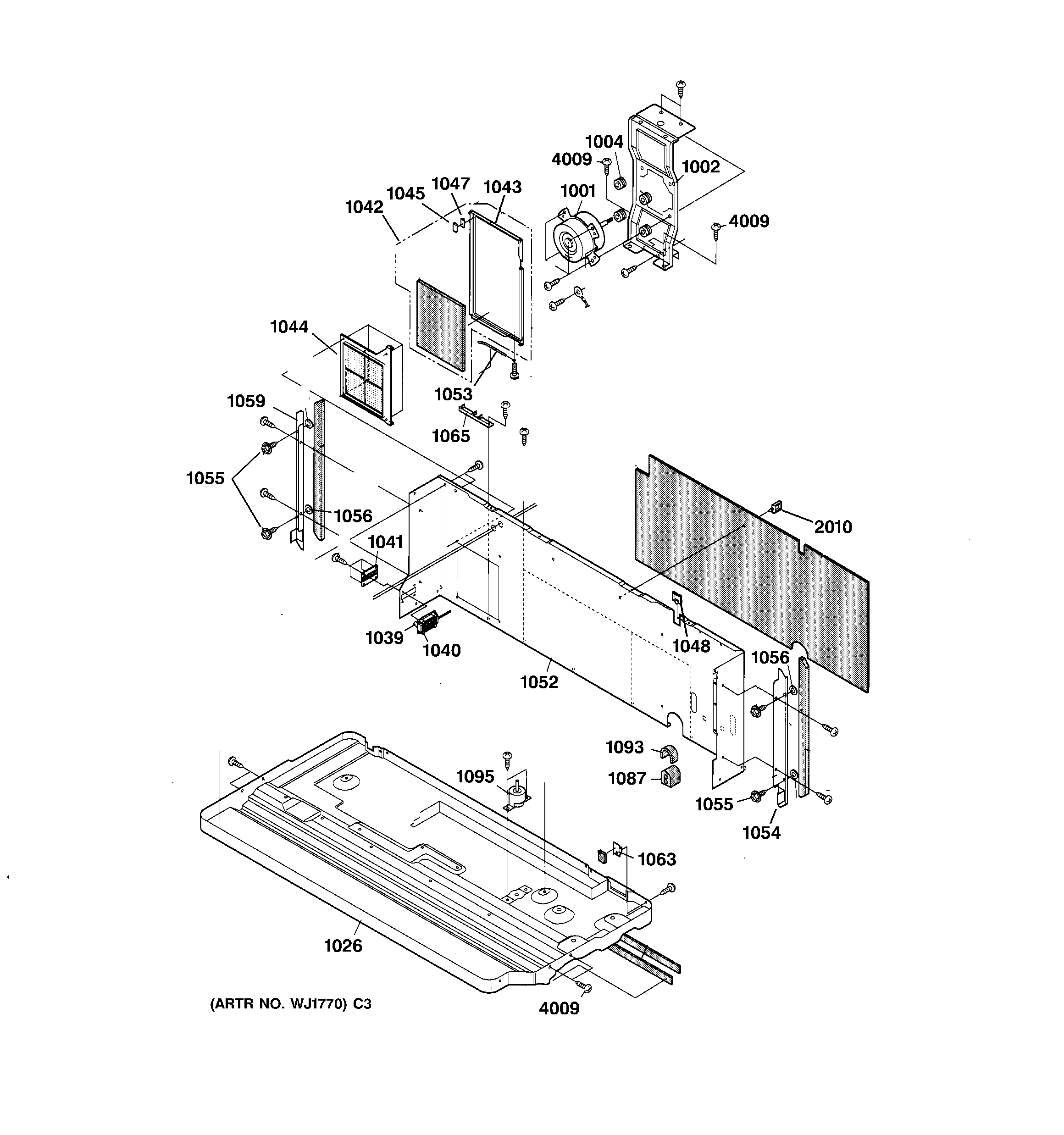

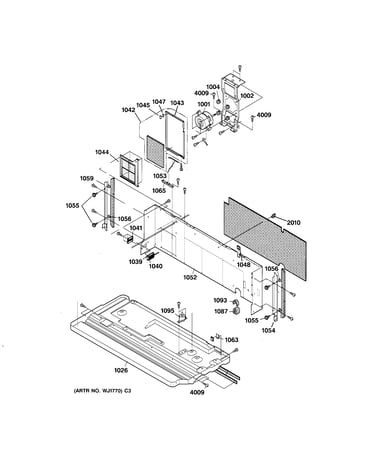

    Base & chassis parts Diagram

    Washer

    Part #WP01X10005
    This item is not returnable
    In Stock
    $5.00
    Spacer#2017

    Control parts Diagram

    Spacer

    Part #WJ01X10155
    This item is not returnable
    In Stock
    $4.35
    Running Capacitor#2020

    Control parts Diagram

    Running capacitor

    Part #WP20X10002
    In Stock
    $100.55
