Model # 501CV22S-67529 Official Craftsman engine

Here are the diagrams and repair parts for Official Craftsman 501CV22S-67529 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 235 parts  |

Oil Filter 12-050-01
#5

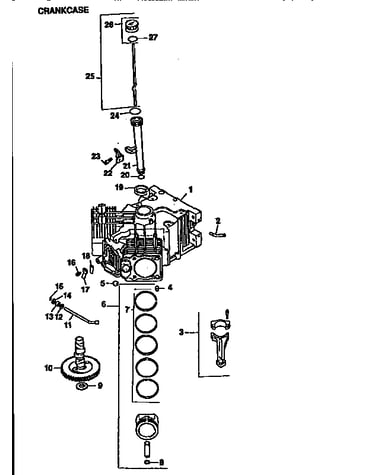

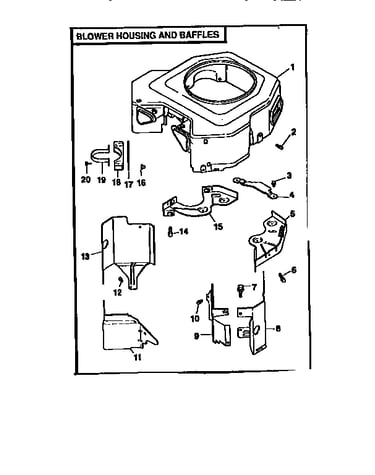

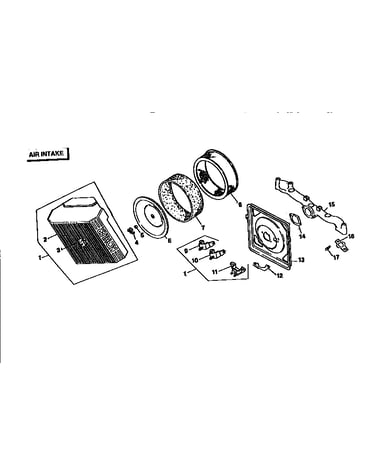

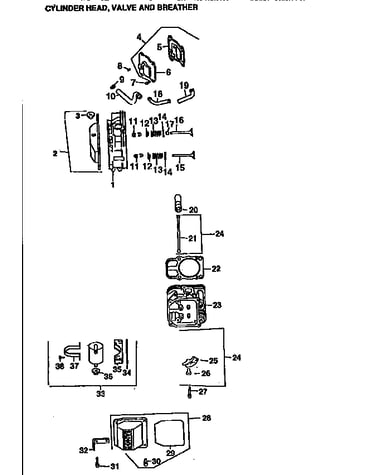

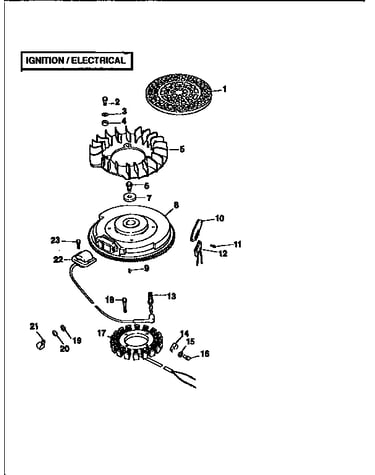

Engine cv22s-67529 (71, 501) diagram

Oil filter

Part #12-050-01

Replaced by #12-050-01-S1

?
Manufacturer substitution
This part replaces 12-050-01. Substitute parts can look different from the original.
BEST SELLER
$13.55
21% OFF MSRP : $17.09
In Stock
Fuel Filter 25-050-03
#14

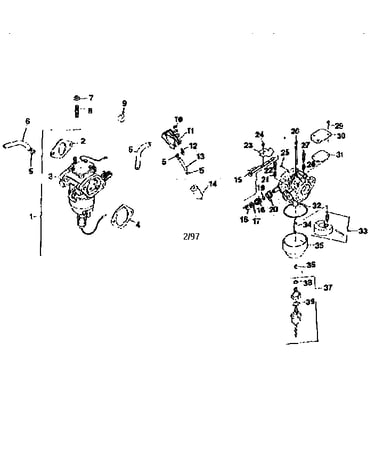

Fuel system diagram

Fuel filter

Part #25-050-03

Replaced by #25-050-22-S1

?
Manufacturer substitution
This part replaces 25-050-03. Substitute parts can look different from the original.
BEST SELLER
$7.26
30% OFF MSRP : $10.37
In Stock
Pump 24-393-04
#11

Fuel system diagram

Pump

Part #24-393-04

Replaced by #24-393-16-S

?
Manufacturer substitution
This part replaces 24-393-04. Substitute parts can look different from the original.
BEST SELLER
$59.82
8% OFF Phone Price : $64.82
In Stock
Starter 25-098-03
#4

Engine cv22s-67529 (71, 501) diagram

Starter

Part #25-098-03

Replaced by #25-098-07-S

?
Manufacturer substitution
This part replaces 25-098-03. Substitute parts can look different from the original.
BEST SELLER
$240.19
$10.00 OFF Phone Price : $250.19
In Stock
Filter 47-083-03
#9

Engine cv22s-67529 (71, 501) diagram

Filter

Part #47-083-03

Replaced by #47-083-03-S

?
Manufacturer substitution
This part replaces 47-083-03. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$25.09
17% OFF Phone Price : $30.09
In Stock
Carburetor Gasket Kit 24-757-18
#1A

Fuel system diagram

Carburetor gasket kit

Part #24-757-18

Replaced by #24-757-18-S

?
Manufacturer substitution
This part replaces 24-757-18. Substitute parts can look different from the original.
BEST SELLER
$77.44
6% OFF Phone Price : $82.44
In Stock
Kit 24-757-05
#33

Fuel system diagram

Kit

Part #24-757-05

Replaced by #24-757-18-S

?
Manufacturer substitution
This part replaces 24-757-05. Substitute parts can look different from the original.
BEST SELLER
$77.44
6% OFF Phone Price : $82.44
In Stock
Spring 24-089-23
#28

Fuel system diagram

Spring

Part #24-089-23

Replaced by #24-757-18-S

?
Manufacturer substitution
This part replaces 24-089-23. Substitute parts can look different from the original.
BEST SELLER
$77.44
6% OFF Phone Price : $82.44
In Stock
Screw 24-086-22
#27

Fuel system diagram

Screw

Part #24-086-22

Replaced by #24-757-18-S

?
Manufacturer substitution
This part replaces 24-086-22. Substitute parts can look different from the original.
BEST SELLER
$77.44
6% OFF Phone Price : $82.44
In Stock
Repair Kit 24-757-06

#NI

All parts diagram

Repair kit

Part #24-757-06

Replaced by #24-757-18-S

?
Manufacturer substitution
This part replaces 24-757-06. Substitute parts can look different from the original.
BEST SELLER
$77.44
6% OFF Phone Price : $82.44
In Stock
