Model #AZ32H15E2BM2 GE zoneline air conditioner

Here are the diagrams and repair parts for GE AZ32H15E2BM2 zoneline air conditioner, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

    Showing 10 of 114 parts

    Room Air Conditioner Air Filter

    #1021

    Grille & air moving parts Diagram

    $19.82

    In Stock

    Room Air Conditioner Air Filter

    #1022

    Grille & air moving parts Diagram

    $17.43

    In Stock

    Room Air Conditioner Condenser Fan Blade

    #1005

    Grille & air moving parts Diagram

    $40.53

    In Stock

    Door Capacitor

    #2022

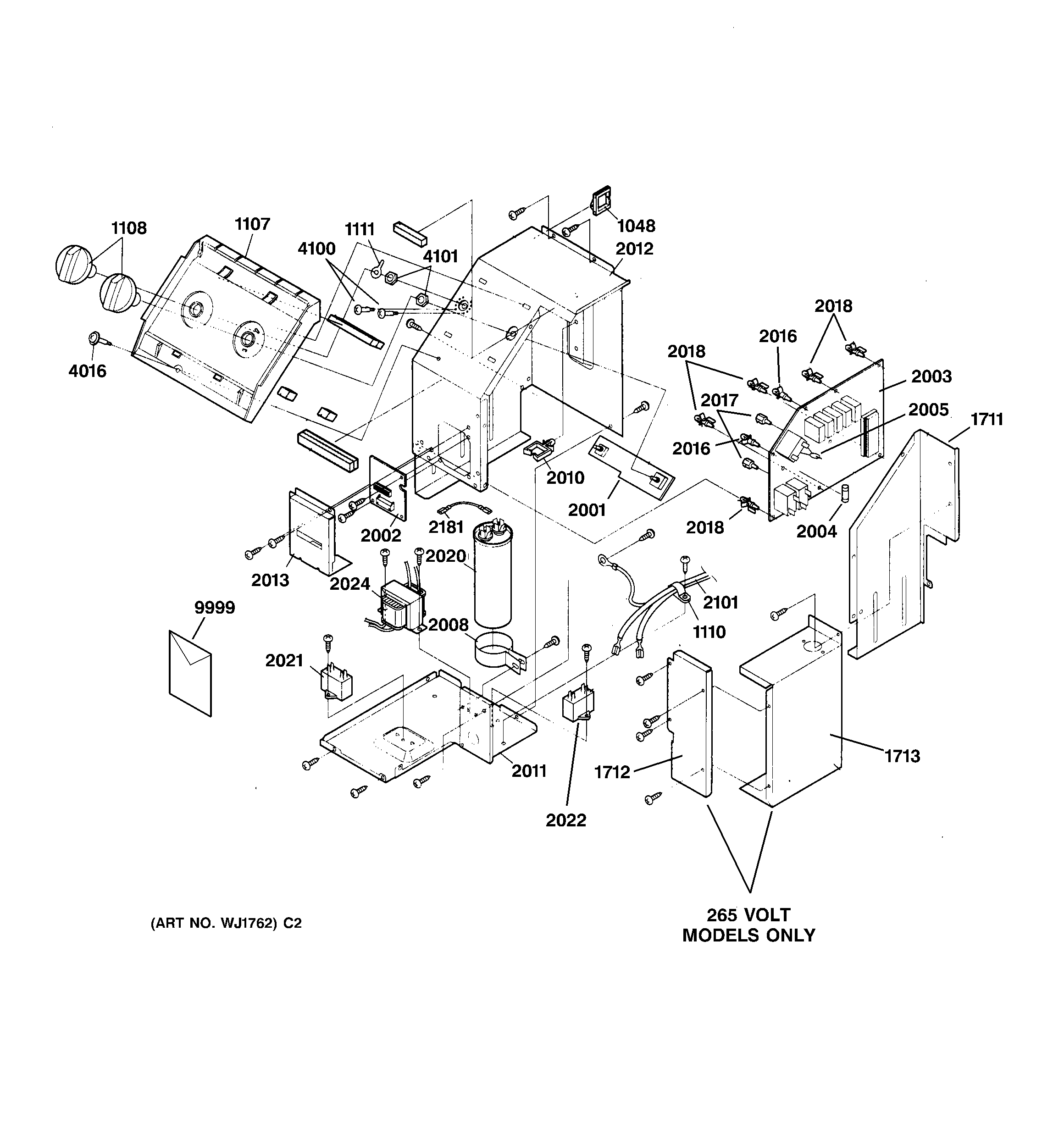

    Control assembly Diagram

    Door capacitor

    Part #WP20X10014
    $78.46

    In Stock

    Compressor Overload Protector

    #2032

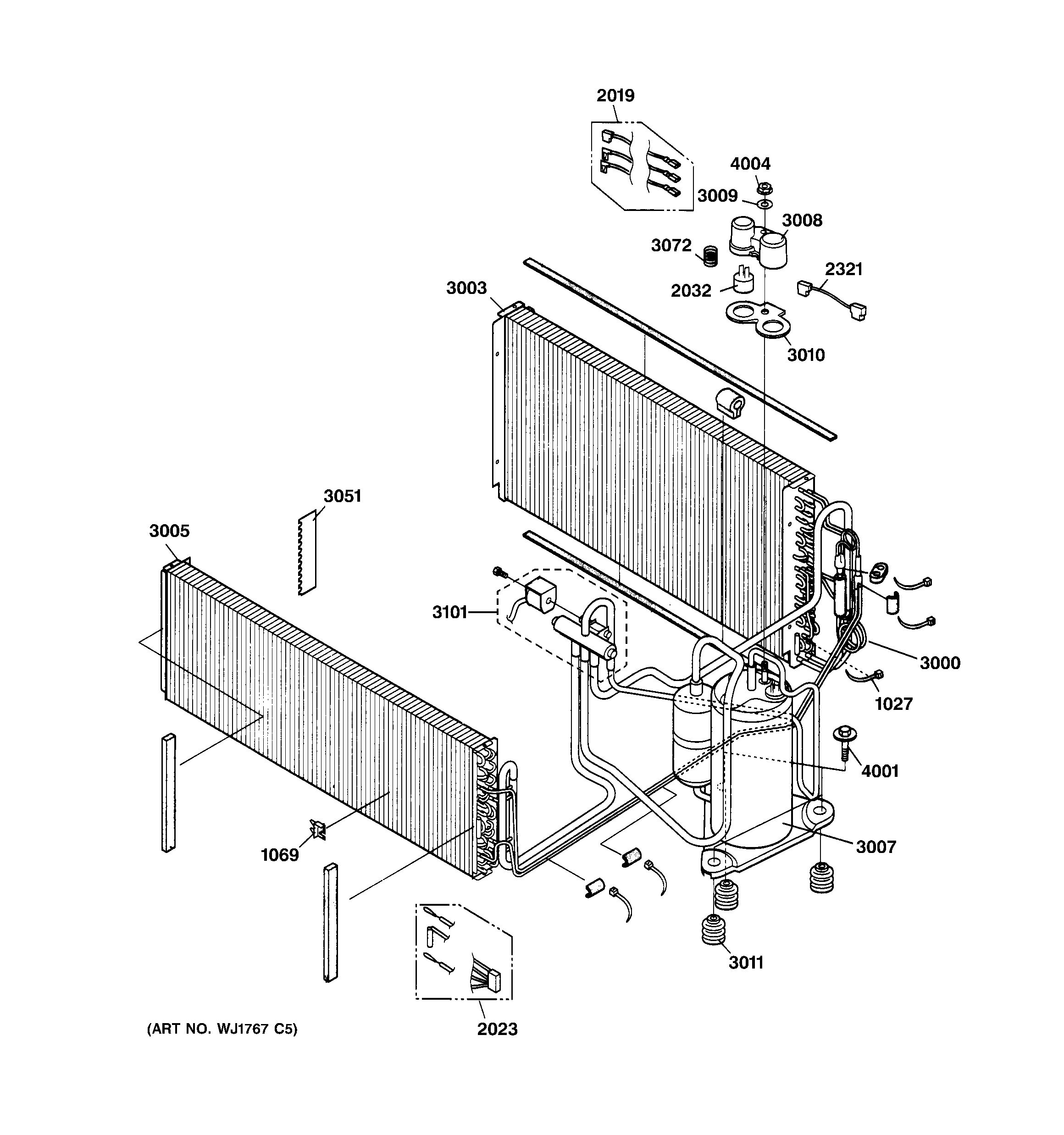

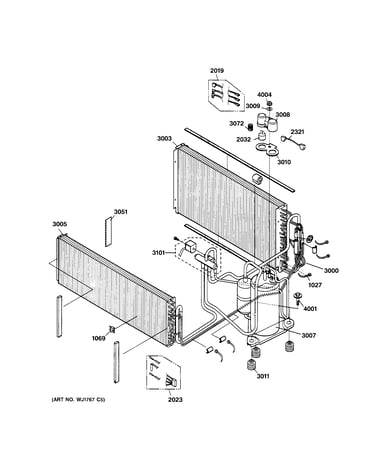

    Unit parts Diagram

    $69.27

    In Stock

    Room Air Conditioner Evaporator Fan Blade

    #1112

    Grille & air moving parts Diagram

    $113.49

    In Stock

    Room Air Conditioner Front Panel

    #1018

    Grille & air moving parts Diagram

    $96.96

    In Stock

    Shroud Condenser

    #1007

    Grille & air moving parts Diagram

    Shroud condenser

    Part #WP76X10001
    $20.37

    In Stock

    Washer

    #1056

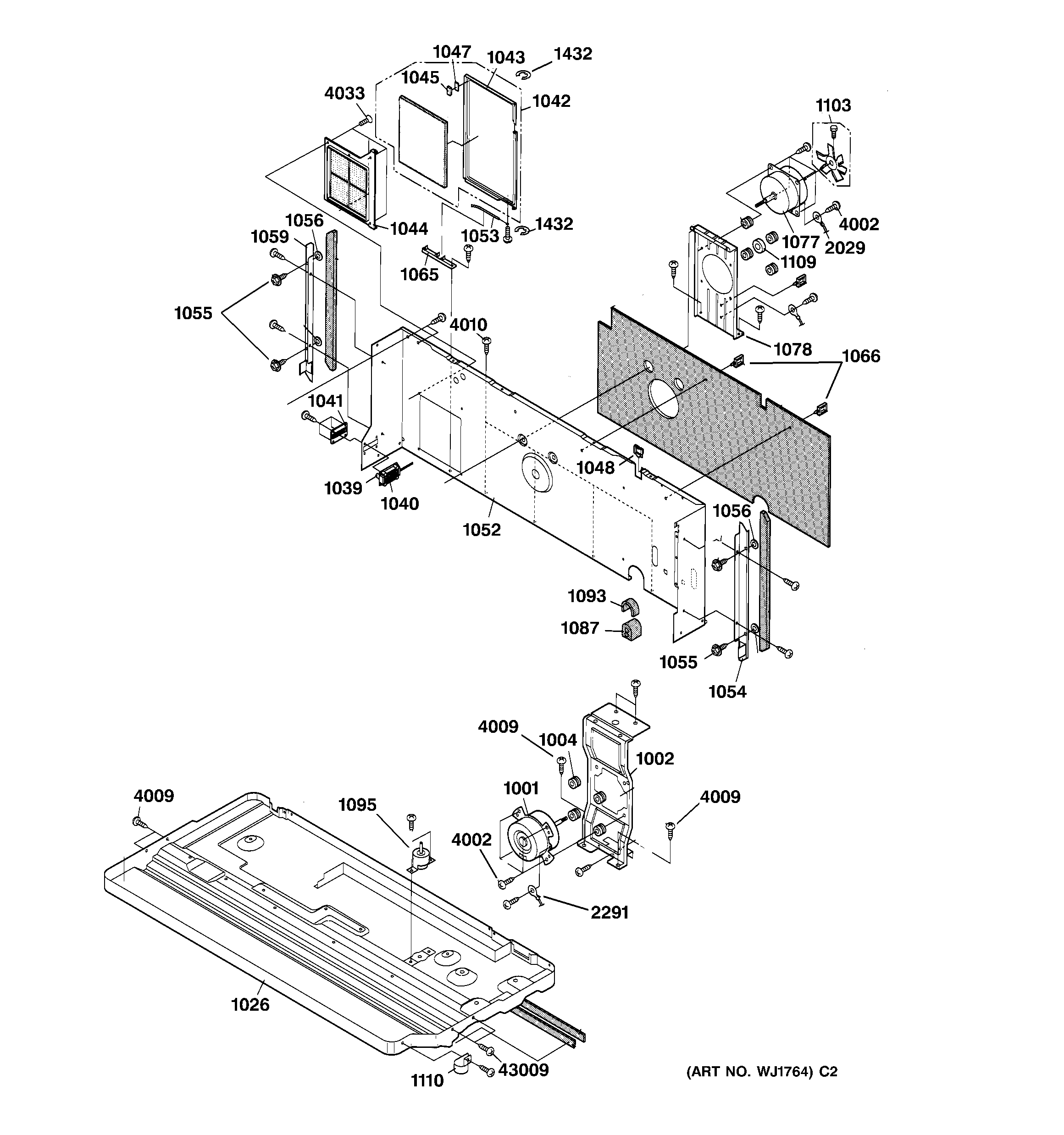

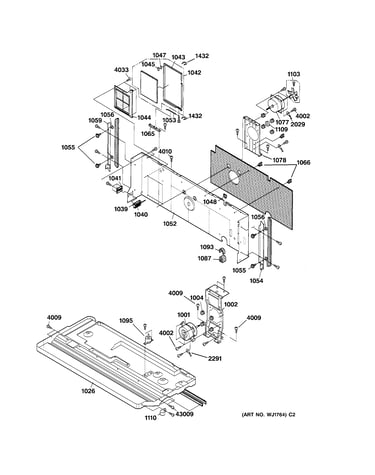

    Chassis assembly Diagram

    Washer

    Part #WP01X10005
    This item is not returnable
    $4.35

    In Stock

    Special Screw

    #4016

    Control assembly Diagram

    Special screw

    Part #WJ01X10059
    This item is not returnable
    $4.35

    In Stock
