Rotary Tool

Model # 572610950 Official Craftsman rotary tool

Here are the diagrams and repair parts for Official Craftsman 572610950 rotary tool, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
572610950 Power Tools
Rotary Tool Power Cord 2615294041
#13

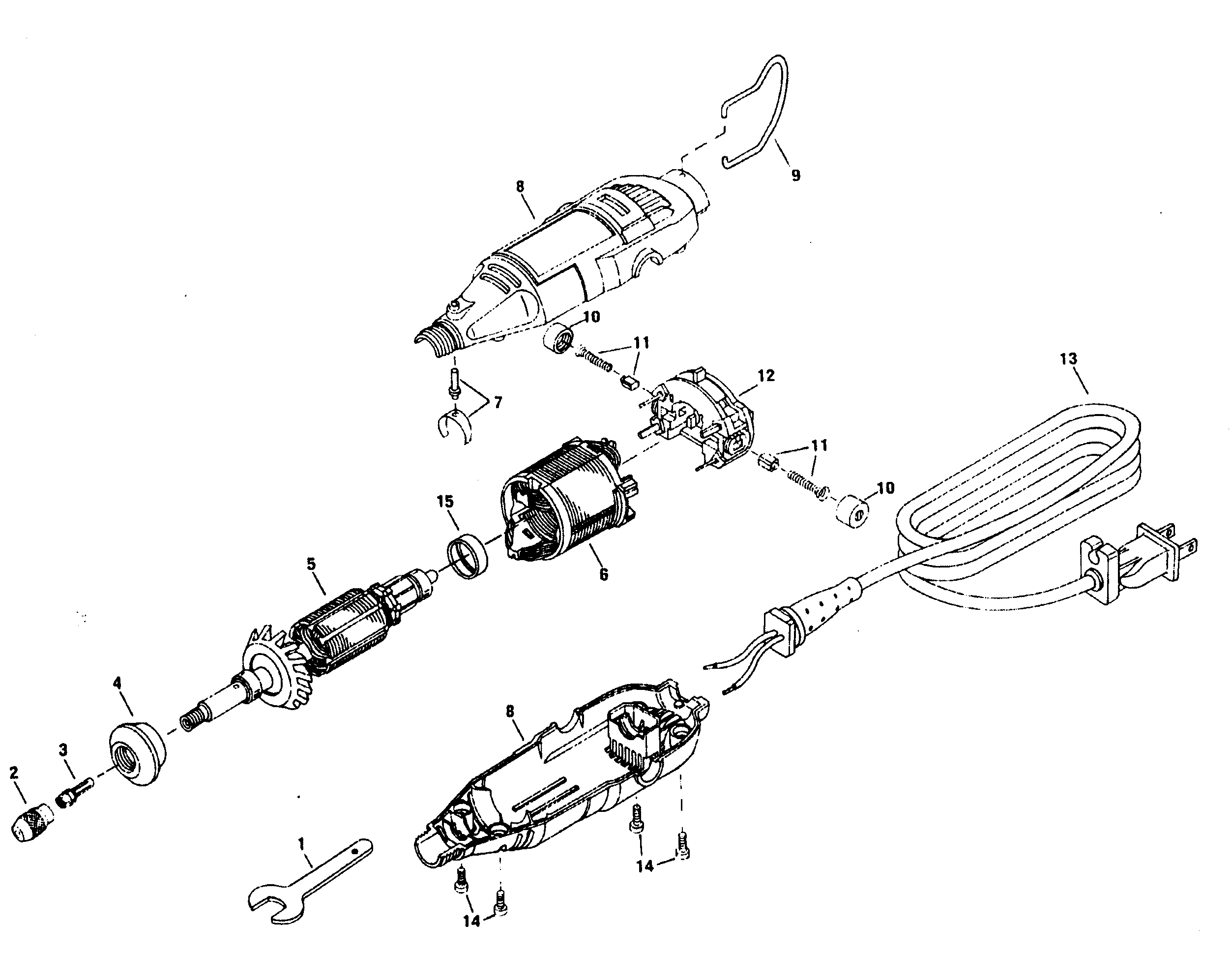

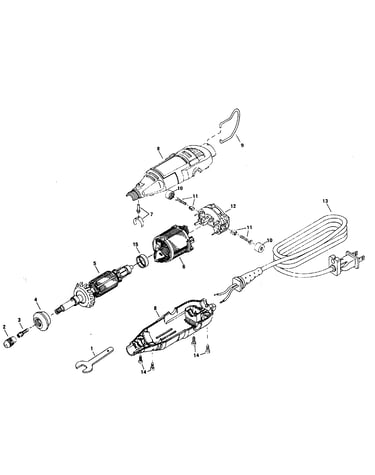

Rotary tool diagram

Rotary tool power cord

Part #2615294041

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Housing 2610912816
#8

Rotary tool diagram

Craftsman housing

Part #2610912816

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 2615297373
#15

Rotary tool diagram

Sleeve

Part #2615297373

The manufacturer no longer makes this part, and there's no substitute part

Screw 2615294035
#14

Rotary tool diagram

Screw

Part #2615294035

The manufacturer no longer makes this part, and there's no substitute part

Rotary Tool Collet, 3/32-in 481
#3A

Rotary tool diagram

Rotary tool collet, 3/32-in

Part #481

The manufacturer no longer makes this part, and there's no substitute part

Hanger 2615294043
#9

Rotary tool diagram

Hanger

Part #2615294043

The manufacturer no longer makes this part, and there's no substitute part

Rotary Tool Shaft Lock 2615297356
#7

Rotary tool diagram

Rotary tool shaft lock

Part #2615297356

The manufacturer no longer makes this part, and there's no substitute part

Rotary Tool Motor Brush Cap Set 2615302217
#10

Rotary tool diagram

Rotary tool motor brush cap set

Part #2615302217

The manufacturer no longer makes this part, and there's no substitute part

Brush Spring 2615302695
#11

Rotary tool diagram

Brush spring

Part #2615302695

The manufacturer no longer makes this part, and there's no substitute part

Switch Assembly 2610912831
#12

Rotary tool diagram

Switch assembly

Part #2610912831

The manufacturer no longer makes this part, and there's no substitute part
