Jenn-Air
Wine & Beverage Cooler

Model # JUW248RBRS00 Official Jenn-Air wine cellar

Here are the diagrams and repair parts for Official Jenn-Air JUW248RBRS00 wine cellar, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 117 parts  |
Wine Cooler Temperature Control Thermostat W10163278
#32

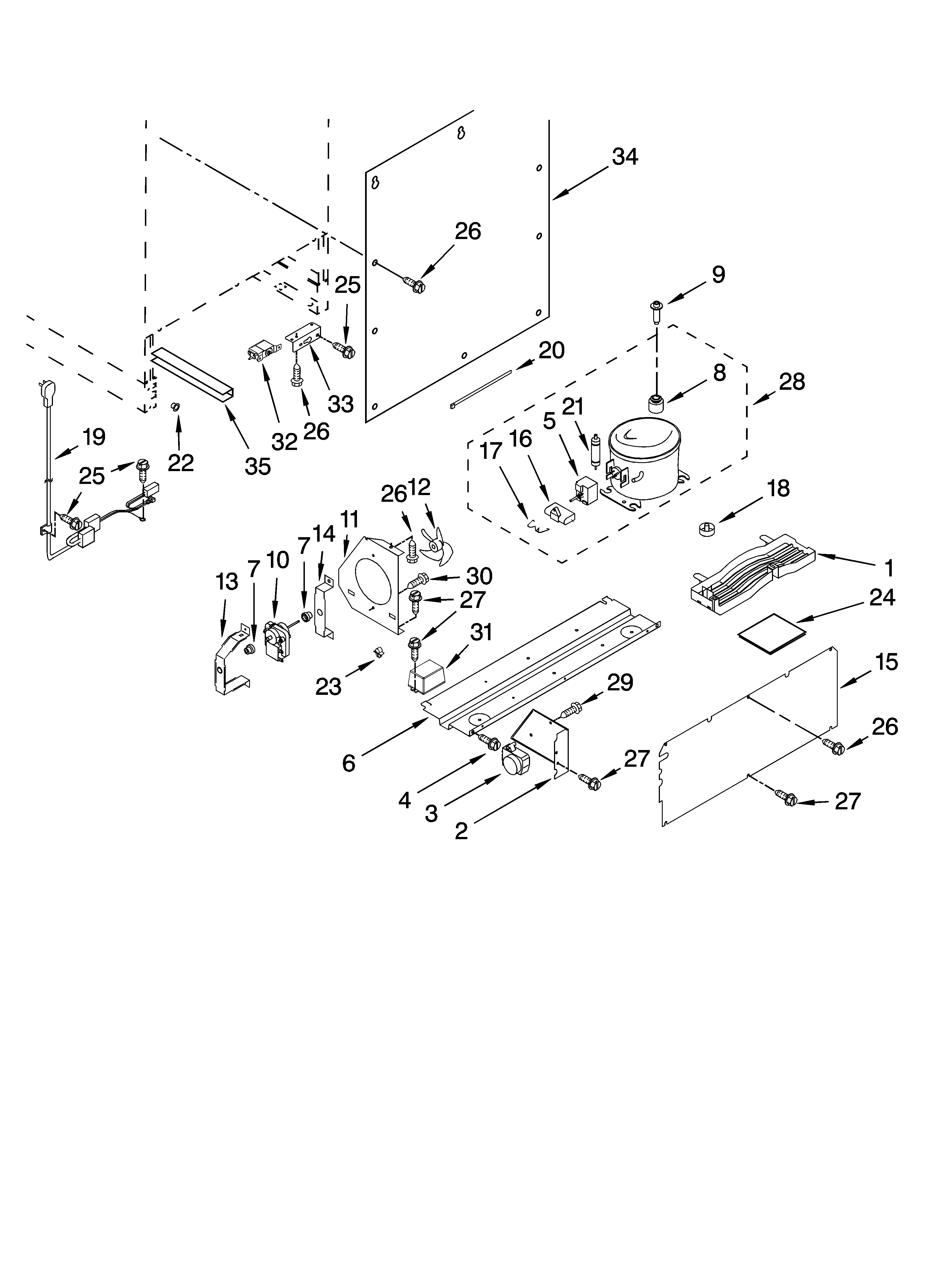

Unit parts diagram

Wine cooler temperature control thermostat

Part #W10163278

$93.24 |
7% OFF MSRP : $100.00
In Stock
Condenser Motor 4344781
#10

Unit parts diagram

Condenser motor

Part #4344781

Replaced by #WPW10299090

?
Manufacturer substitution
This part replaces 4344781. Substitute parts can look different from the original.
$121.29 |
13% OFF MSRP : $140.00
In Stock
Grommet 4344779
#8

Unit parts diagram

Grommet

Part #4344779

Replaced by #WP4344779

?
Manufacturer substitution
This part replaces 4344779. Substitute parts can look different from the original.
This item is not returnable
$4.89
In Stock
Fan Blade 4344783
Fan blade

Part #4344783

Replaced by #W10315091

?
Manufacturer substitution
This part replaces 4344783. Substitute parts can look different from the original.
$103.69 |
14% OFF MSRP : $120.00
In Stock
Screw 4344832
Screw

Part #4344832

Replaced by #W11380570

?
Manufacturer substitution
This part replaces 4344832. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Evaporator Motor 4344865
#32

Cabinet parts diagram

Evaporator motor

Part #4344865

Replaced by #W10315091

?
Manufacturer substitution
This part replaces 4344865. Substitute parts can look different from the original.
$103.69 |
14% OFF MSRP : $120.00
In Stock
Wire Tie 4344829
#20

Unit parts diagram

Wire tie

Part #4344829

$9.83
In Stock
Bracket 4344784
#13

Unit parts diagram

Bracket

Part #4344784

$97.27
In Stock
Bracket 4344758
#9A

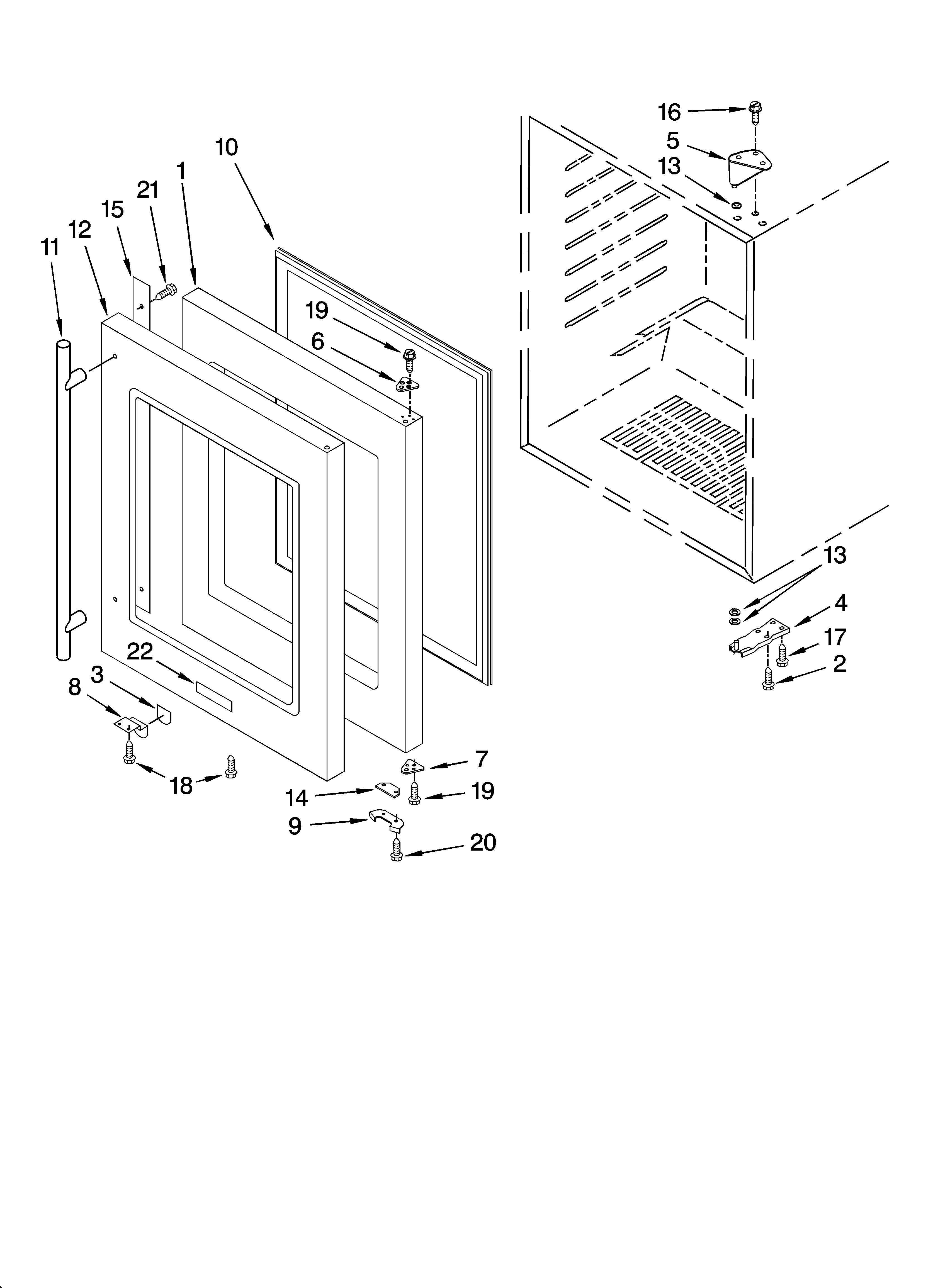

Door parts diagram

Bracket

Part #4344758

$13.90
In Stock
Wine Cooler Defrost Thermal Fuse 4344792
#27

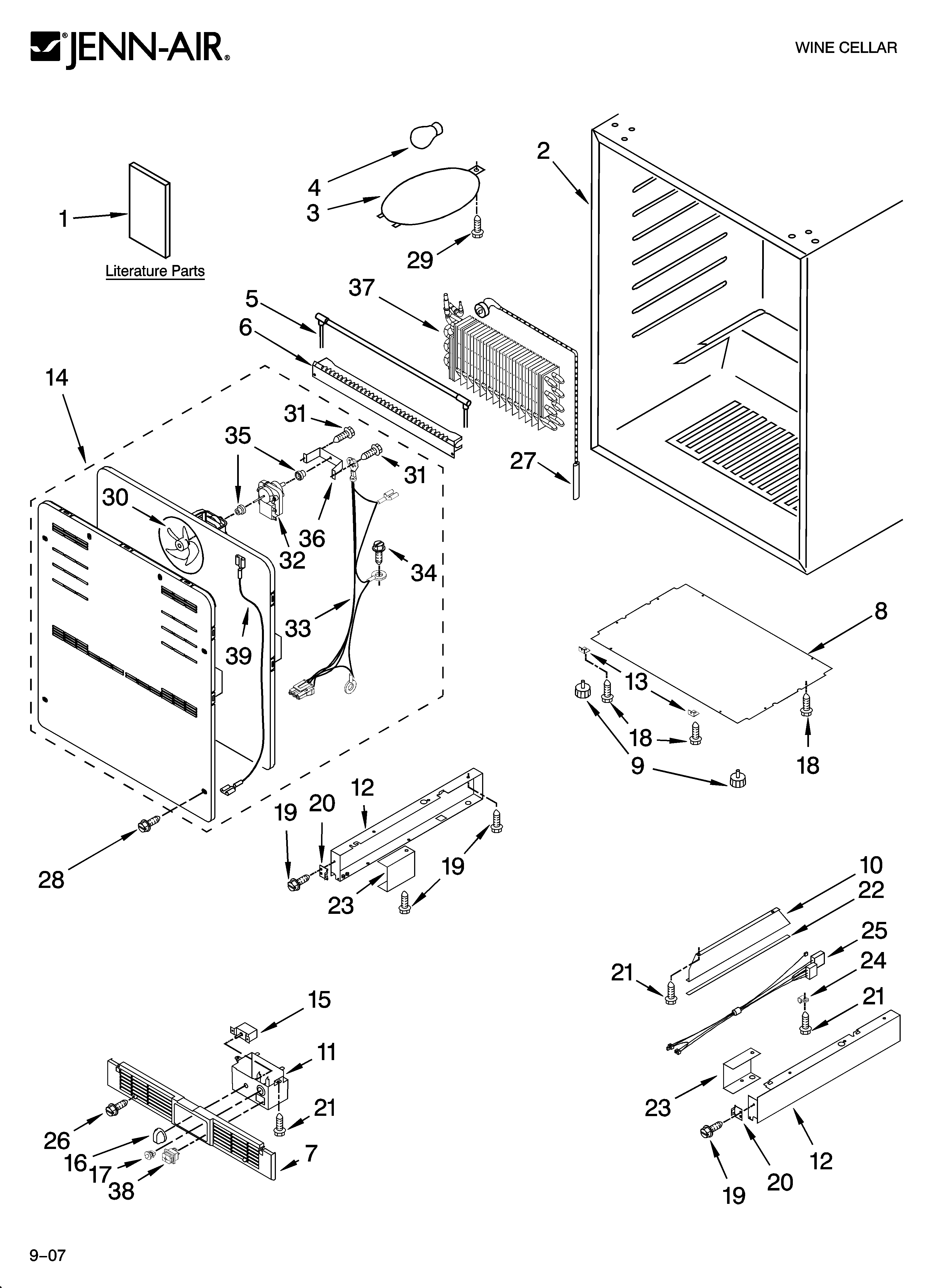

Cabinet parts diagram

Wine cooler defrost thermal fuse

Part #4344792

$48.53
In Stock
