Kenmore
Wine & Beverage Cooler

Model # 25591589010 Official Kenmore beer cooler

Here are the diagrams and repair parts for Official Kenmore 25591589010 beer cooler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 15 parts  |

Wine Cooler Compressor Terminal Cover 501105040145
#11

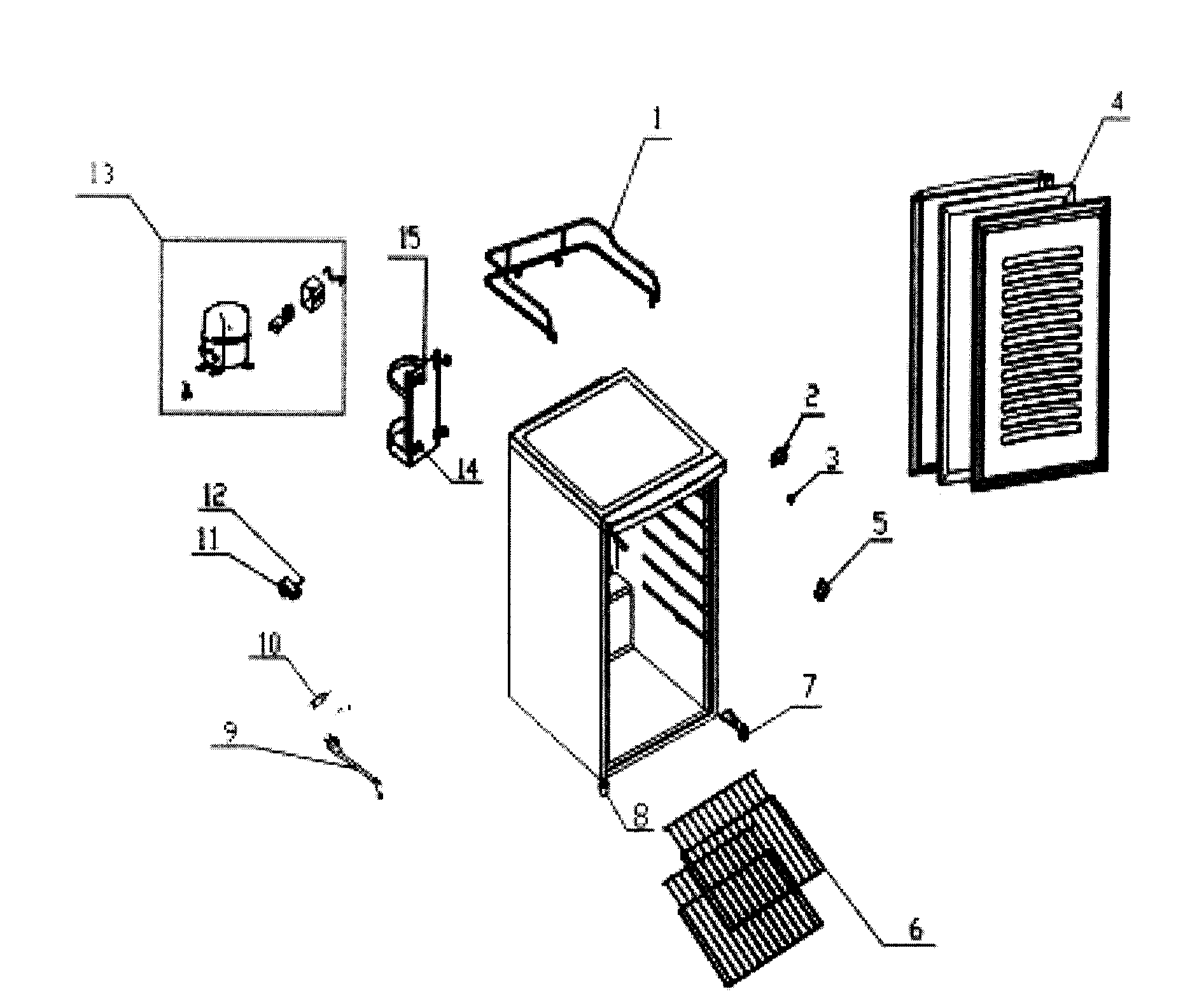

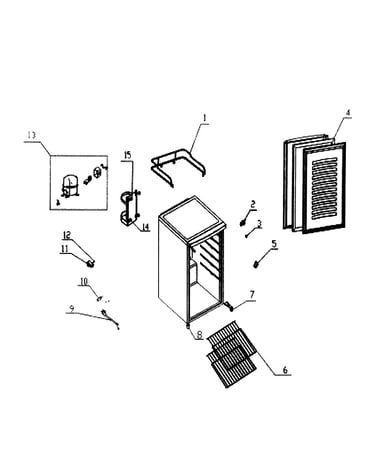

Cabinet parts diagram

Wine cooler compressor terminal cover

Part #501105040145

The manufacturer no longer makes this part, and there's no substitute part

Hose Clamp 502900000005
#5

Cabinet parts diagram

Hose clamp

Part #502900000005

The manufacturer no longer makes this part, and there's no substitute part

Wine Cooler Leveling Leg 501106840006
#7

Cabinet parts diagram

Wine cooler leveling leg

Part #501106840006

The manufacturer no longer makes this part, and there's no substitute part

Beverage Cooler Temperature Control Thermostat 502407000290
#2

Cabinet parts diagram

Beverage cooler temperature control thermostat

Part #502407000290

The manufacturer no longer makes this part, and there's no substitute part

Wrench 500714080006
#NI

Cabinet parts diagram

Wrench

Part #500714080006

The manufacturer no longer makes this part, and there's no substitute part

Guardrail 502908060010
#1

Cabinet parts diagram

Guardrail

Part #502908060010

The manufacturer no longer makes this part, and there's no substitute part

Catch 501111210032
#13

Cabinet parts diagram

Catch

Part #501111210032

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Temperature Control Knob 501105040016
#3

Cabinet parts diagram

Refrigerator temperature control knob

Part #501105040016

The manufacturer no longer makes this part, and there's no substitute part

Beverage Cooler Water Reservoir 501114080039
#NI

Cabinet parts diagram

Beverage cooler water reservoir

Part #501114080039

The manufacturer no longer makes this part, and there's no substitute part

Immova.leg 501105040022
#8

Cabinet parts diagram

Immova.leg

Part #501105040022

The manufacturer no longer makes this part, and there's no substitute part
