Model # HMX-W300RN/XAA-0001 Official Samsung digital camcorder

Here are the diagrams and repair parts for Official Samsung HMX-W300RN-XAA-0001 digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Battery Pack AD43-00190A
#5-16

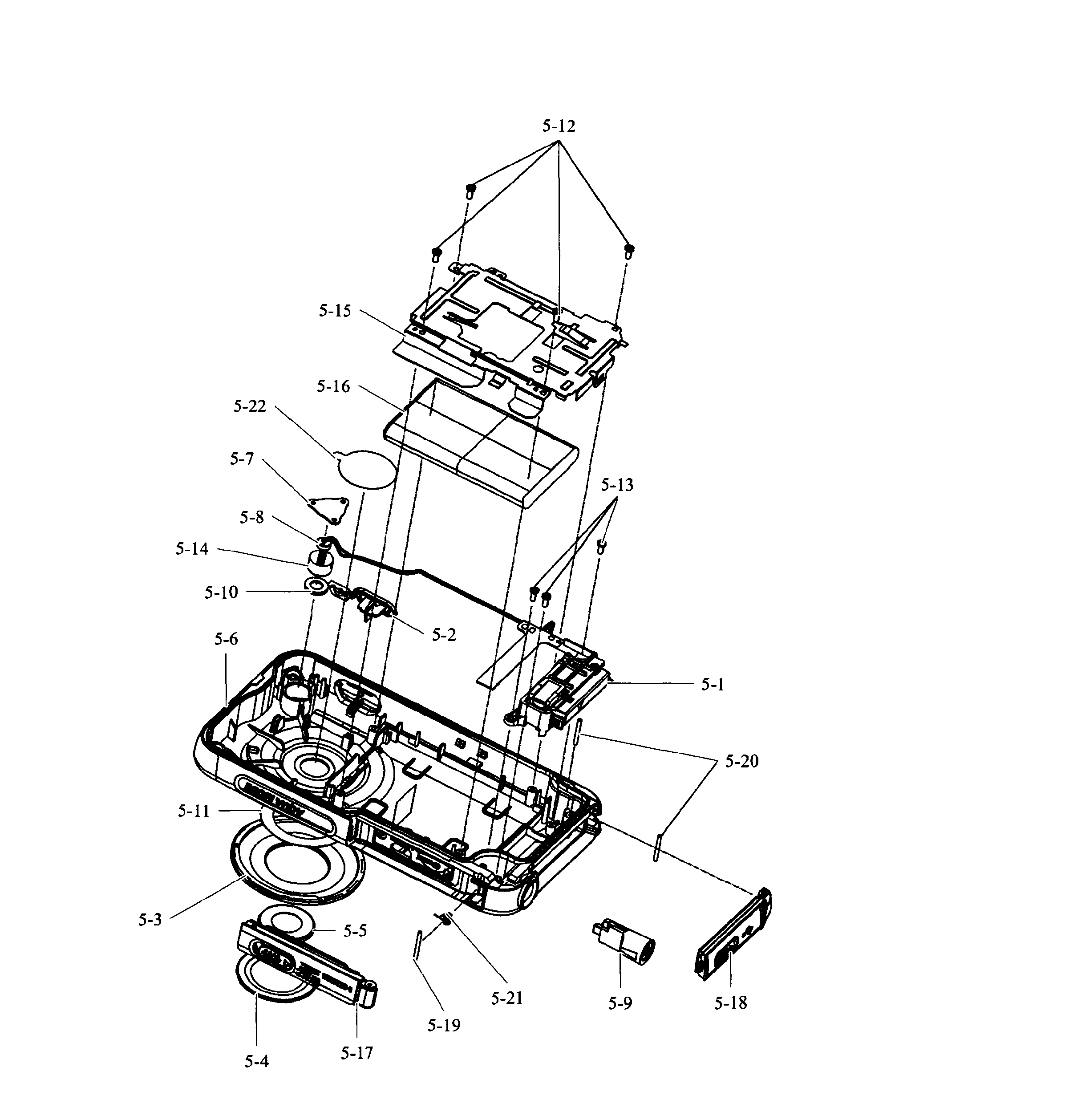

Front assy diagram

Battery pack

Part #AD43-00190A

Replaced by #AD43-00190A

?
Manufacturer substitution
This part replaces AD43-00190A. Substitute parts can look different from the original.
$27.29
In Stock
Lcd Panel AD07-00146A
#4-6

Rear assy diagram

Lcd panel

Part #AD07-00146A

Replaced by #AD07-00146A

?
Manufacturer substitution
This part replaces AD07-00146A. Substitute parts can look different from the original.
$78.93
In Stock
Lens Assembly AD97-22057A
#1-1

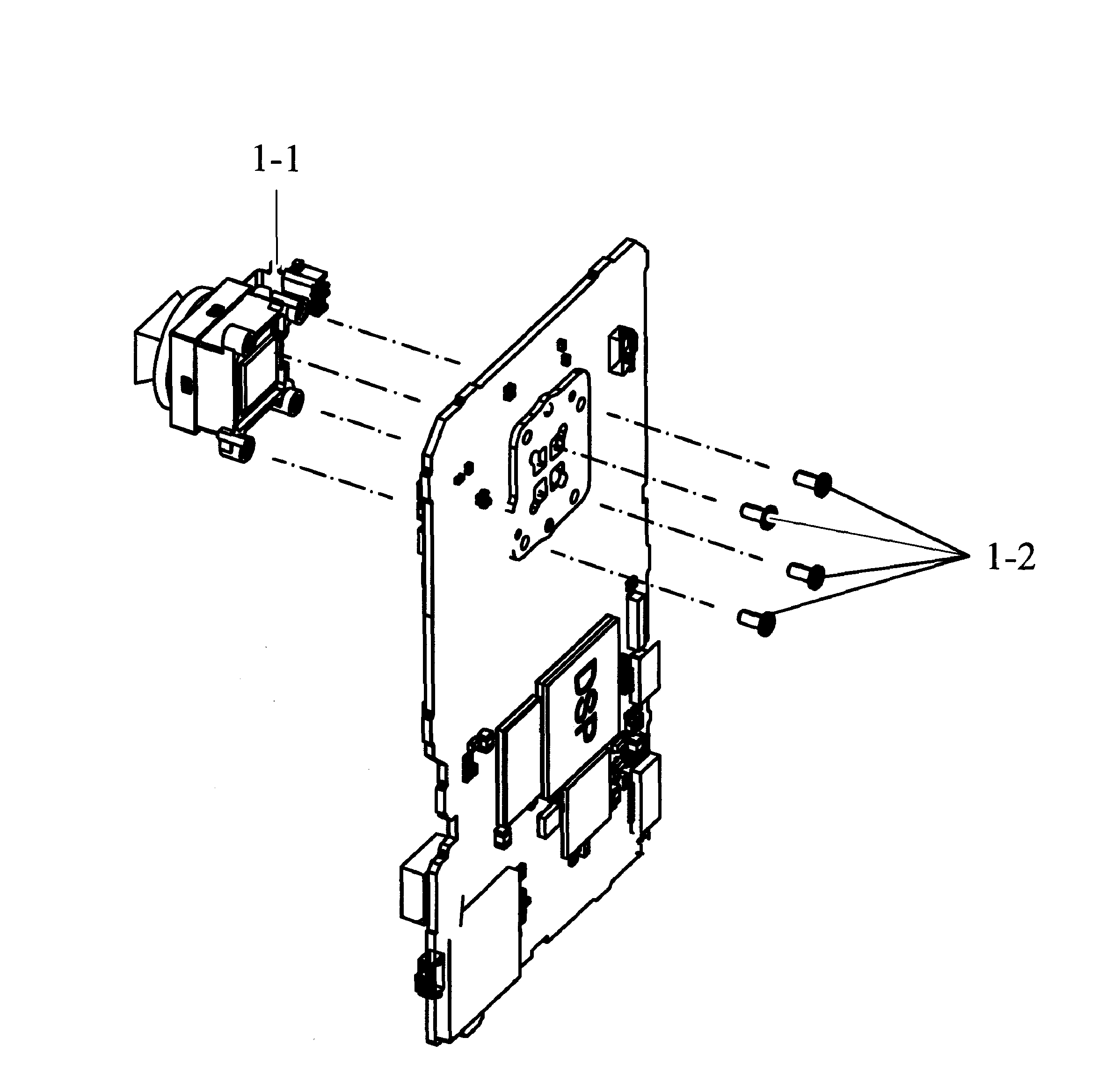

Main pcb diagram

Lens assembly

Part #AD97-22057A

The manufacturer no longer makes this part, and there's no substitute part

Window Lcd AD64-03633A
#4-2

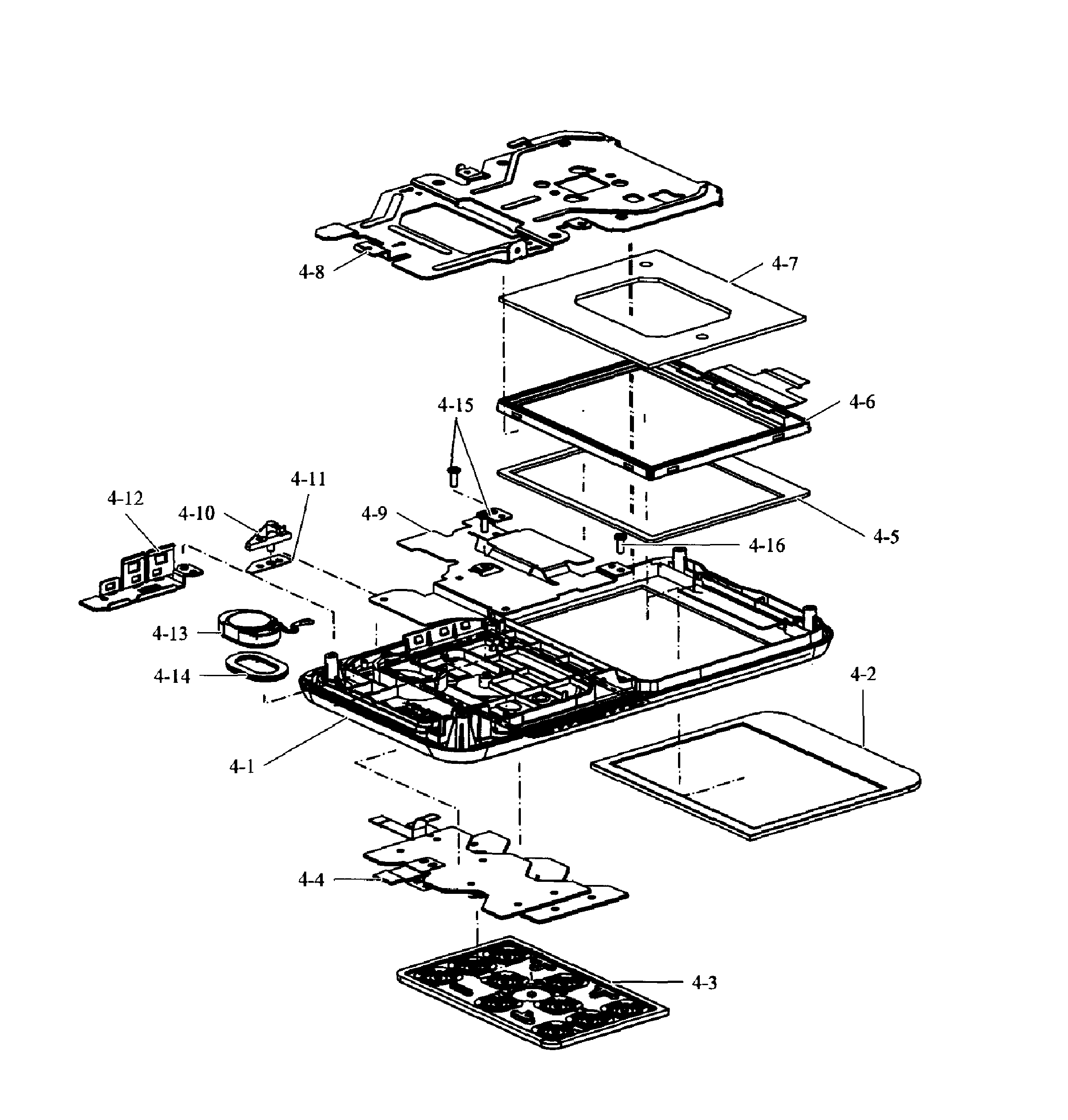

Rear assy diagram

Window lcd

Part #AD64-03633A

The manufacturer no longer makes this part, and there's no substitute part

Rubber-gas AD67-02435A
#3-3

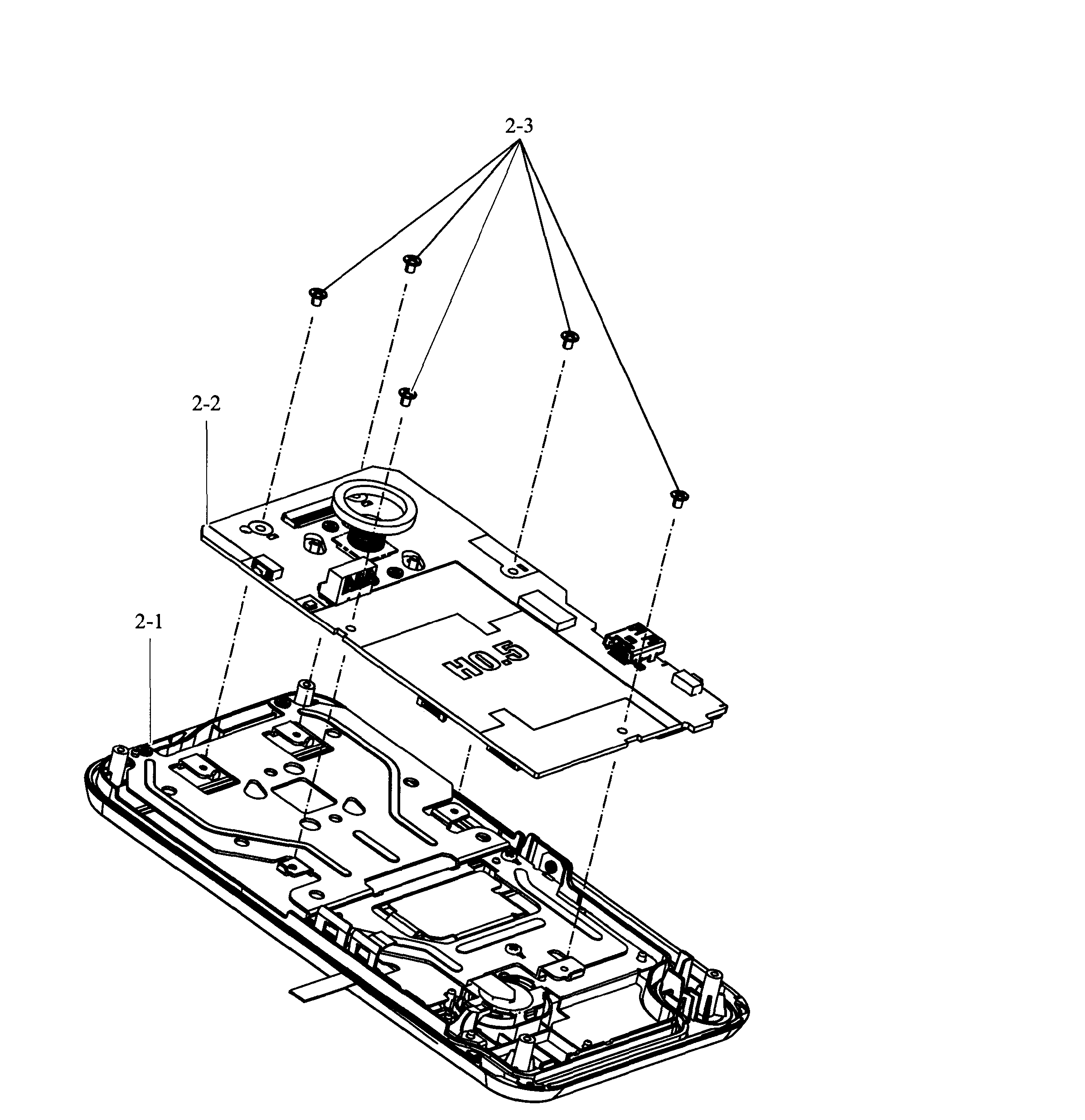

Chassis 2 diagram

Rubber-gas

Part #AD67-02435A

The manufacturer no longer makes this part, and there's no substitute part

Sheet Cover AD63-06770A
#5-7

Front assy diagram

Sheet cover

Part #AD63-06770A

The manufacturer no longer makes this part, and there's no substitute part

Camcorder Speaker 3001-002714
#4-13

Rear assy diagram

Camcorder speaker

Part #3001-002714

The manufacturer no longer makes this part, and there's no substitute part

Machine Screw 6001-002640
#3-7

Chassis 2 diagram

Machine screw

Part #6001-002640

The manufacturer no longer makes this part, and there's no substitute part

Case Rear AD61-05623A
#4-1

Rear assy diagram

Case rear

Part #AD61-05623A

The manufacturer no longer makes this part, and there's no substitute part

Microphone AD67-02456A
#5-14

Front assy diagram

Microphone

Part #AD67-02456A

The manufacturer no longer makes this part, and there's no substitute part
