Model # 7218902190 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 7218902190 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

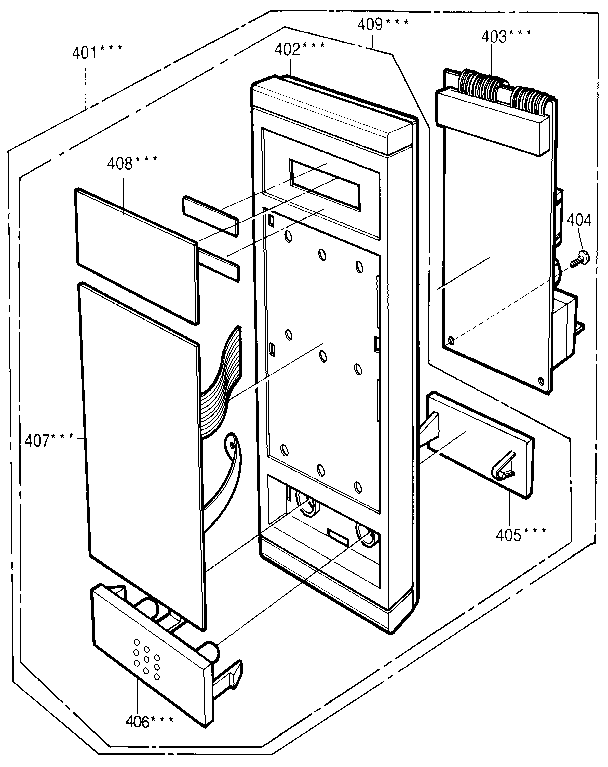

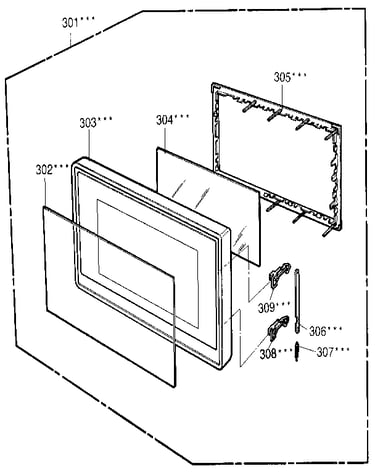

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 115 parts  |
Switch 505427
#230

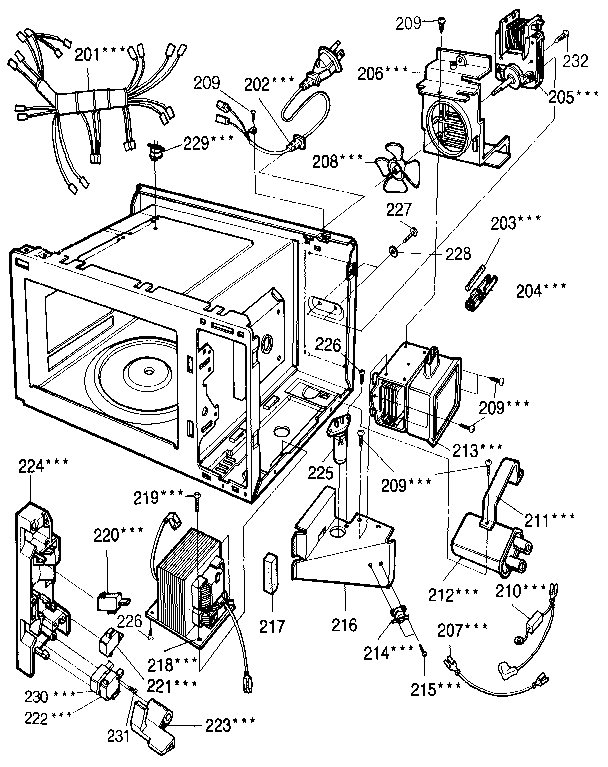

Switches and microwave diagram

Switch

Part #505427

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 504726
#212

Switches and microwave diagram

Capacitor

Part #504726

The manufacturer no longer makes this part, and there's no substitute part

Screw 500218
#106

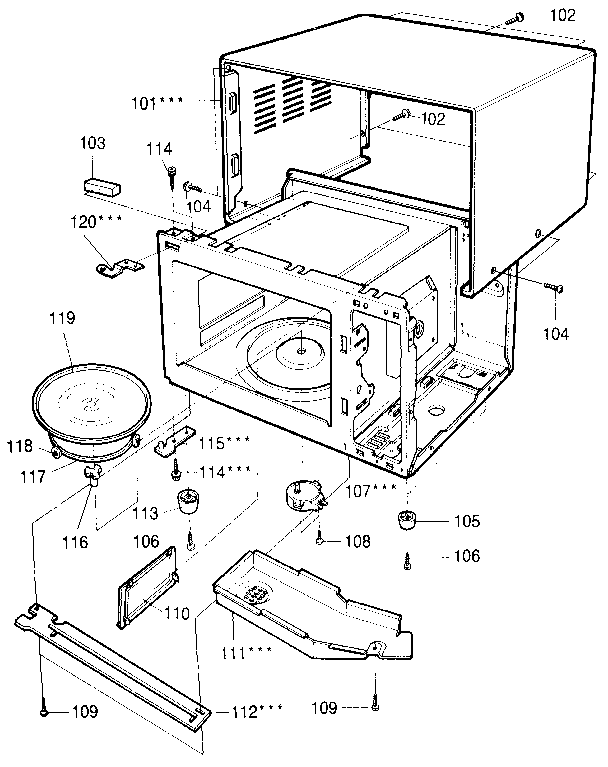

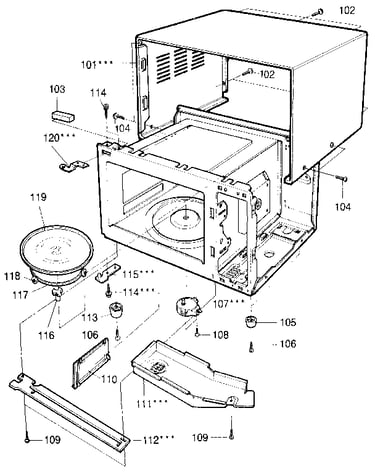

Cabinet diagram

Screw

Part #500218

Replaced by #1TTL0402818

?
Manufacturer substitution
This part replaces 500218. Substitute parts can look different from the original.
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Resistor 504920
Resistor

Part #504920

The manufacturer no longer makes this part, and there's no substitute part

Resistor 504926
#85

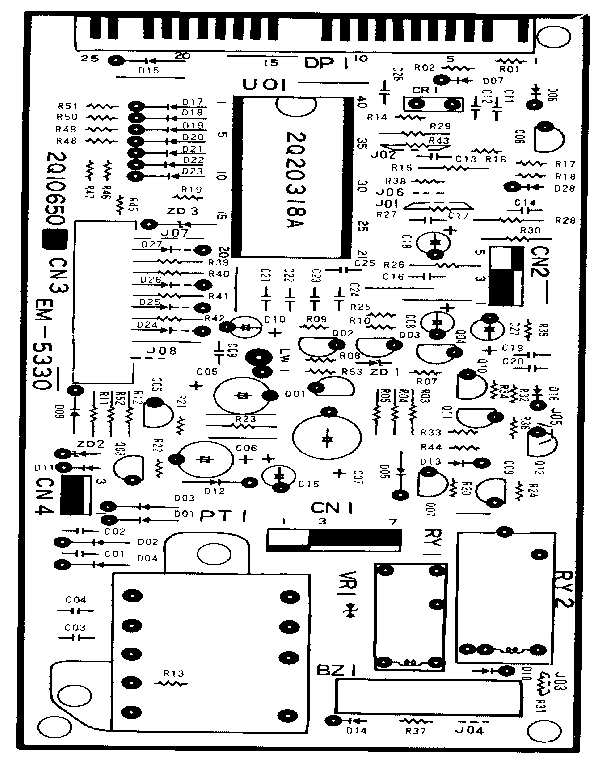

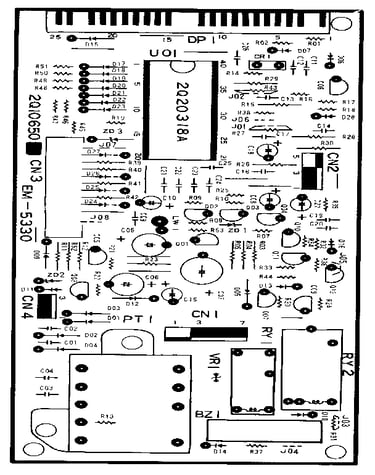

Power and control circuit board diagram

Resistor

Part #504926

The manufacturer no longer makes this part, and there's no substitute part

Cap 503863
#110

Cabinet diagram

Cap

Part #503863

Replaced by #3B72836B

?
Manufacturer substitution
This part replaces 503863. Substitute parts can look different from the original.
This item is not returnable
$2.57
In Stock
Leg 505433
#113

Cabinet diagram

Leg

Part #505433

Replaced by #4B75290B

?
Manufacturer substitution
This part replaces 505433. Substitute parts can look different from the original.
$7.89
In Stock
Switch 504493
#222

Switches and microwave diagram

Switch

Part #504493

The manufacturer no longer makes this part, and there's no substitute part

Transistor 503854
Transistor

Part #503854

The manufacturer no longer makes this part, and there's no substitute part

Diode 500285
#98

Power and control circuit board diagram

Diode

Part #500285

The manufacturer no longer makes this part, and there's no substitute part
