Whirlpool RM280PXBQ1 30" electric built-in oven with microwave Parts

Here are the diagrams and repair parts for Whirlpool RM280PXBQ1 30" electric built-in oven with microwave, as well as links to manuals and error code tables, if available.

Whirlpool RM280PXBQ1 30" electric built-in oven with microwave
By Schematic
By Part

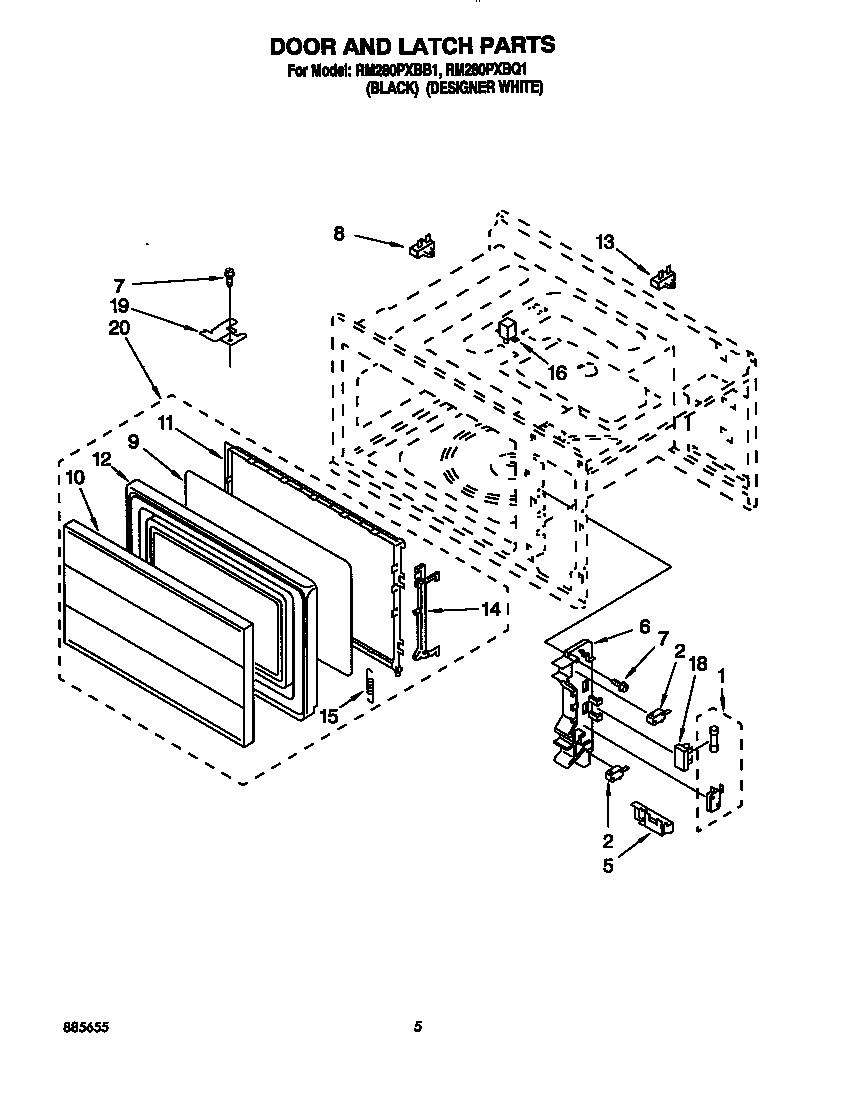

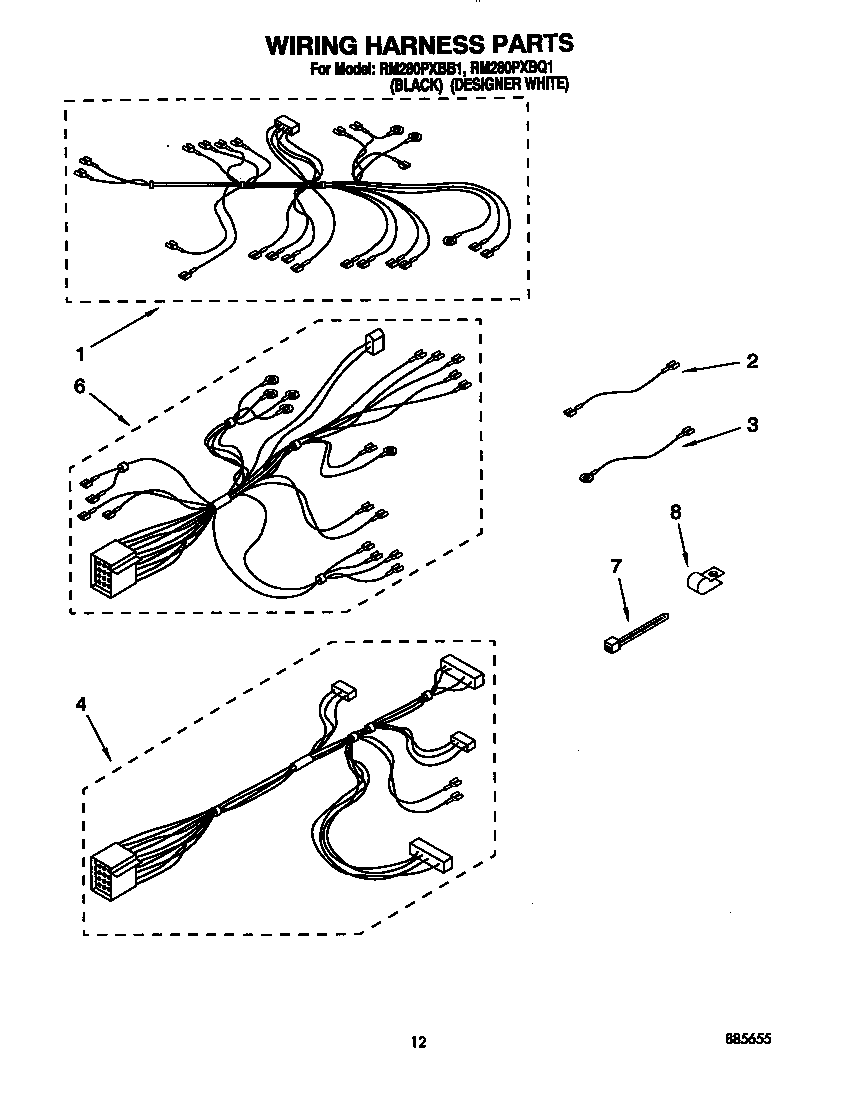

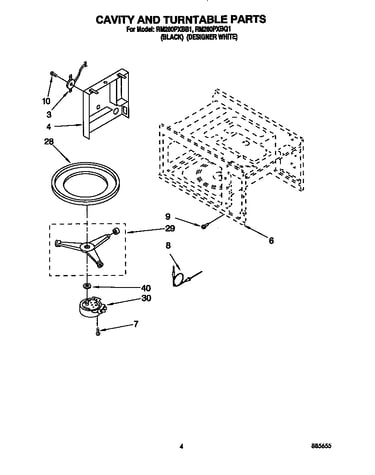

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for RM280PXBQ1 30" Electric Built-In Oven with Microwave

  • Freezer Light Bulb for Whirlpool RM280PXBQ1 - Part WPA3073101

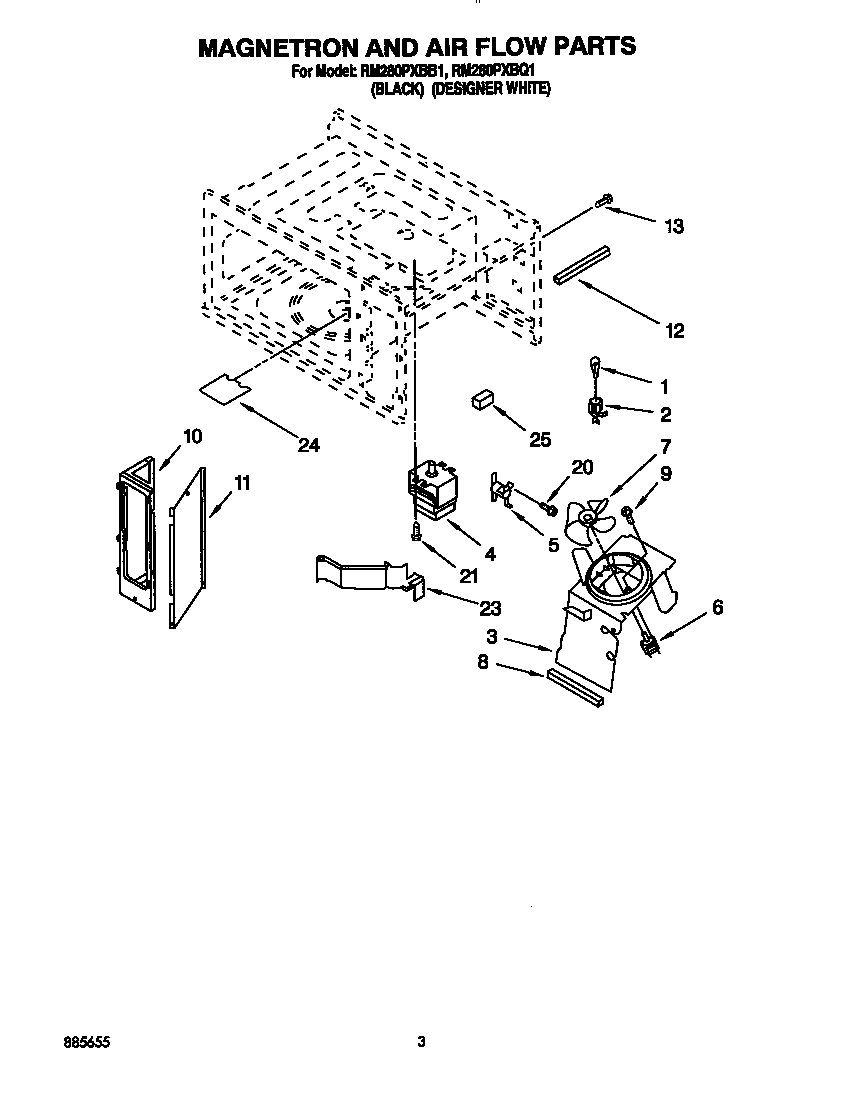

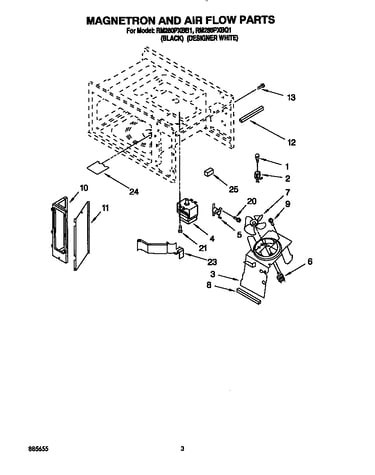

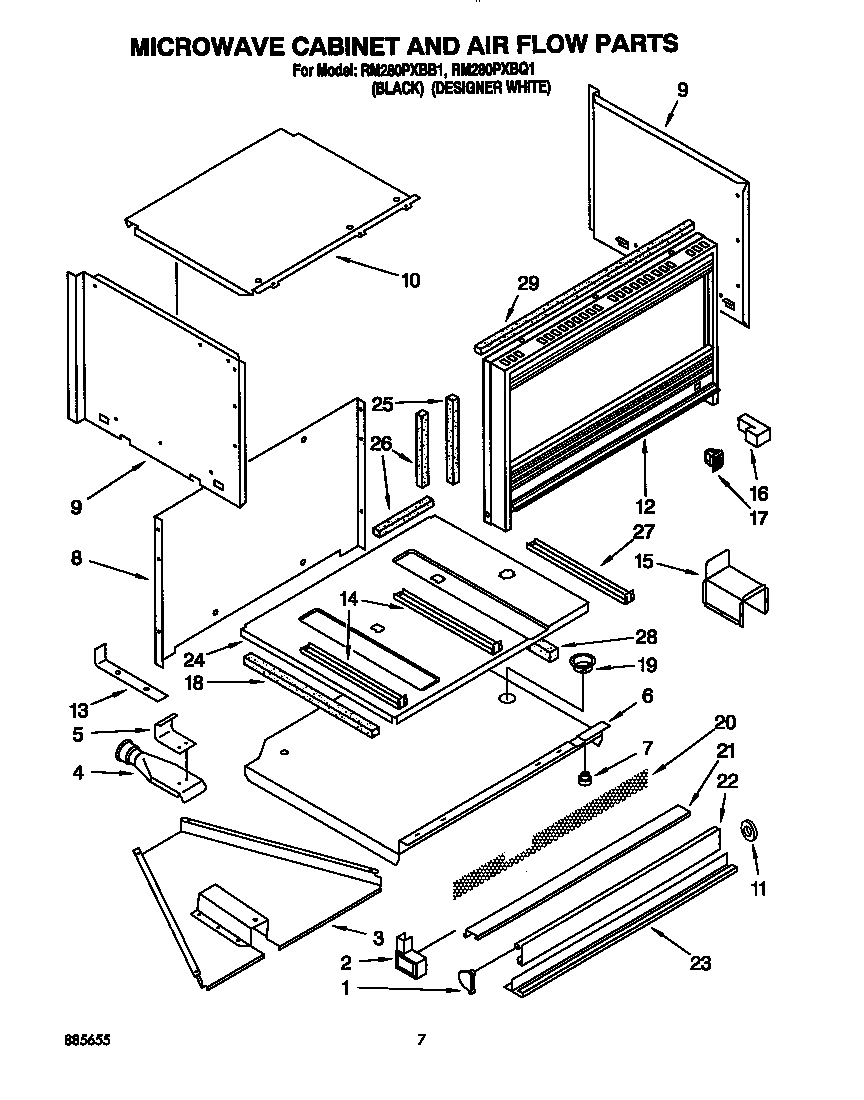

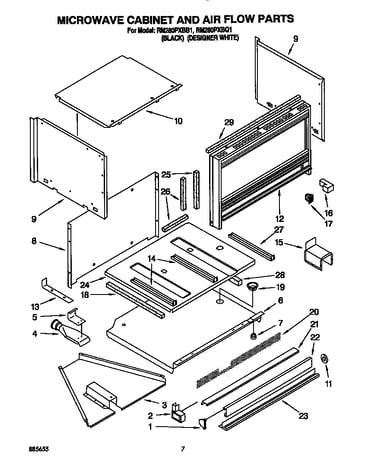

    Magnetron and air flow diagram

    Oven Light

    Part #4174873

    Replaced by #WPA3073101

    Info Icon
    Manufacturer substitution
    This part replaces 4174873. Substitute parts can look different from the original.
    In Stock
    $13.11
    13% OFF Phone Price : $15.11Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Screw, 10-16 X 1/2-in for Whirlpool RM280PXBQ1 - Part WP681414

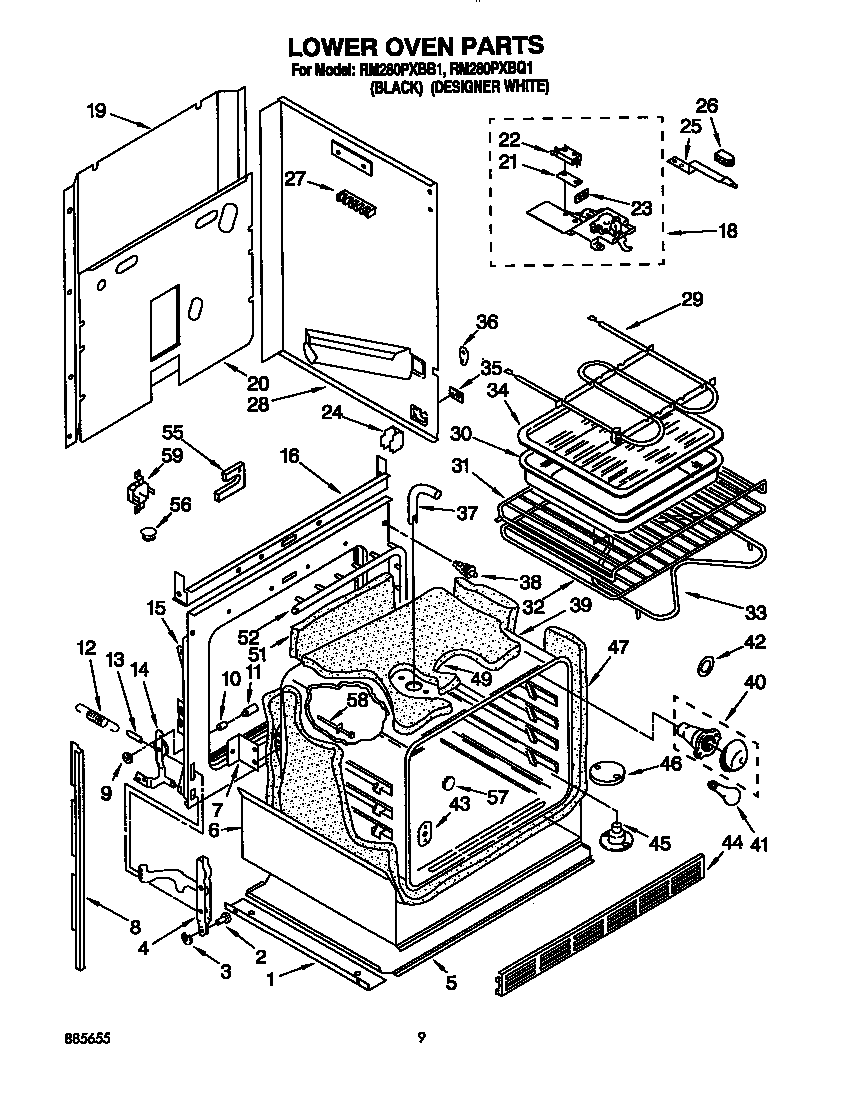

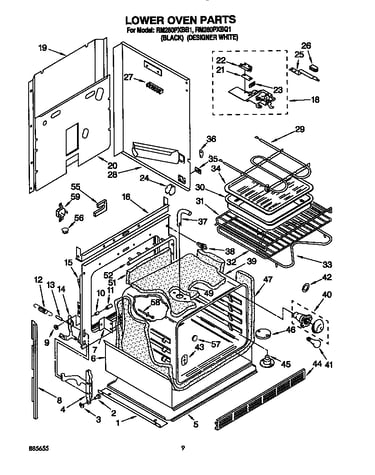

    Lower oven diagram

    Screw

    Part #343641

    Replaced by #WP681414

    Info Icon
    Manufacturer substitution
    This part replaces 343641. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.91
    17% OFF Phone Price : $5.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Light Assembly for Whirlpool RM280PXBQ1 - Part W11594027

    Lower oven diagram

    Light Socket

    Part #3150505

    Replaced by #W11594027

    Info Icon
    Manufacturer substitution
    This part replaces 3150505. Substitute parts can look different from the original.
    In Stock
    $73.85
    8% OFF Phone Price : $79.85Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Door Inner Glass for Whirlpool RM280PXBQ1 - Part WP3169203

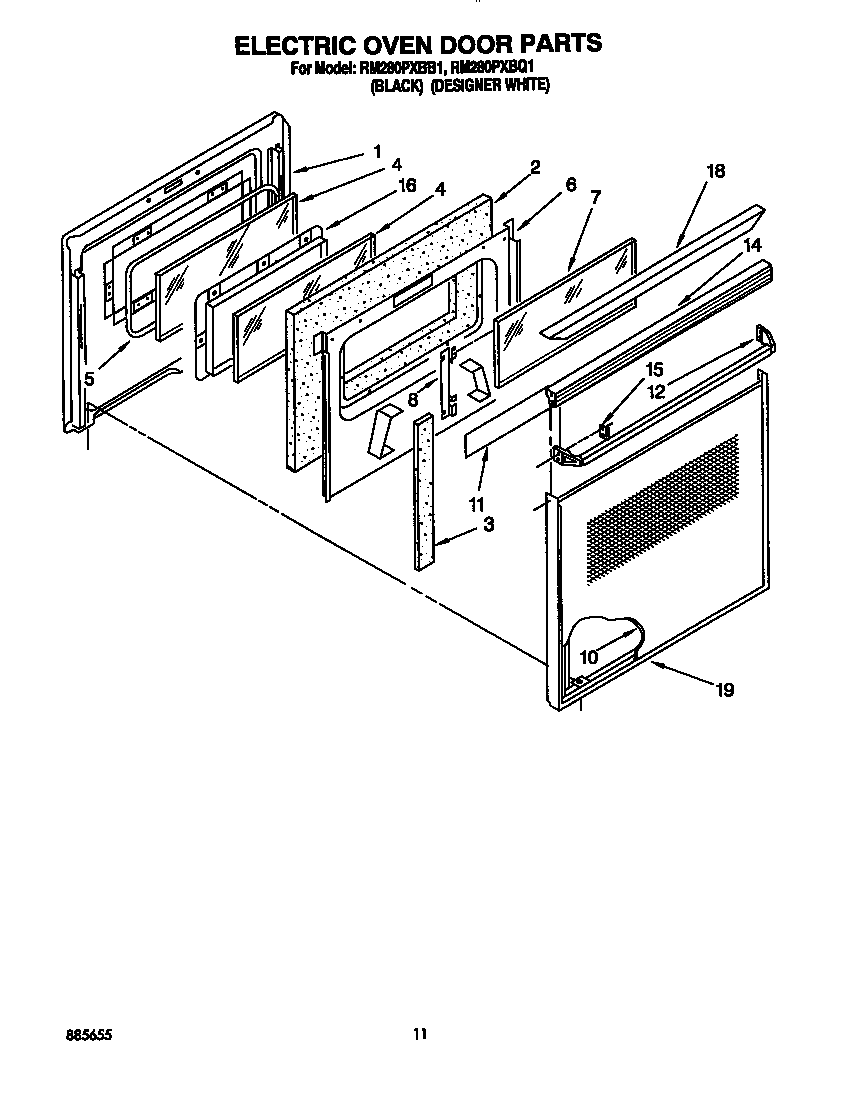

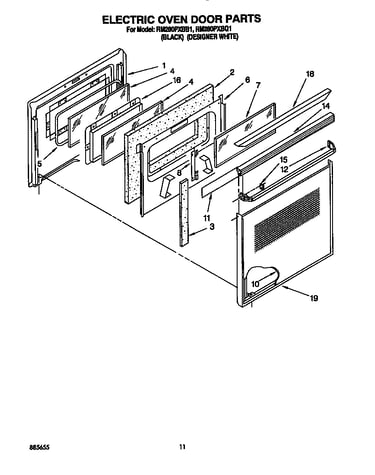

    Electric oven door diagram

    Wall Oven Door Inner Glass

    Part #3169203

    Replaced by #WP3169203

    Info Icon
    Manufacturer substitution
    This part replaces 3169203. Substitute parts can look different from the original.
    In Stock
    $80.14
    7% OFF Phone Price : $86.14Info Icon
    Minus Item
    Qty
    Plus Item
  • Spring Anchor for Whirlpool RM280PXBQ1 - Part WP308125

    Lower oven diagram

    Spring Anchor

    Part #308125

    Replaced by #WP308125

    Info Icon
    Manufacturer substitution
    This part replaces 308125. Substitute parts can look different from the original.
    In Stock
    $10.30
    16% OFF Phone Price : $12.30Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Broil Pan for Whirlpool RM280PXBQ1 - Part 4396923

    Lower oven diagram

    Grid Pan

    Part #3147563

    Replaced by #4396923

    Info Icon
    Manufacturer substitution
    This part replaces 3147563. Substitute parts can look different from the original.
    In Stock
    $45.56
    12% OFF Phone Price : $51.56Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Broil Pan for Whirlpool RM280PXBQ1 - Part 4396923

    Lower oven diagram

    Broiler Pan

    Part #3147845

    Replaced by #4396923

    Info Icon
    Manufacturer substitution
    This part replaces 3147845. Substitute parts can look different from the original.
    In Stock
    $45.56
    12% OFF Phone Price : $51.56Info Icon
    Minus Item
    Qty
    Plus Item
  • Bulb for Whirlpool RM280PXBQ1 - Part 8009

    Lower oven diagram

    Light Bulb

    Part #311255

    Replaced by #8009

    Info Icon
    Manufacturer substitution
    This part replaces 311255. Substitute parts can look different from the original.
    In Stock
    $35.61
    Minus Item
    Qty
    Plus Item
  • Screw for Whirlpool RM280PXBQ1 - Part 4313661

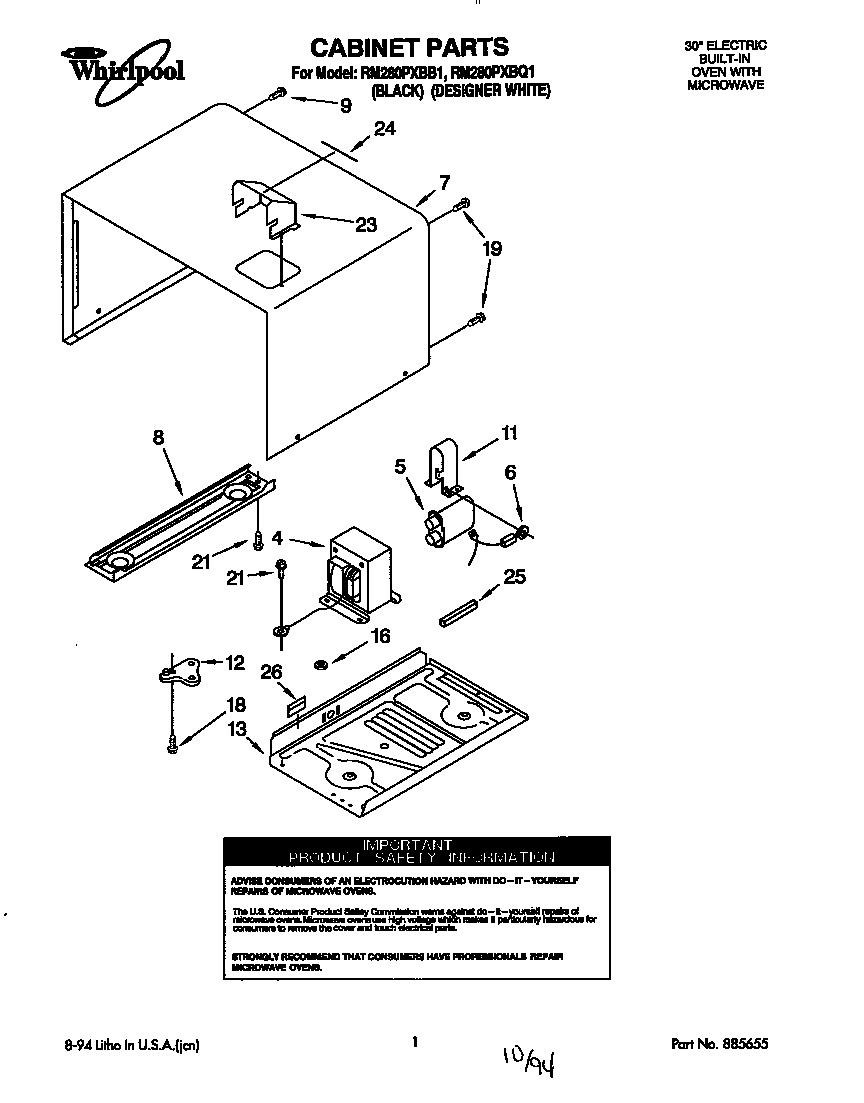

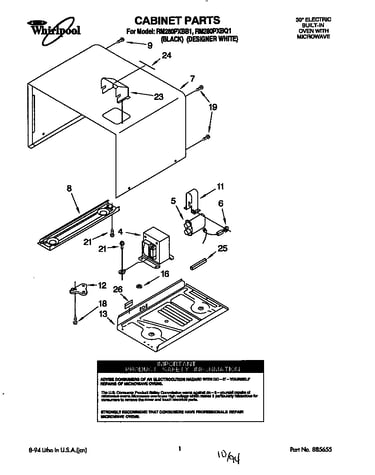

    Cabinet diagram

    Screw

    Part #4313661
    In Stock
    $27.79
    Minus Item
    Qty
    Plus Item
  • Jenn-air Screw for Whirlpool RM280PXBQ1 - Part 246131

    Control panel diagram

    Jenn-air Screw

    Part #246131
    In Stock
    $36.27
    Minus Item
    Qty
    Plus Item
