GE
Gas Cooktop

Model # ZGU366NT1SS Official GE gas cooktop

Here are the diagrams and repair parts for Official GE ZGU366NT1SS gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Range Screw WB01T10104
#324

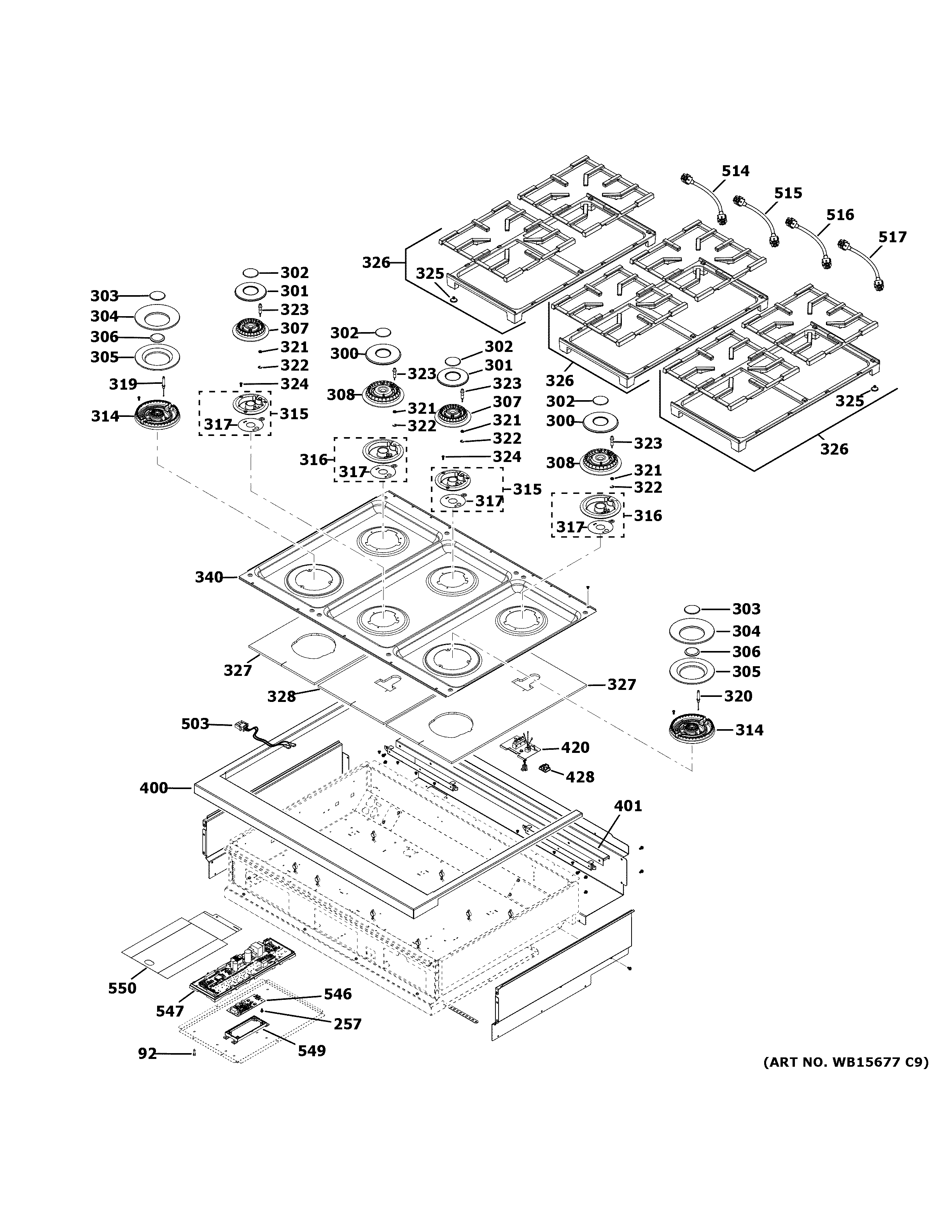

Cooktop diagram

Range screw

Part #WB01T10104

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Harness WB18K10085
#502

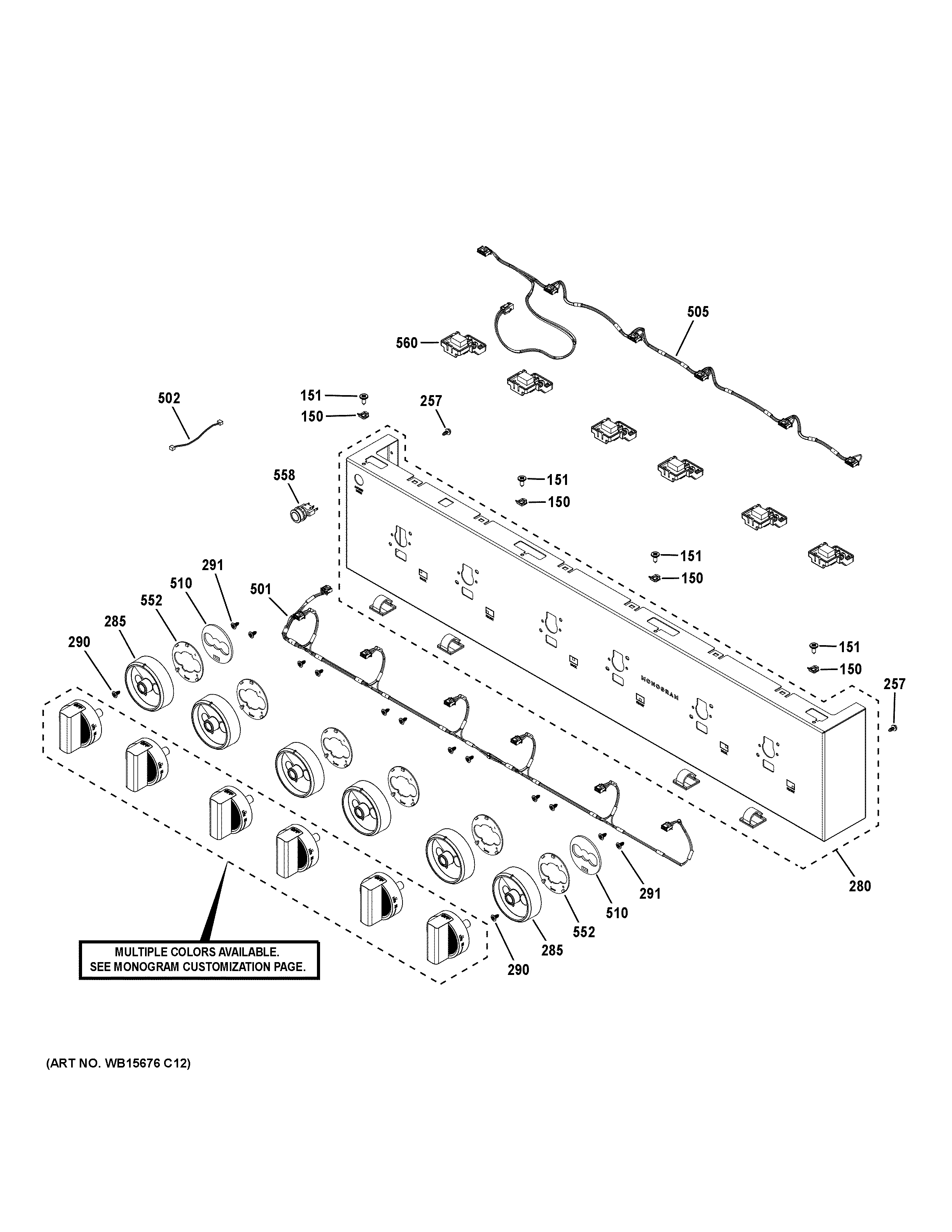

Control panel diagram

Harness

Part #WB18K10085

$8.11
In Stock
Inner Cap Brass WB16X32876
#302

Cooktop diagram

Inner cap brass

Part #WB16X32876

$25.20 |
17% OFF Phone Price : $30.20
In Stock
Insulation Pad Burner WB35X39458
#317

Cooktop diagram

Insulation pad burner

Part #WB35X39458

$13.97
In Stock
Tube And Nut Main Supply Injet Rear WB28X39384
#26

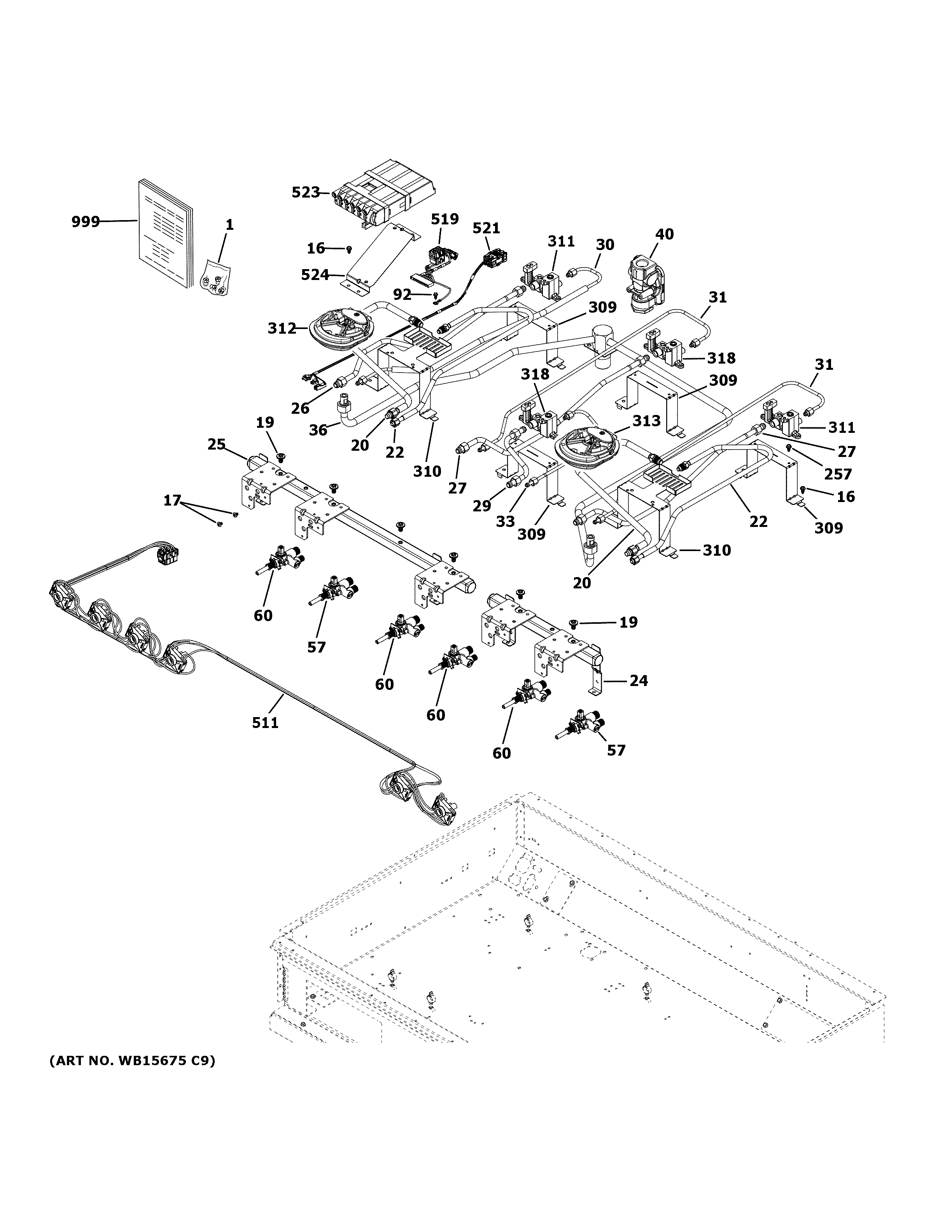

Gas & burner parts diagram

Tube and nut main supply injet rear

Part #WB28X39384

$25.91
In Stock
Base Burner Assembly Afb WB16X39429
#313

Gas & burner parts diagram

Base burner assembly afb

Part #WB16X39429

$84.47
In Stock
Harness Hv Center Front WB18X39305
#516

Cooktop diagram

Harness hv center front

Part #WB18X39305

$18.00
In Stock
Brass Knob Multi Rning WB03X39572
#1002

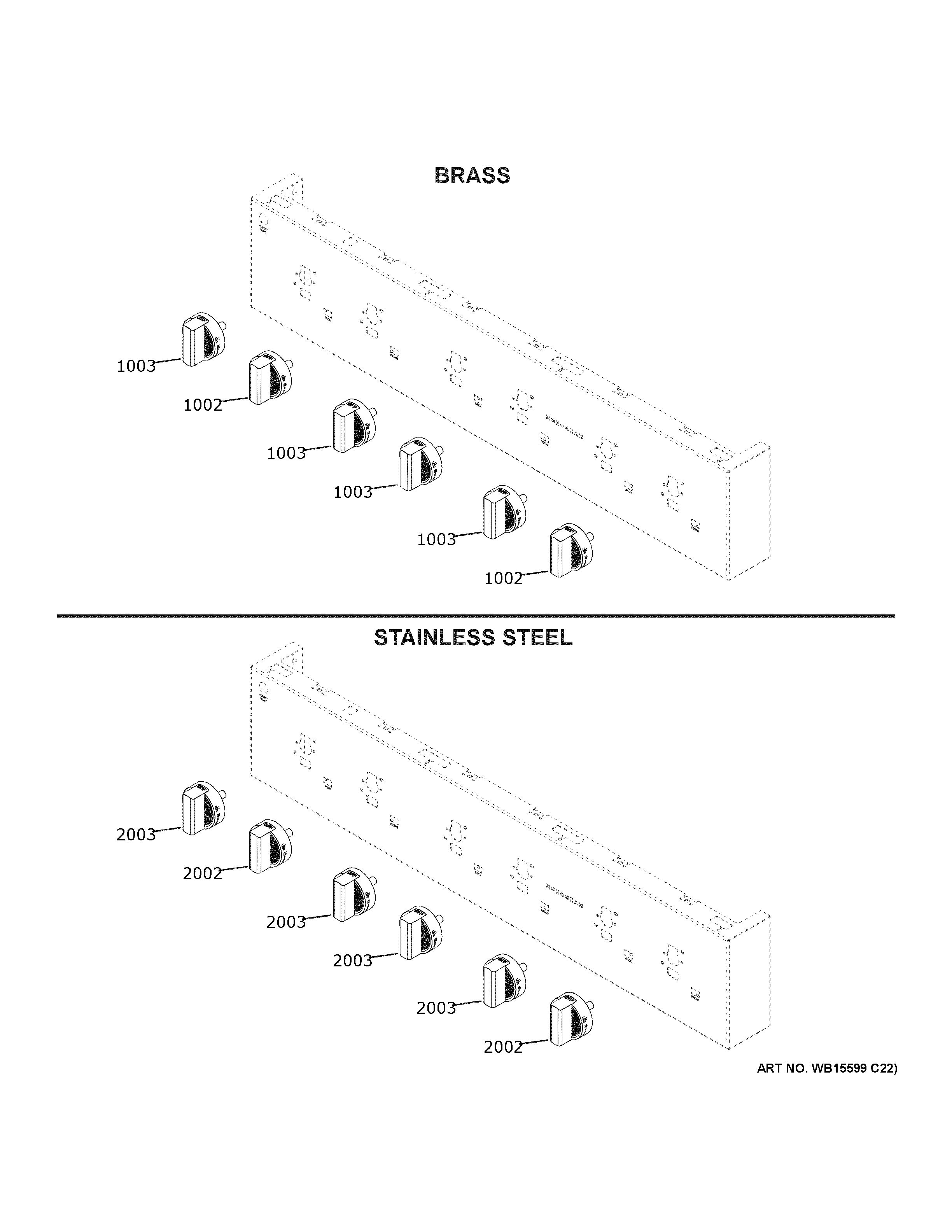

Monogram customization diagram

Brass knob multi rning

Part #WB03X39572

$75.56
In Stock
Burner Injet Assembly (15k Btu) WB16X40486
#318

Gas & burner parts diagram

Burner injet assembly (15k btu)

Part #WB16X40486

$24.98
In Stock
Black Maintop WB32X39854
#340

Cooktop diagram

Black maintop

Part #WB32X39854

$111.28
In Stock
