Kenmore
Gas Water Heater

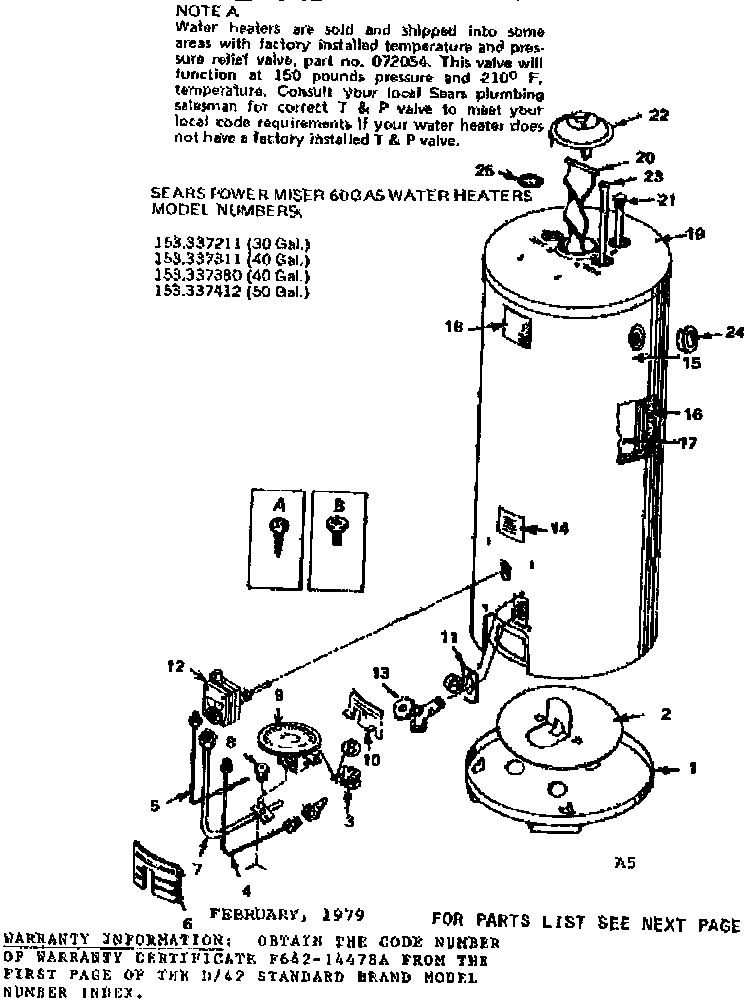

Model #153337211 Kenmore power miser gas water heater

Here are the diagrams and repair parts for Kenmore 153337211 power miser gas water heater, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileError Codes

Showing 10 of 50 parts

Shield

#2B

Replacement parts Diagram

Shield

Part #2190120
This item is not returnable
$4.49

In Stock

Shield

#2A

Replacement parts Diagram

Shield

Part #2190119
This item is not returnable
$3.49

In Stock

Water Heater Burner Tube

#7B

Replacement parts Diagram

Water heater burner tube

Part #9002413
?
Manufacturer substitution
This part replaces 0220104. Substitute parts can look different from the original.
This part replaces 0220104
$23.19

In Stock

Screw

#NI

All parts Diagram

Screw

Part #0350024

The manufacturer no longer makes this part, and there's no substitute part

Flue Baffle

#20B

Replacement parts Diagram

Flue baffle

Part #9000418
?
Manufacturer substitution
This part replaces 1510307. Substitute parts can look different from the original.
This part replaces 1510307
$21.99

In Stock

Water Heater Thermocouple

#5B

Replacement parts Diagram

Water heater thermocouple

Part #H06E-036
?
Manufacturer substitution
This part replaces 0380002. Substitute parts can look different from the original.
This part replaces 0380002
$10.47

In Stock

Orifice

#8A

Replacement parts Diagram

Orifice

Part #9003478
?
Manufacturer substitution
This part replaces 0230129. Substitute parts can look different from the original.
This part replaces 0230129
$18.64

In Stock

Water Heater Drain Valve

#13

Replacement parts Diagram

Water heater drain valve

Part #9000254015
?
Manufacturer substitution
This part replaces 0170032. Substitute parts can look different from the original.
This part replaces 0170032
$8.88

In Stock

Plug

#8C

Replacement parts Diagram

Plug

Part #9004005005
?
Manufacturer substitution
This part replaces 0230128. Substitute parts can look different from the original.
This part replaces 0230128
$23.89

In Stock

Manifold

#7C

Replacement parts Diagram

Manifold

Part #9002412
?
Manufacturer substitution
This part replaces 0220105. Substitute parts can look different from the original.
This part replaces 0220105
$23.11

In Stock
