Amana RCC30A2A/P1172403C remote condensing unit technical information Parts

Name: Amana RCC30A2A/P1172403C Parts | Diagrams | Sears PartsDirect
Brand: Amana
SKU: RCC30A2A/P1172403C
Availability: InStock

Here are the diagrams and repair parts for Amana RCC30A2A/P1172403C remote condensing unit technical information, as well as links to manuals and error code tables, if available.

By Schematic

SELECT DIAGRAM

Browse Parts forRCC30A2A/P1172403C Remote Condensing Unit Technical Information

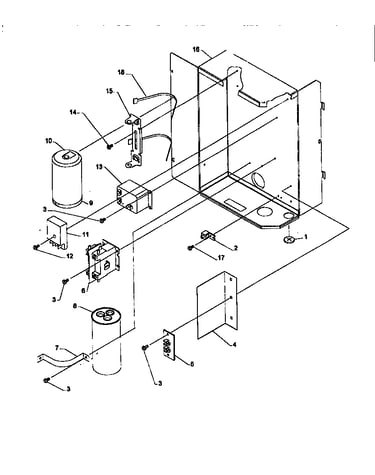

Control box assemlby diagram
Capacitor Strap
Part #A4055402
The manufacturer no longer makes this part, and there's no substitute part
Control box assemlby diagram
Capacitor-50/5 Mfd, 370v
Part #D6789043
The manufacturer no longer makes this part, and there's no substitute part

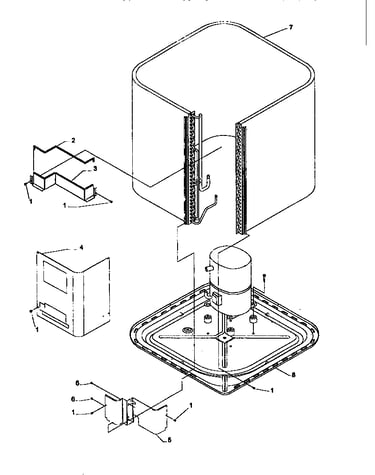

Cabinet assembly diagram
Condenser Assembly
Part #11142001
The manufacturer no longer makes this part, and there's no substitute part

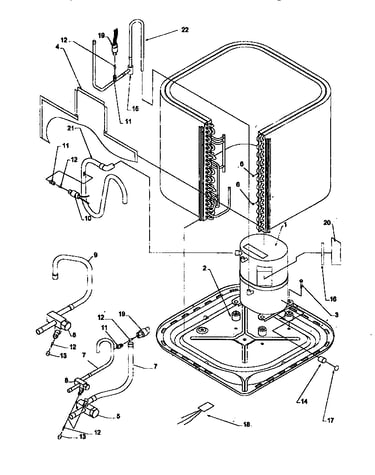

Compressor and tubing (rcc18a2a/p1172401c) (rcc18a2b/p1172413c) (rcc24a2a/p1172402c) (rcc30a2a/p1172403c) (rcc36a2a/p1172404c) (rcc36a3a/p1172405c) (rcc42a2a/p1172407c) (rcc42a2b/p1172414c) (rcc48a2a/p1172408c) (rcc48a2b/p1172415c) diagram
Gasket
Part #A3410801
The manufacturer no longer makes this part, and there's no substitute part
Cabinet assembly diagram
Condenser Assembly
Part #10625101
The manufacturer no longer makes this part, and there's no substitute part

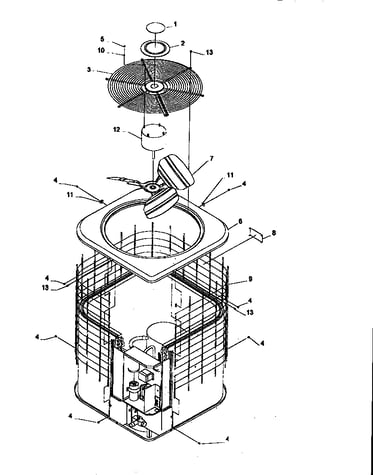

Cabinet and top assembly (rcc18a2a/p1172401c) (rcc18a2b/p1172413c) (rcc24a2a/p1172402c) (rcc30a2a/p1172403c) (rcc36a2a/p1172404c) (rcc36a3a/p1172405c) (rcc42a2a/p1172407c) (rcc42a2b/p1172414c) (rcc48a2a/p1172408c) (rcc48a2b/p1172415c) (rcc48a3b/p1172416c) diagram
Top Cover
Part #10229802
The manufacturer no longer makes this part, and there's no substitute part

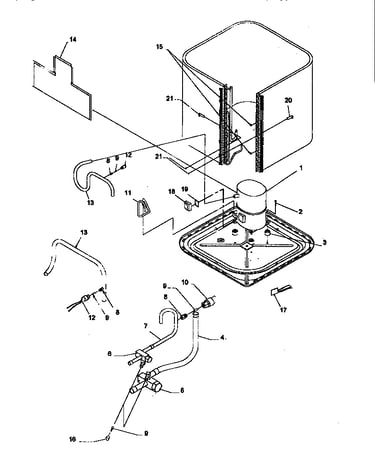

Compressor and tubing (rcc48a2b/p1172415c) (rcc48a3b/p1172416c) (rcc60a2b/p1172417c) (rcc60a3b/p1172418c) diagram
Comp-tc Avd5542ext
Part #10679709
The manufacturer no longer makes this part, and there's no substitute part

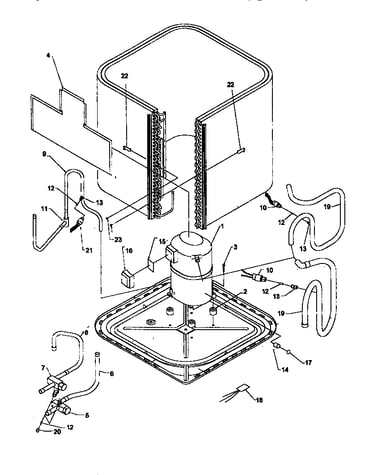

Compressor and tubing (rcc18a2b/p1172413c) (rcc48a2a/p1172408c) (rcc48a3a/p1172409c) (rcc60a2a/p1172411c) (rcc60a3a/p1172412c) diagram
Harness-compressor
Part #11180701
The manufacturer no longer makes this part, and there's no substitute part
Tube-suction
Part #10719902
The manufacturer no longer makes this part, and there's no substitute part

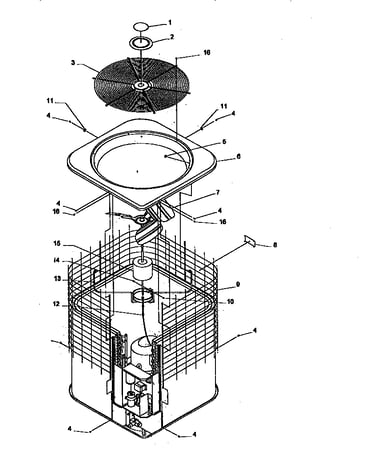

Cabinet and top assembly (rcc18a2a/p1172401c) (rcc18a2b/p1172413c) (rcc24a2a/p1172402c) (rcc30a2a/p1172403c) (rcc36a2a/p1172404c) (rcc36a3a/p1172405c) (rcc42a2a/p1172407c) (rcc42a2b/p1172414c) (rcc48a2a/p1172408c) (rcc48a2b/p1172415c) (rcc48a3b/p1172416c) diagram
Condenser Motor
Part #10584308
The manufacturer no longer makes this part, and there's no substitute part
