Model # 4360-82 Official Footedana lawn & garden transaxle

Here are the diagrams and repair parts for Official Footedana 4360-82 lawn & garden transaxle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Lock Nut 73810500
#71

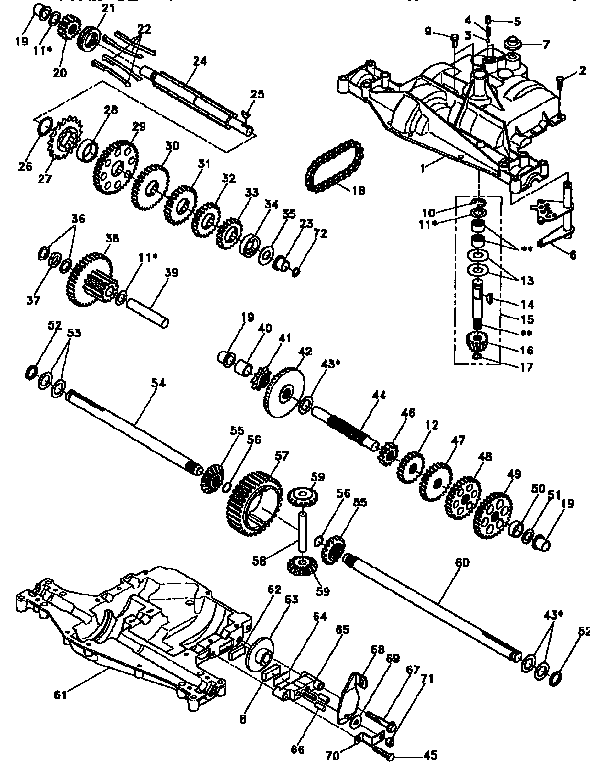

Transaxle diagram

Lock nut

Part #73810500

The manufacturer no longer makes this part, and there's no substitute part

Bolt 2274J
#2

Transaxle diagram

Bolt

Part #2274J

The manufacturer no longer makes this part, and there's no substitute part

Key 142674
#14

Transaxle diagram

Key

Part #142674

The manufacturer no longer makes this part, and there's no substitute part

Kit 134793
#11

Transaxle diagram

Kit

Part #134793

The manufacturer no longer makes this part, and there's no substitute part

Idler Shaft 124639X
#39

Transaxle diagram

Idler shaft

Part #124639X

The manufacturer no longer makes this part, and there's no substitute part

Lawn Mower Spacer 110070X
#28

Transaxle diagram

Lawn mower spacer

Part #110070X

The manufacturer no longer makes this part, and there's no substitute part

Grease 120416X
#73

Transaxle diagram

Grease

Part #120416X

The manufacturer no longer makes this part, and there's no substitute part

Washer 2264J
#53

Transaxle diagram

Washer

Part #2264J

The manufacturer no longer makes this part, and there's no substitute part

Dowel Pin 120954X
#66

Transaxle diagram

Dowel pin

Part #120954X

The manufacturer no longer makes this part, and there's no substitute part

Gear 15t 106592X
#59

Transaxle diagram

Gear 15t

Part #106592X

The manufacturer no longer makes this part, and there's no substitute part
