Model # 502474421 Official Sears 27" lightweight bicycle

Here are the diagrams and repair parts for Official Sears 502474421 27" lightweight bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

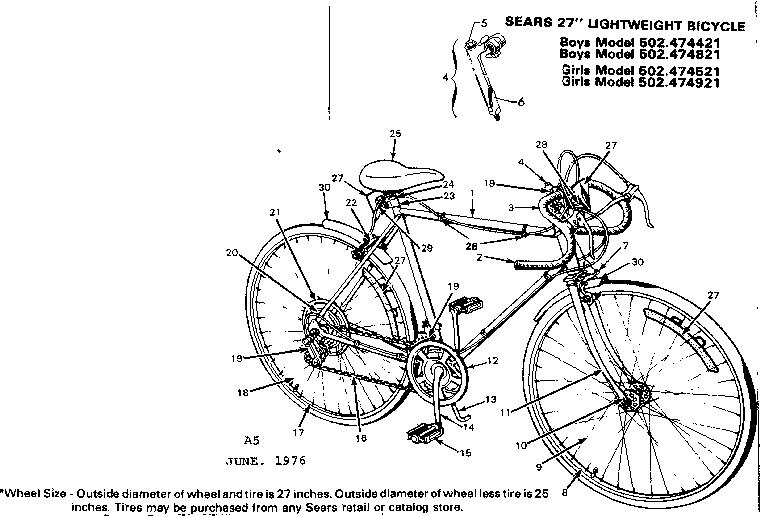

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 137 parts  |
Brake Shoe 304202
#12

Caliper handbrake replacement parts-dia-compe diagram

Brake shoe

Part #304202

The manufacturer no longer makes this part, and there's no substitute part

F Axle Set 303518

#NI

All parts diagram

F axle set

Part #303518

The manufacturer no longer makes this part, and there's no substitute part

Eagle 300571

#NI

All parts diagram

Eagle

Part #300571

The manufacturer no longer makes this part, and there's no substitute part

Dera Cable 300599
Dera cable

Part #300599

The manufacturer no longer makes this part, and there's no substitute part

Washer 304273
#28

Caliper handbrake replacement parts-dia-compe diagram

Washer

Part #304273

The manufacturer no longer makes this part, and there's no substitute part

Bushing 304236
#25

Caliper handbrake replacement parts-dia-compe diagram

Bushing

Part #304236

The manufacturer no longer makes this part, and there's no substitute part

Adpt Nut Asm 300568
#22

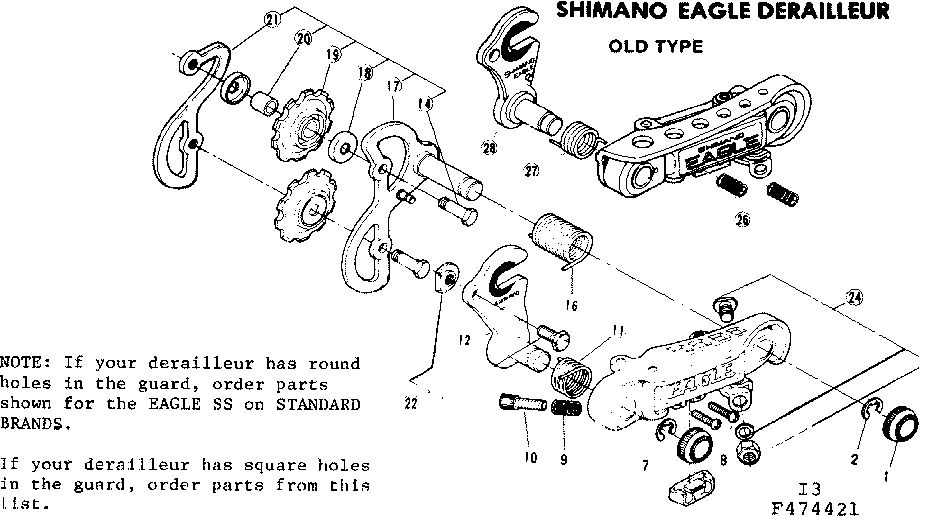

Shomano eagle derailleur old type diagram

Adpt nut asm

Part #300568

The manufacturer no longer makes this part, and there's no substitute part

Pivot 304234
#23

Caliper handbrake replacement parts-dia-compe diagram

Pivot

Part #304234

The manufacturer no longer makes this part, and there's no substitute part

Spring 300514
#16

Shomano eagle derailleur old type diagram

Spring

Part #300514

The manufacturer no longer makes this part, and there's no substitute part

Adjuster Spring 300619
#6

Shimano front derailleur diagram

Adjuster spring

Part #300619

The manufacturer no longer makes this part, and there's no substitute part
