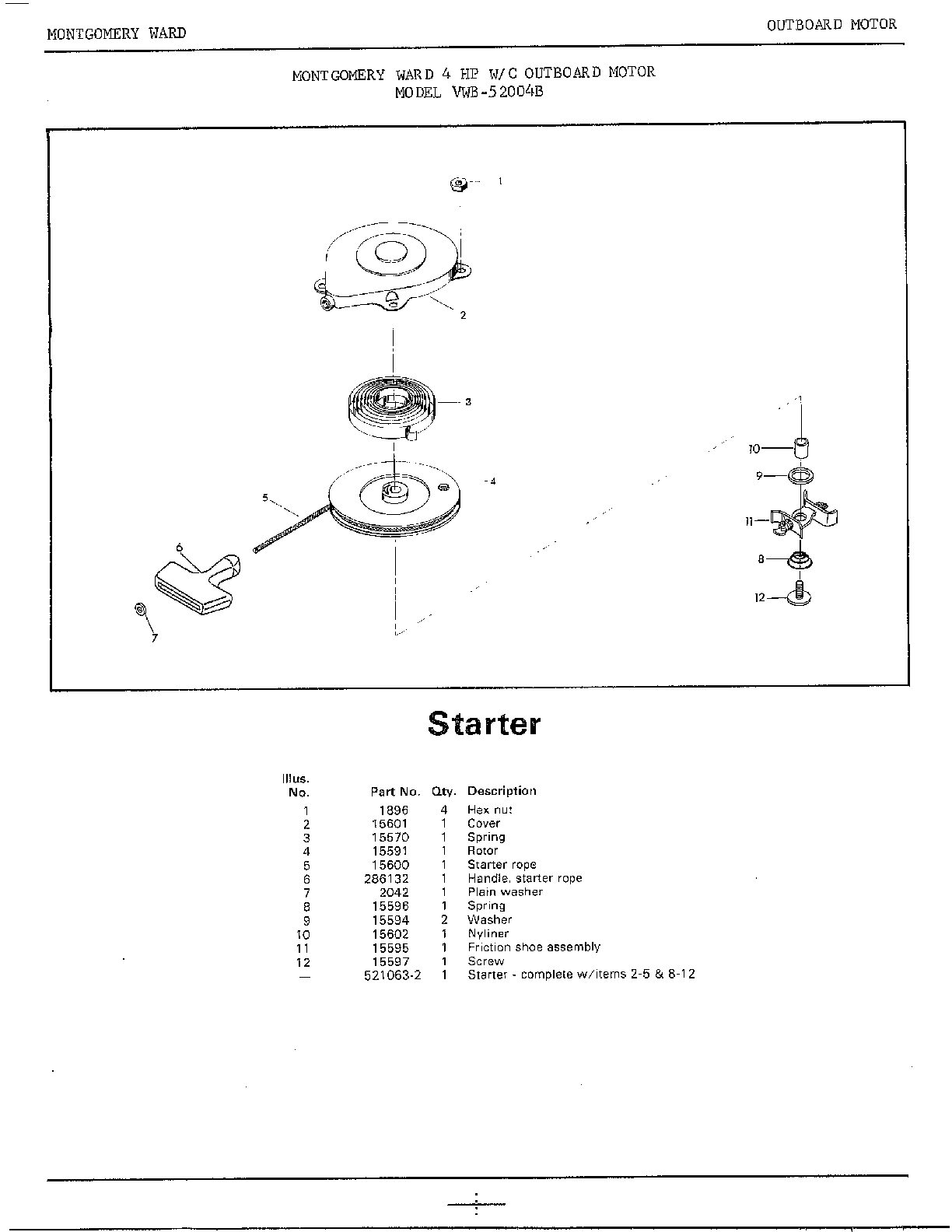

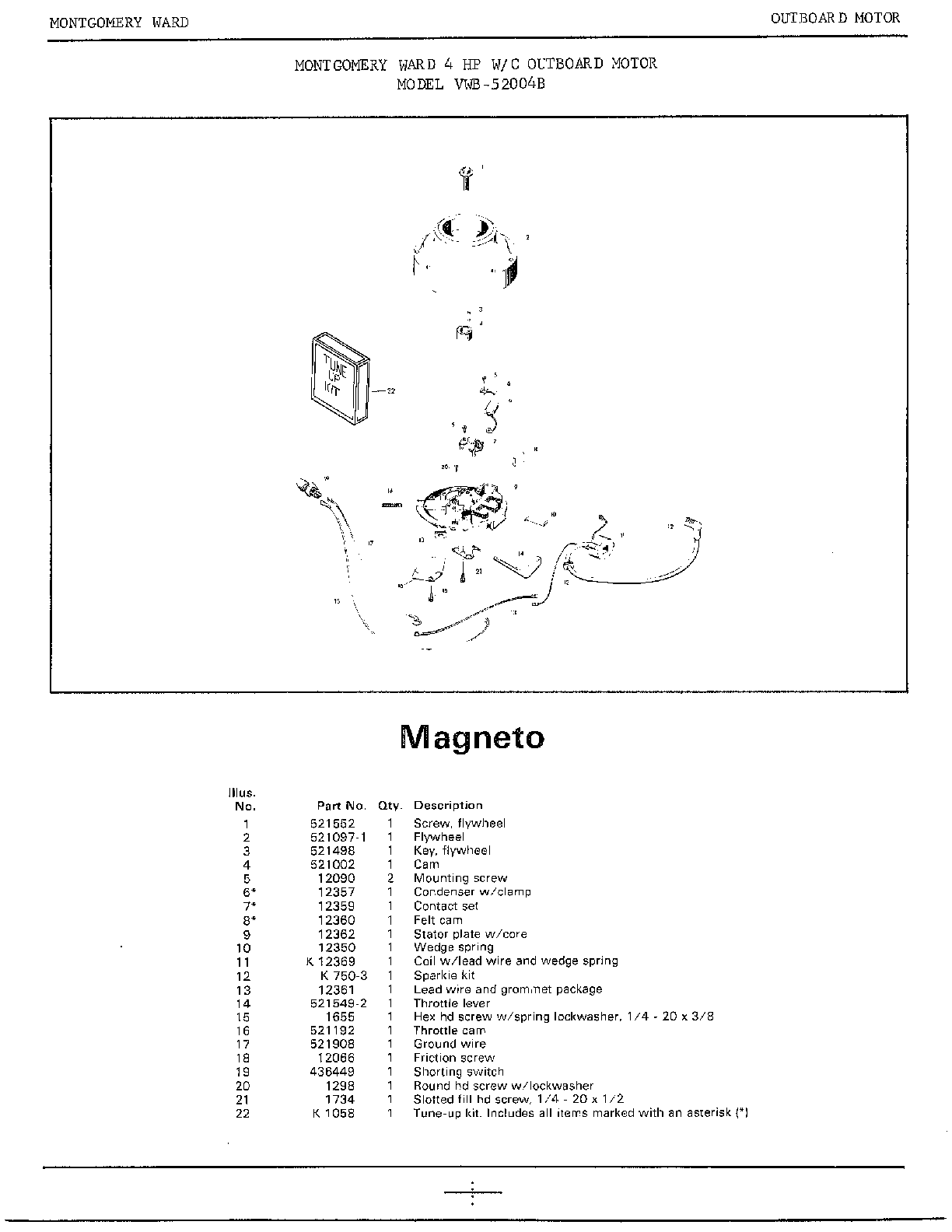

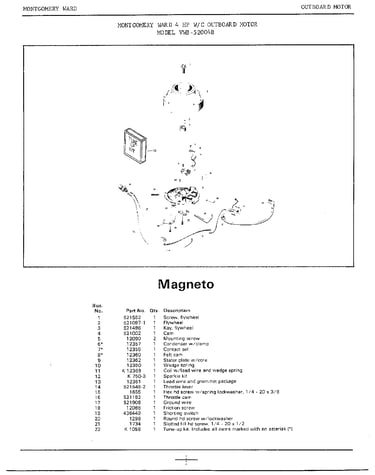

Model #52004B Mercury outboard motor

Here are the diagrams and repair parts for Mercury 52004B outboard motor, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 170 parts

Boat Motor Nut

#41

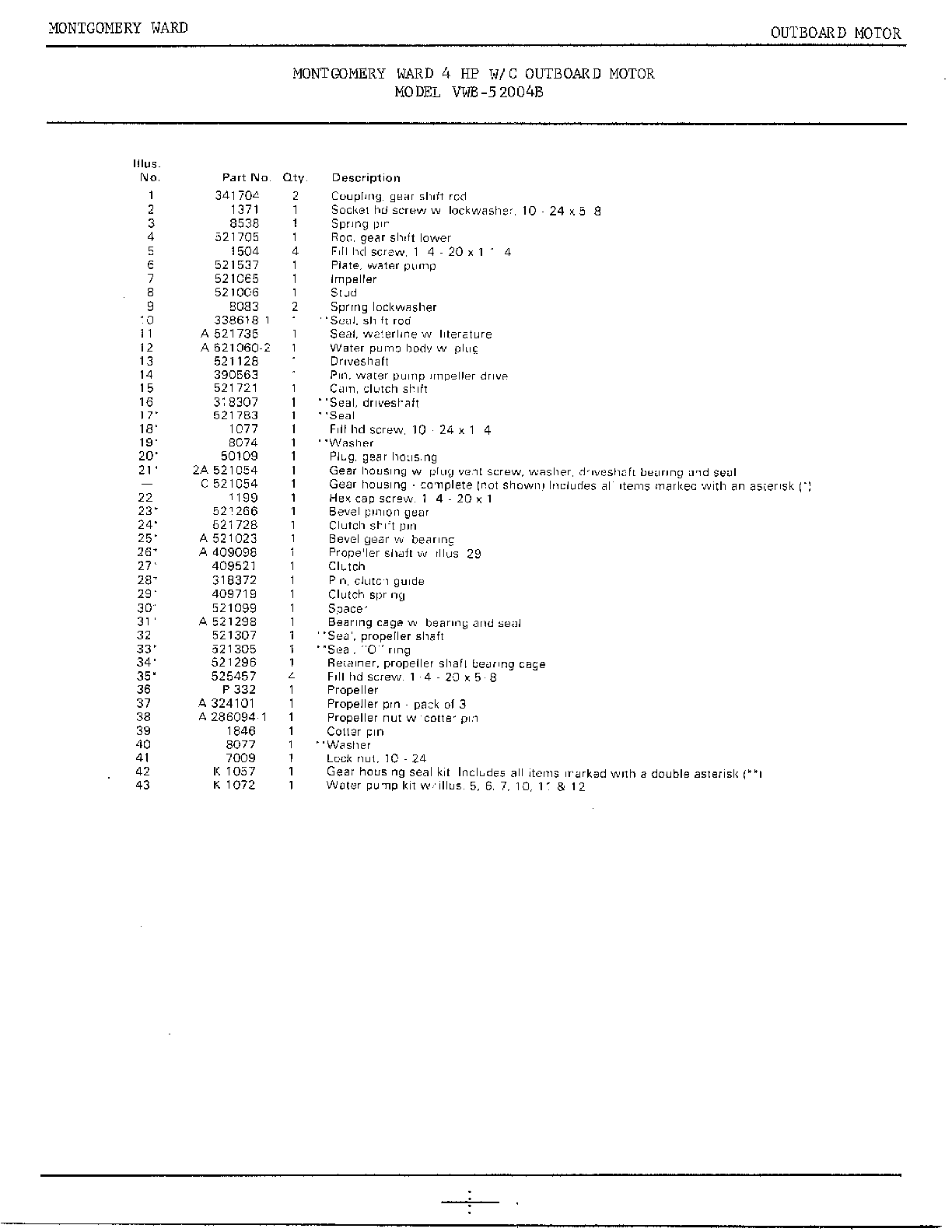

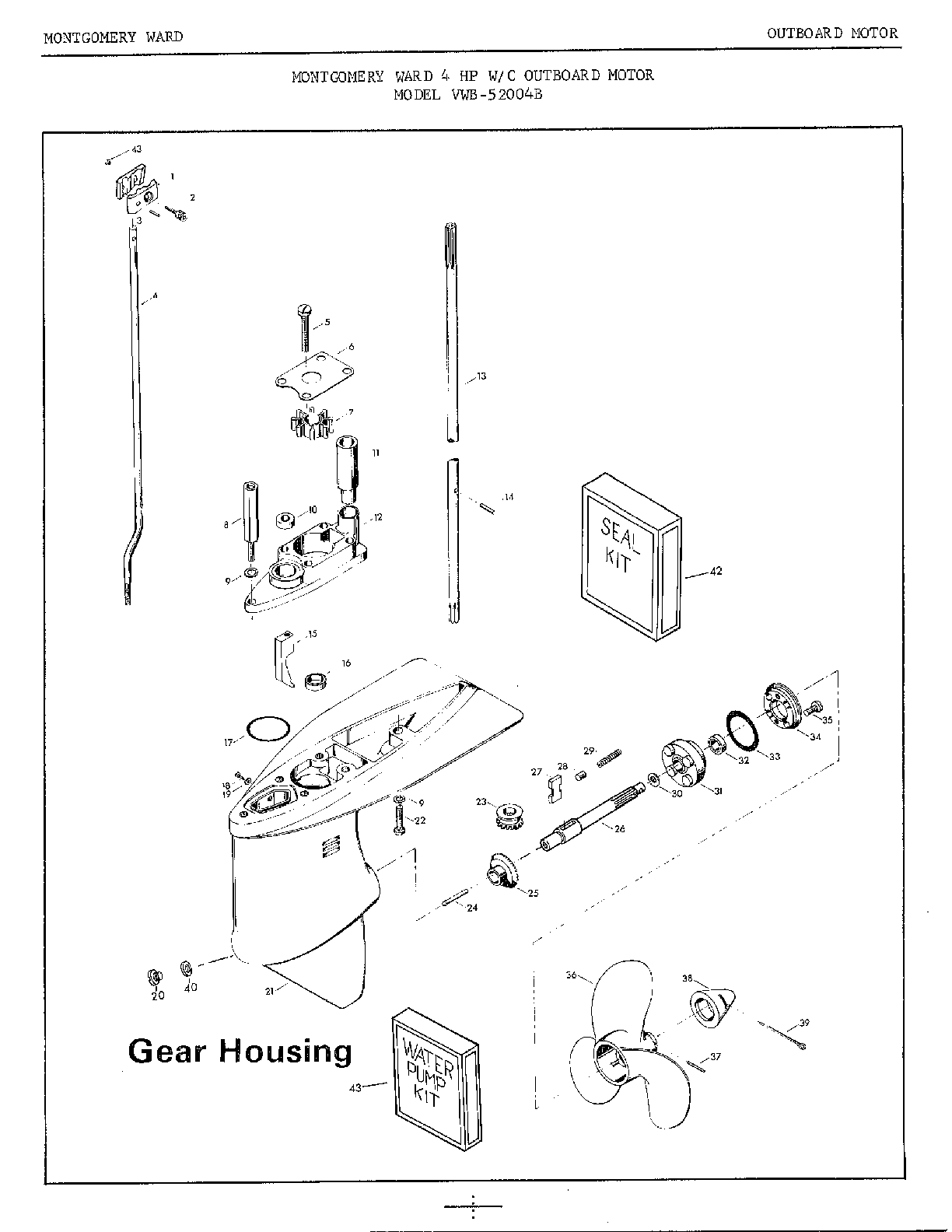

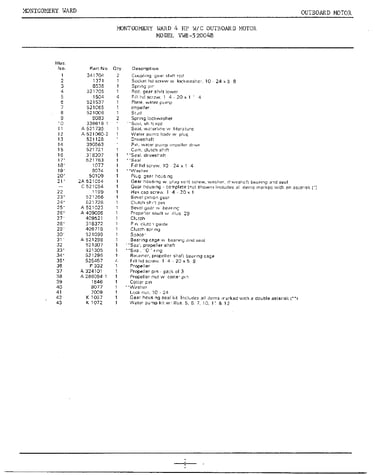

4hp outboard motor/gear housing page 2 Diagram

Boat motor nut

Part #7009

The manufacturer no longer makes this part, and there's no substitute part

Washer

#25

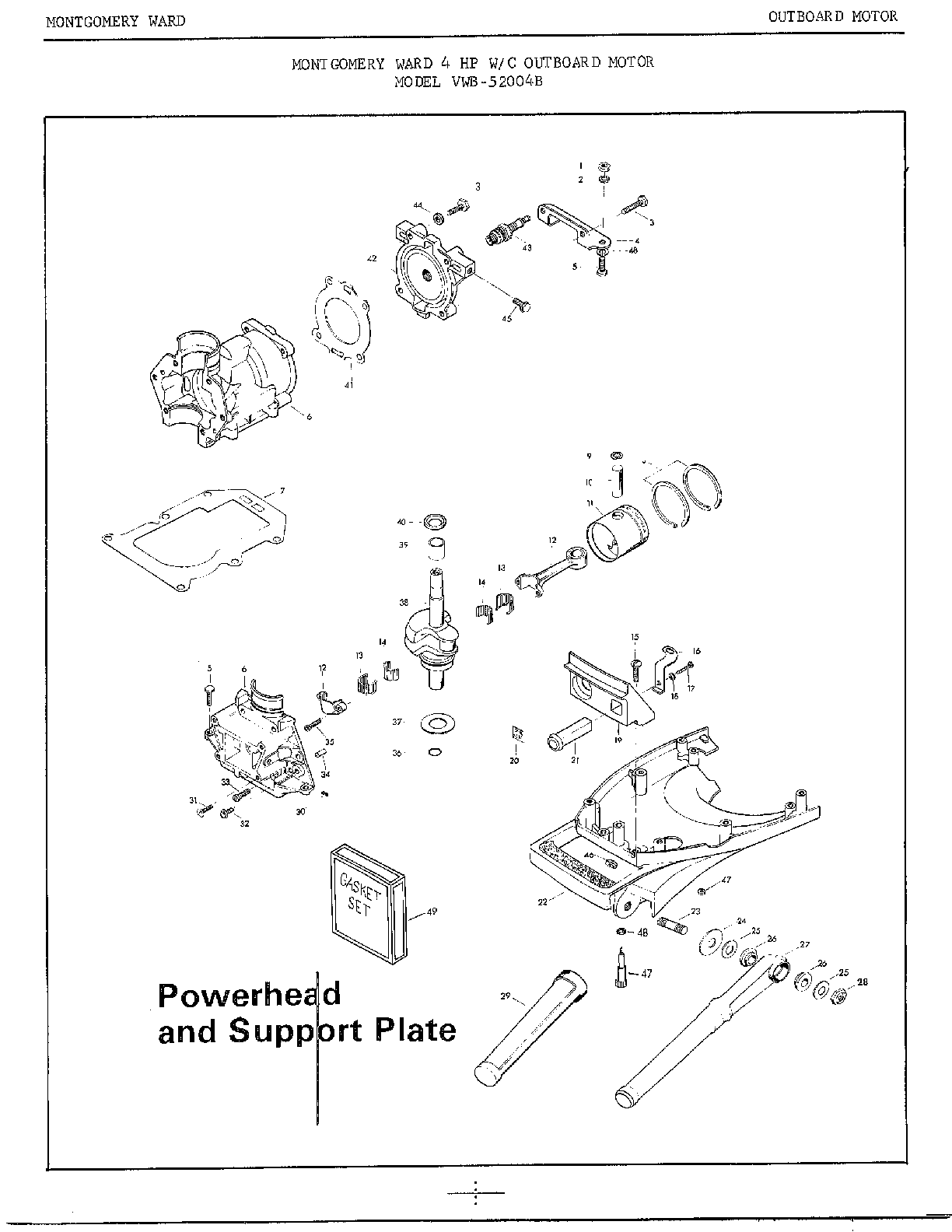

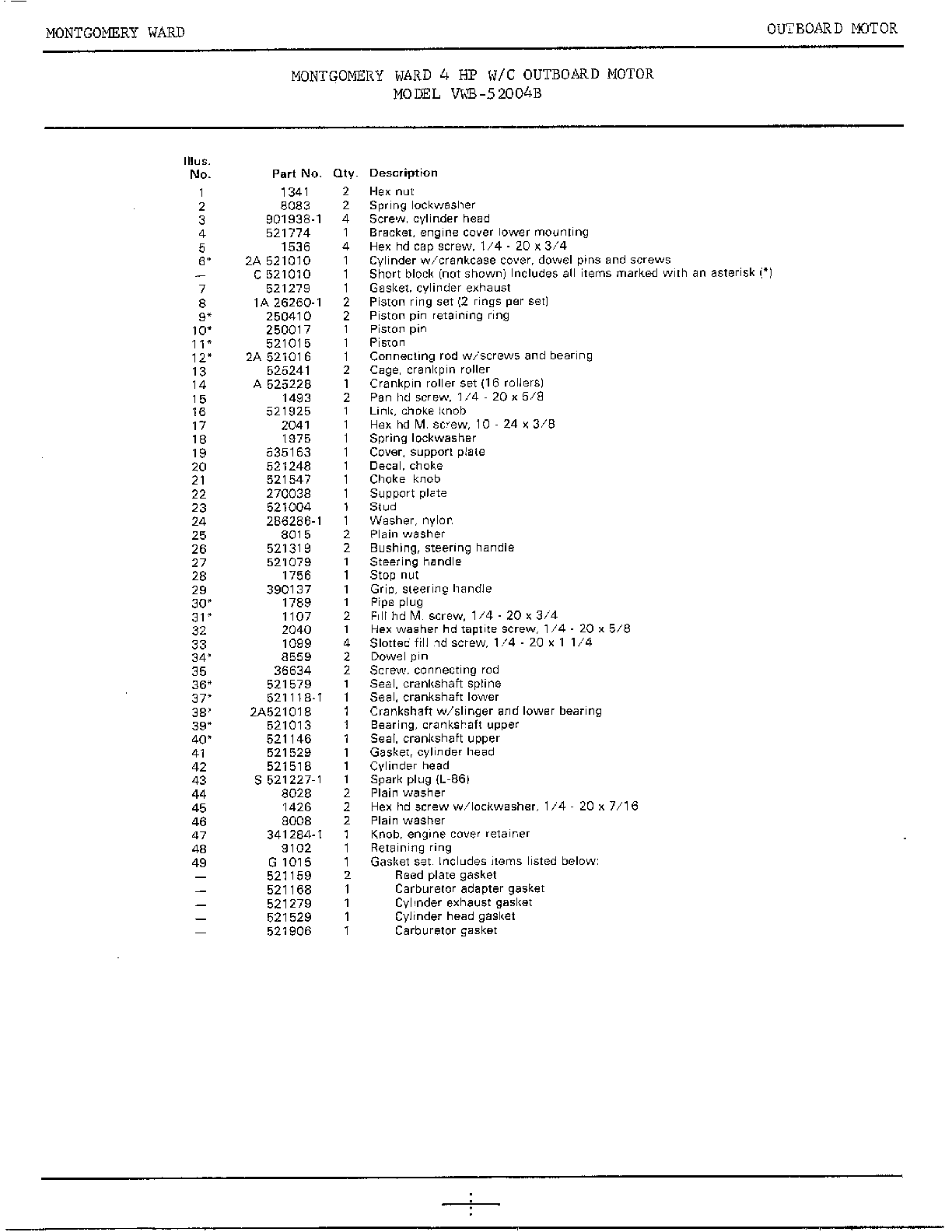

4hp/powerhead and support plate page 2 Diagram

Washer

Part #8015

The manufacturer no longer makes this part, and there's no substitute part

Pin

#23

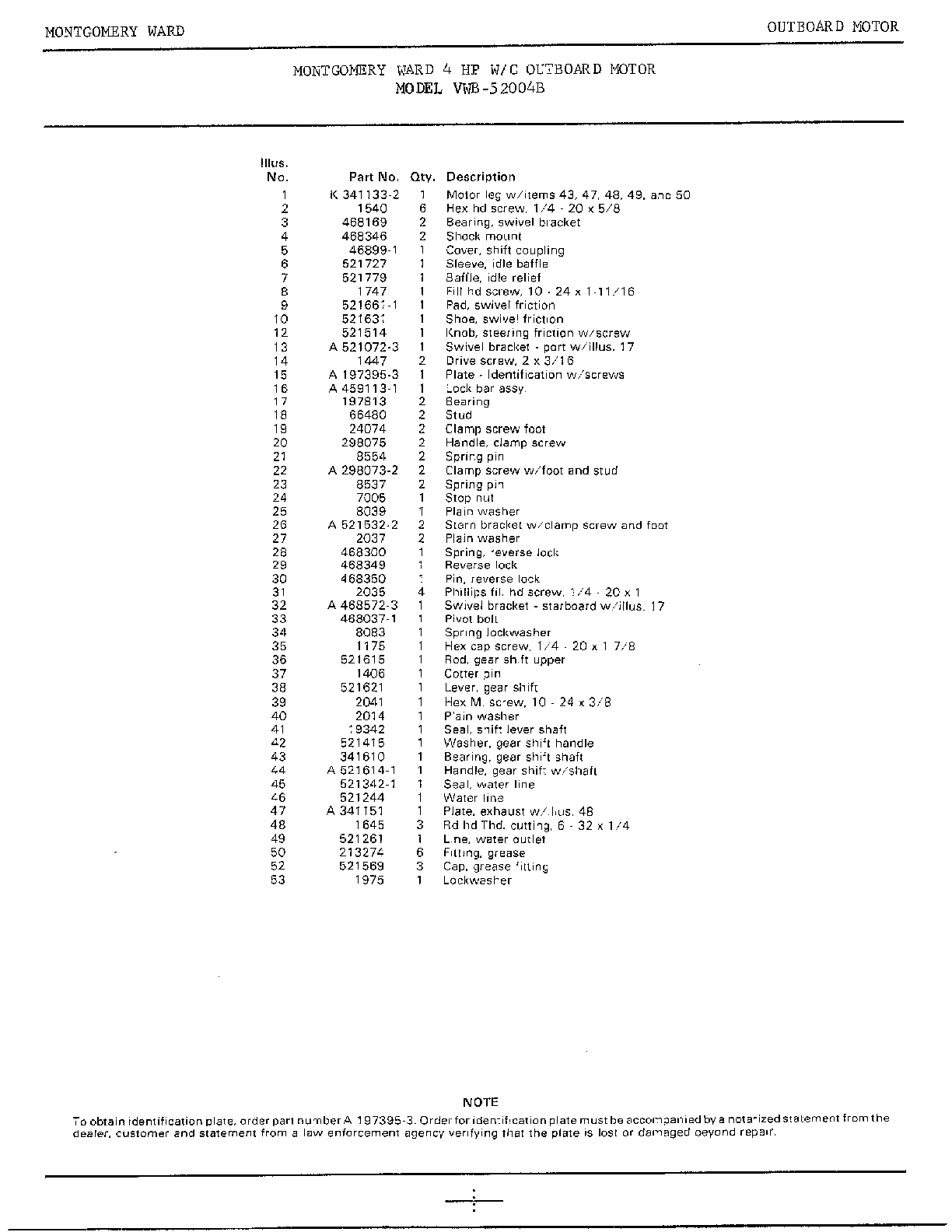

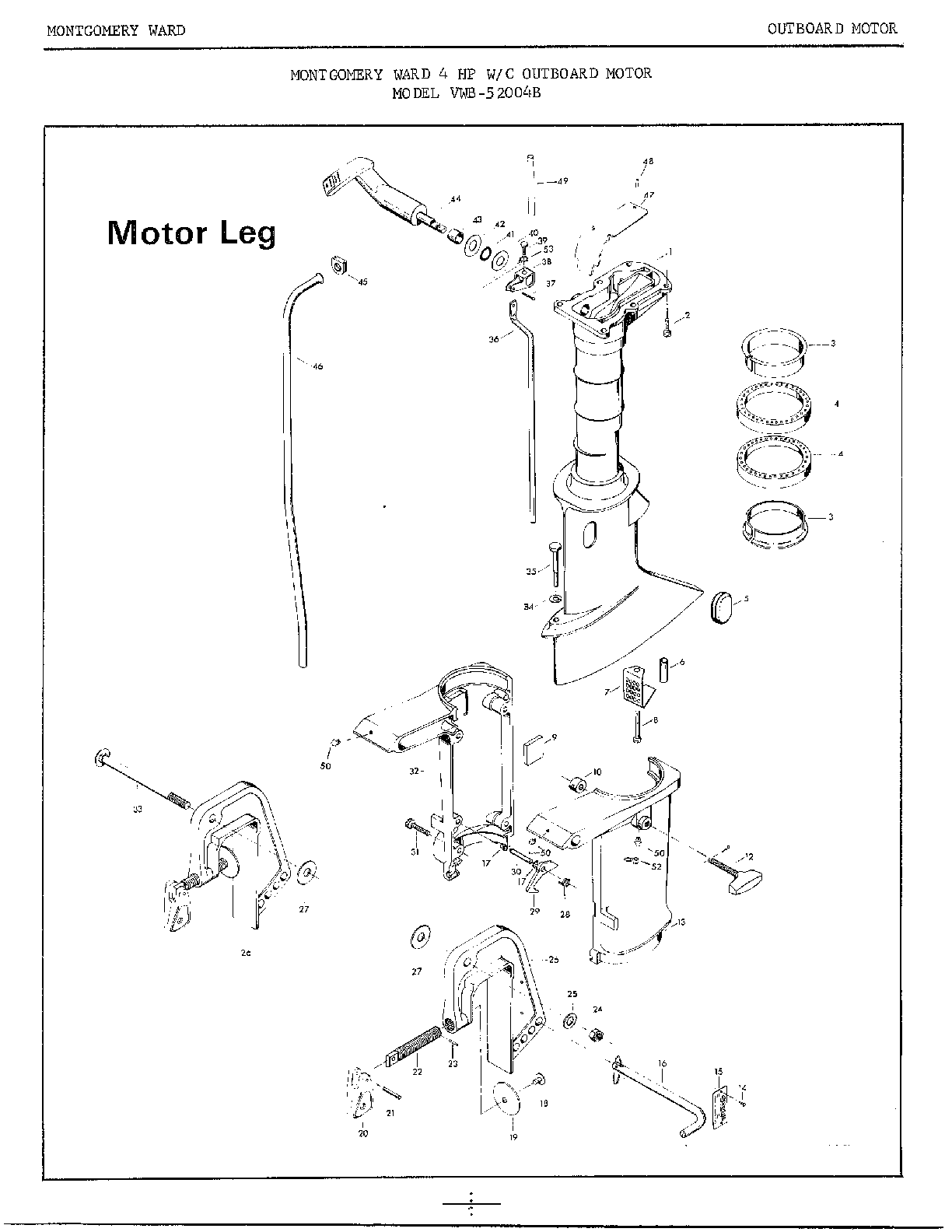

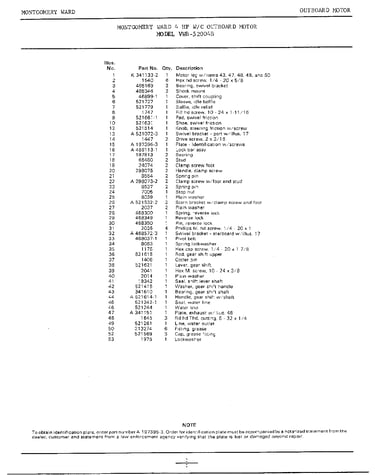

4hp outboard motor/motor leg Diagram

Pin

Part #8537

The manufacturer no longer makes this part, and there's no substitute part

Washer

#27

4hp outboard motor/motor leg page 2 Diagram

Washer

Part #2037

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer

#21

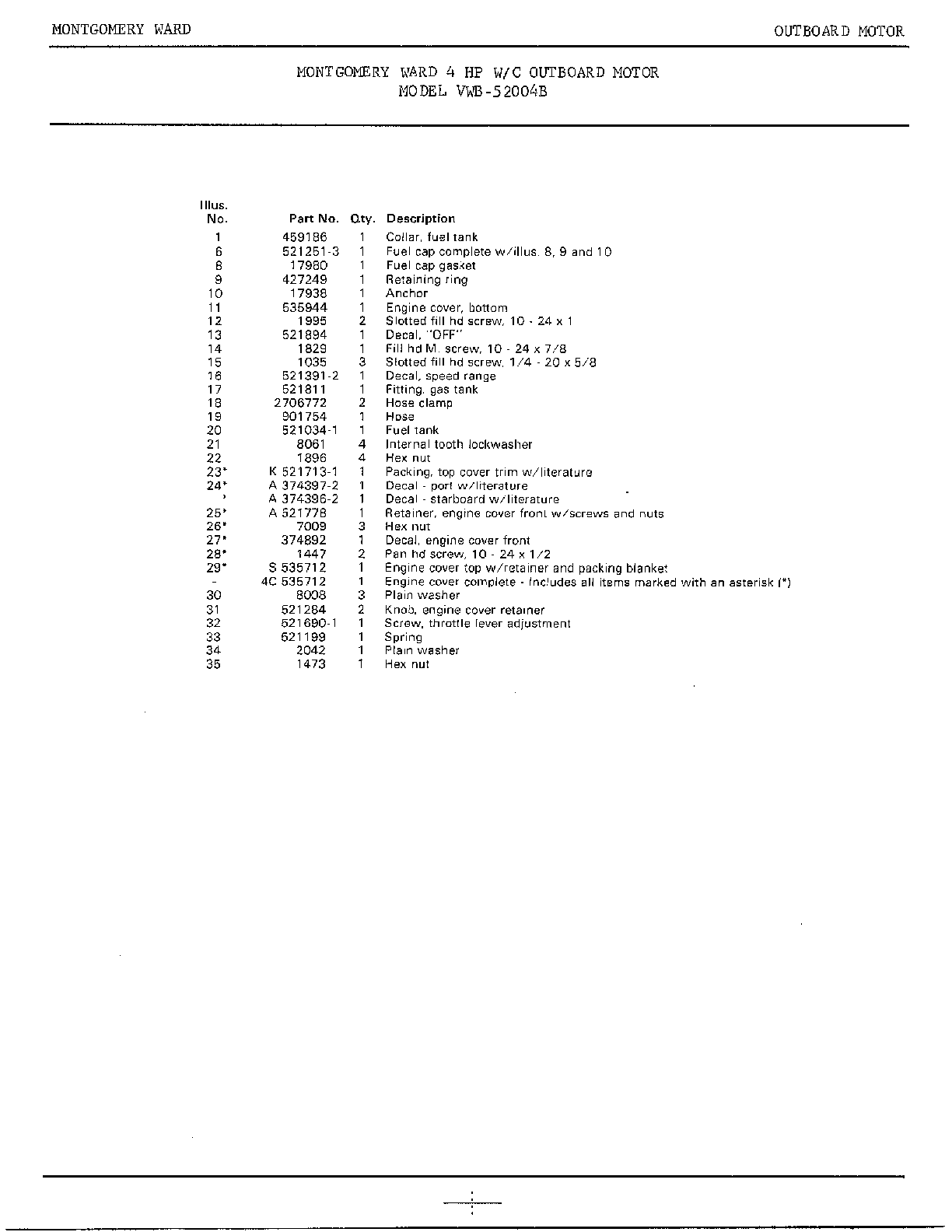

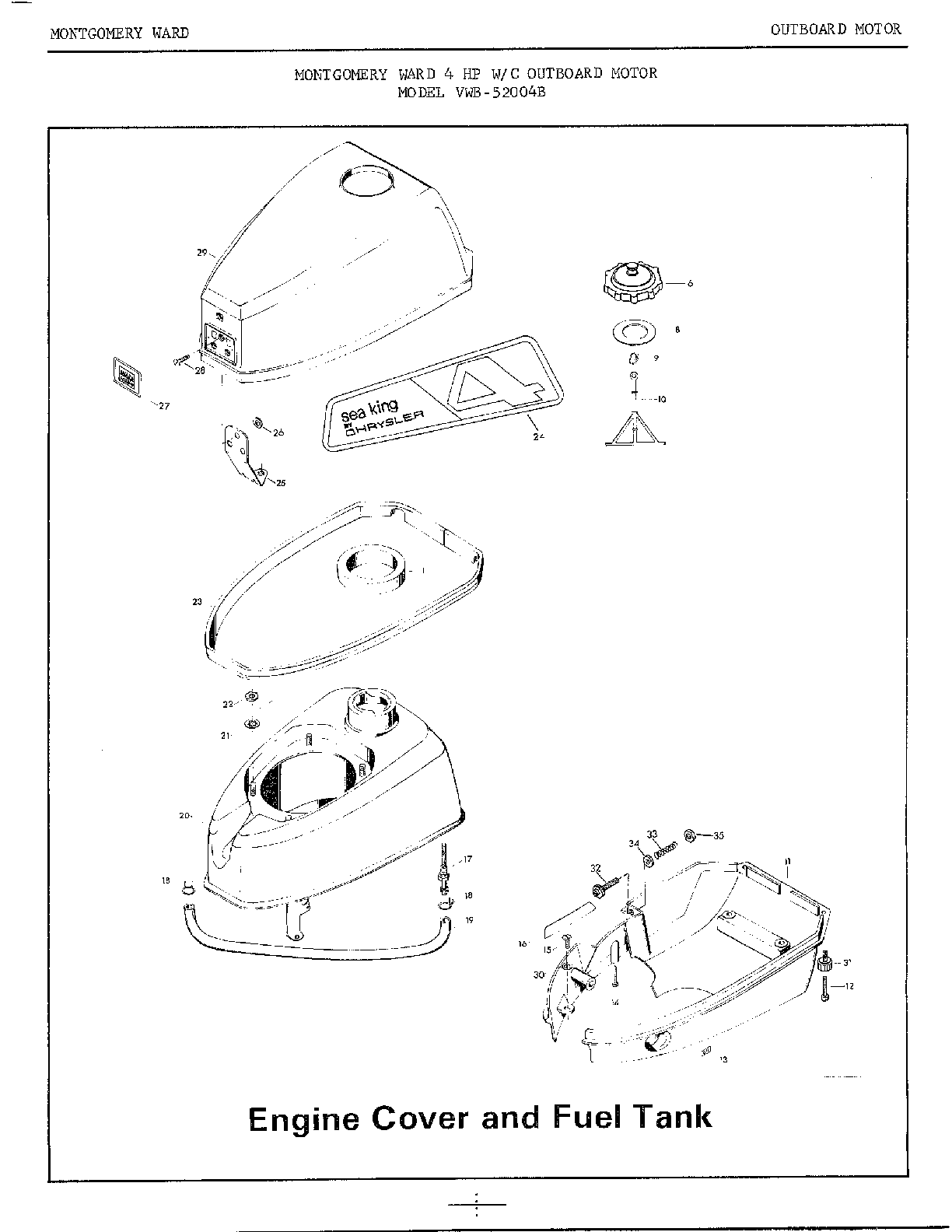

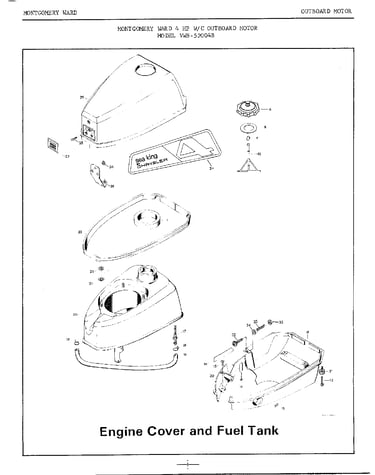

4hp/engine cover/fuel tank Diagram

Lock washer

Part #8061

The manufacturer no longer makes this part, and there's no substitute part

Washer

#44

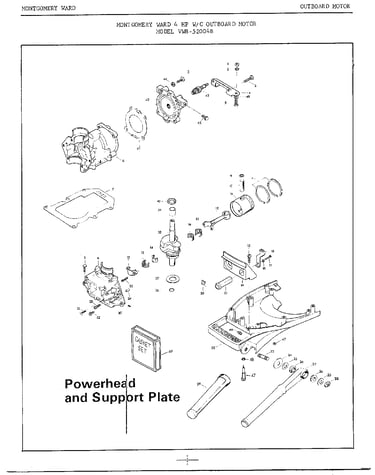

4hp/powerhead and support plate page 2 Diagram

Washer

Part #8028

The manufacturer no longer makes this part, and there's no substitute part

Impeller

#7

4hp outboard motor/gear housing page 2 Diagram

Impeller

Part #521065

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer

#18

4hp/powerhead and support plate page 2 Diagram

Lock washer

Part #1975

The manufacturer no longer makes this part, and there's no substitute part

Screw S.s

#39A

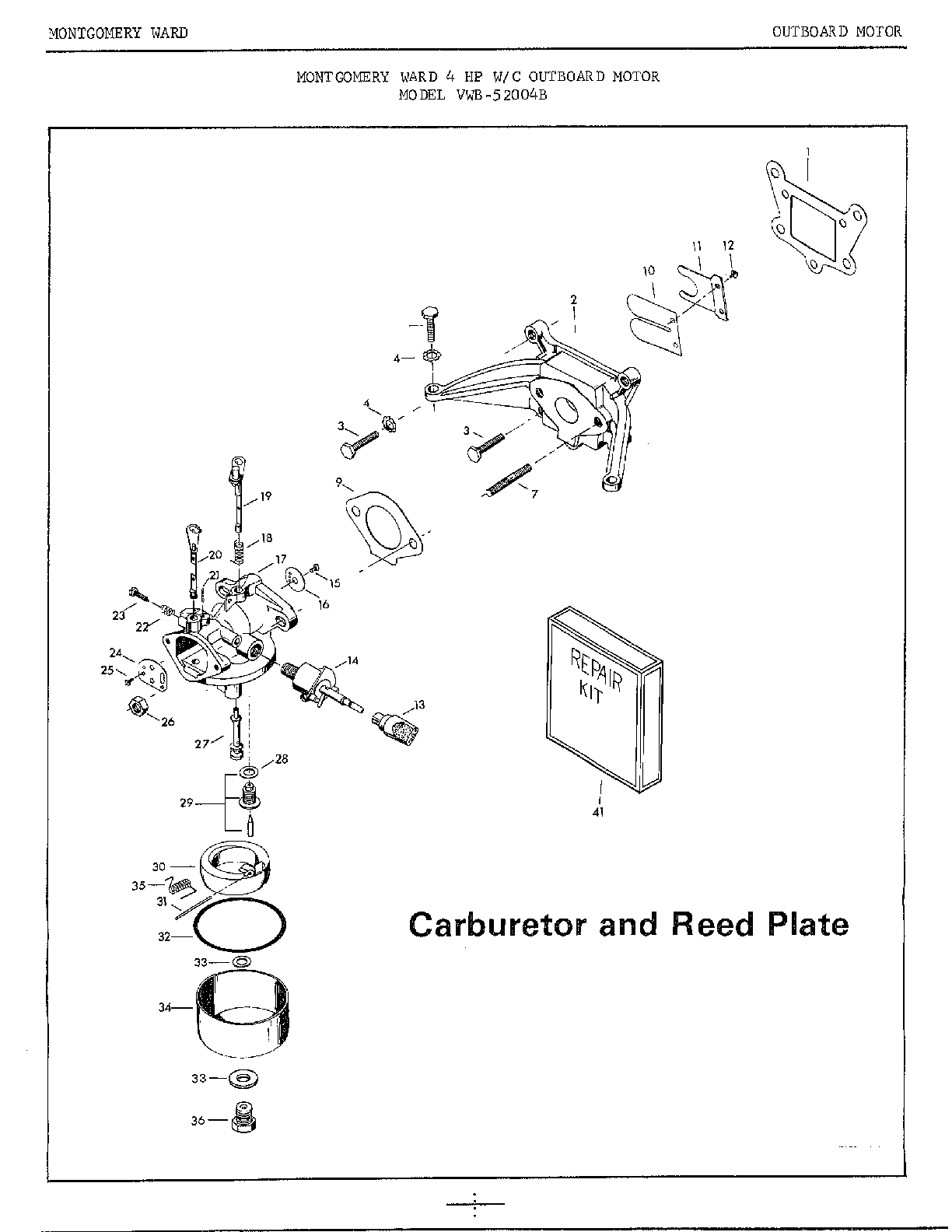

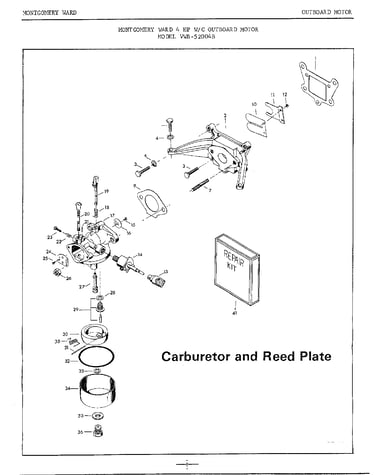

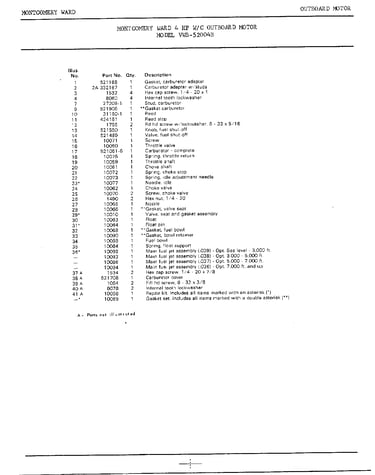

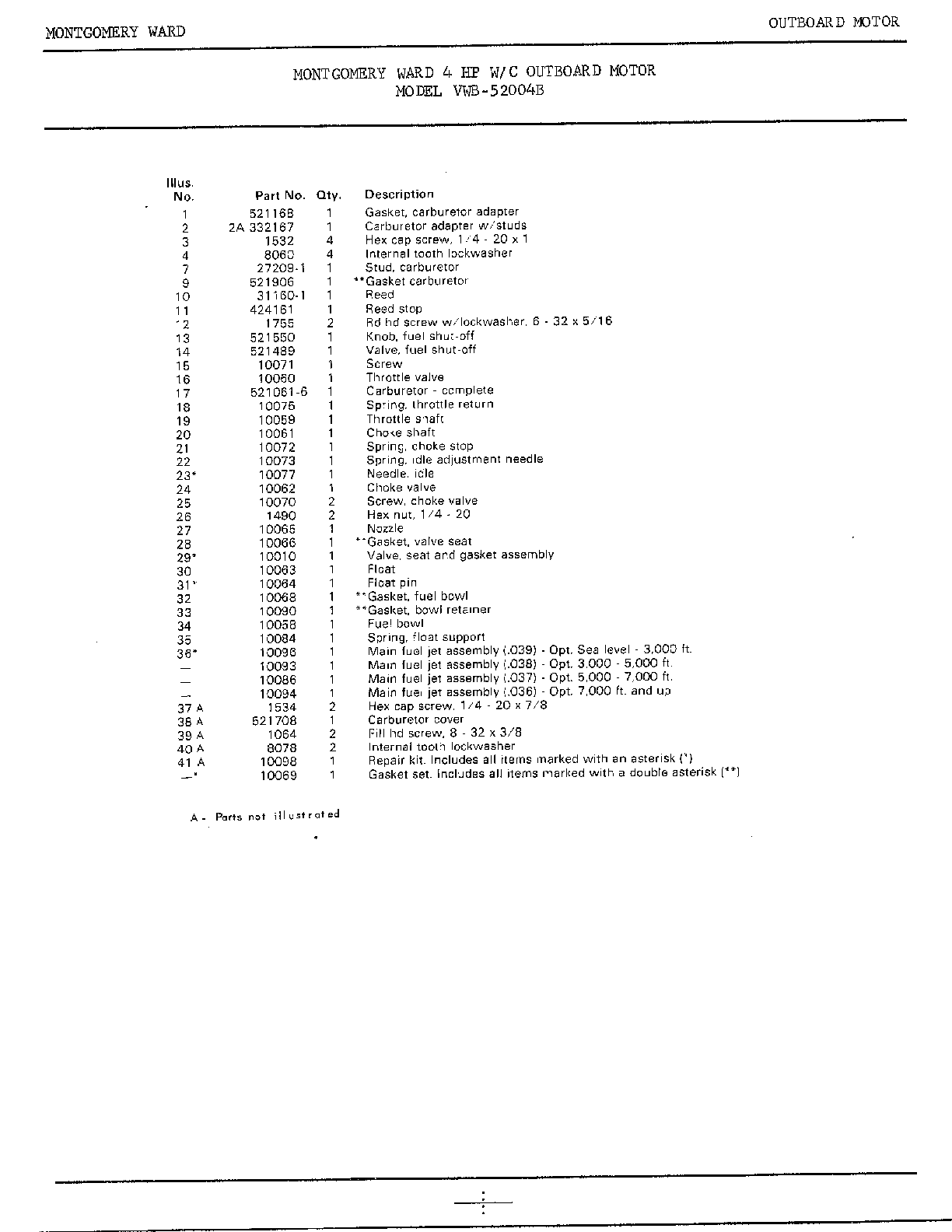

4hp carburetor and reed plate Diagram

Screw s.s

Part #1064

The manufacturer no longer makes this part, and there's no substitute part

Washer

#40

4hp outboard motor/motor leg Diagram

Washer

Part #2014

The manufacturer no longer makes this part, and there's no substitute part
