Craftsman
Walk-Behind Mower

Model # 29191620 Official Craftsman 18" hand reel lawn mower

Here are the diagrams and repair parts for Official Craftsman 29191620 18" hand reel lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |
Mach Bolt MB-6-75
#21

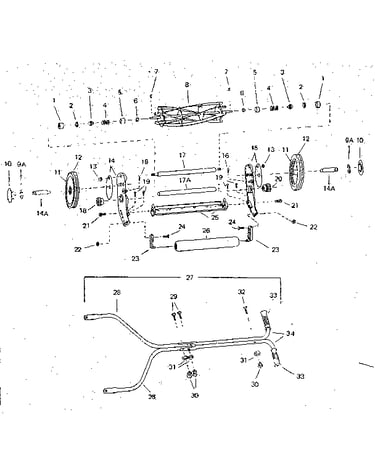

Unit parts diagram

Mach bolt

Part #MB-6-75

The manufacturer no longer makes this part, and there's no substitute part

Tie Rod TR-1775
#17

Unit parts diagram

Tie rod

Part #TR-1775

The manufacturer no longer makes this part, and there's no substitute part

R Pinion Gr R-10
#20

Unit parts diagram

R pinion gr

Part #R-10

The manufacturer no longer makes this part, and there's no substitute part

Cttr Bar 18 P-18
#25

Unit parts diagram

Cttr bar 18

Part #P-18

The manufacturer no longer makes this part, and there's no substitute part

Dust Cap X10
#5

Unit parts diagram

Dust cap

Part #X10

The manufacturer no longer makes this part, and there's no substitute part

Ball Cup X9
#1

Unit parts diagram

Ball cup

Part #X9

The manufacturer no longer makes this part, and there's no substitute part

Reel Assembly RA-18
#8

Unit parts diagram

Reel assembly

Part #RA-18

The manufacturer no longer makes this part, and there's no substitute part

Cotter Pin CP-2-75
#16

Unit parts diagram

Cotter pin

Part #CP-2-75

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing Assembly X24
#2

Unit parts diagram

Ball bearing assembly

Part #X24

The manufacturer no longer makes this part, and there's no substitute part

L Pinion Gr L-10
#18

Unit parts diagram

L pinion gr

Part #L-10

The manufacturer no longer makes this part, and there's no substitute part
