Kenmore
Carpet Cleaner

Model # 1008861180 Official Kenmore shampooer/polisher

Here are the diagrams and repair parts for Official Kenmore 1008861180 shampooer/polisher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Retain Butns 39066P1175
#31

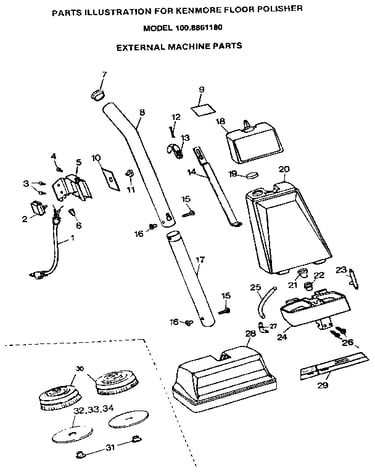

External machine diagram

Retain butns

Part #39066P1175

The manufacturer no longer makes this part, and there's no substitute part

Plate 37151
#16

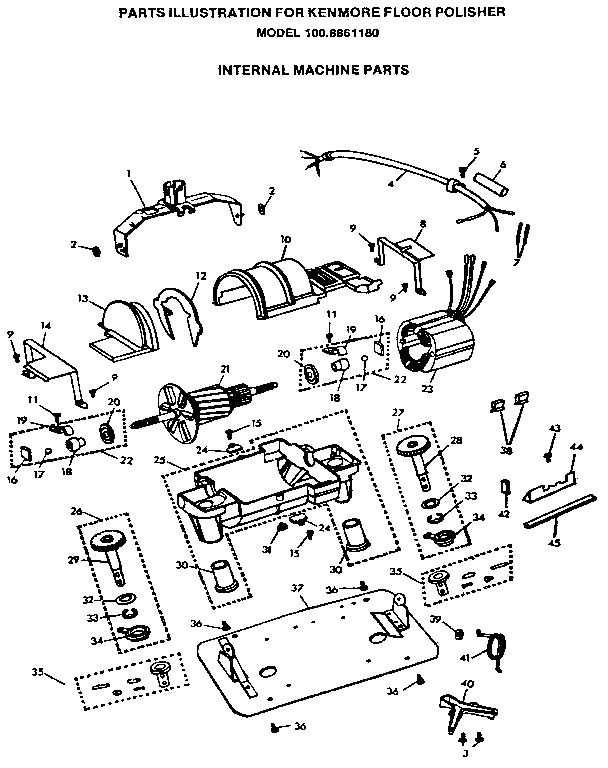

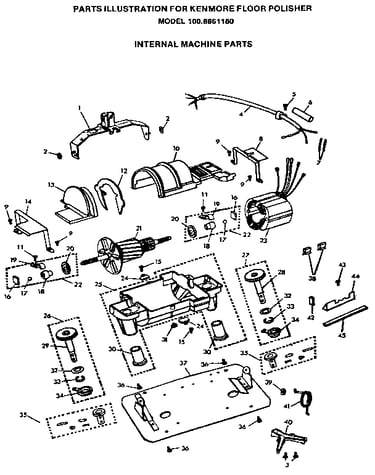

Internal machine diagram

Plate

Part #37151

The manufacturer no longer makes this part, and there's no substitute part

Spin Kit Cap 937125G3
#35

Internal machine diagram

Spin kit cap

Part #937125G3

The manufacturer no longer makes this part, and there's no substitute part

Container 939011G3
#18

External machine diagram

Container

Part #939011G3

The manufacturer no longer makes this part, and there's no substitute part

Spring 39038P1
#12

External machine diagram

Spring

Part #39038P1

The manufacturer no longer makes this part, and there's no substitute part

Container 937849G1
#20

External machine diagram

Container

Part #937849G1

The manufacturer no longer makes this part, and there's no substitute part

Wht Lin Cord 39259P1046
#1

External machine diagram

Wht lin cord

Part #39259P1046

The manufacturer no longer makes this part, and there's no substitute part

Switch Knob 39009P1046
#11

External machine diagram

Switch knob

Part #39009P1046

The manufacturer no longer makes this part, and there's no substitute part

Dispenser Rod 39036P2046
#13

External machine diagram

Dispenser rod

Part #39036P2046

The manufacturer no longer makes this part, and there's no substitute part

Spring 39245P1
#41

Internal machine diagram

Spring

Part #39245P1

The manufacturer no longer makes this part, and there's no substitute part
