Model # C10FSBP4 Official Hitachi miter saw

Here are the diagrams and repair parts for Official Hitachi C10FSBP4 miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 199 parts  |
Shaft 329416
#44A

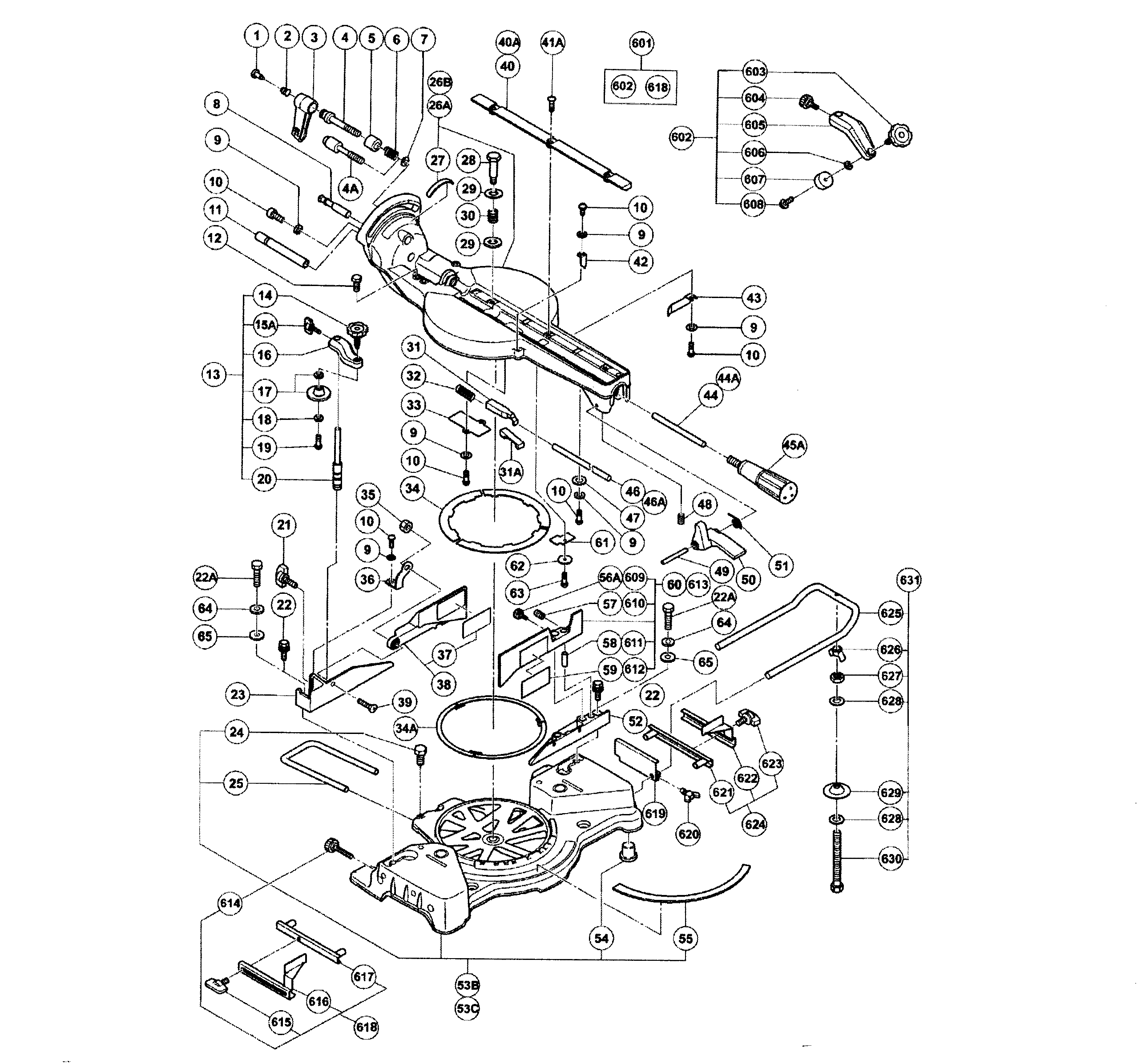

Base diagram

Shaft

Part #329416

The manufacturer no longer makes this part, and there's no substitute part

Machine Screw 880734
#131

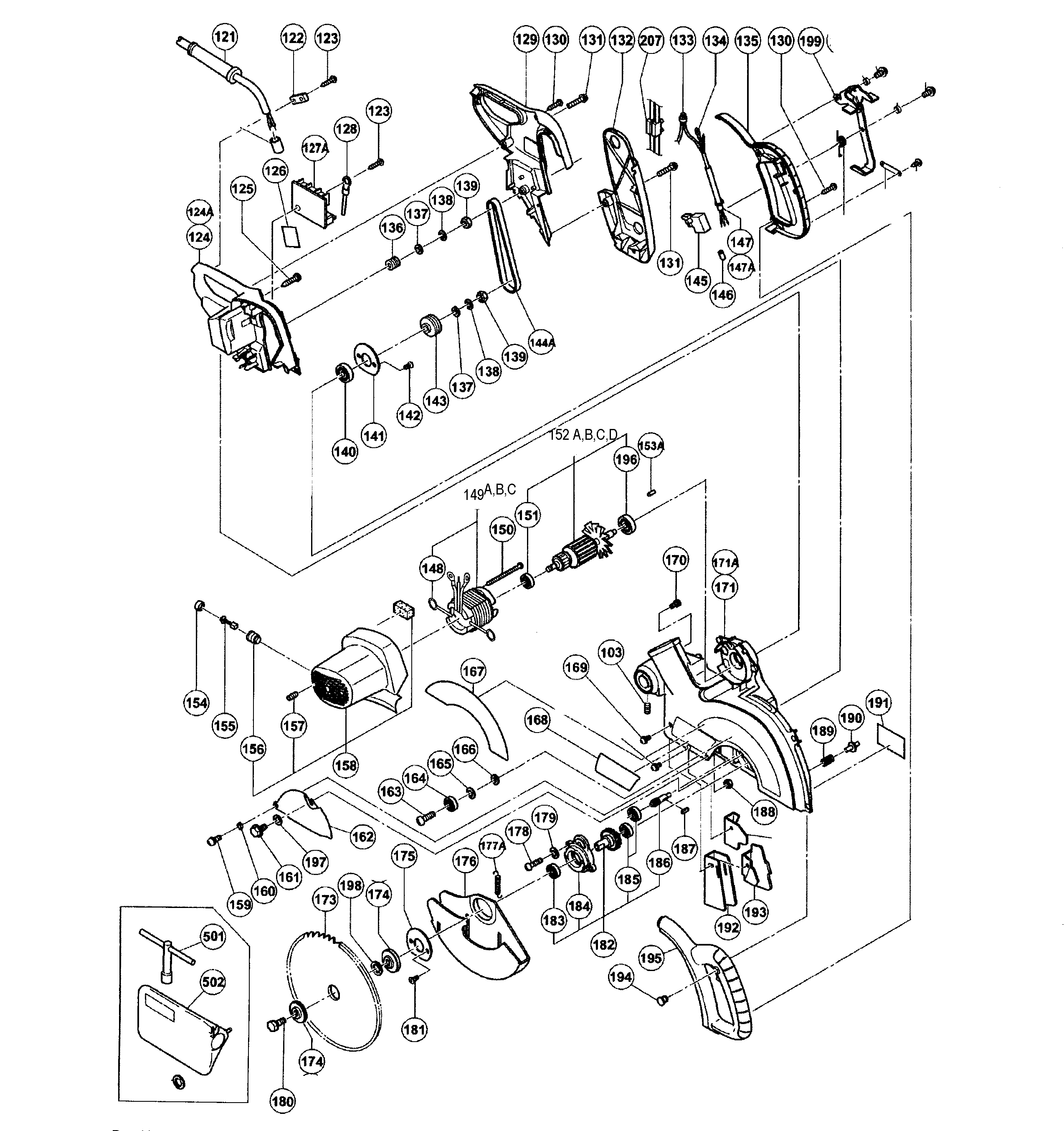

Sa diagram

Machine screw

Part #880734

The manufacturer no longer makes this part, and there's no substitute part

Sheet 321355
#126

Sa diagram

Sheet

Part #321355

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Blade 310878
#173A

Sa diagram

Miter saw blade

Part #310878

The manufacturer no longer makes this part, and there's no substitute part

Screw 984750
#123

Sa diagram

Screw

Part #984750

The manufacturer no longer makes this part, and there's no substitute part

Clamp Lever 312488
#3

Base diagram

Clamp lever

Part #312488

The manufacturer no longer makes this part, and there's no substitute part

Spring 305179
#2

Base diagram

Spring

Part #305179

The manufacturer no longer makes this part, and there's no substitute part

Fence 321346
#23

Base diagram

Fence

Part #321346

The manufacturer no longer makes this part, and there's no substitute part

Nut 949555
#188

Sa diagram

Nut

Part #949555

The manufacturer no longer makes this part, and there's no substitute part

Bolt 949633
#81

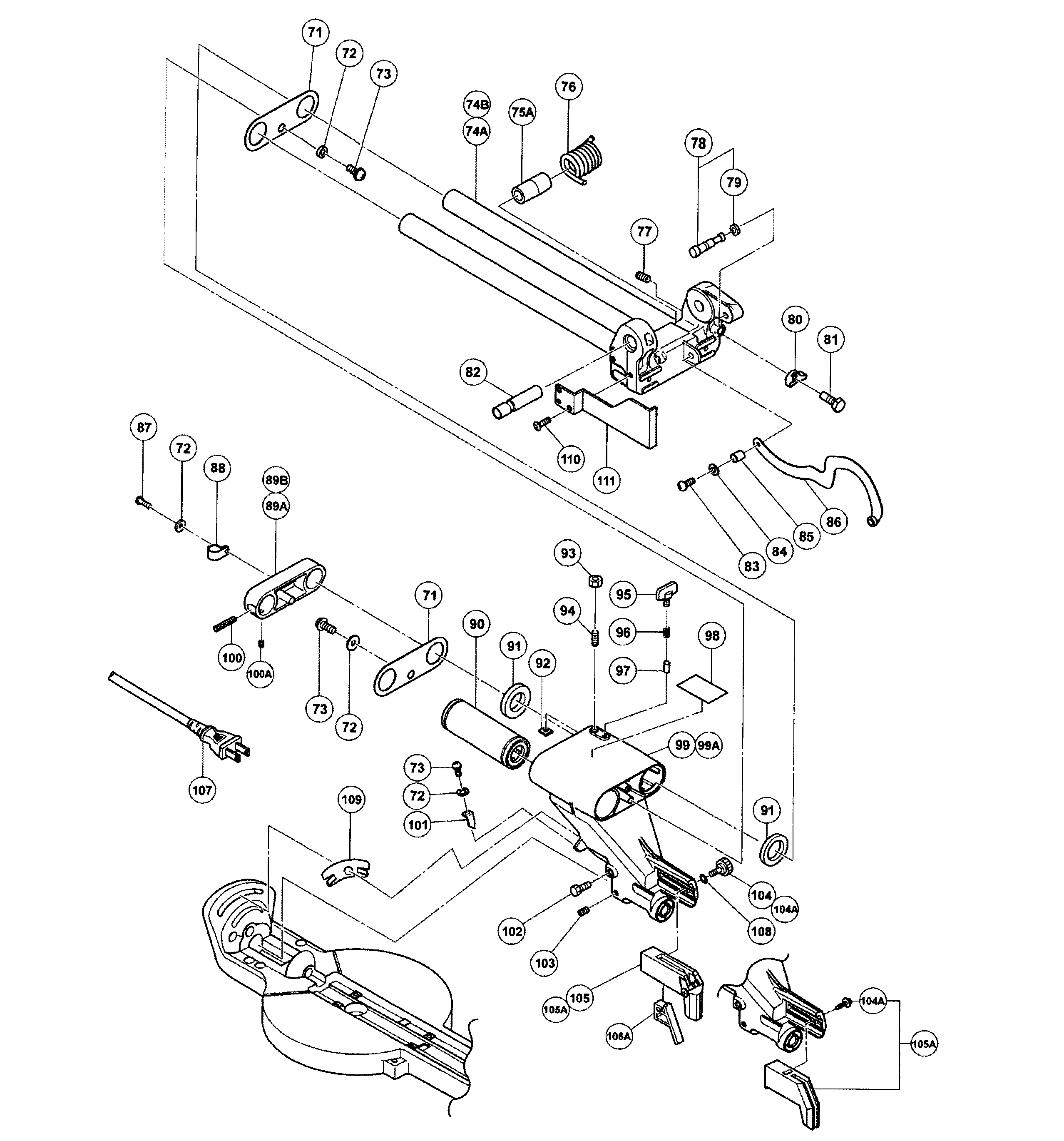

Arm diagram

Bolt

Part #949633

The manufacturer no longer makes this part, and there's no substitute part
