Tappan
Gas Cooktop

Model # 14-2629-08-17 Official Tappan cooktop - 5995232138

Here are the diagrams and repair parts for Official Tappan 14-2629-08-17 cooktop - 5995232138, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |

Range Drip Pan
#16

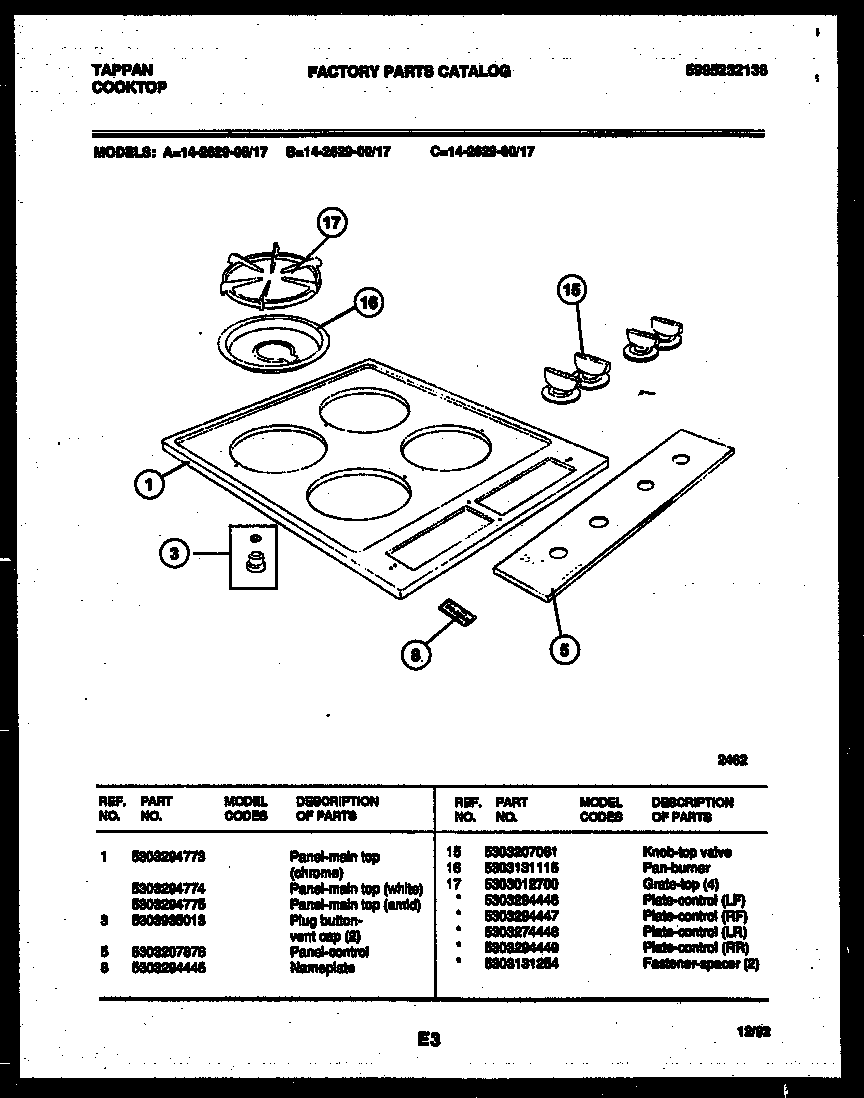

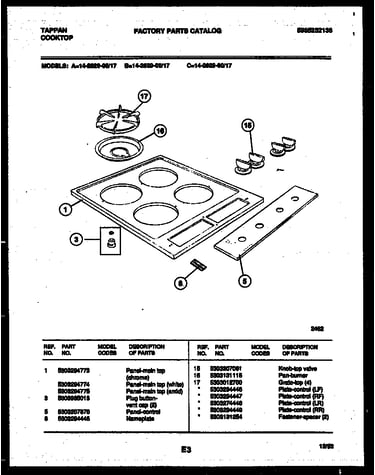

Cooktop parts diagram

Range drip pan

Part #5303131115

This item is not returnable
$9.19
10% OFF Phone Price : $10.19
In Stock
Range Surface Burner Grate (replaces 000279885, 316040807, 5303012700, Q000279885)
#17

Cooktop parts diagram

Grate

Part #5303012700

Replaced by #316055800

?
Manufacturer substitution
This part replaces 5303012700. Substitute parts can look different from the original.
$37.00
12% OFF Phone Price : $42.00
In Stock
Burner
#24

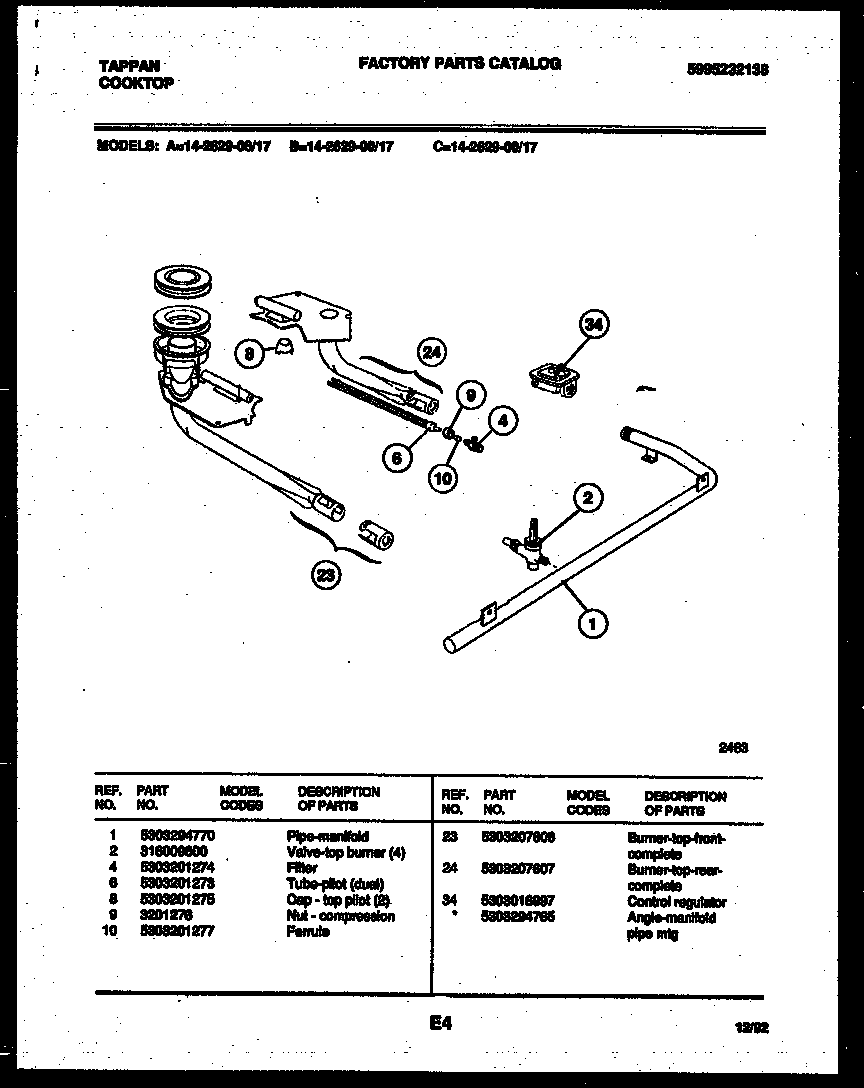

Burner, manifold and gas control diagram

Burner

Part #5303207607

The manufacturer no longer makes this part, and there's no substitute part

Knob
#15

Cooktop parts diagram

Knob

Part #5303207061

The manufacturer no longer makes this part, and there's no substitute part

Plate

#NI

All parts diagram

Plate

Part #5303294447

The manufacturer no longer makes this part, and there's no substitute part

Holder

#NI

All parts diagram

Holder

Part #5303131254

The manufacturer no longer makes this part, and there's no substitute part

Burner
#23

Burner, manifold and gas control diagram

Burner

Part #5303207606

The manufacturer no longer makes this part, and there's no substitute part

Ferrule
#10

Burner, manifold and gas control diagram

Ferrule

Part #5303201277

The manufacturer no longer makes this part, and there's no substitute part

Retainer Bracket
#7

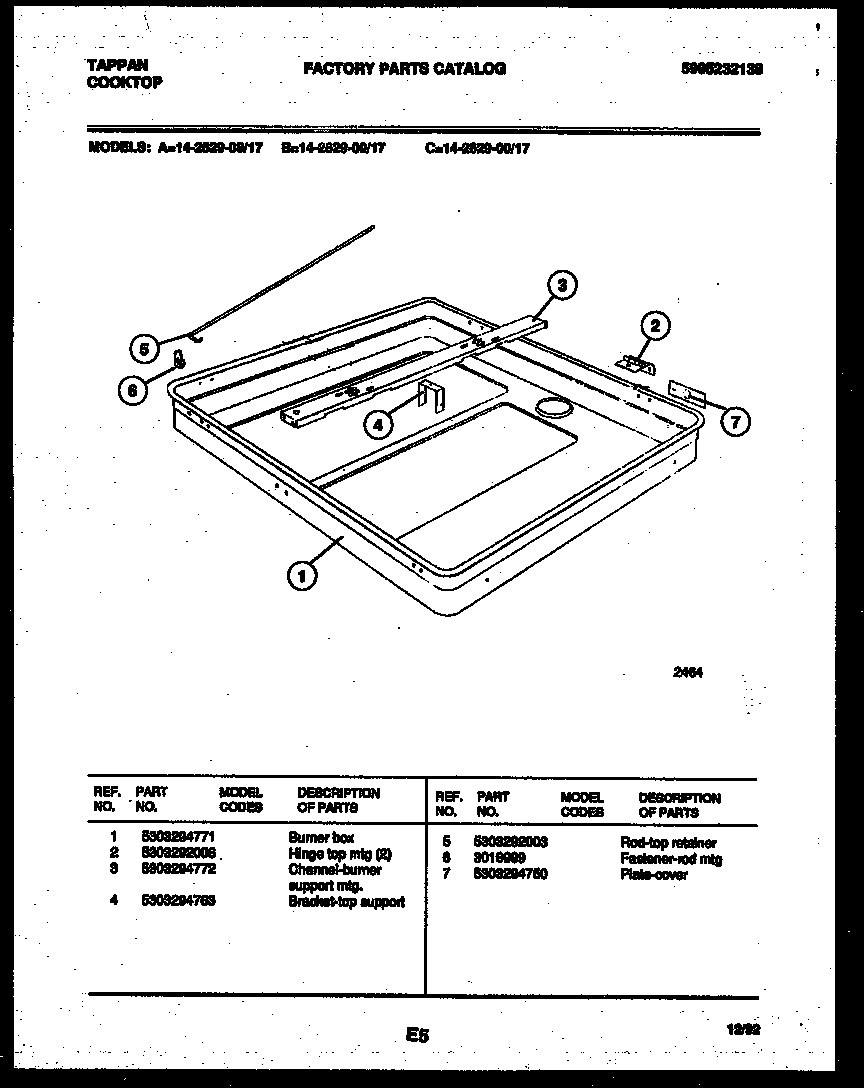

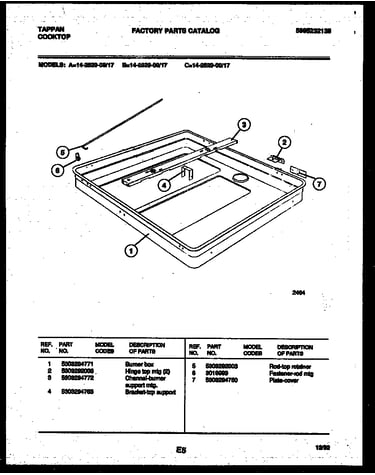

Burner box parts diagram

Retainer bracket

Part #5303294750

The manufacturer no longer makes this part, and there's no substitute part

Angle

#NI

All parts diagram

Angle

Part #5303294765

The manufacturer no longer makes this part, and there's no substitute part

Symptoms common to all cooktops

Choose a symptom to see related cooktop repairs.

January 10, 2024

Main causes: lack of electrical power, gas supply failure, bad pressure regulator, control system failure…
