Model # 38HDC018350LA Official Carrier air conditioner

Here are the diagrams and repair parts for Official Carrier 38HDC018350LA air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Switch,tem HH18HA270
#38B

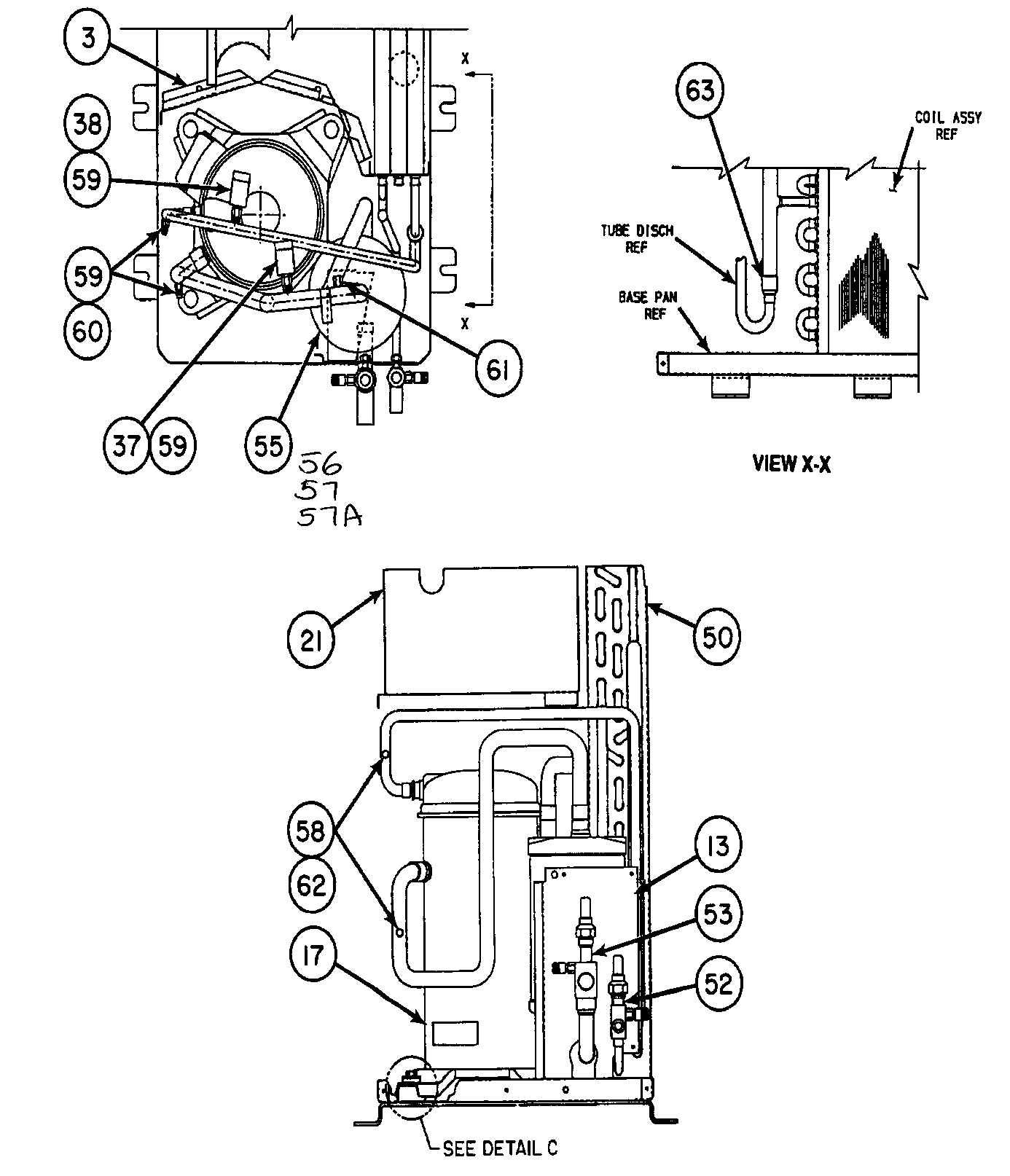

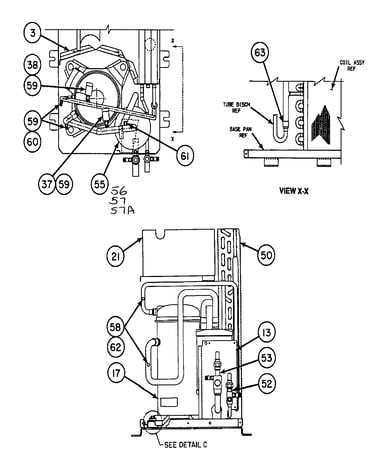

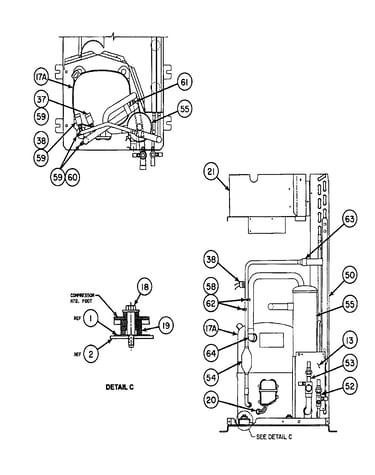

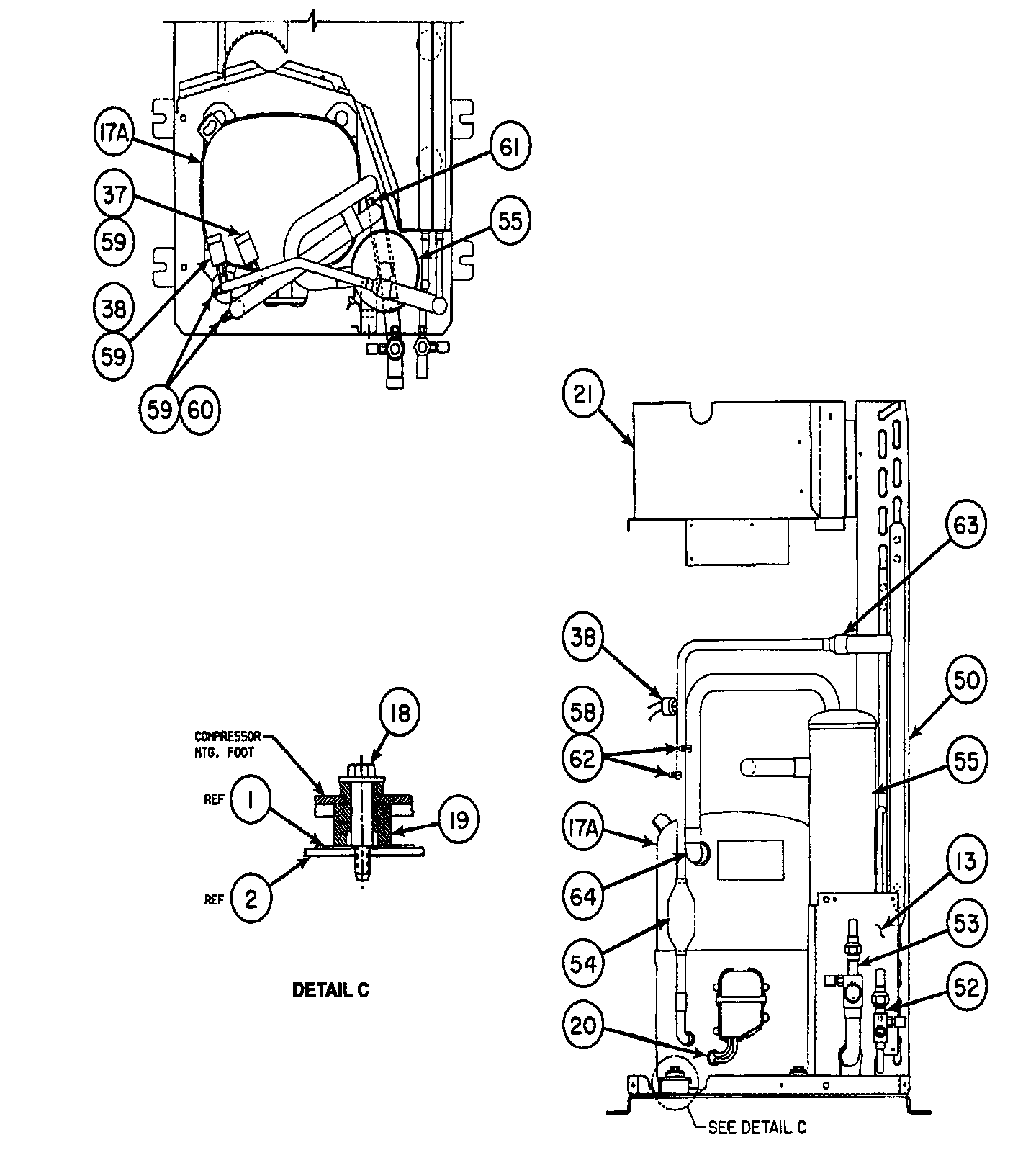

Compressor 1 diagram

Switch,tem

Part #HH18HA270

$24.26
In Stock
Relay CESO130062-00
#24

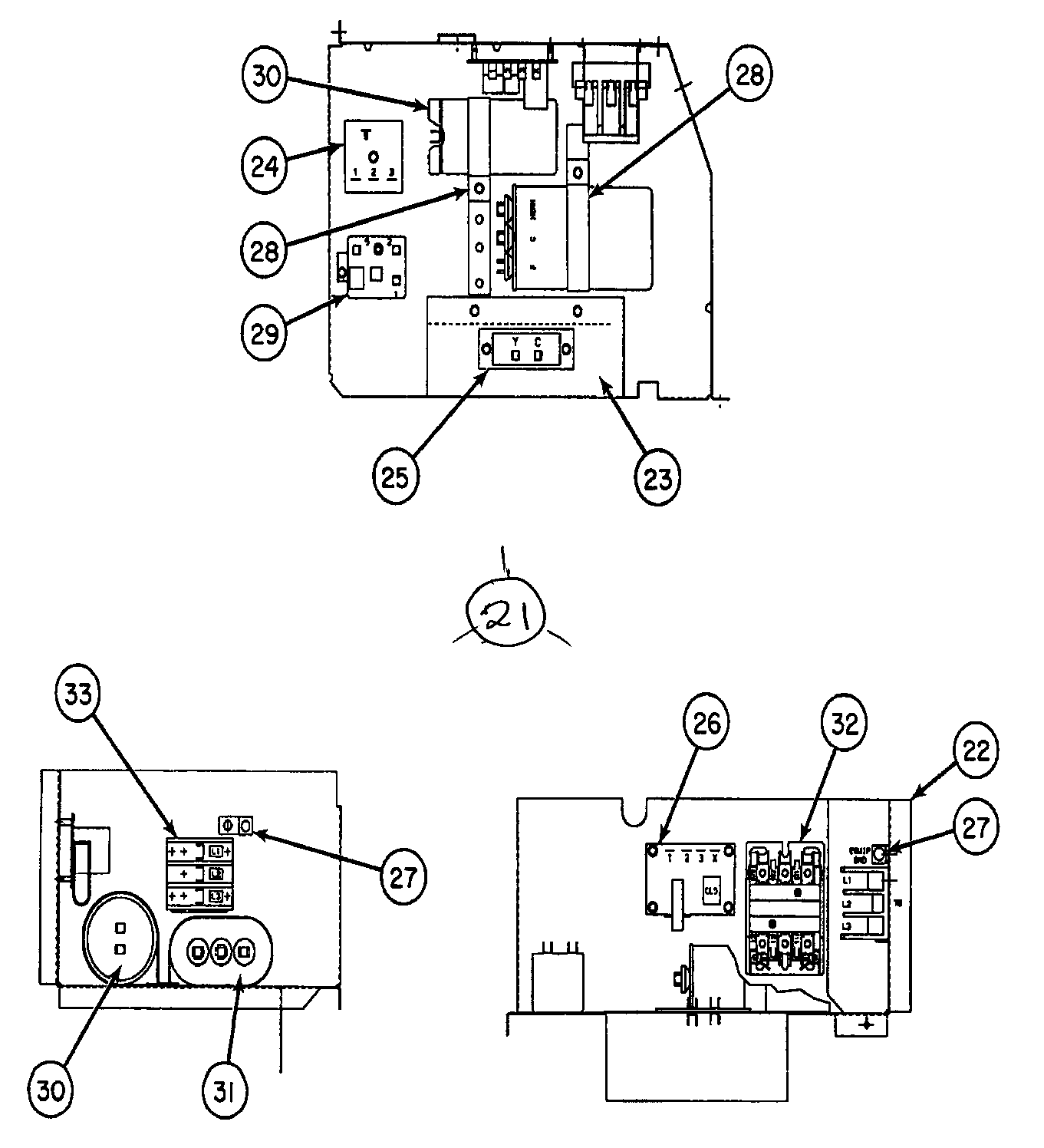

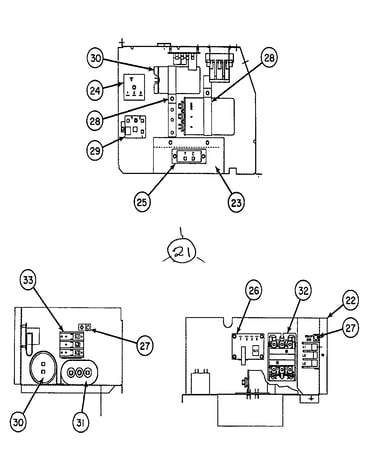

Control panel diagram

Relay

Part #CESO130062-00

$144.98
In Stock
Plug EK02JA203
#61

Compressor 1 diagram

Plug

Part #EK02JA203

$37.67
In Stock
Coup DE11DA058
#62

Compressor 1 diagram

Coup

Part #DE11DA058

This item is not returnable
$3.57
In Stock
Lp Switch HK02ZB038
#37

Compressor 1 diagram

Lp switch

Part #HK02ZB038

$56.71
In Stock
Relay Sensin 38HQ660014
#26

Control panel diagram

Relay sensin

Part #38HQ660014

$136.98
In Stock
Connector HY90AZ021
#27

Control panel diagram

Connector

Part #HY90AZ021

This item is not returnable
$6.40
In Stock
Mount-motor 38QR400146
#41

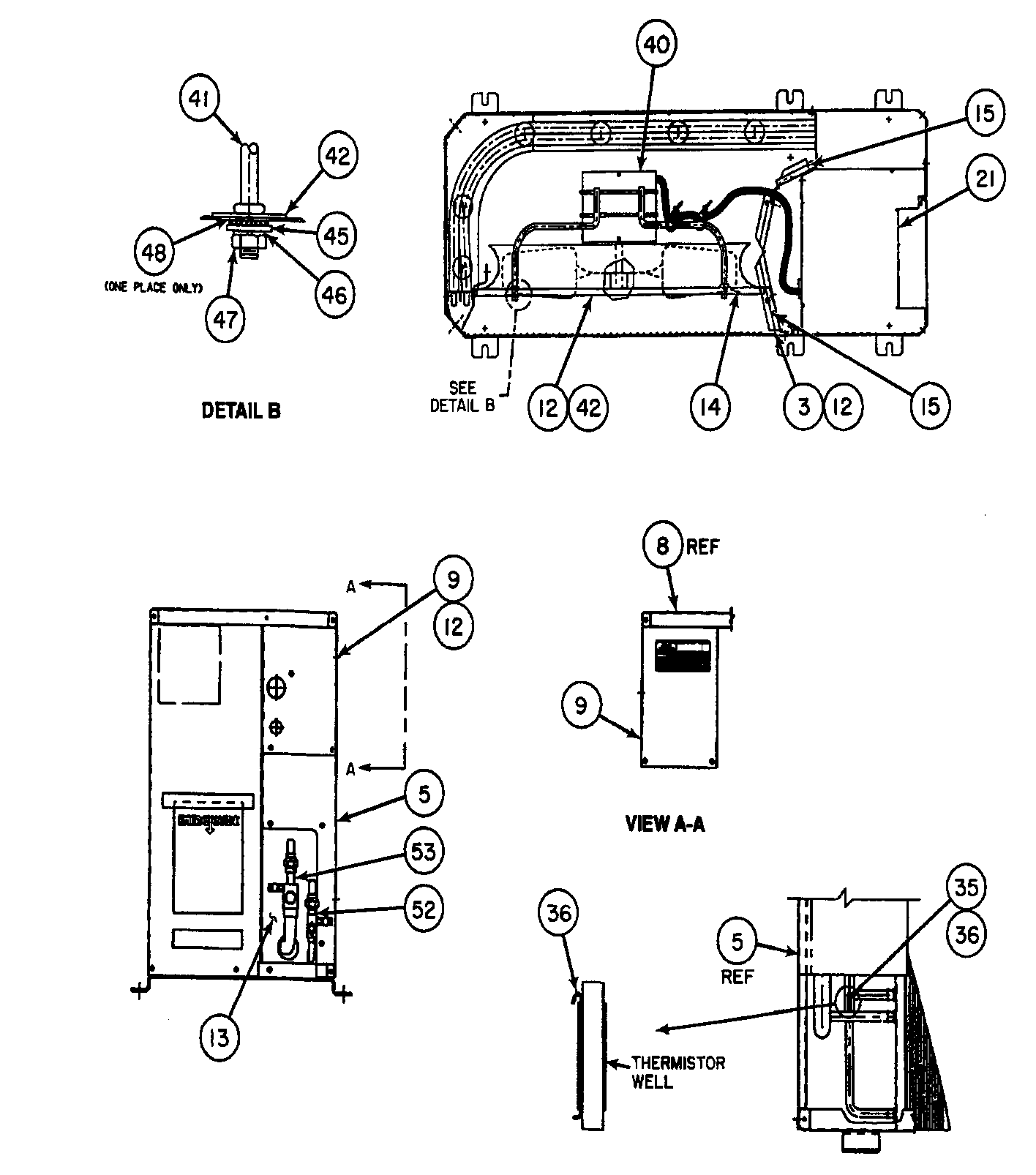

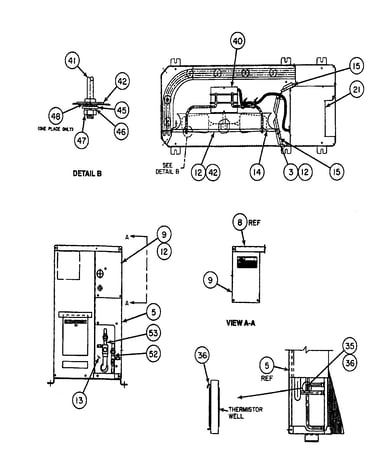

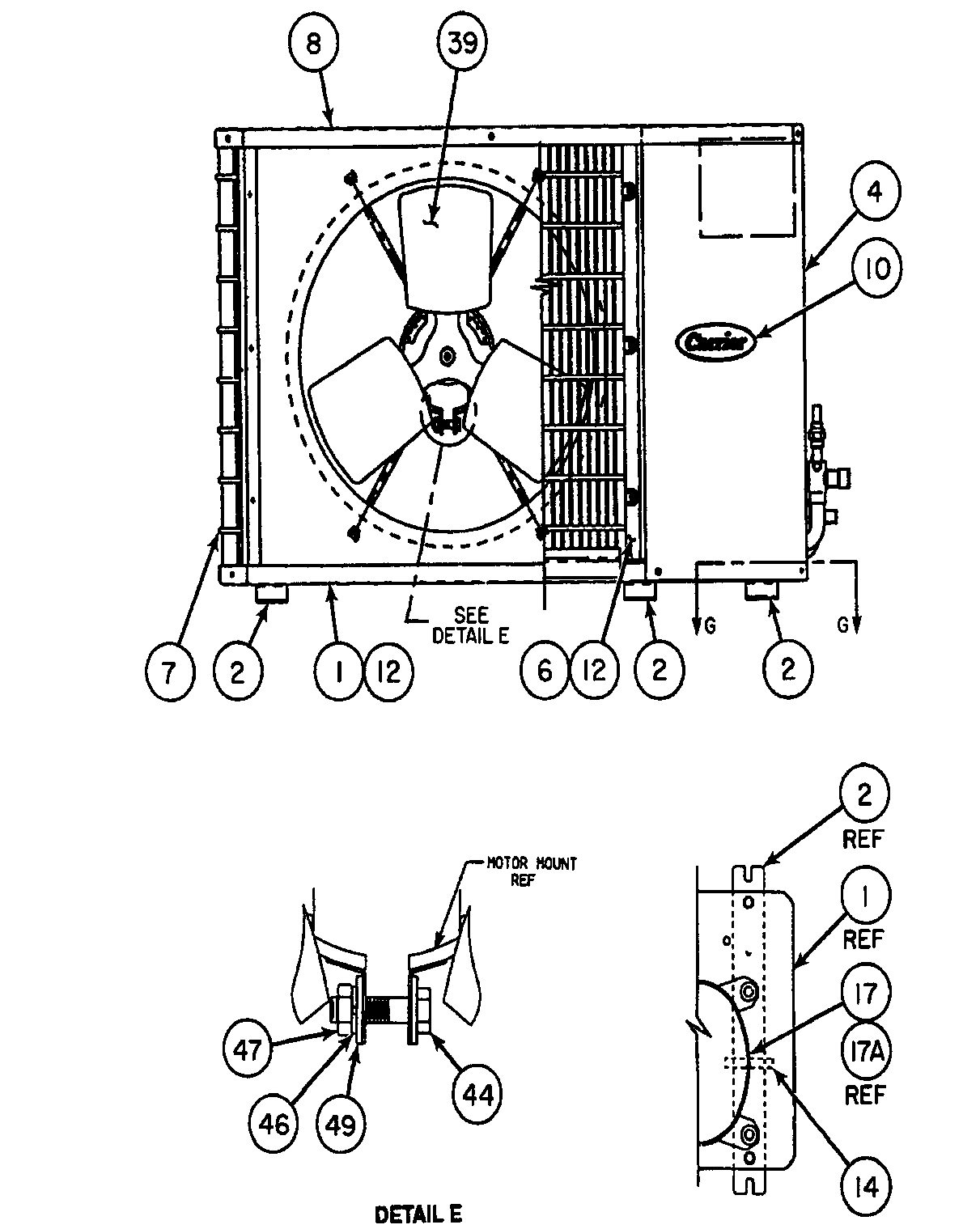

Fan assy diagram

Mount-motor

Part #38QR400146

$218.44
In Stock
Valve EC39DM061
#58

Compressor 1 diagram

Valve

Part #EC39DM061

This item is not returnable
$5.66
In Stock
Accumulatr KH71FP140
#55

Compressor 1 diagram

Accumulatr

Part #KH71FP140

$207.64
In Stock
