Model #2582353081 Kenmore gas outdoor grill

Here are the diagrams and repair parts for Kenmore 2582353081 gas outdoor grill, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 91 parts

|

Lock Washer

#137

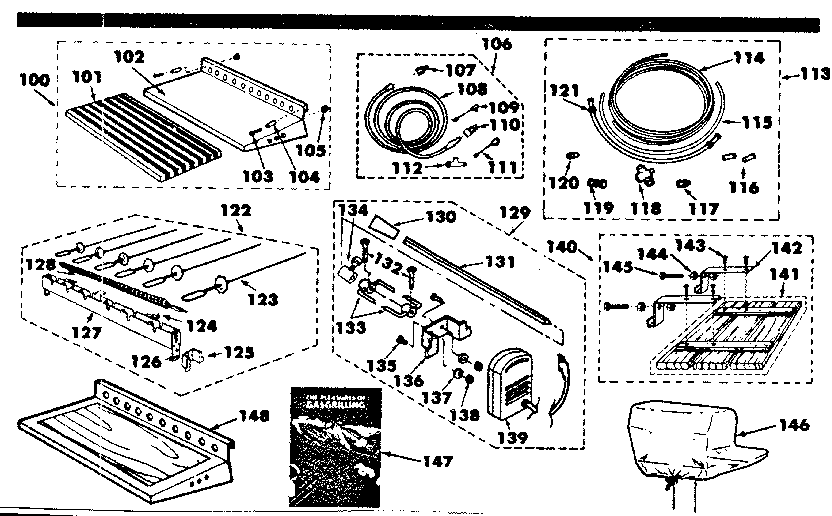

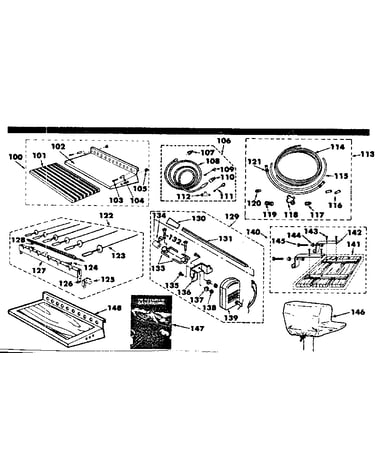

Optional accessories Diagram

Lock washer

Part #STD551108

The manufacturer no longer makes this part, and there's no substitute part

Board

#101

Optional accessories Diagram

Board

Part #10711-49

The manufacturer no longer makes this part, and there's no substitute part

Machine Screw

#126

Optional accessories Diagram

Machine screw

Part #STD510805
?
Manufacturer substitution
This part replaces 7717. Substitute parts can look different from the original.
This part replaces 7717
This item is not returnable
$2.15

Back Order

Screw

#13

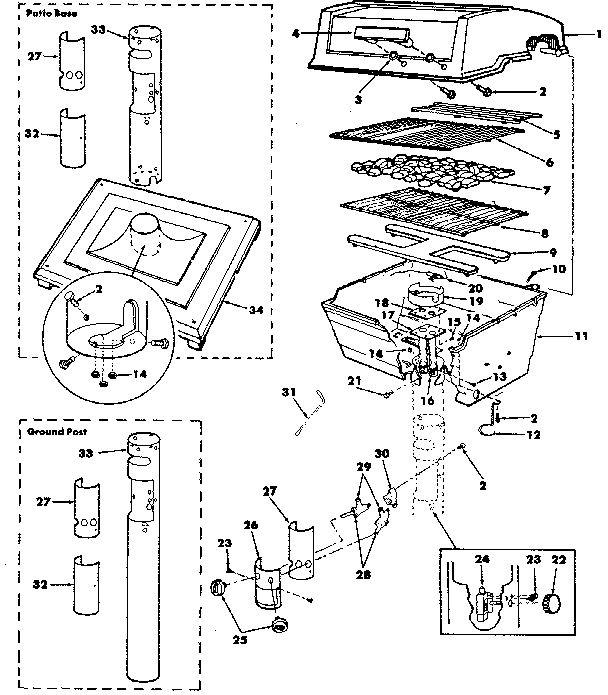

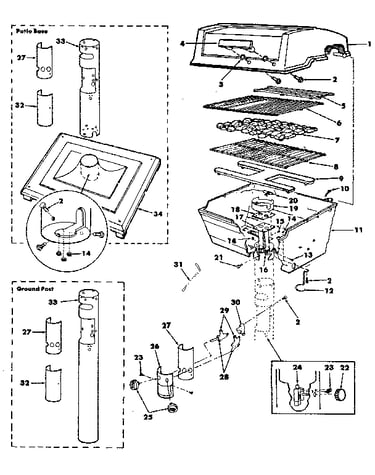

Grill, burner section, ground post & patio base Diagram

Screw

Part #STD610802

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Screw

#23

Grill, burner section, ground post & patio base Diagram

Hex head screw

Part #STD610803

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw

#145

Optional accessories Diagram

Cap screw

Part #Y-11917

The manufacturer no longer makes this part, and there's no substitute part

Screw

#135

Optional accessories Diagram

Screw

Part #STD510807

The manufacturer no longer makes this part, and there's no substitute part

Hex Bolt, 5-pack

#2

Grill, burner section, ground post & patio base Diagram

Hex bolt, 5-pack

Part #STD522506
?
Manufacturer substitution
This part replaces STD522506. Substitute parts can look different from the original.
This part replaces STD522506
This item is not returnable
$2.43

In Stock

Cotter Pin

#10

Grill, burner section, ground post & patio base Diagram

Cotter pin

Part #STD560907

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut

#105

Optional accessories Diagram

Hex nut

Part #STD541110

The manufacturer no longer makes this part, and there's no substitute part
