Model # THM30S Official Thermador new electric tmh cooktop

Here are the diagrams and repair parts for Official Thermador THM30S new electric tmh cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

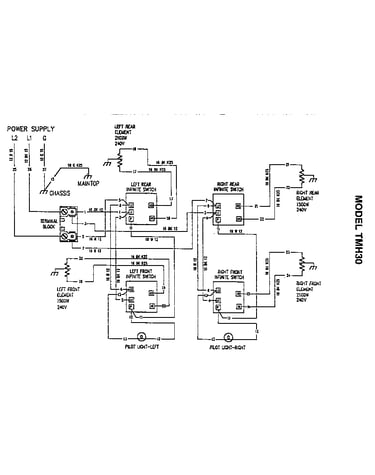

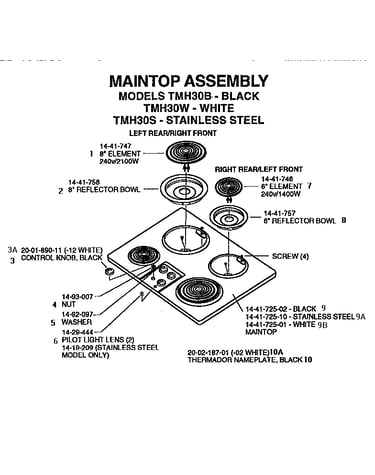

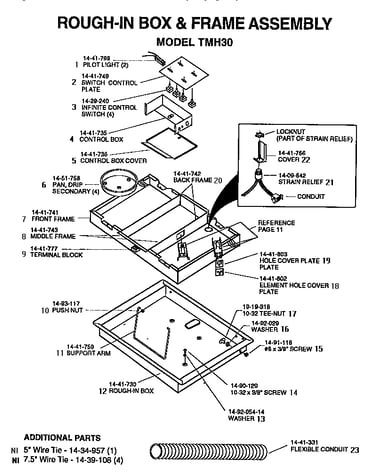

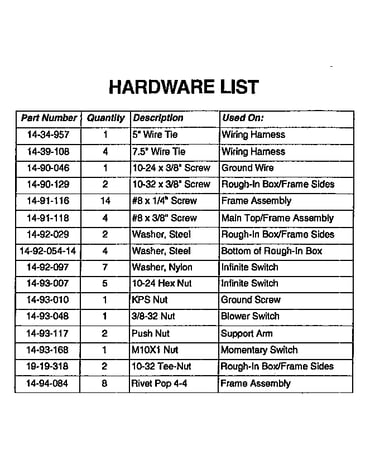

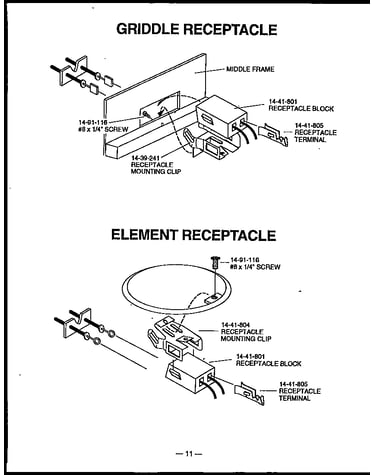

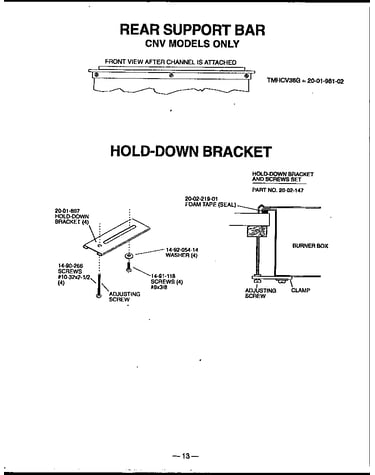

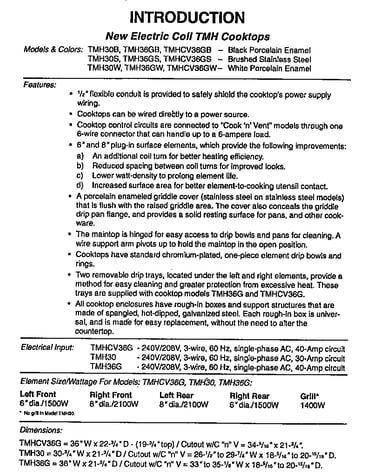

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |

Screw 14-91-118
Screw

Part #14-91-118

In Stock
Surface Element 14-41-747
Surface element

Part #14-41-747

Replaced by #00484791

?
Manufacturer substitution
This part replaces 14-41-747. Substitute parts can look different from the original.
In Stock
Mntg Kit 20-02-147
Mntg kit

Part #20-02-147

Replaced by #00188954

?
Manufacturer substitution
This part replaces 20-02-147. Substitute parts can look different from the original.
$35.49
12% OFF Phone Price : $40.49
In Stock
6" Element 240v/1400w 14-41-746
6" element 240v/1400w

Part #14-41-746

The manufacturer no longer makes this part, and there's no substitute part

Washer 14-92-029
Washer

Part #14-92-029

The manufacturer no longer makes this part, and there's no substitute part

Infinite Switch 14-29-240
Infinite switch

Part #14-29-240

The manufacturer no longer makes this part, and there's no substitute part

Cover 14-41-756
Cover

Part #14-41-756

The manufacturer no longer makes this part, and there's no substitute part

10-32 Tee Nut 19-19-318
10-32 tee nut

Part #19-19-318

The manufacturer no longer makes this part, and there's no substitute part

Maintop, Stainless Steel 14-42-725-10
Maintop, stainless steel

Part #14-42-725-10

The manufacturer no longer makes this part, and there's no substitute part

Element Hole Cover Plate 14-41-802
Element hole cover plate

Part #14-41-802

The manufacturer no longer makes this part, and there's no substitute part
