Model #48XZ060115300TP Carrier central package

Here are the diagrams and repair parts for Carrier 48XZ060115300TP central package, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 83 parts

    Switch

    #96

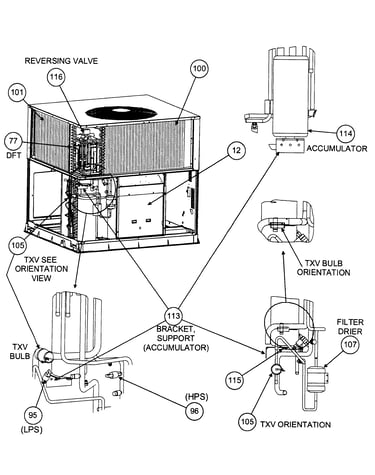

    Reversing valve Diagram

    Switch

    Part #HK02ZA404
    $43.28

    In Stock

    Side Panel

    #37

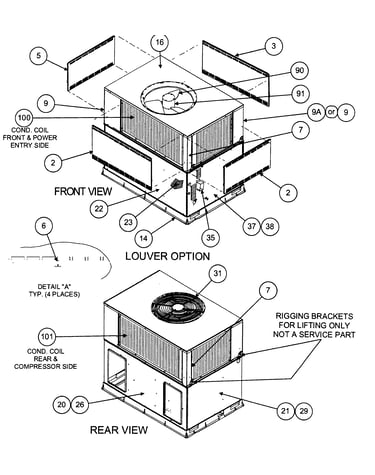

    Front view/louver option/rear view Diagram

    Side panel

    Part #48GS500236
    $145.04

    In Stock

    Valve Txv

    #105

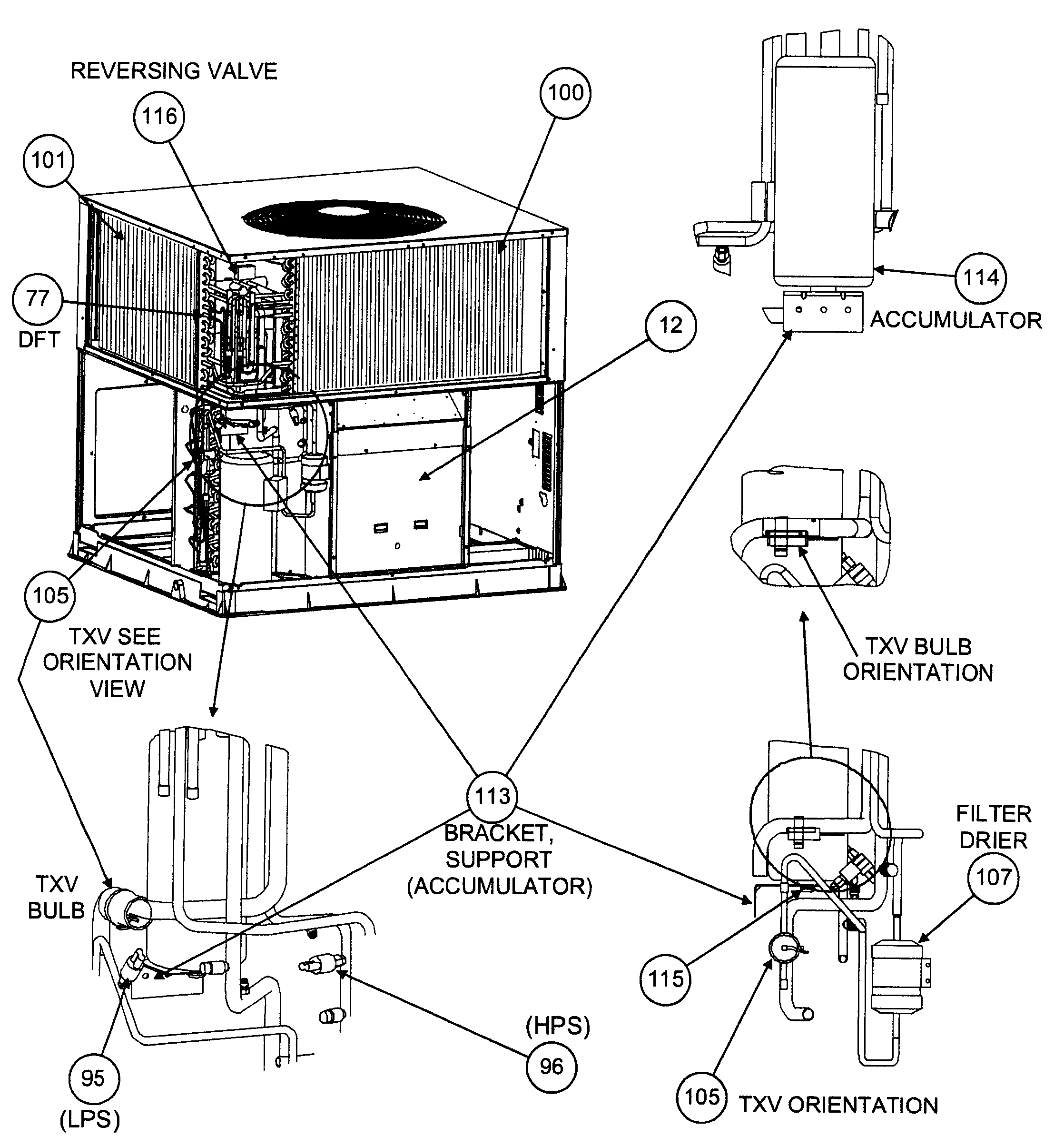

    Reversing valve Diagram

    Valve txv

    Part #EA36YD159
    $190.66

    In Stock

    Arm

    #85

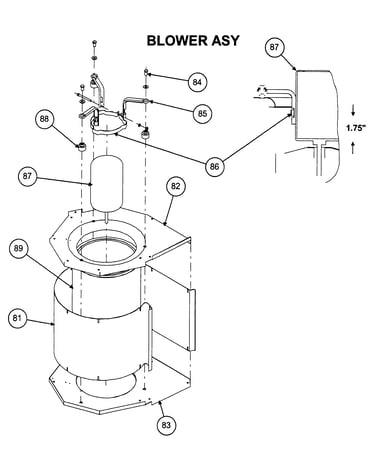

    Blower assy Diagram

    Arm

    Part #HC98ZZ250
    This item is not returnable
    $2.36

    In Stock

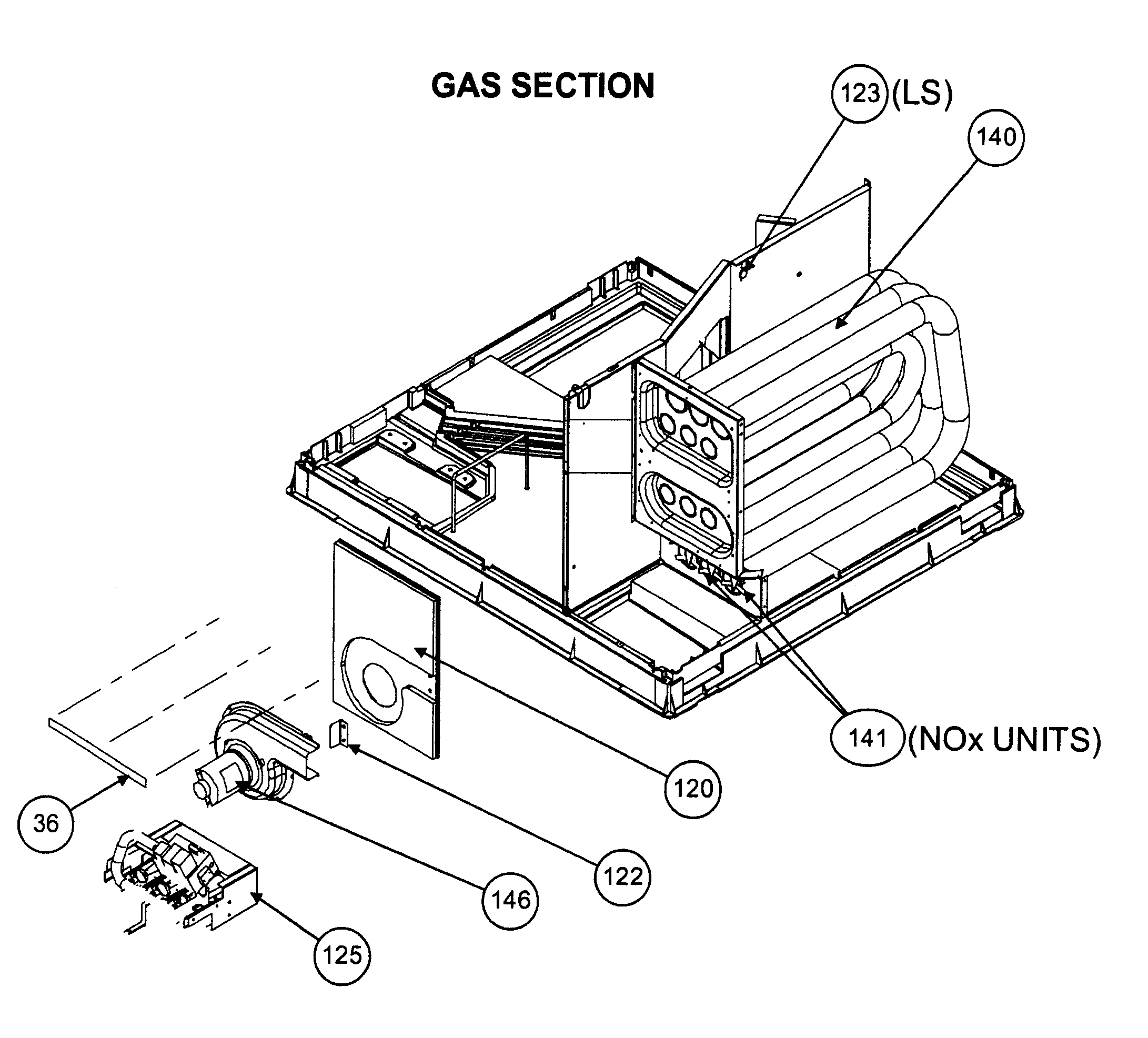

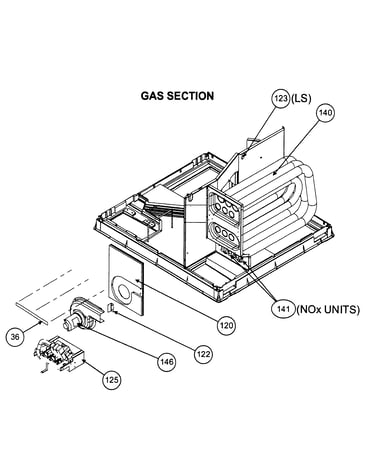

    Furnace Burner

    #133

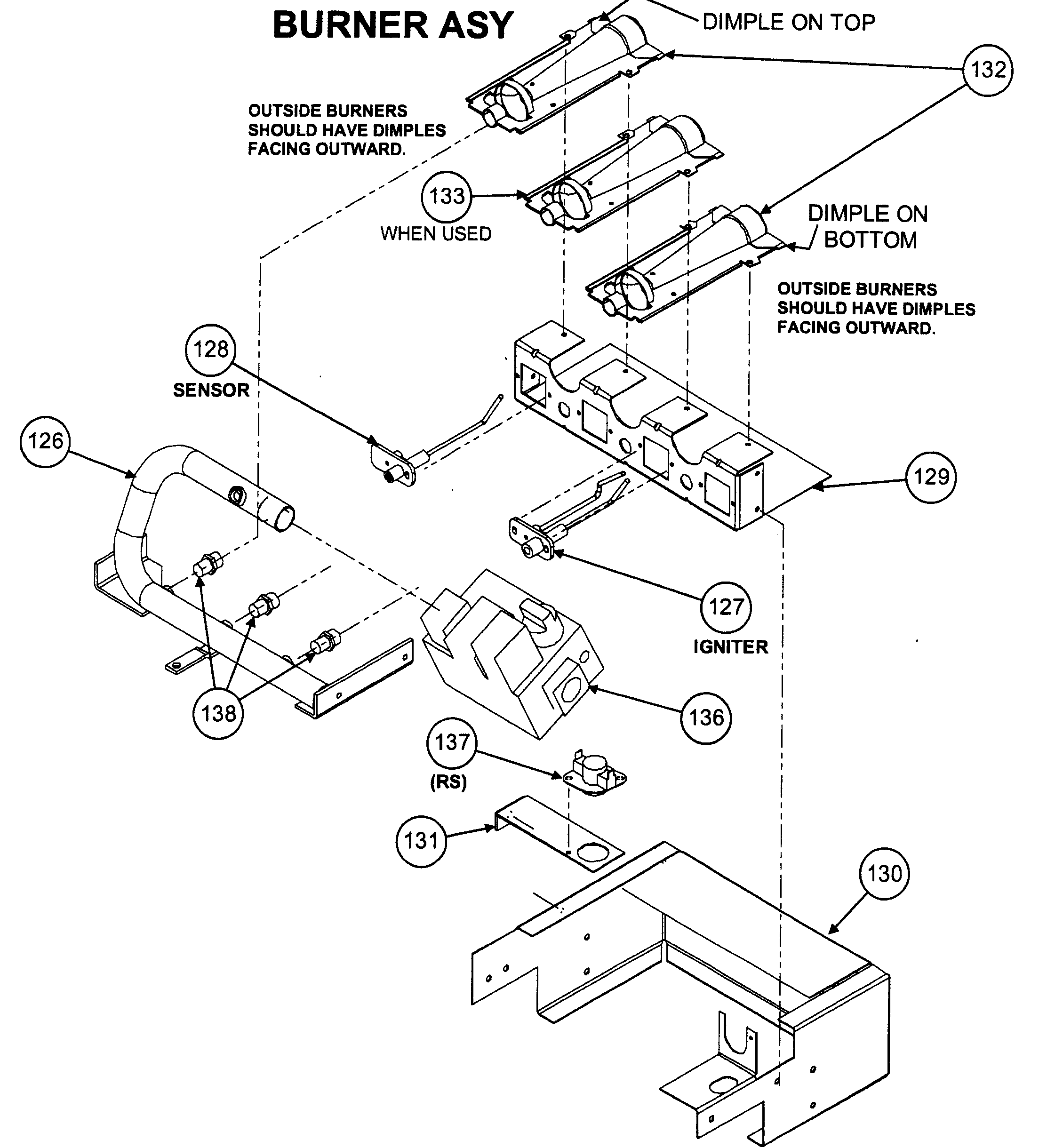

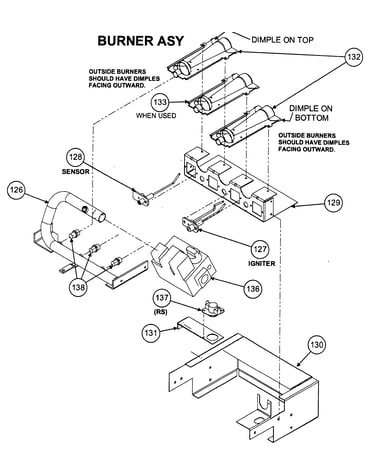

    Burner assy Diagram

    Furnace burner

    Part #50DK407029
    $17.84

    In Stock

    Panel

    #7

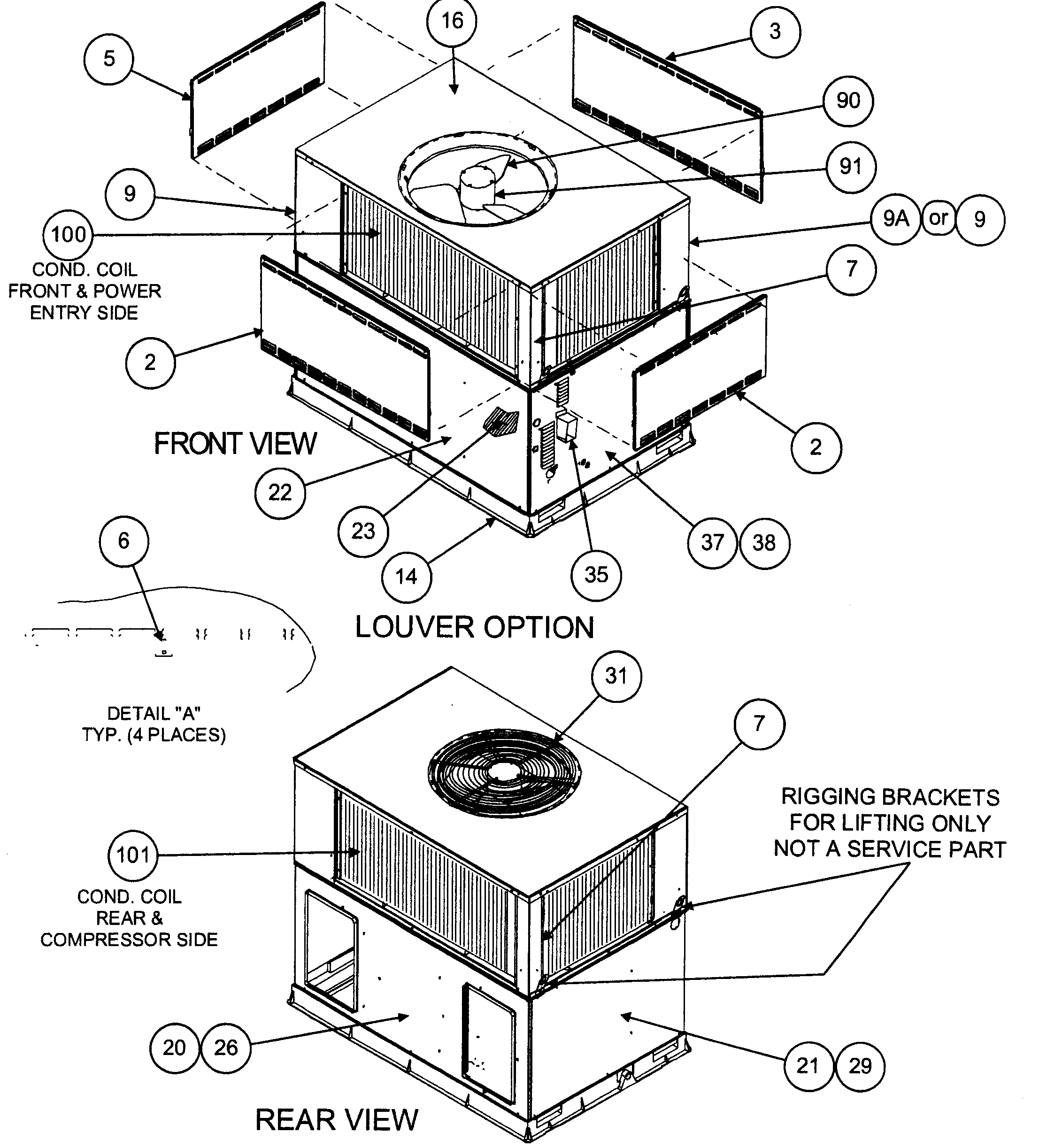

    Front view/louver option/rear view Diagram

    Panel

    Part #50XZ500002
    $70.99

    In Stock

    Capactr Run

    #60

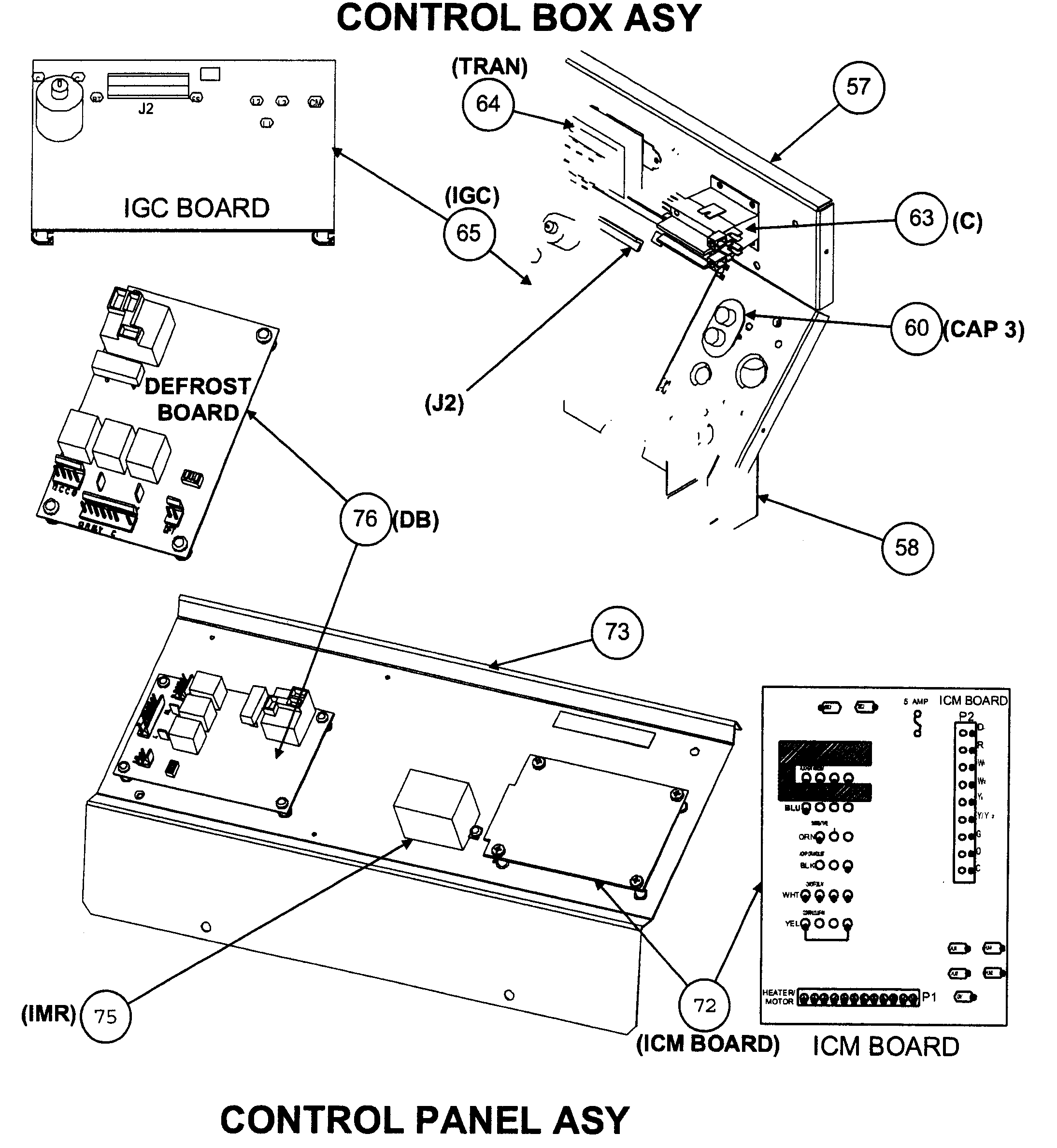

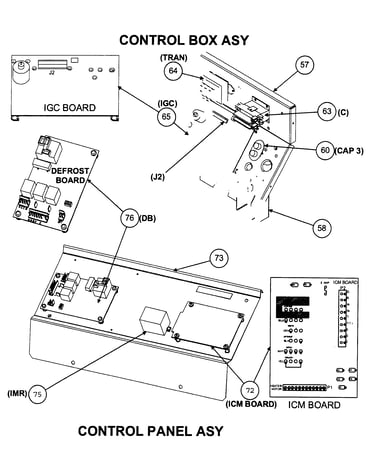

    Control box assy/panel assy Diagram

    Capactr run

    Part #P291-0403
    This item is not returnable
    $6.78

    In Stock

    Motor,outd

    #91

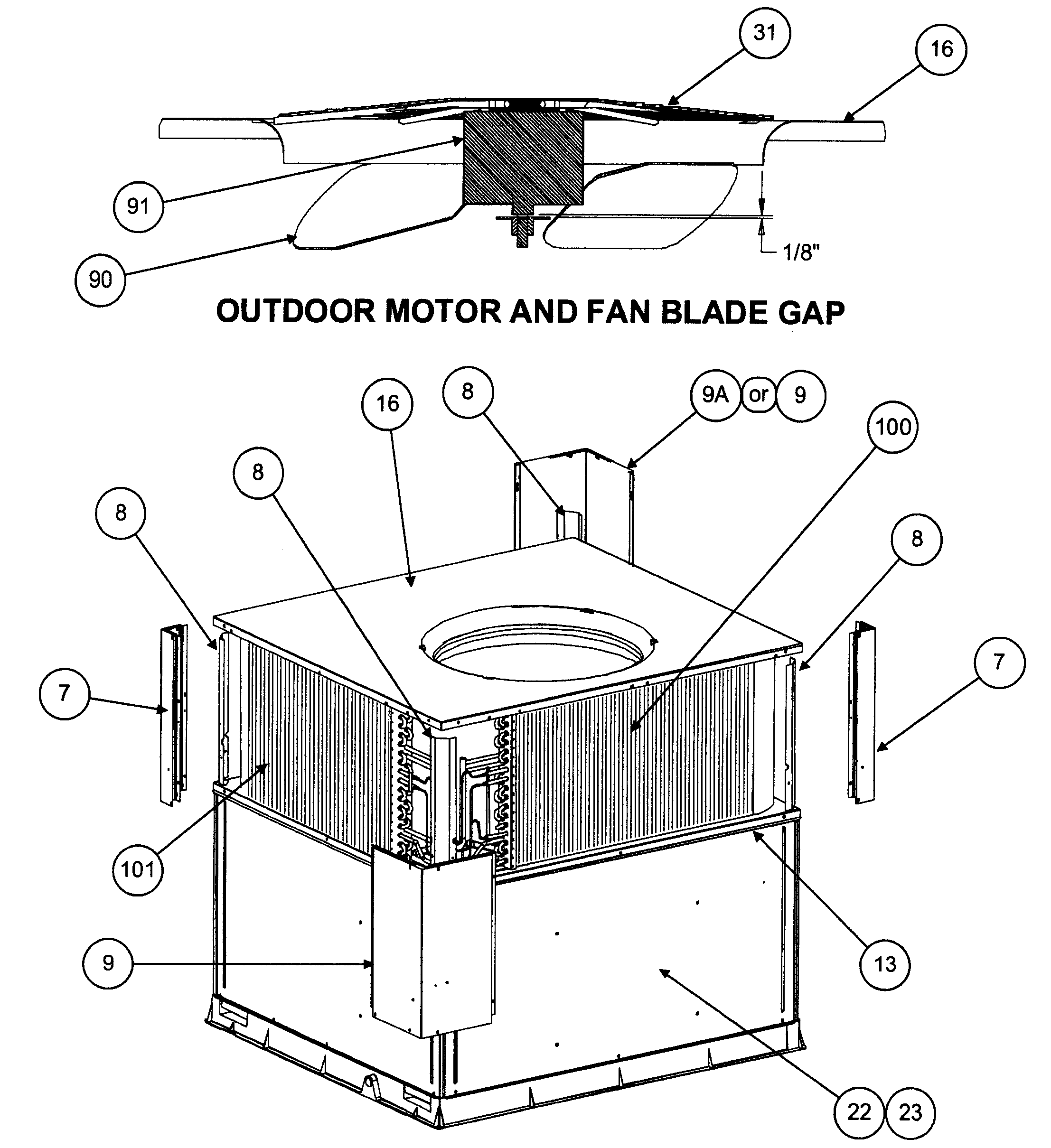

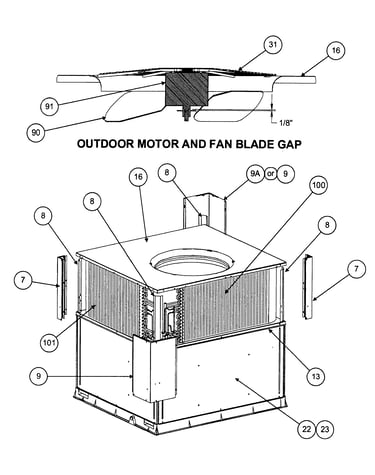

    Outdoor motor/fan blade gap Diagram

    Motor,outd

    Part #HC39GE208
    $310.50

    In Stock

    Fan Plate

    #83

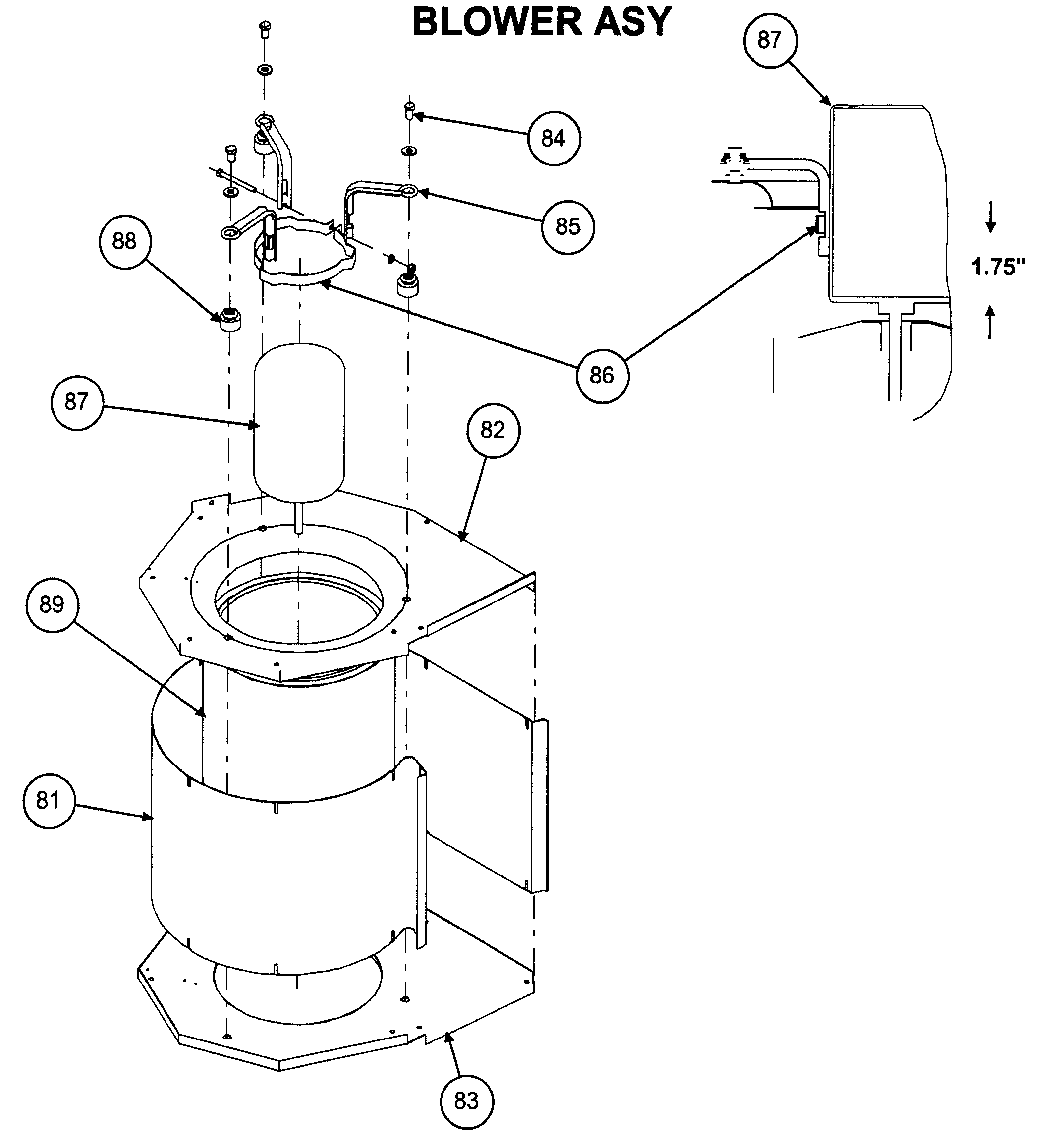

    Blower assy Diagram

    Fan plate

    Part #48GS500240
    $94.36

    In Stock

    Capacitor

    #91A

    Outdoor motor/fan blade gap Diagram

    Capacitor

    Part #P291-8013
    $55.26

    In Stock
