Model # 875199520 Official Craftsman die grinder

Here are the diagrams and repair parts for Official Craftsman 875199520 die grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |
Lock Nut 108120
#17

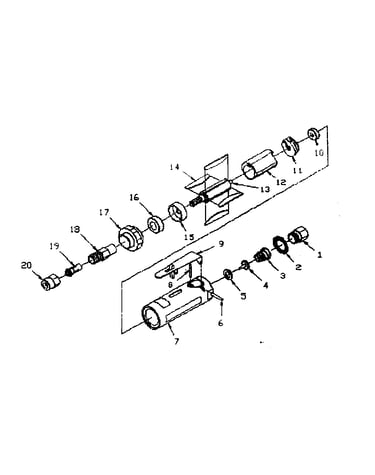

Grinder assy diagram

Lock nut

Part #108120

The manufacturer no longer makes this part, and there's no substitute part

Collt Body 107310
#18

Grinder assy diagram

Collt body

Part #107310

The manufacturer no longer makes this part, and there's no substitute part

Collet Nut 5901
#20

Grinder assy diagram

Collet nut

Part #5901

The manufacturer no longer makes this part, and there's no substitute part

Lever Assembly 120510
#9

Grinder assy diagram

Lever assembly

Part #120510

The manufacturer no longer makes this part, and there's no substitute part

Valve Pin 120490
#8

Grinder assy diagram

Valve pin

Part #120490

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Roll Pin 111230
#6

Grinder assy diagram

Power tool roll pin

Part #111230

The manufacturer no longer makes this part, and there's no substitute part

Muffler 106280
#2

Grinder assy diagram

Muffler

Part #106280

The manufacturer no longer makes this part, and there's no substitute part

Cllct Inst 5909
#19

Grinder assy diagram

Cllct inst

Part #5909

The manufacturer no longer makes this part, and there's no substitute part

Cage 103092
#12

Grinder assy diagram

Cage

Part #103092

The manufacturer no longer makes this part, and there's no substitute part

Bearing 8729113
#16

Grinder assy diagram

Bearing

Part #8729113

The manufacturer no longer makes this part, and there's no substitute part
