Model # 11651614015 Official Kenmore powermate vacuum attachment

Here are the diagrams and repair parts for Official Kenmore 11651614015 powermate vacuum attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |

Block 8191506
#30

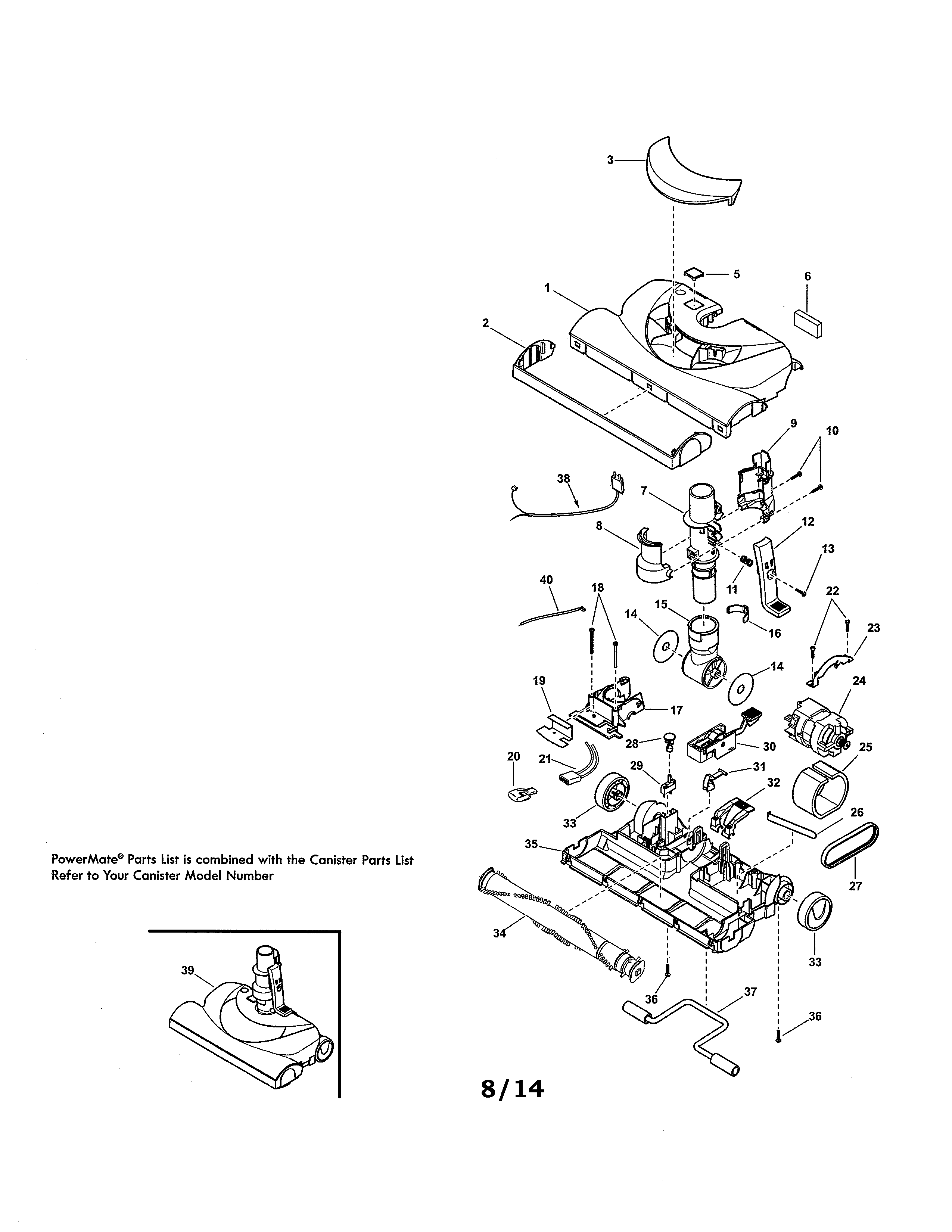

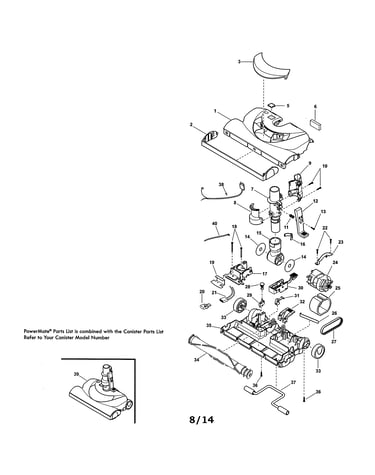

Power mate diagram

Block

Part #8191506

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Powermate Front Axle KS744029
#37

Power mate diagram

Vacuum powermate front axle

Part #KS744029

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Powermate Swivel Seal KS742019
#14

Power mate diagram

Vacuum powermate swivel seal

Part #KS742019

The manufacturer no longer makes this part, and there's no substitute part

Clip KC82DDKNZ000
#16

Power mate diagram

Clip

Part #KC82DDKNZ000

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Light Bulb KC28GCHPZ000
#20

Power mate diagram

Vacuum light bulb

Part #KC28GCHPZ000

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Foam Filter 4370713
#6

Power mate diagram

Vacuum foam filter

Part #4370713

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 4368563
#18

Power mate diagram

Vacuum screw

Part #4368563

The manufacturer no longer makes this part, and there's no substitute part

Spring KC23DDKMZ000
#11

Power mate diagram

Spring

Part #KC23DDKMZ000

The manufacturer no longer makes this part, and there's no substitute part

Release KC47AGJ3M0H
#32

Power mate diagram

Release

Part #KC47AGJ3M0H

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt KC28SBZTZ000
#27

Power mate diagram

Vacuum beater bar belt

Part #KC28SBZTZ000

The manufacturer no longer makes this part, and there's no substitute part
