Model # DW939KTY1 Official DeWalt circular saw

Here are the diagrams and repair parts for Official DeWalt DW939KTY1 circular saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

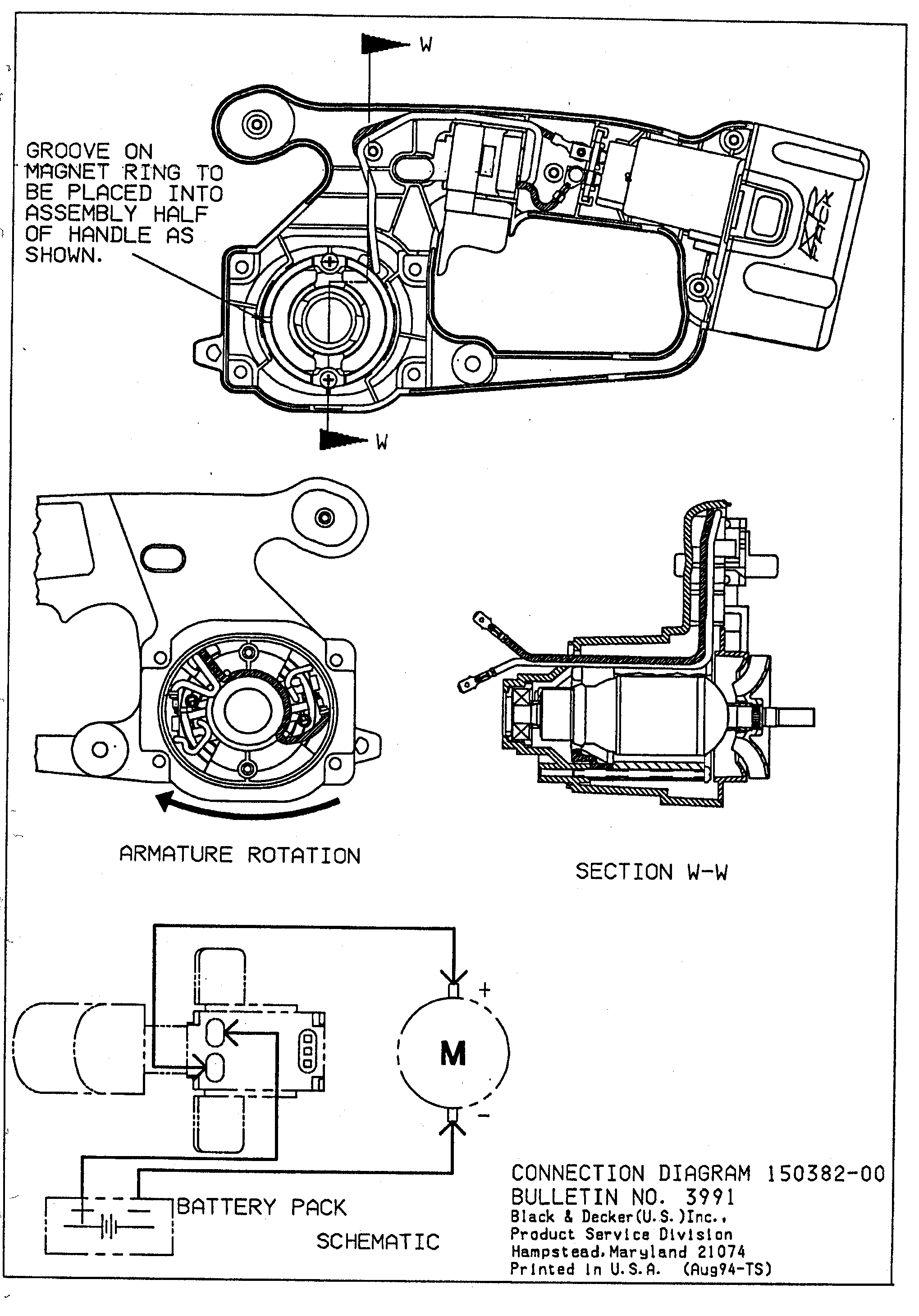

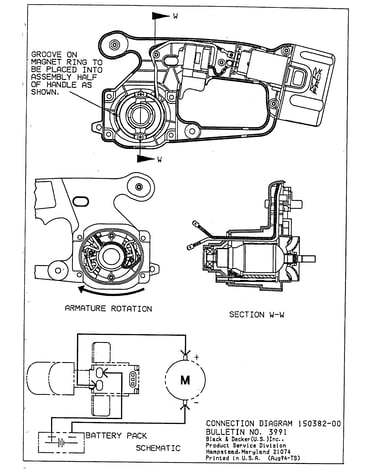

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Bumper 389132-00
#35

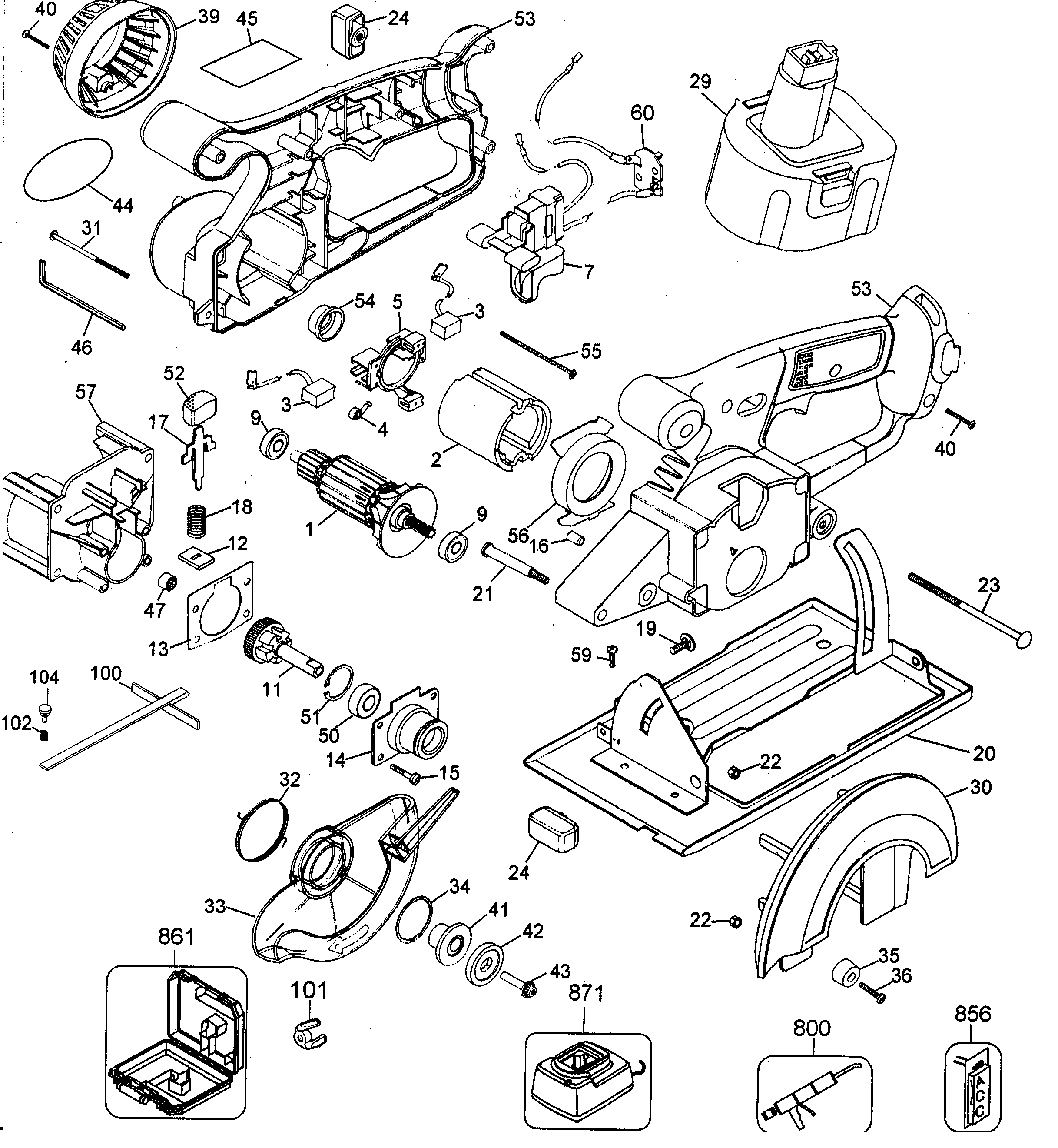

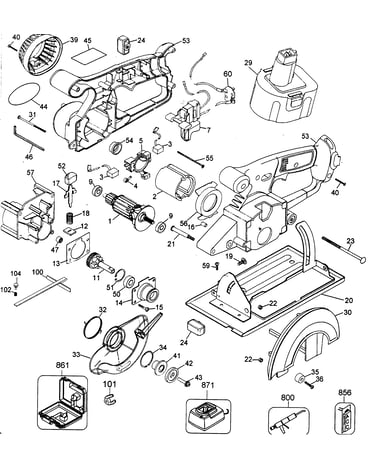

Saw diagram

Bumper

Part #389132-00

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Bearing 330003-08
#50

Saw diagram

Power tool bearing

Part #330003-08

The manufacturer no longer makes this part, and there's no substitute part

Brush Ring 382178-01
#5

Saw diagram

Brush ring

Part #382178-01

The manufacturer no longer makes this part, and there's no substitute part

Button 145350-00
#52

Saw diagram

Button

Part #145350-00

The manufacturer no longer makes this part, and there's no substitute part

Ndl Bearing 93128-00
#47

Saw diagram

Ndl bearing

Part #93128-00

The manufacturer no longer makes this part, and there's no substitute part

Bolt 98128-97
#23

Saw diagram

Bolt

Part #98128-97

The manufacturer no longer makes this part, and there's no substitute part

Guard 393039-00
#33

Saw diagram

Guard

Part #393039-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 150384-00
#43

Saw diagram

Screw

Part #150384-00

The manufacturer no longer makes this part, and there's no substitute part

Drill Motor Brush Spring 445860-00
#4

Saw diagram

Drill motor brush spring

Part #445860-00

The manufacturer no longer makes this part, and there's no substitute part

Gasket 393005-00
#13

Saw diagram

Gasket

Part #393005-00

The manufacturer no longer makes this part, and there's no substitute part
